Smart Air Purifier Control Board with PM2.5 Laser Sensor & Wi-Fi IoT Support

Air Purifier PCB with Laser PM2.5 Sensor is more than just a circuit board; it's the intelligent hub of your air purifier and the source of a superior experience. Integrating advanced sensing, intelligent algorithms, and stable drive, it transforms the complex purification process into a quiet, efficient, and fully automated immersive experience, forming the cornerstone for creating high-end, best-selling air purifiers.

Facebook Twitter Pinterest LinkedIn 分享

Core Features

▶ 1. Smart "Breathing", Fully Automated Purification

Equipped with a high-precision laser sensor to detect subtle changes in PM2.5/PM1.0 in real-time. Like an intelligent housekeeper, the main control board makes autonomous decisions to dynamically adjust airflow: automatically accelerating purification when pollution hits, and quietly returning to low speed once the air is clean. Users enjoy continuous pure air without any operation, achieving ultimate energy savings.

▶ 2. Peaceful Sleep, Guarding Quiet Moments

One-touch activation of exclusive Sleep Mode. The fan runs at the lowest speed, and all screens and indicators turn off, achieving "zero light and zero noise interference" to guard a comfortable night's sleep with gentle breathing.

▶ 3. Comprehensive Protection, Safe & Secure

Built-in multiple hardware-level safety lines (Over-current/Over-voltage/Short-circuit protection, Surge protection, Door detection), acting like a "safe box" for the device, significantly improving lifespan and reliability. The Child Lock function effectively prevents accidental touches, giving families with children peace of mind.

▶ 4. Visible Purity, Transparent Interaction

Supports various colorful displays to clearly present Air Quality, Temp/Humidity, and Filter Life. Making "purification effects visible" greatly enhances user trust. Smart filter reminders are calculated based on actual usage, prompting timely replacement to ensure consistent performance and prevent secondary pollution.

▶ 5. Whole-House Intelligence, Response on Call

Reserved standard Wi-Fi/Bluetooth interface for easy App remote control, scheduling, and OTA upgrades. Compatible with mainstream voice assistants (e.g., Google Assistant, Alexa), allowing users to control via voice commands, seamlessly integrating into the smart home ecosystem.

▶ 6. High Efficiency & Silence, Powered by Strong Core

Utilizes advanced Brushless DC (BLDC) motor drive technology, supporting stepless precise speed control. Compared to traditional motors, it significantly reduces energy consumption while delivering powerful airflow, operating quieter and lasting longer—perfectly balancing performance and efficiency.

▶ 7. Proven Quality, Reliable Promise

Adopts industrial-grade components and optimized PCB design to ensure long-term stable operation in complex home environments. This not only lowers after-sales costs but also serves as a solid endorsement for product durability and a premium brand image.

Product Detail Images

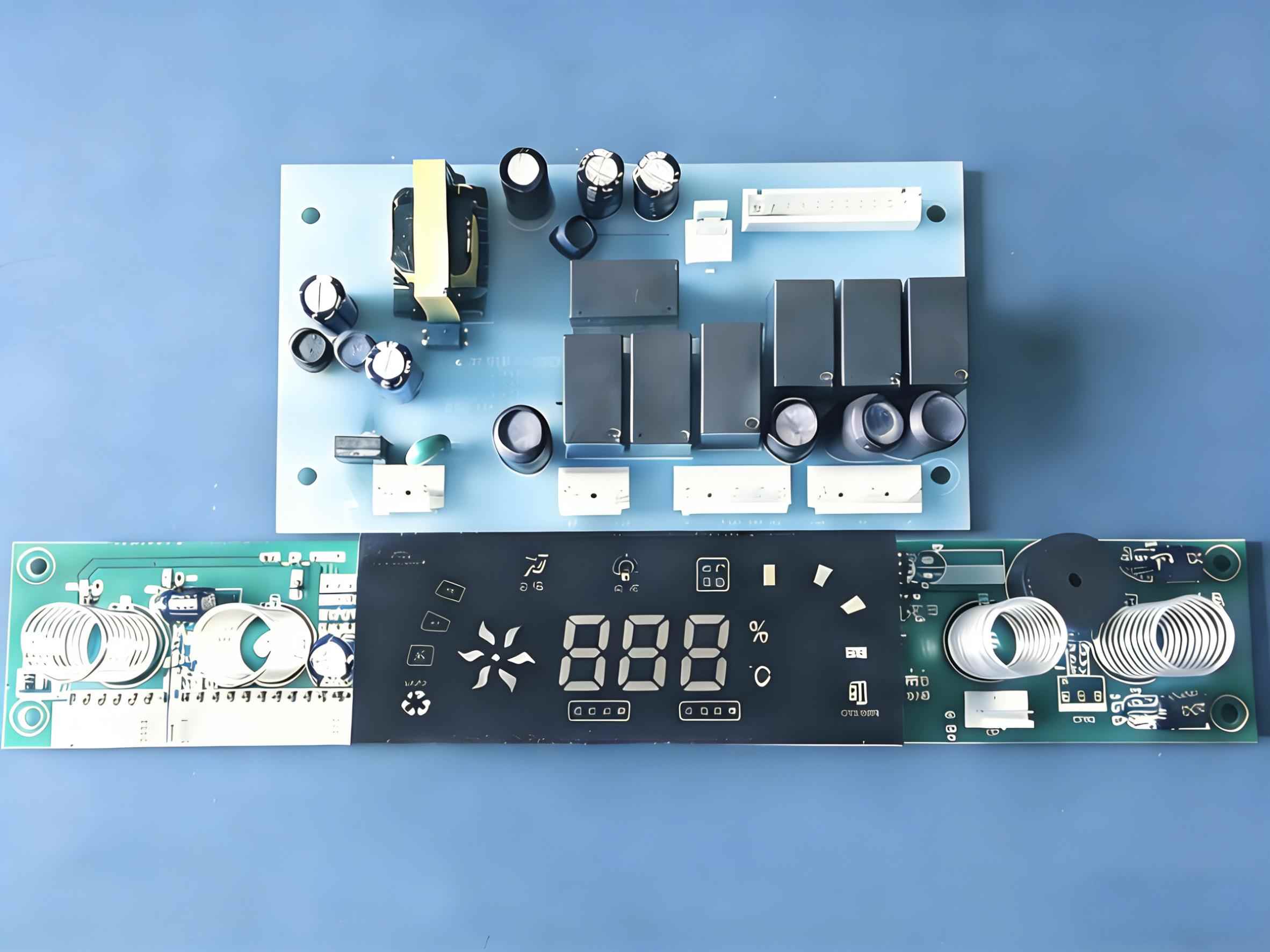

Intelligent Air Quality Monitor Control Board featuring PM2.5 laser sensor interface.

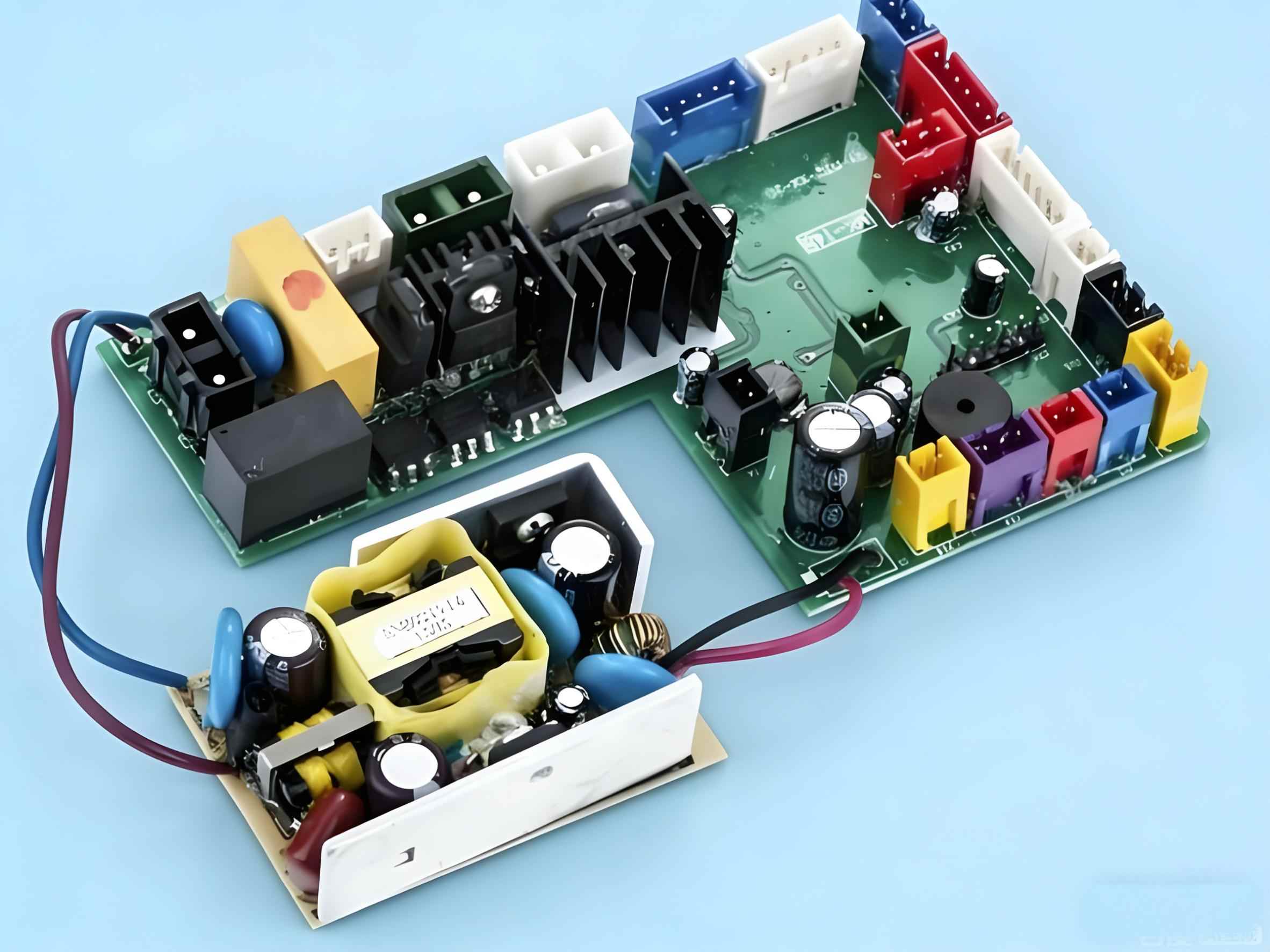

Quiet 24V BLDC brushless motor driver module for home air purifiers

Main Application Areas

▶ Home Smart Air Purifiers
▶ Commercial & Office Purification
▶ Integrated Fresh Air Systems (HVAC)
▶ Vehicle-mounted Air Purification
▶ Other Smart Environmental Appliances

Technical Specifications

Input Voltage DC 24V / 2.5A
Standby Power < 0.8W
Compatible Fan Brushless DC Motor (BLDC)
Sensor Interface Laser Dust (PM2.5), TVOC, Temp & Humidity
Communication Module Wi-Fi (2.4GHz) / Bluetooth 4.2
Display Support LED Digital Tube / LCD / OLED (I2C)
PCB Dimensions 110mm x 75mm
Operating Temperature -10°C to 60°C
This main control circuit board is more than just a component; it's the "soul" of your air purification product. Through intelligent, safe, and user-friendly design, it transforms technological advantages into a superior user experience, making it key to standing out in a highly competitive market.
