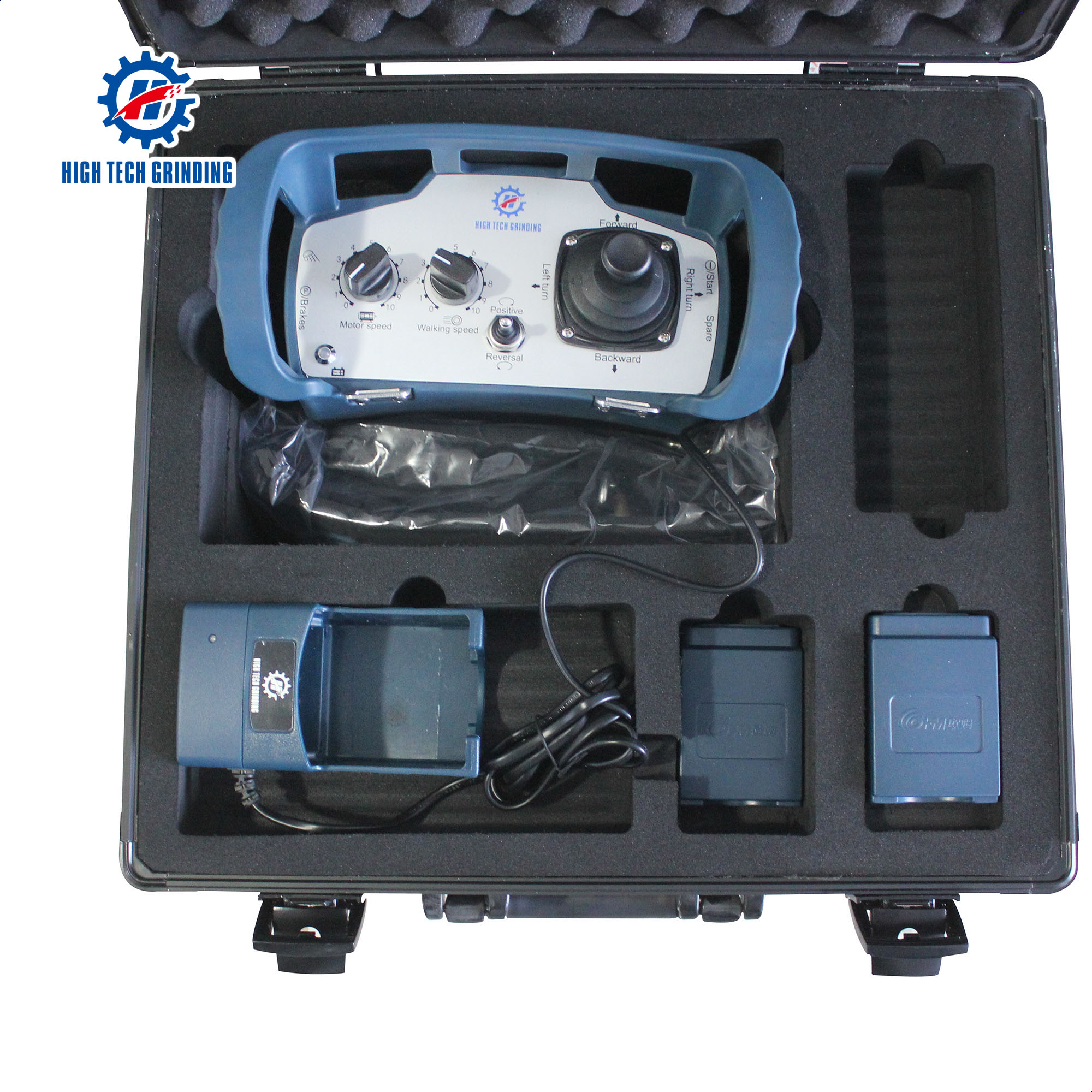

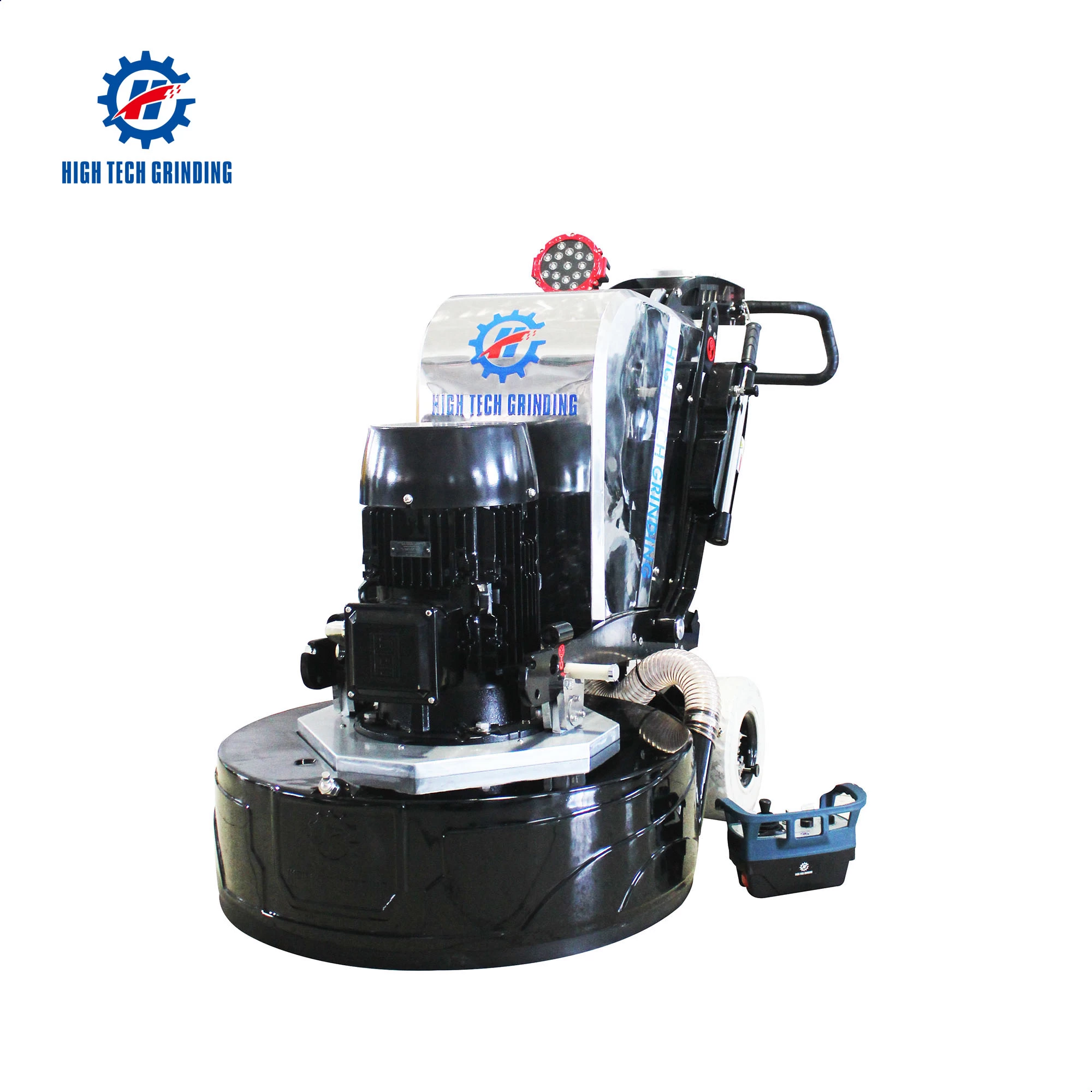

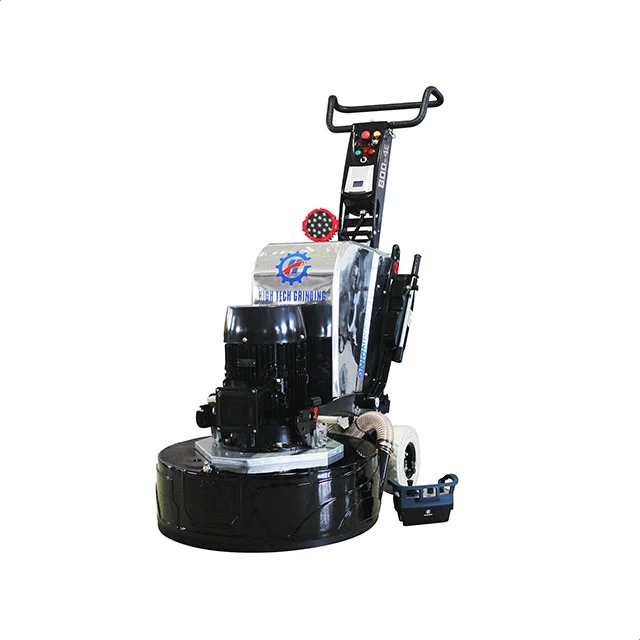

smart remote control floor grinding machine HTG-800-4
|
Motor:
|
Efficient15KW(20HP) motor
|
|
Inverter:
|
Delta18.5KW(25HP)
|
|
Working width
|
800mm
|
|
Grinding disc
|
256mm*4
|
|
Motor rotating speed
|
450rpm-1950rpm
|
|
Machine net weight
|
555kg（Including additional weight 20kg*2)
|
|

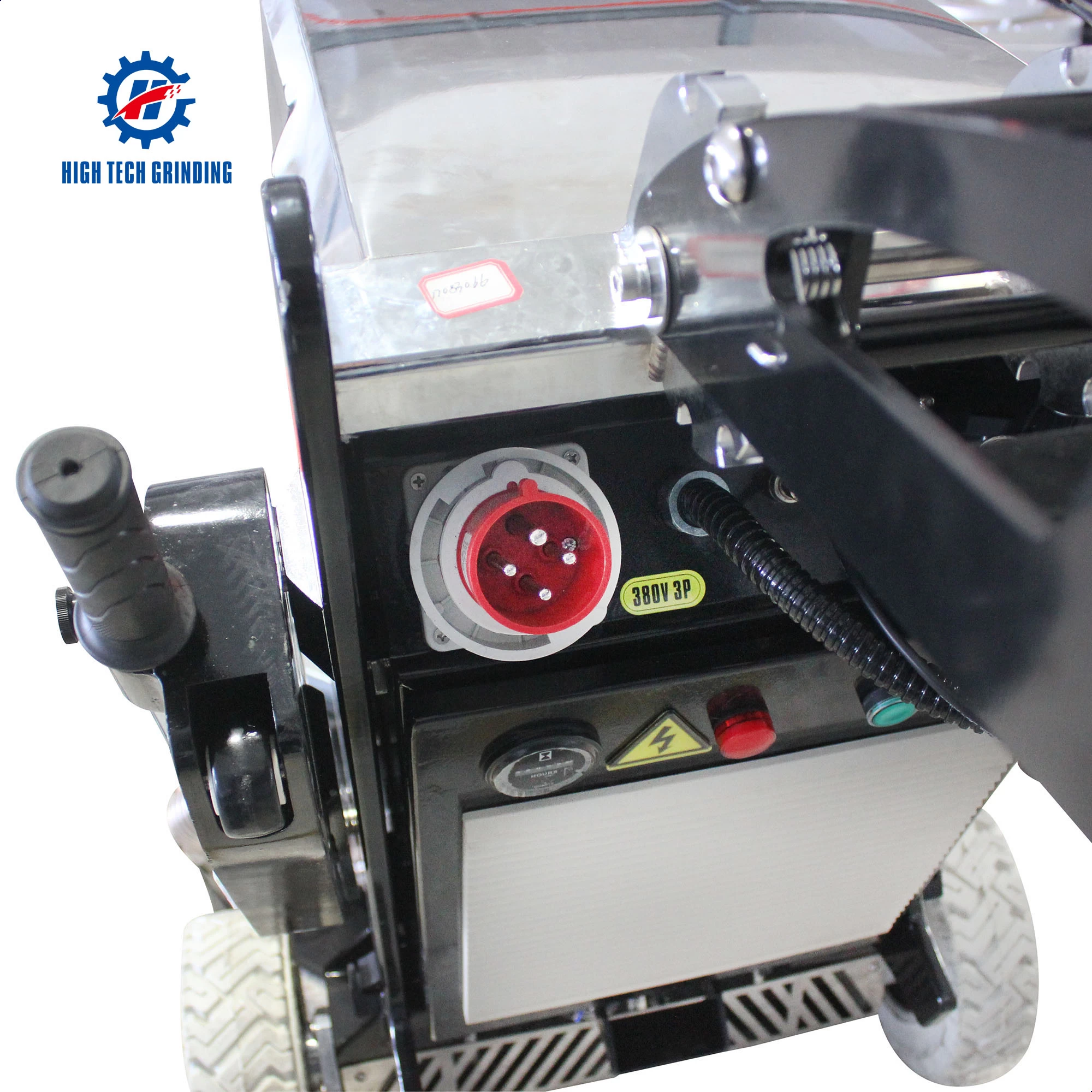

Voltage
|
220v/380v Three phase
|
|
Grinding pressure
|
245kg-265kg-285kg
|
|
Water tank
|
No
|
High Tech remote control floor grinding machine HTG-800-4E surface treatment have achieved special balance between devices power, design and grinding speed, efficiency. With patented four-head planetary technology makes High Tech remote control floor grinding machine HTG-800-4E standing out from other machines; it provides users with control performance from the pre-treatment, grinding and polishing of concrete flooring to stone repairing and polishing.

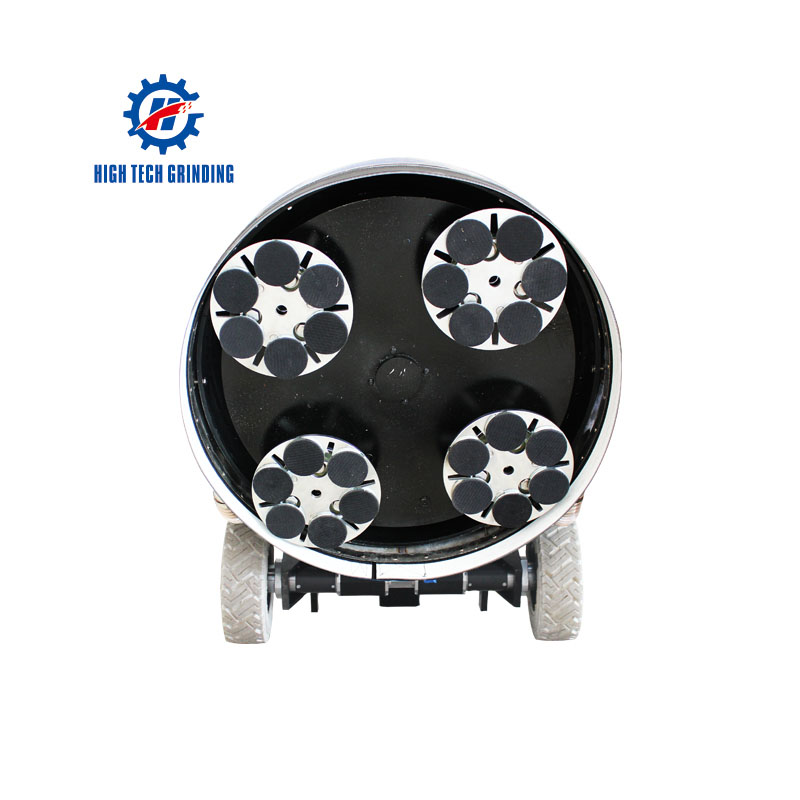

grinding disc

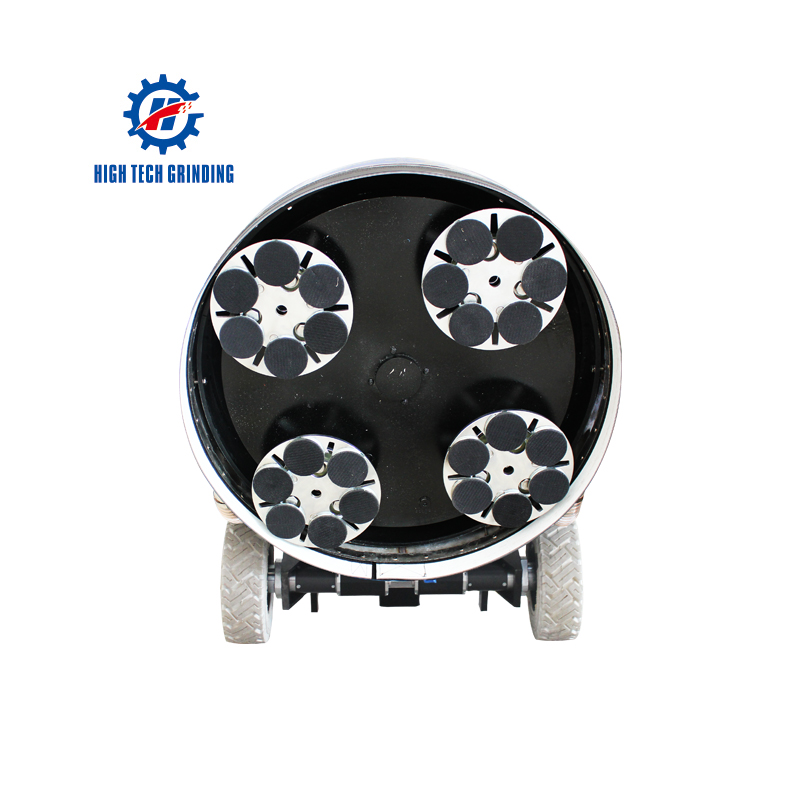

High Tech remote control floor grinding machine HTG-800-4E with unique and patented planetary four-heads driving system, which achieved the innovation of low maintenance gear driving planetary head rotation system.
High Tech remote control floor grinding machine HTG-800-4E with four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than XY-Q9A machine.

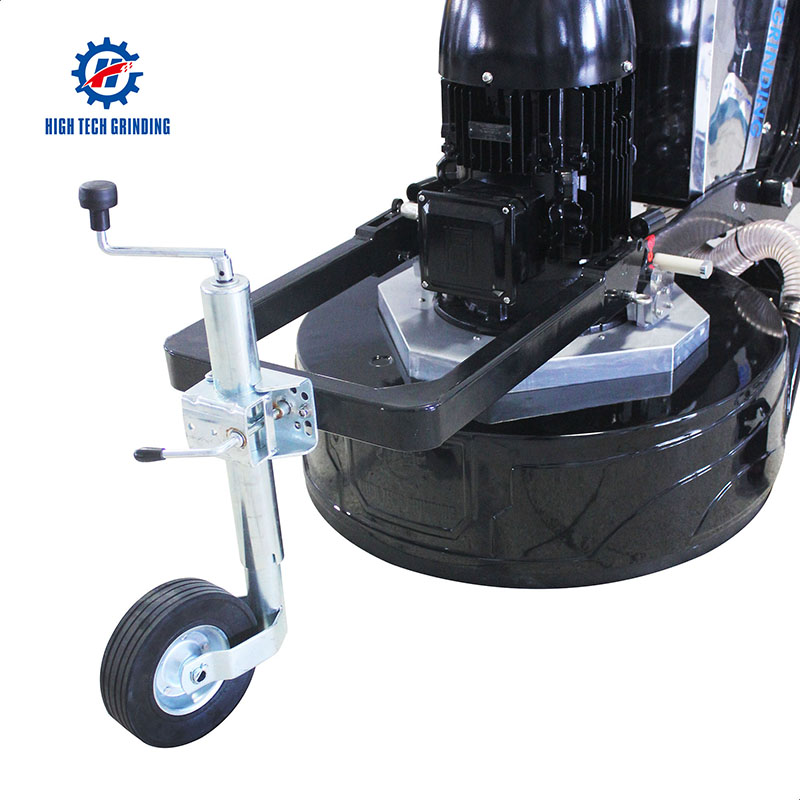

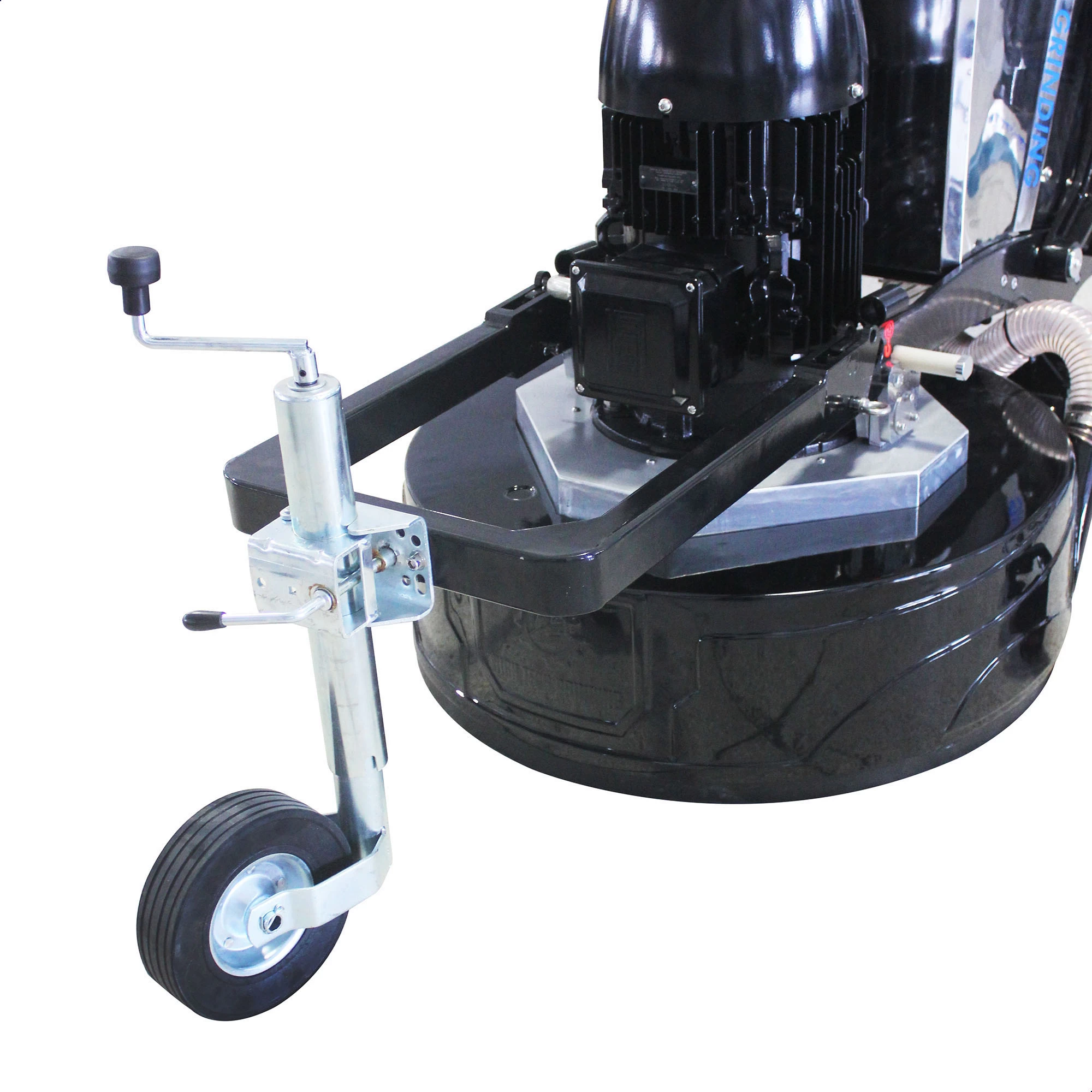

screw jack

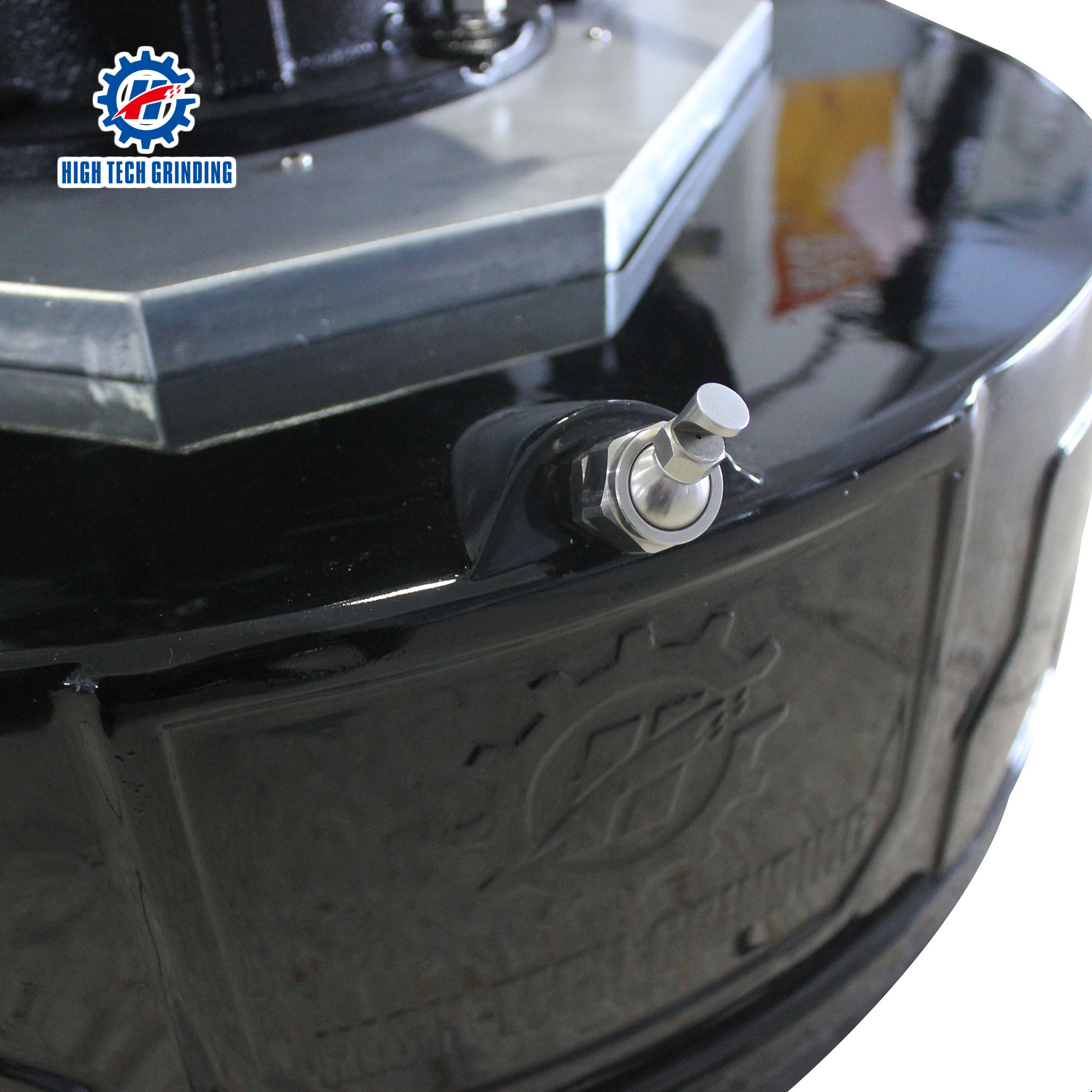

dust cover
High Tech remote control floor grinding machine HTG-800-4E with special and patented floating dust cover is a breakthrough of traditional abrasive dust cover.When replacing the abrasives, the dust cover will not fall off the machine, which solved the traditional grinding problem of re-installing the dust cover then to improve the efficiency from details.
