SMB Jack Male to SMA Female RF Coaxial Connector Adapter

SMB adapters Features:

  • Allow to interface SMB connectors with BNC, N, SMA or SMB connectors;
  • Has jack to female, jack to jack, jack to male, jack to plug, plug to female; plug to jack, plug to male or plug to plug gender designs;
  • Has 50 Ohm or 75 Ohm impedance;
  • Has bulkhead or mountless configurations;
  • Broadband performance with low reflection DC to 4 GHz, up to 10 GHz;
  • Snap-on coupling mechanism;
  • Various materials including an option for die cast components on low-cost solution.

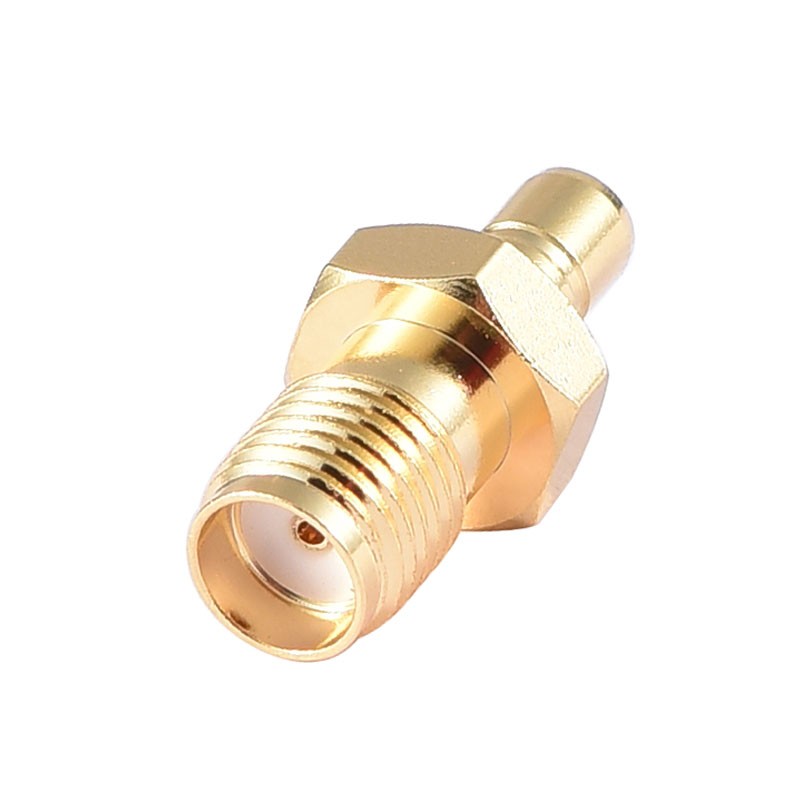

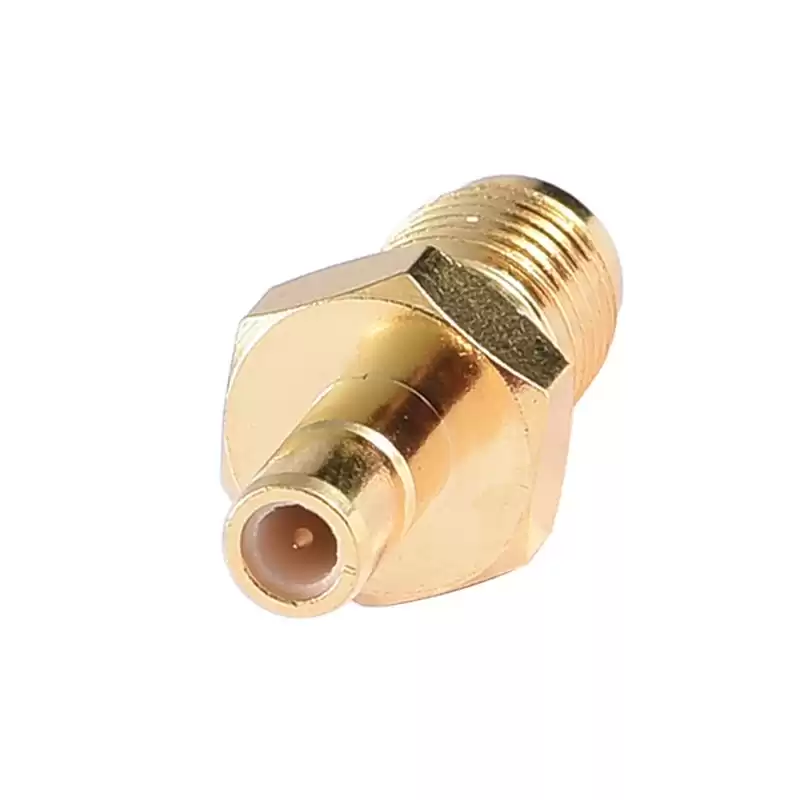

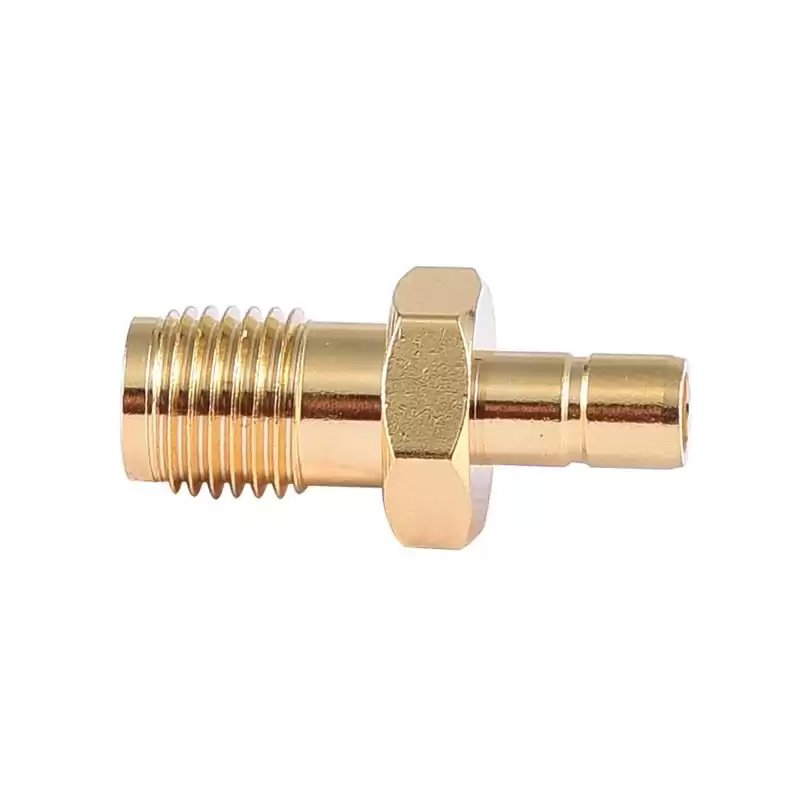

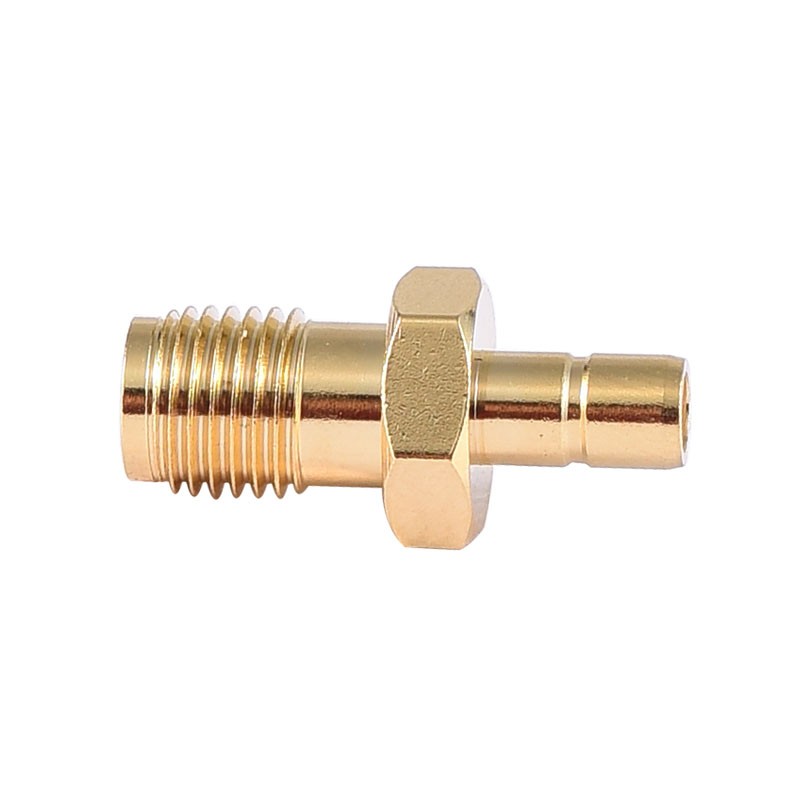

SMB Jack Male to SMA Female RF Coaxial Connector Adapter



The SMB Adapter has different SMB to SMA adapter gender, that is a between series coaxial adapter, The SMB to SMA adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm impedance. This SMB jack to SMA female adapter has a maximum frequency of 4GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series SMB
Adapter Side 1 Style Jack
Adapter Side 2 Series N
Adapter Side 2 Style Female
Frequency (Max GHz) 4
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antennas, CCTV
  • Digital communication systems
  • HAM radios,
  • Microwave applications
  • Wireless LAN devices
