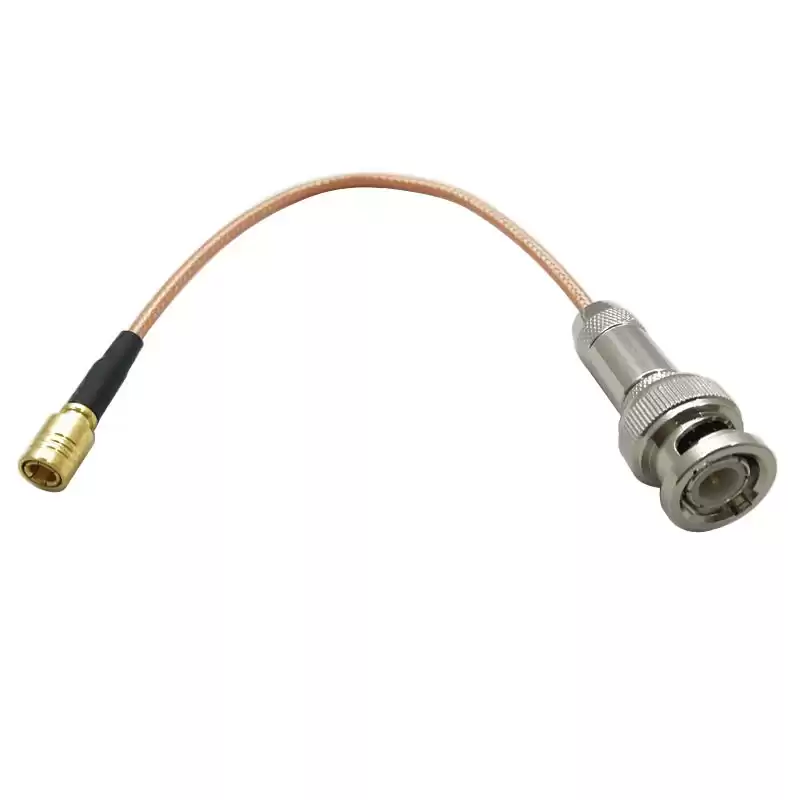

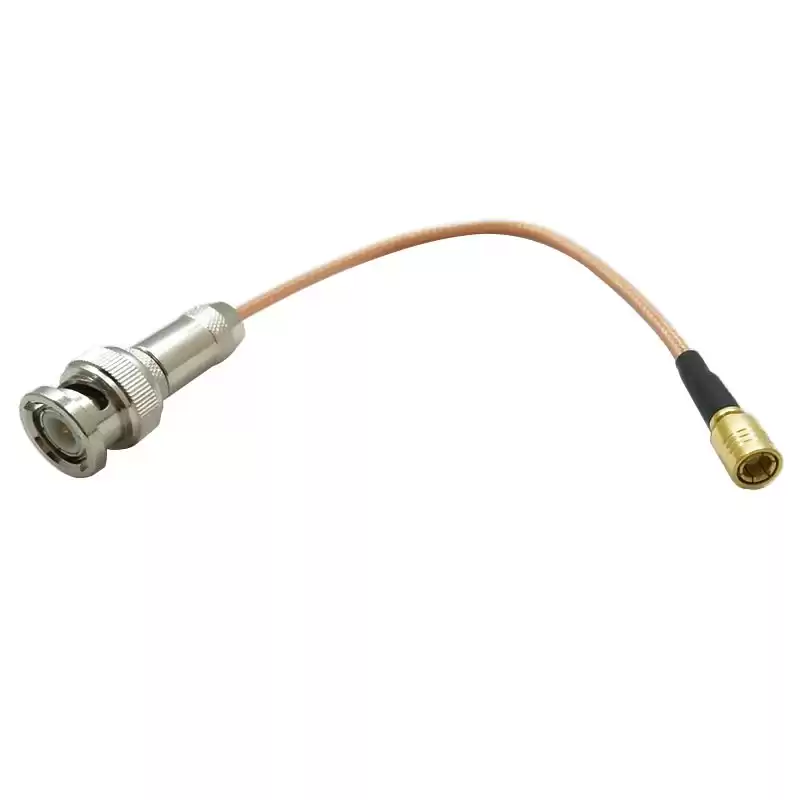

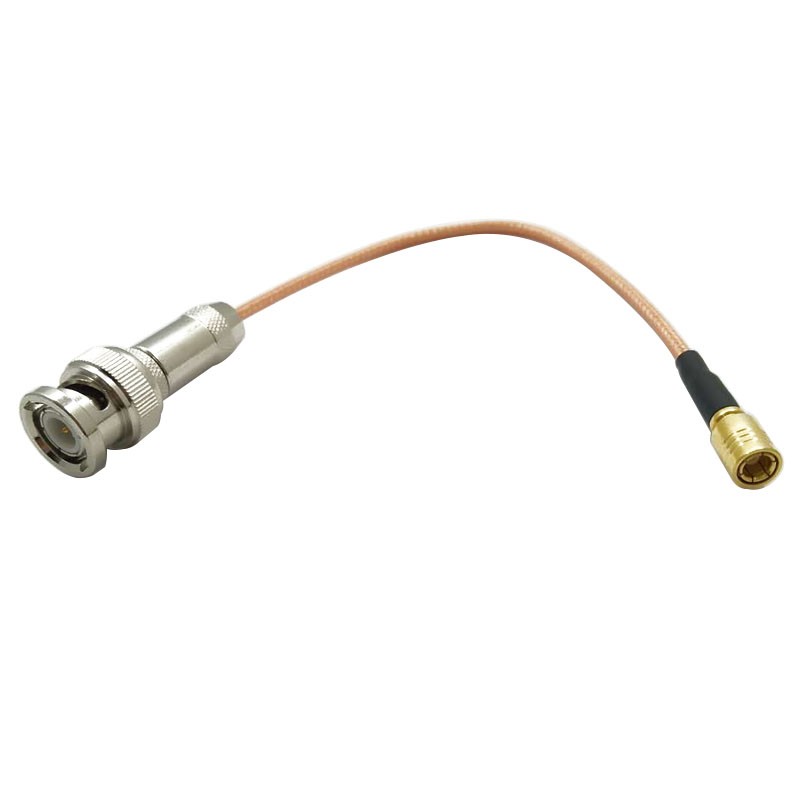

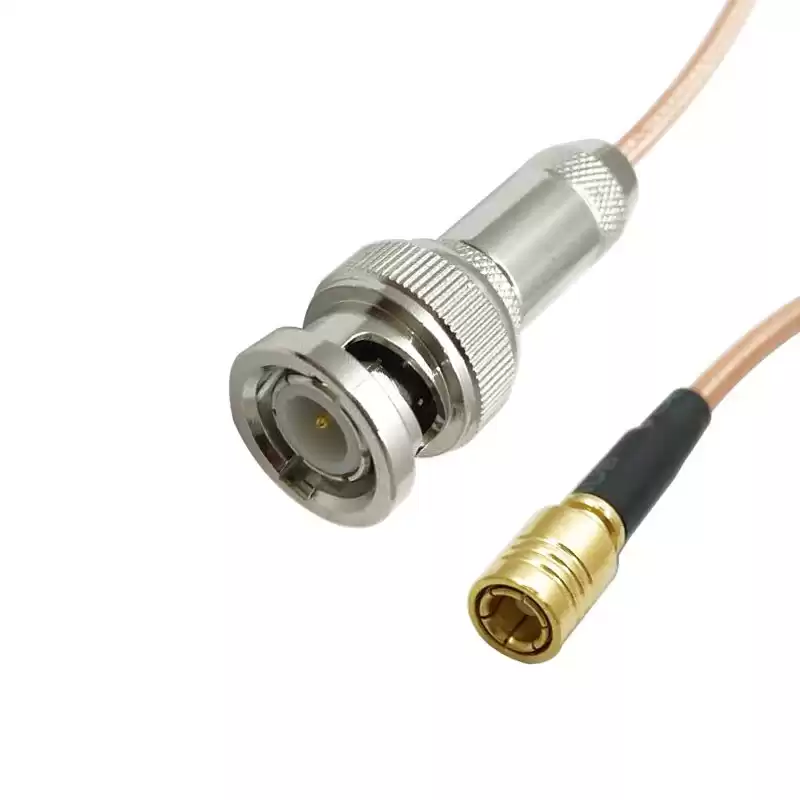

SMB Plug Female to BNC Male RF Coaxial Cable Assembly with RG316 Cable
The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to BNC cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB plug to BNC male cable assembly uses a 50ohm straight SMB for connector 1 and a 50ohm straight BNC for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMB |
| Connector 1 Style |
Str Plug |
| Cable Type |
RG316 |
| Connector 2 Series |
BNC |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
4GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas
- Base Stations
- Radio Boards
- Global Positioning System (GPS)
- Instrumentation
- PC/LAN
