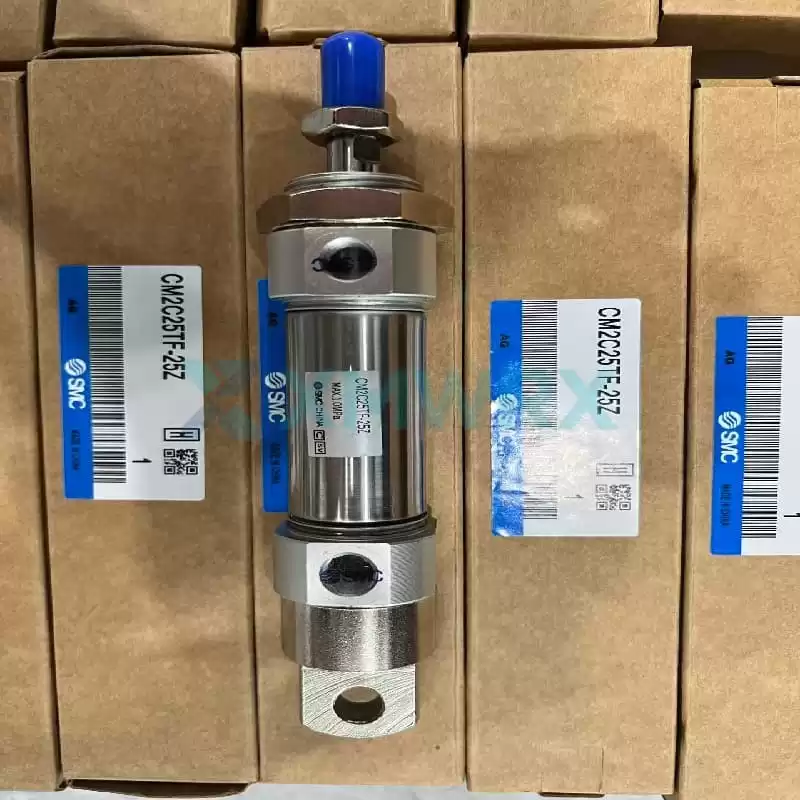

SMC CM2025TF-25Z CM2-Z Series Double-Rod Double-Acting Standard Cylinder

Core Features

• ✓  Double-acting, double-bar design: Provides smooth push and pull forces, and the double-bar structure offers better torsional resistance.
• ✓  Flange mounting: Utilizes rod-side flange (TF) mounting for a secure and reliable fixation.
• ✓  Rubber cushioning: Rubber cushions at both ends of the piston absorb impact at the end of the movement, reducing noise.
• ✓  Position detection support: The cylinder body can be fitted with a magnetic switch (models without a "C" indicate the switch is not included) for automated position detection.

Q: What automation scenarios is this cylinder suitable for?

A: It is ideal for scenarios requiring precise linear motion and a certain degree of torsional resistance, such as clamping, positioning, blocking, and pushing. The double-rod structure effectively prevents piston rod rotation, ensuring the stability of the end effector (such as a gripper).

Q: What actions can a 25mm stroke typically perform?

A: 25mm is a short stroke, suitable for performing rapid, reciprocating short-distance push-pull actions. For example, driving a small gripper to pick up a workpiece, or pushing a stop for positioning.

Q: What precautions should be taken when installing a magnetic switch?

A: This model (CM2025...) does not have a built-in magnetic ring. If you need to use a magnetic switch to detect position, please confirm whether the actual product is magnetic (models usually start with CDM20...). The switch can be directly inserted into the cylinder slot; adjusting the position sets the detection point.
