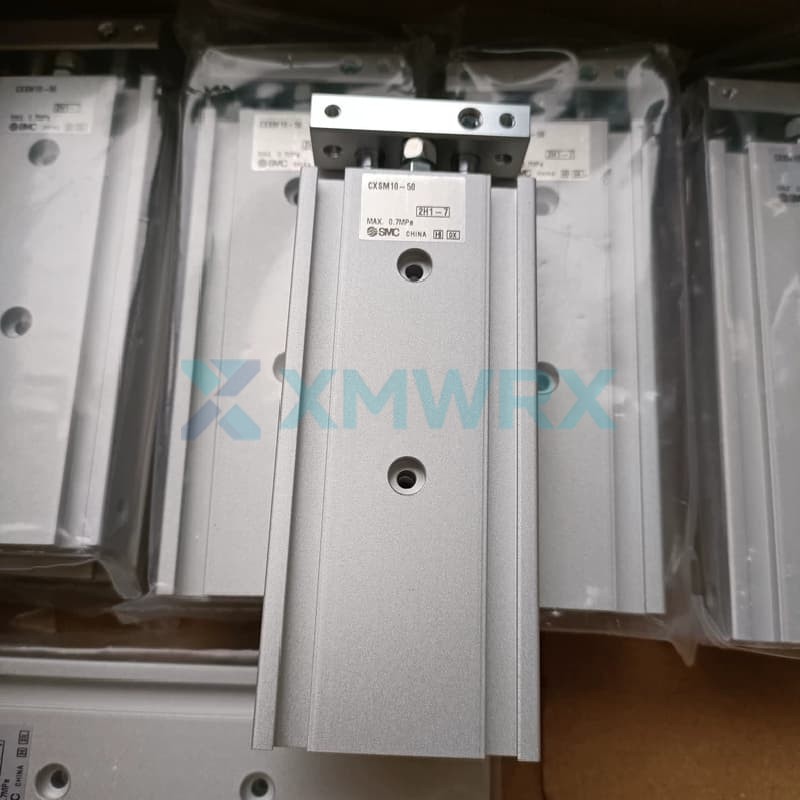

SMC CXSM10-50 CXS series dual-rod cylinders with guide rods

Core Features

• ✓  High torsional precision: Utilizing a double-rod and guide rod structure, it effectively prevents piston rod rotation, making it suitable for applications requiring precise positioning.
• ✓  Compact design: While ensuring performance, its compact size saves installation space and supports multi-directional mounting.
• ✓  Flexible installation and monitoring: The working part can be mounted from three directions, and an internal magnetic ring facilitates the installation of external magnetic switches for position detection.
• ✓  Various customization options: Offers various customized specifications, such as low-speed, heat-resistant, and different bearing types, to adapt to different application environments.

Q: What are the main applications of the CXSM10-50?

A: It is designed specifically for pick and place applications and light-load material handling. With its high torsional accuracy and compact structure, it is ideal for automated equipment requiring precise linear motion, such as small assembly lines and inspection equipment.

Q: What is the theoretical output force of the CXSM10-50?

A: Taking a working pressure of 0.5 MPa as an example, its theoretical output force is 78.5 N when extended and 50.0 N when retracted. Note that these are theoretical values; actual applications require consideration of factors such as load rate.

Q: Can sensors be installed on the CXSM10-50?

A: Yes. This cylinder has a built-in magnetic ring and a switch mounting slot, making it compatible with various SMC automatic switches (such as D-M9N, D-M9P, D-M9B, etc.).
