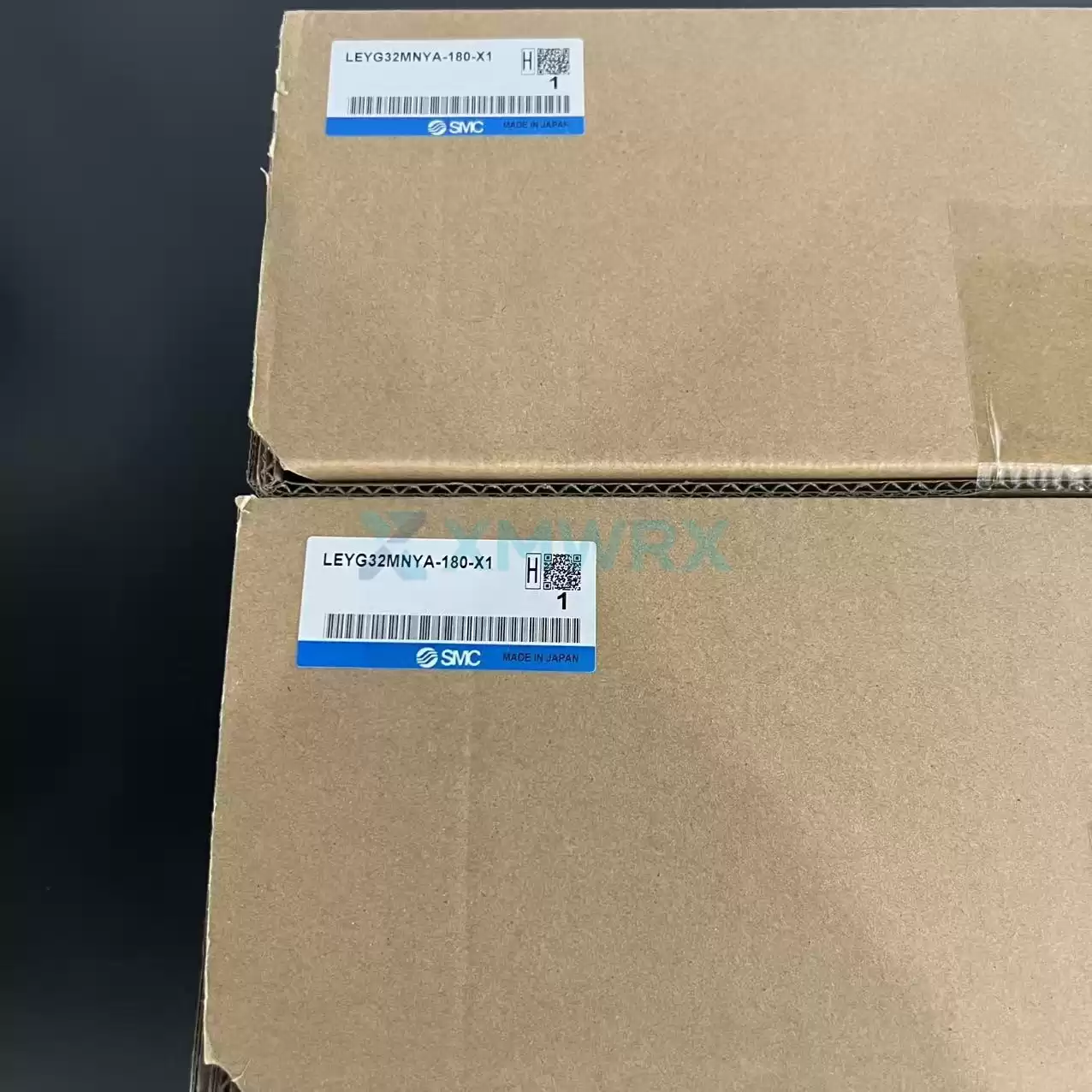

SMC LEYG32MNYA-180-X1 Electric actuators/guide rod type electric cylinder series

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original SMC Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

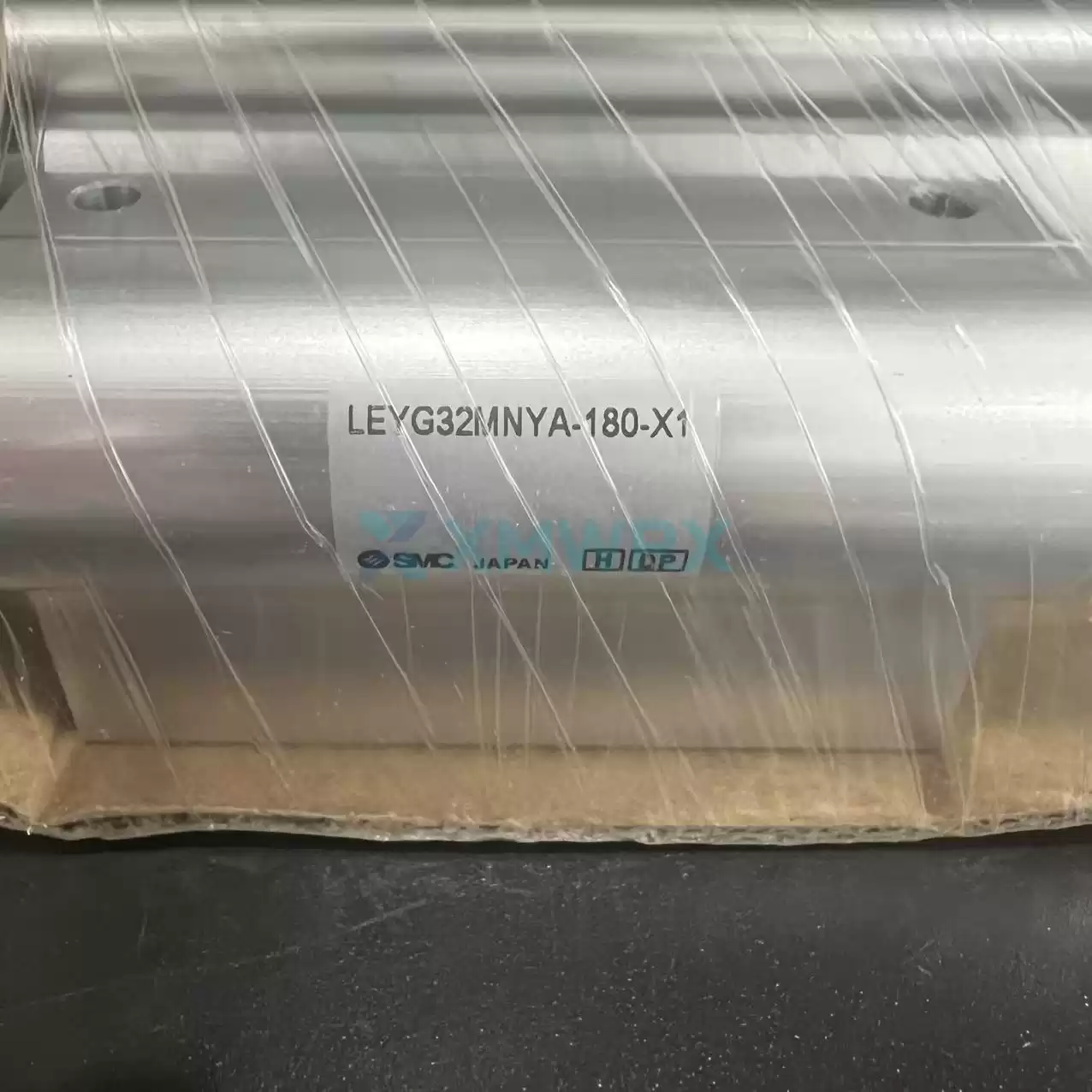

LEYG32MNYA-180-X1
Product Type Guide rod type electric actuator
Product Origin Japan
Shipping Port Xiamen
Weight 6 kg

Facebook Twitter Pinterest LinkedIn 分享

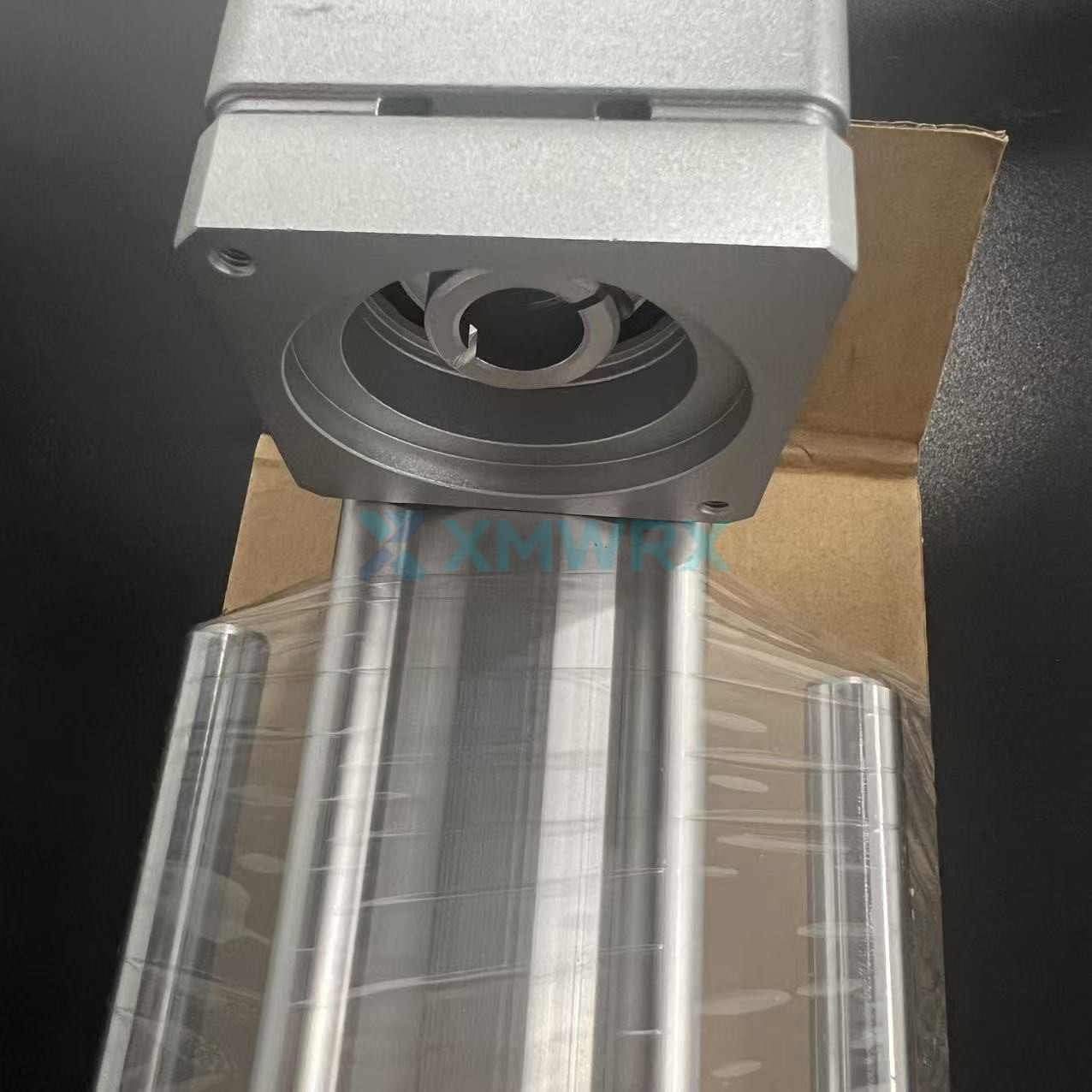

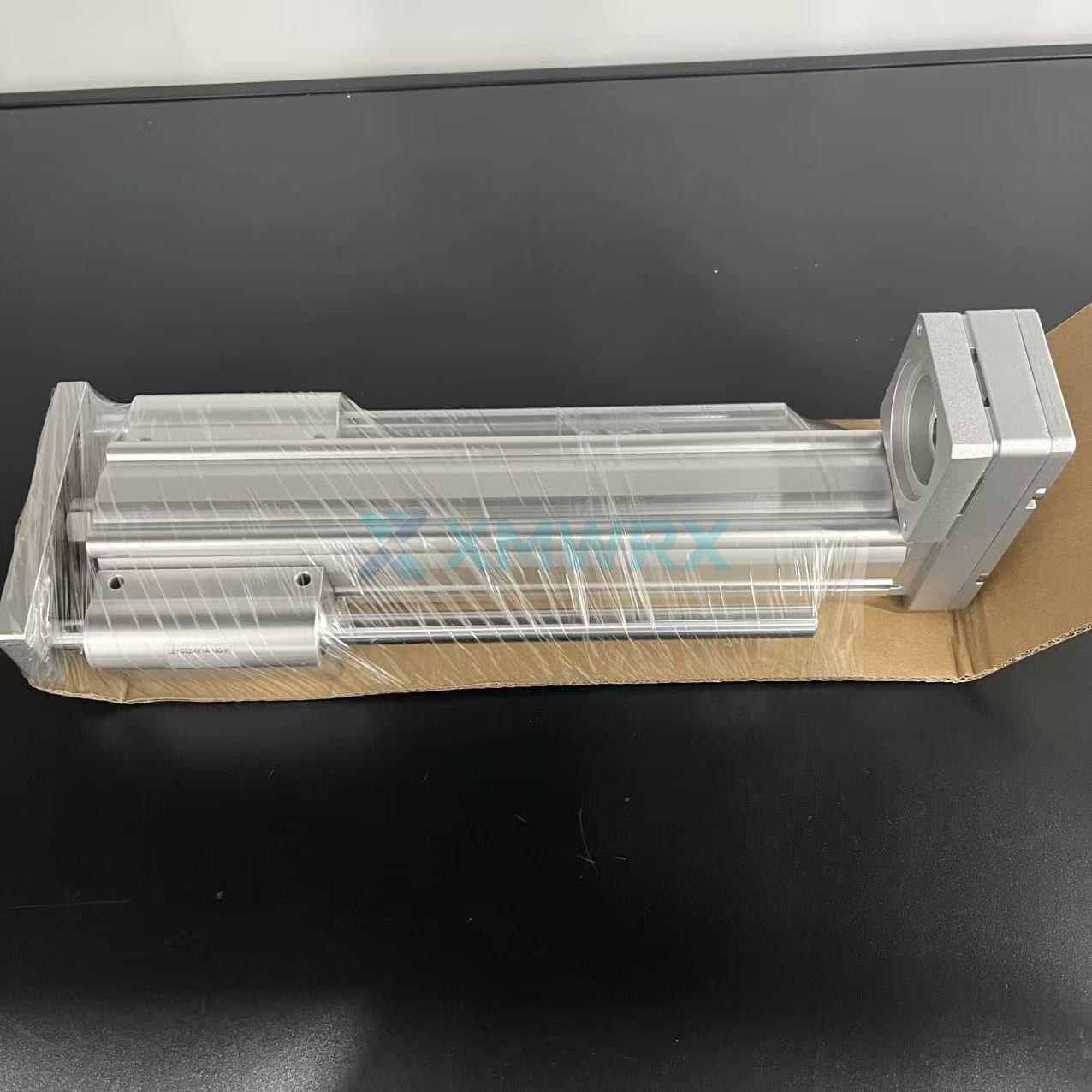

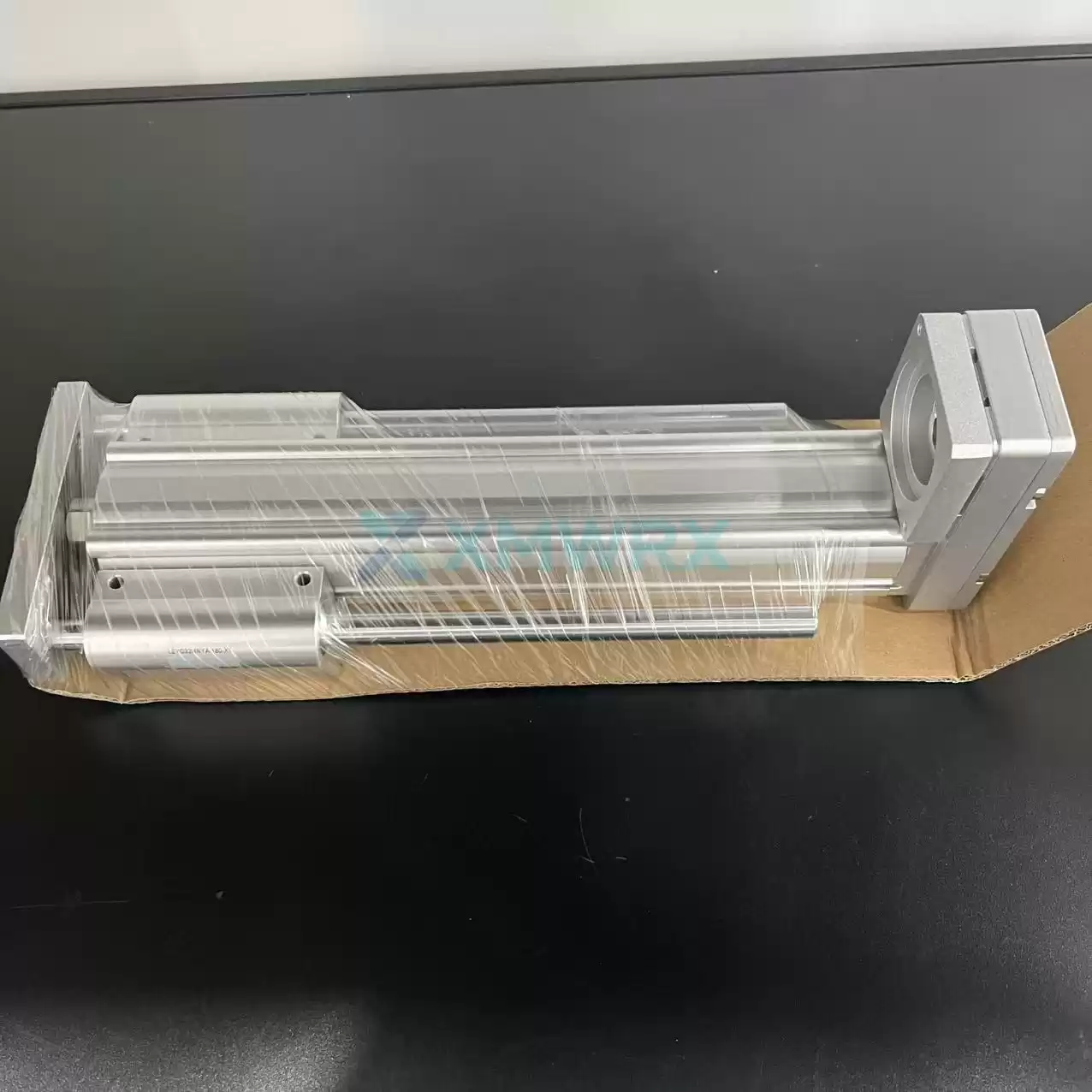

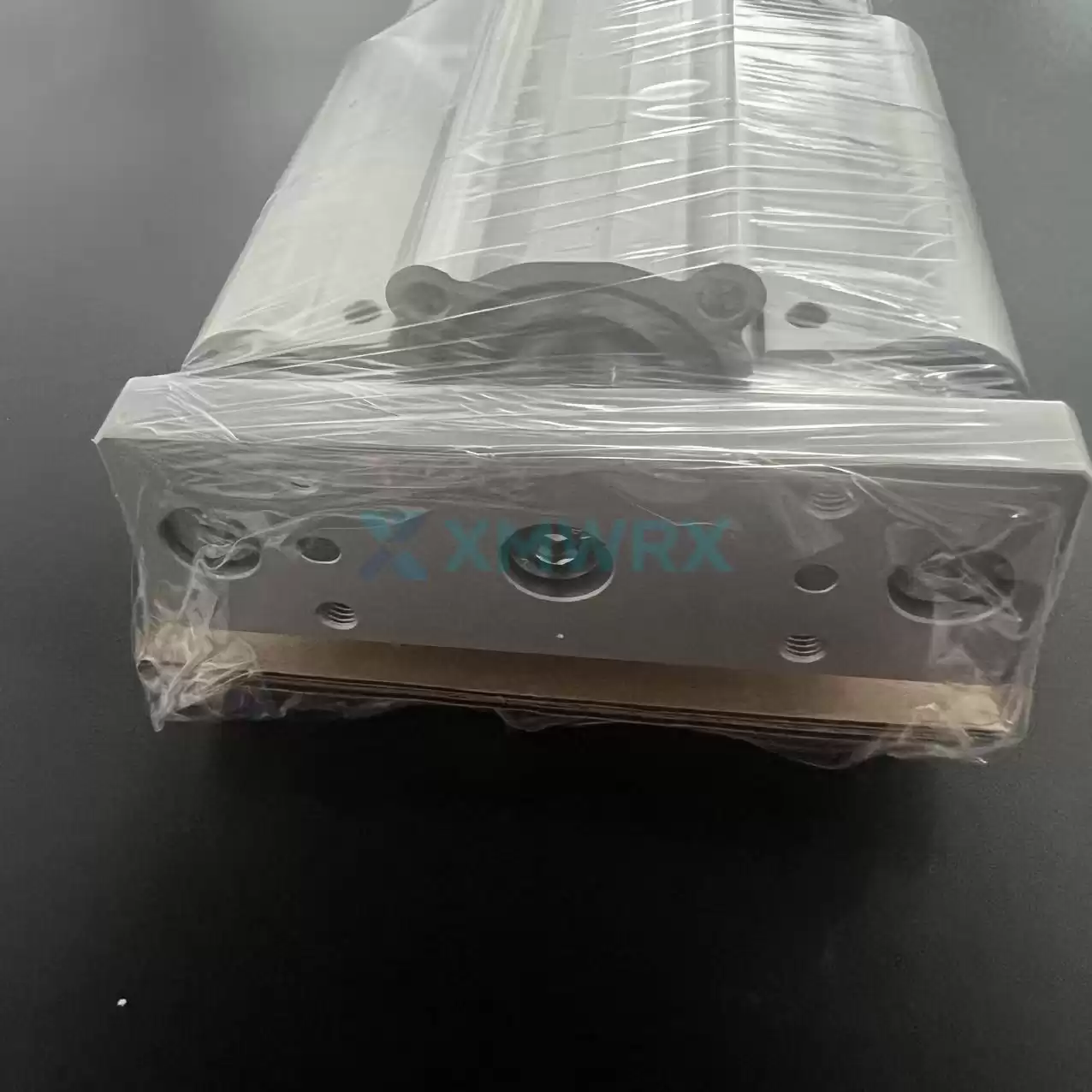

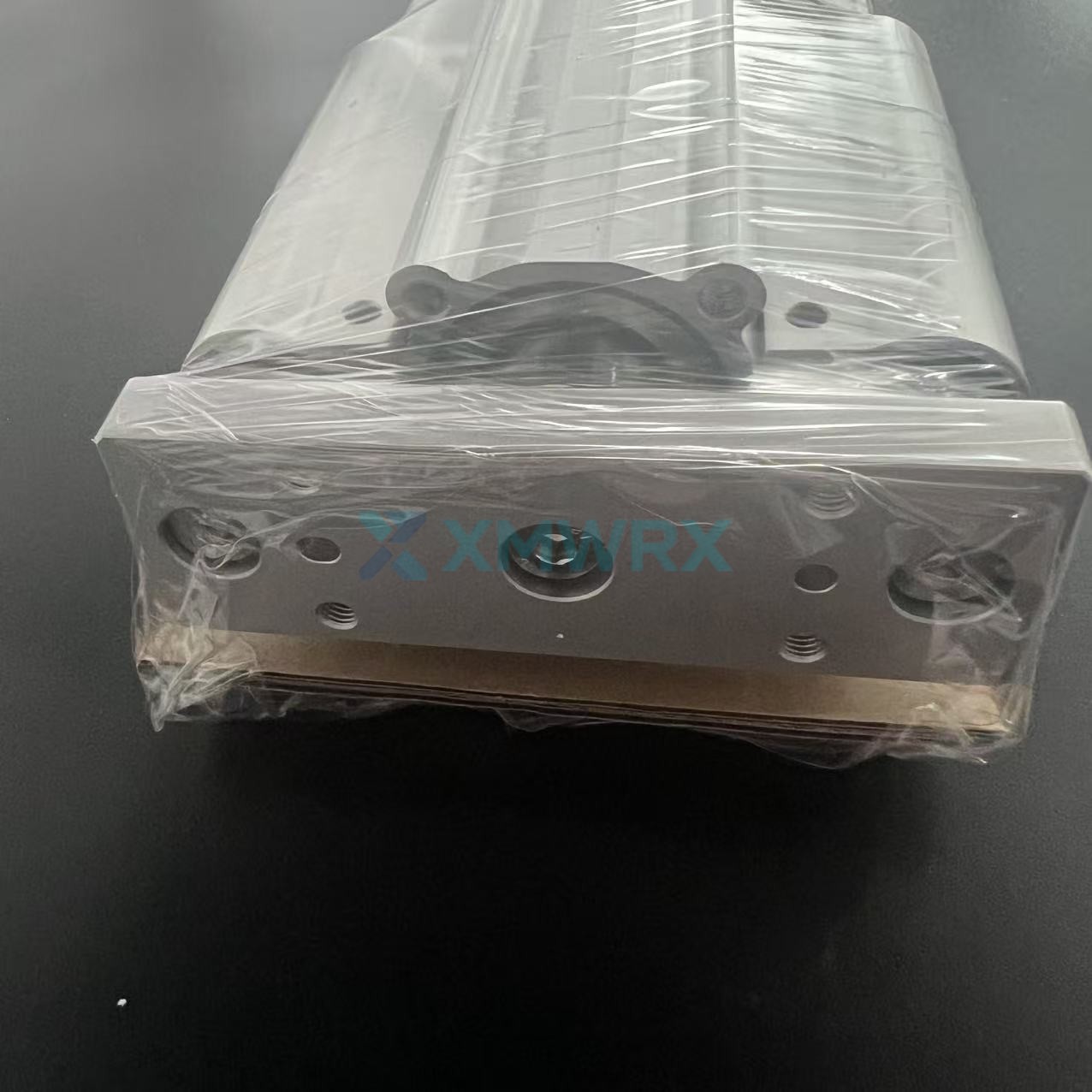

The LEYG32MNYA-180-X1 is a 32mm bore guide rod type electric actuator from SMC. Its integrated design of the guide rod and cylinder body achieves high lateral load tolerance and high-precision anti-rotation capability.

It supports both stepper motors (with encoder DC24V) and AC servo motors, enabling speed control, positioning control, and push-press control. This model boasts a repeatability of ±0.02mm and is widely used in precision handling, positioning, and pressing scenarios on automated production lines.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  High lateral load capacity: The integrated guide rod design provides 5 times the lateral load capacity of ordinary rod-type designs.
  • ✓  Switchable push control: Maintains the rod's push position on the workpiece, suitable for press-fitting and clamping applications.
  • ✓  High-precision positioning: Repeatability below ±0.02mm, supports up to 64 position settings.
  • ✓  Battery-free absolute encoder (some models): Retains position information even after power failure, eliminating the need for origin reset.

Technical Specifications

Brand/Series

SMC / LEYG32
Model / Part Number LEYG32MNYA-180-X1
Itinerary range

180mm
Maximum pressure thrust 707 N (Maximum)
Maximum speed 500 mm/s (Maximum)
Lead screw lead 4 / 8 / 16 mm
Repeatability ±0.02 mm or less

Frequently Asked Questions

Q: What are the suitable applications for the LEYG32?

A: Suitable for applications requiring lateral load resistance and anti-rotation, such as workpiece pushing, clamping, blocking positioning, and vertical lifting and handling (maximum vertical load capacity 17kg).

Q: Can it be used for vertical load holding?

A: Yes. The LEYG32 can hold approximately 17kg vertically. For power-off holding, a model with a brake (lock) can be selected (model number containing "B").

Q: Must the LEYG32 be used with an SMC driver?

A: For the stepper motor/servo motor version, it is recommended to use SMC's LECP series or JXC series drivers to ensure optimal performance. However, SMC also offers motorless versions, allowing users to configure other brands of motors as needed.
