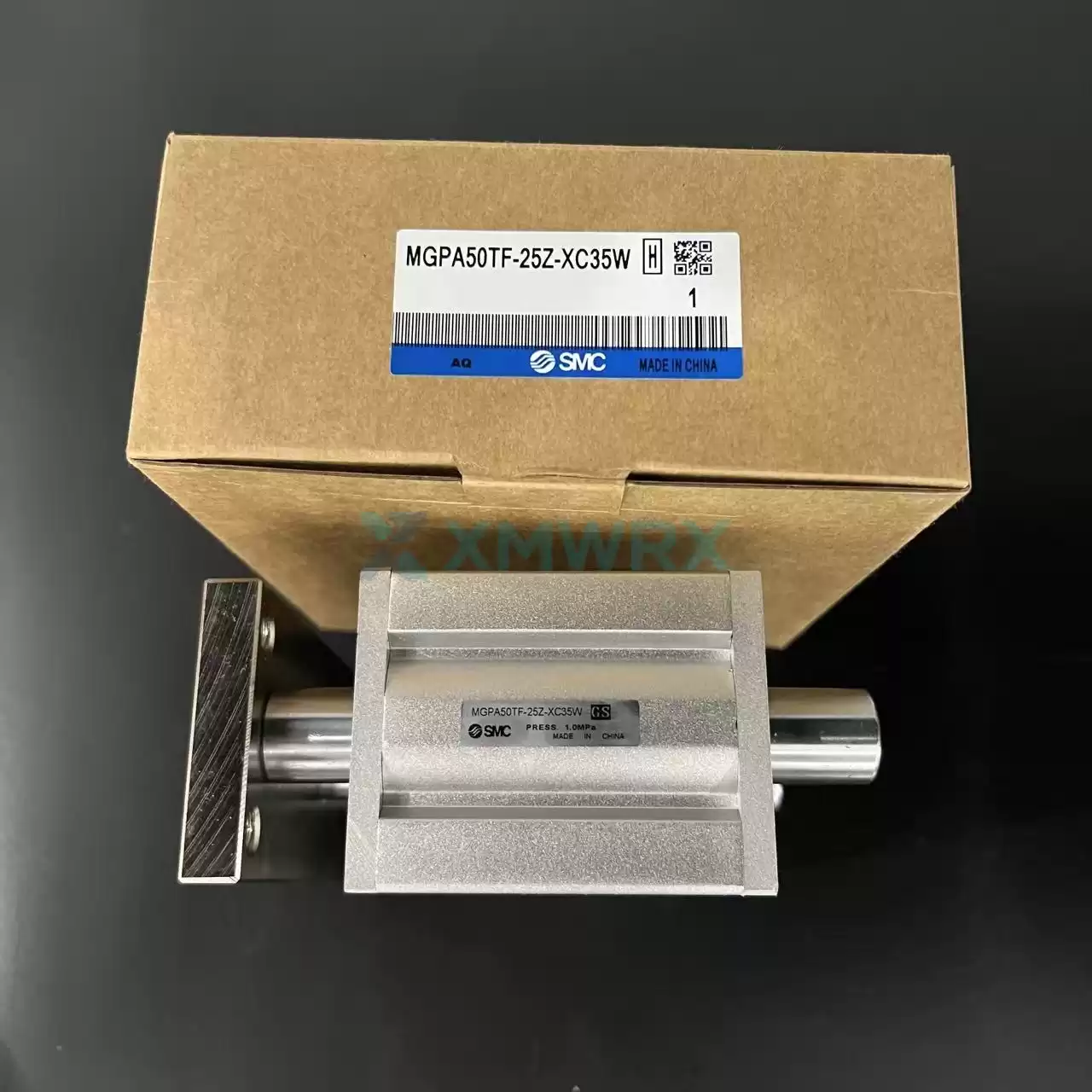

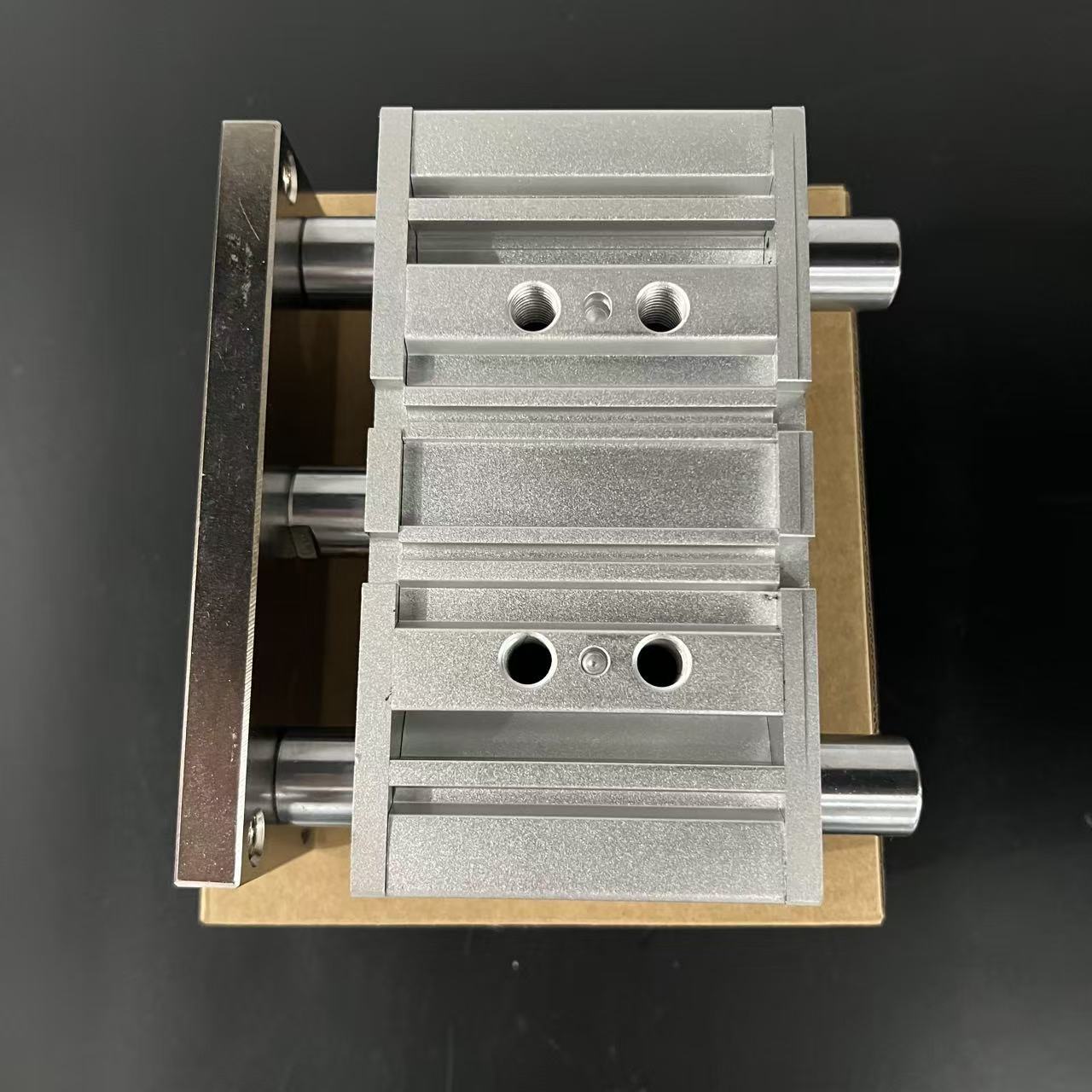

The MGPA50TF-25Z-XC35W is a thin-profile cylinder with a guide rod from SMC's MGP-Z series. It has a 50mm bore and a 25mm stroke, and is a basic model in this series, operating in a double-acting mode.
This cylinder features a high-precision ball bushing guide mechanism, offering higher motion accuracy and stronger resistance to lateral loads compared to versions with sliding bearings or ordinary ball bearings. Therefore, it is ideally suited for automation applications requiring precise positioning and high rigidity.
To reduce impact and achieve smooth operation, this model is equipped with air cushioning devices at both ends. Furthermore, as a "thin" cylinder, its compact design, with optimized end plates and guide rods, achieves significant space savings and weight reduction, with approximate dimensions of 148mm wide and 117mm high.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Frequently Asked Questions
Q: What scenarios is this cylinder suitable for?
A: It is ideal for automated equipment requiring high-precision linear motion and a certain level of torsional resistance, such as precision assembly, positioning, clamping, and transfer processes.
Q: What precautions should be taken when installing this cylinder?
A: It is important to provide clean, dry compressed air that meets specifications and ensure the flatness and rigidity of the mounting surface to achieve its high-precision guiding performance. Also, its dimensions (148mm wide x 117mm high) should be considered to allow sufficient installation space.
Q: What are its mounting accessories and interfaces?
A: This model has a G 1/4 port size; corresponding connectors and tubing should be selected. For specific installation methods and optional accessories (such as switches and mounting brackets), please refer to the SMC official selection manual. You can confirm the details by looking for special suffixes such as "XC35W" in the model number.
