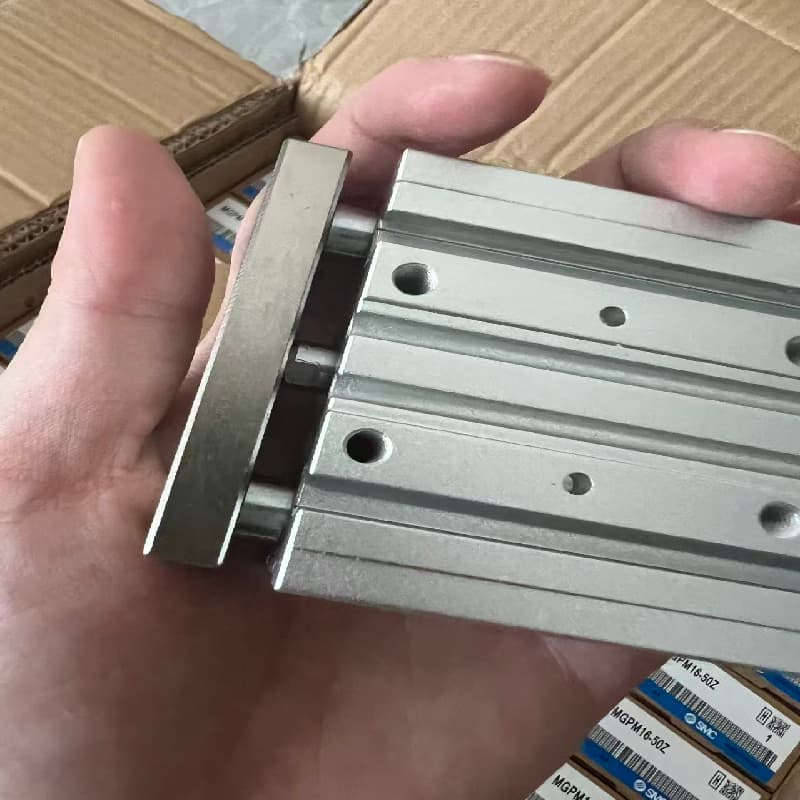

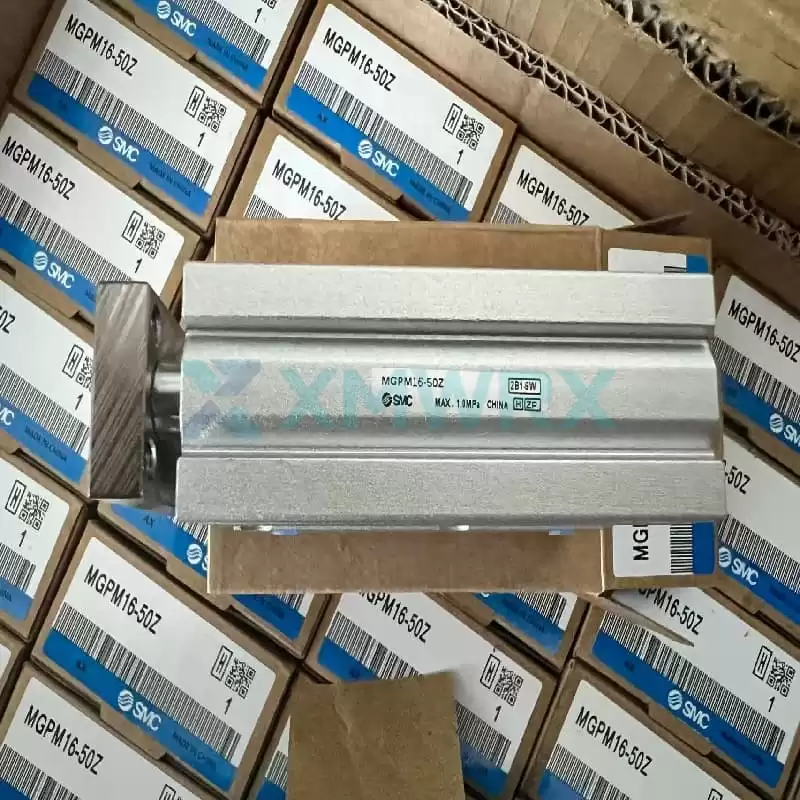

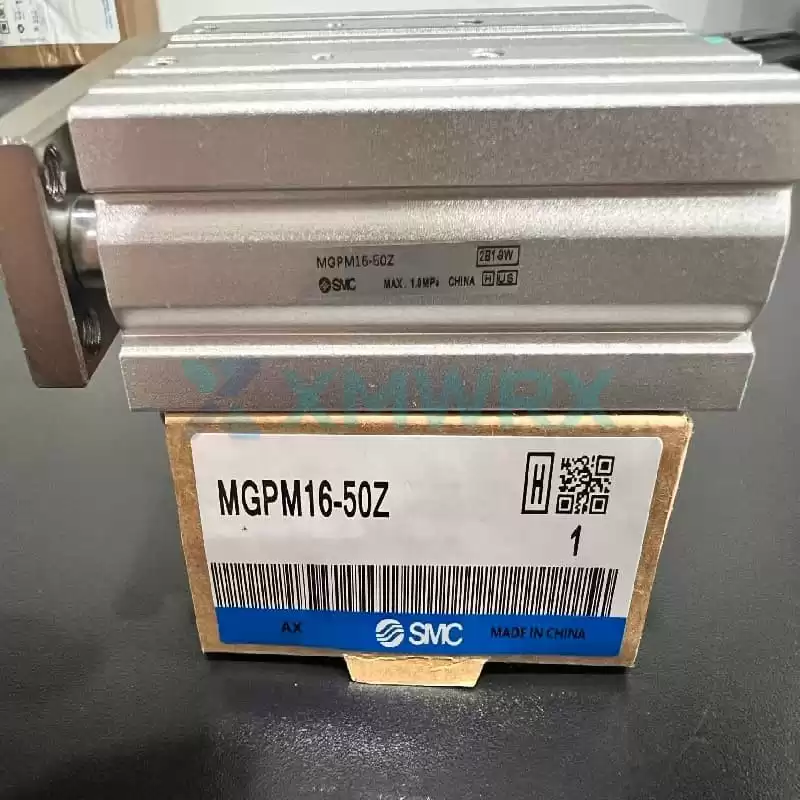

SMC MGPM16-50Z MGP-Z series Thin-film cylinders with guide rods

Core Features

• ✓  Guiding and Torsional Resistance: The built-in guide rod can directly withstand large lateral loads and torques, preventing piston rod rotation and ensuring smooth operation.
• ✓  Compact Installation: The slim design significantly saves installation space, and the shortened guide rod reduces the amount of clearance hole machining required during equipment installation.
• ✓  Dual-Action Drive: Utilizing air pressure (0.12-1 MPa) to drive the piston forward and backward, achieving bidirectional output control.
• ✓  Flexible Cushioning: Rubber cushioning (pad cushioning) at both ends effectively absorbs impact energy at the piston end, reducing noise.

Q: What lateral load can this cylinder withstand?

A: The guide rod design allows it to withstand much greater lateral forces than ordinary cylinders, but the specific value depends on speed, eccentricity, etc. For example, under horizontal installation, sliding bearing, and speed of 200mm/s, if the load center of gravity shifts by 50mm, the recommended maximum load is approximately 2kg. Actual selection should refer to the load curve provided by SMC.

Q: Is it suitable for vertical lifting applications?

A: Yes. As a double-acting cylinder, it can be used for vertical installation. However, note that power and air supply interruption protection must be considered for vertical loads, which may require the use of an external locking device or a relief valve. In vertical applications, if using sliding bearings, speed of 200mm/s, and stroke of 30mm, the permissible load is approximately 3kg (with an eccentricity of 90mm).

Q: Can a magnetic switch be installed on the MGPM16-50Z? What specific model should be used?

A: Yes, it can. The cylinder body has a pre-drilled mounting slot and an internal magnetic ring (standard configuration). It is compatible with SMC's circular magnetic switches, such as the D-M9 series (e.g., D-M9B, D-M9N, etc.) or A9 series, and can be installed directly without a partition. A complete set model with the switch (e.g., MGPM16-50Z-M9BAL) can be selected when ordering.
