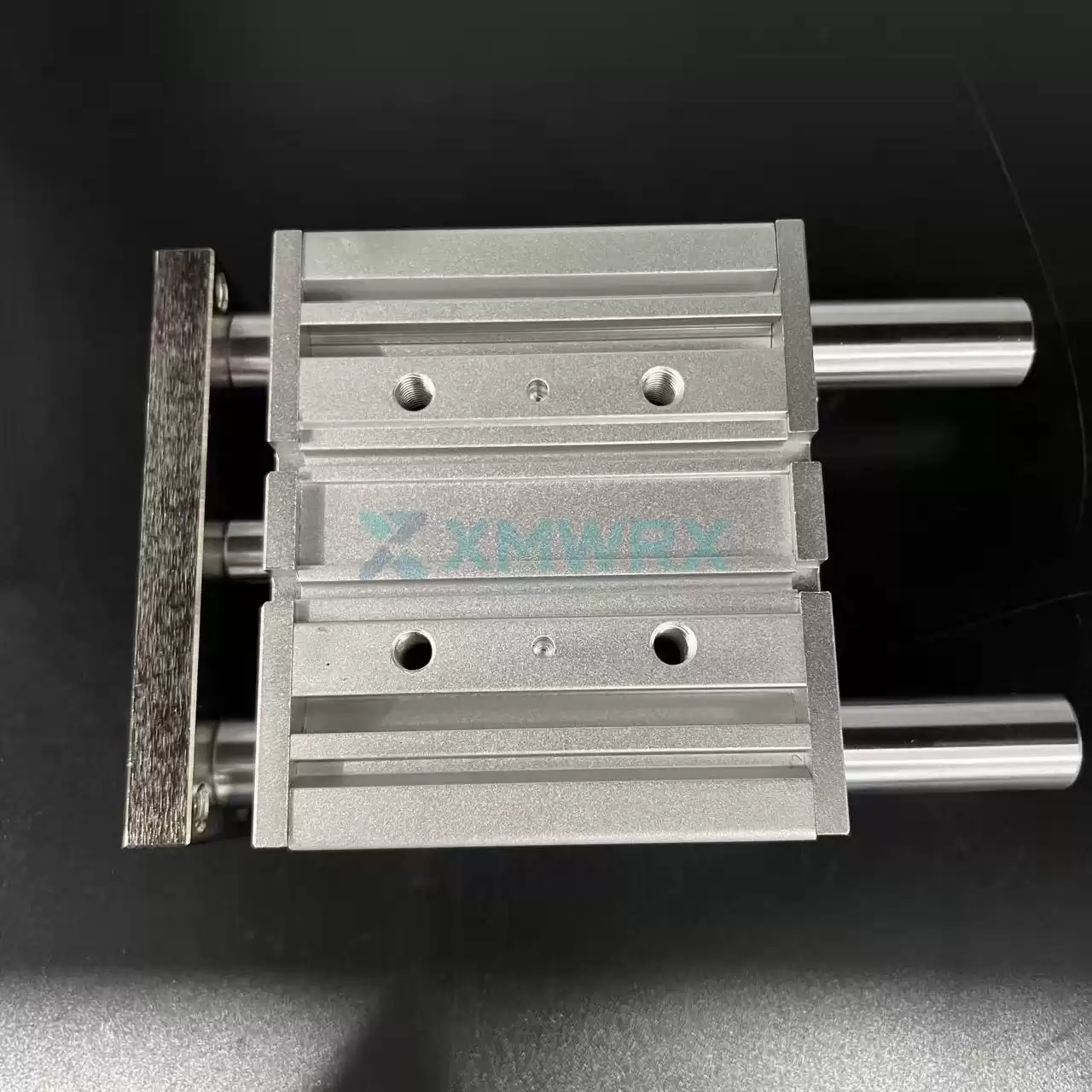

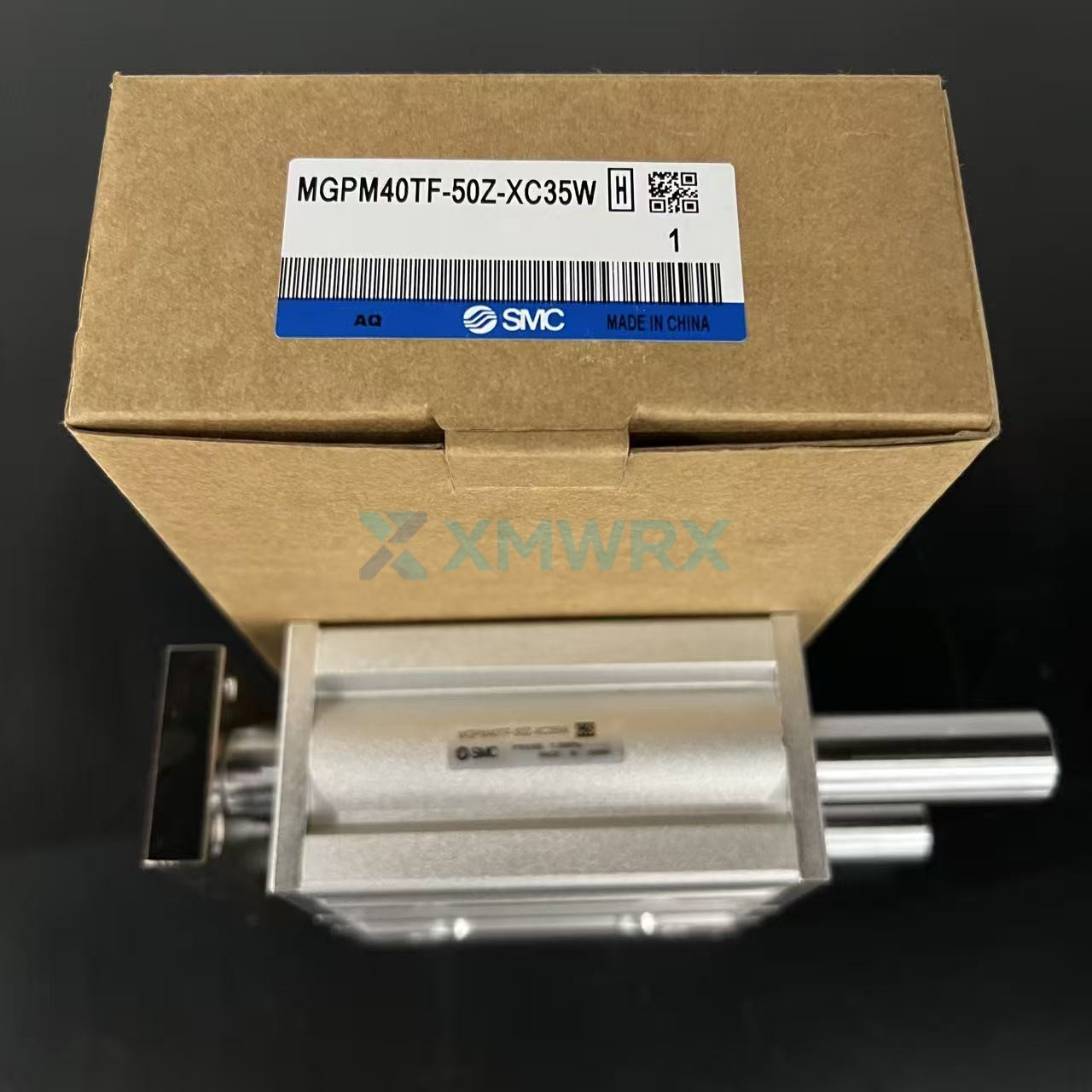

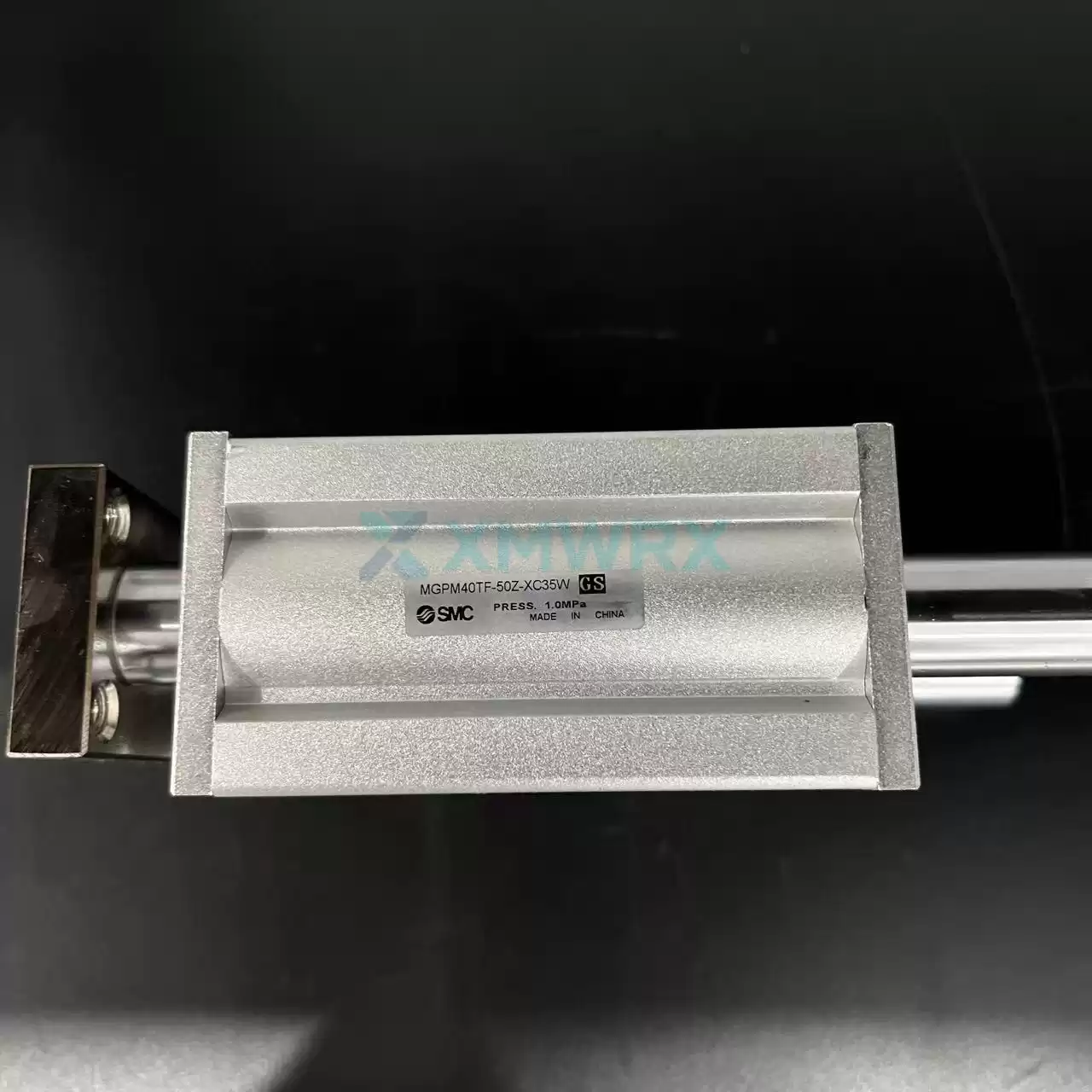

SMC MGPM40TF-50Z-XC35W MGP-Z Series Thin-walled cylinder with guide rod

Core Features

• ✓  High-precision guidance: An integrated sliding bearing guide mechanism provides excellent resistance to lateral loads and non-rotational accuracy (±0.06°), protecting the piston rod and seals.
• ✓  Space-saving design: By shortening the guide rod length, up to 24% weight reduction and 22mm space savings are achieved compared to the previous model, facilitating installation in compact equipment.
• ✓  Double-acting drive: A single-rod double-acting cylinder, using pneumatic pressure to drive the piston in both directions.
• ✓  Easy Installation: Allows direct installation of circular or strong magnetic field-resistant switches without partitions, and supports four installation methods (top-mounted, side-mounted, bottom-mounted, and T-slot side-mounted), offering high adaptability.

Q: Is this cylinder suitable for applications with lateral loads?

A: Excellent. It features a built-in sliding bearing guide mechanism, specifically designed to withstand large lateral loads (radial loads) and bending moments, effectively protecting the piston rod and seals and extending their service life. For example, it can be used as a stopper that needs to withstand impacts or to reduce sheet metal displacement.

Q: What are the advantages of the XC35 specification in dust-proof environments?

A: The XC35 custom specification represents a single-sided metal dust seal. This configuration effectively prevents external dust, debris, and other foreign objects from entering the cylinder, avoiding damage to the guide mechanism and seals, thus significantly improving the cylinder's durability and reliability in harsh environments.

Q: Is it easy to install magnetic switches?

A: Very easy. The MGP-Z series is designed to support direct installation of circular or strong magnetic field-resistant magnetic switches without a partition, simplifying the installation process and reducing accessory costs and installation time.
