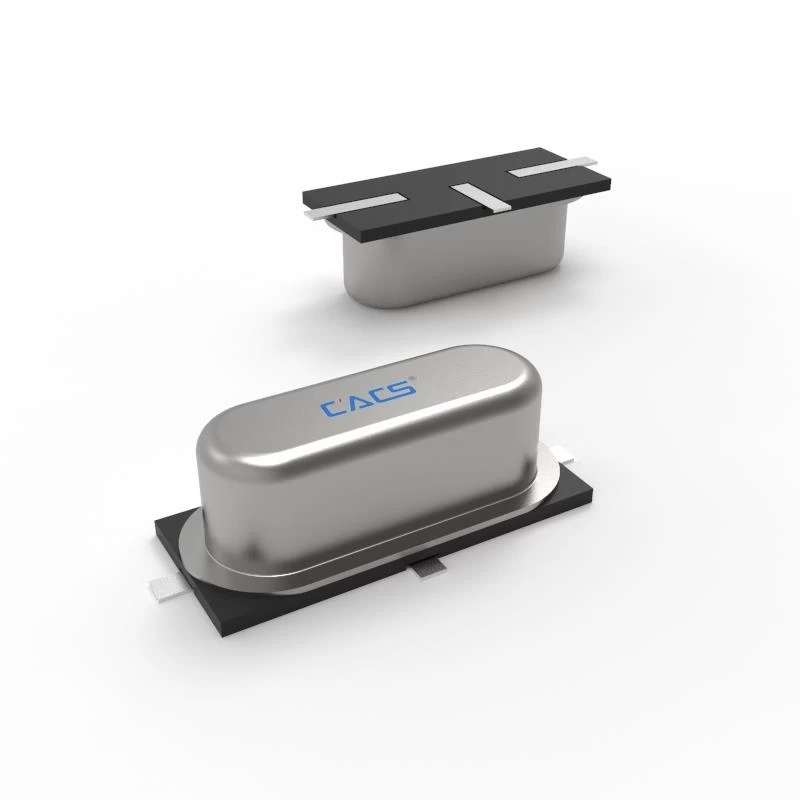

SMD Quartz Crystal HC-M49S3

Features

A surface mount version of the AT-49.

High reliability by a hermetically sealed metal package.

Correspond to automatic mounting and reflow soldering.

AEC-Q200 Compliant



Typical 10.11x 3.5x 3.9mm Glass seal SMD crystal


Electrical Parameters

ITEM

Symbol

Specifications

Remark

Holder


HC-M49S3


Mode of Oscillation


Fundamental

3 Overtone   5 Overtone

Frequency

FL

3.579~70.0

MHz


Load Capacitance

CL

5~32

Pf


Frequency Tolerance

TOL

±10~±45

PPM

At 25℃±3

Storage Temperature Range

TR

-20 to 70


Freq Temp Characteristics

TC

±50

PPM

Working temperatureF

Series Resista

ce

Rs

50

Ω

FDLD<10ppm DLD2=30% ESR

RDLD2=ESR

Drive Level

DL

100

uW

Max

SPDB

-3dB (From F0-200KHz to F0+400KHz

Shunt Capacitance

Co

7

PF


Storage Temperature Range


-40 to 85


Insulator Resistance


500

MΩ

Min

Aging Rate

f/f

±5

ppm/yr

Max

Measure Circuit

r

S&A 250B


TT network

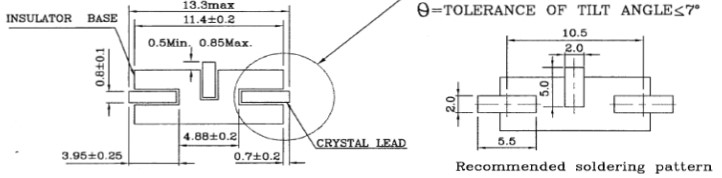

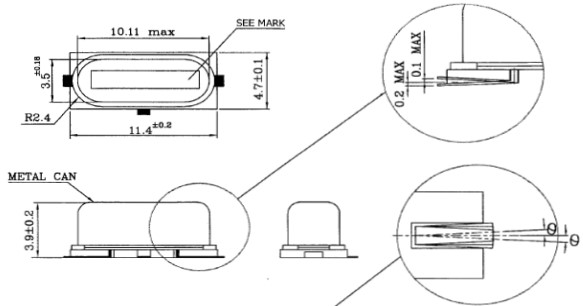

Dimensions



Reflow

Profiles Feature High-Pb Assembly
Average Ramp-up Rate (Ts max to Tp) 3/second max.
Preheat
  Temperature Min (Ts min)
  Temperature Max (Ts max)
  Time (ts min to ts max)
140
180℃
70~100 seconds
Time maintained above
  Temperature (TL)
  Time (tL)
240
20~50 seconds
Peak/Classification Temperature (Tp) 250
Time within 5 of actual Peak
Temperature (tp)
7~8 seconds
Ramp-down rate 6/second max.

Time 25 to Peak Temperature

6 minutes max.



FAQ:

1.         How does A-Crystal support: Free samples ,crystal match test, OEM,Reliability test report,8D report,RoHS substances,REACH substances

2.         What’s acrystal have Certificate: iso 9001 quality management[9001 iso 2015], ISO14001

3.         How many Production patents that acrystal have: 16pcs

4.         What’s Payment terms : T/T in advance

5.         Which Support express : DHL, UPS, TNT, FedEx

6.         What’s the monthly capacity for 32.768 oscillators:1kk

7.         What’s the MOQ/Standard packing quantity:3k per reel( acrystal 32.768)

8.         How long the Lead Time for the 32.768 khz clock oscillator :3days-14days

9.      What is the lead time for the crystal series products:

Series Product

Quartz crystal size

Lead Time

HC49 Series

HC-49SMD,HC-49S,HC-49U

1-2 weeks

SMD quartz Crystals

2012/2016/2520/3225/5032/6035/7050/8045

1-4 weeks

SMD crystal Oscillators

2016/2520/3225/5032/7050

1-3 weeks

TCXO

2520/3225/5032

2-5 weeks

SMD Watch/tuning fork Crystals

PSX315/PSX415/PSX519/PMX145/PMX206/PMX206F/PMX206FA/PMX405/PMX406

1-2 weeks

VCXO

2520/3225/5032

2-5weeks

TCVCXO

2520/3225/5032

2-5weeks

DIP Watch/tuning fork Crystals

DT206/DT308

1-2weeks

ZTA/ZTT Series

ZTTCC/ZTACC/

1-2weeks

10.Free crystal samples and shipment fee ?

We would like to support you the 20pcs free quartz crystals samples[no free samples for oscillators and TCXO,VCXO, and VCTCXO]. We request customers to pay the shipping fees.



11.Crystal and oscillator parameters?

SMD or DIP

Crystal package size[mm]

2pads ,3pads or 4pads...

Frequency: GHz,MHz or KHz

 frequency tolerance[ppm]

frequency charactristics over temperature[ppm]

load capacitance[pF]

operating temperature[]

 resistance(ESR)[Ω/]

Supply Voltage[V]

Output type

application



12.What is the ACrystal material sources?

Crystal Bar

China

Base

NEC (Japan)

Outer covering

NEC (Japan)

Resin

HENKEL (Germany)

High-temperature crystal

KDS (Japan)
