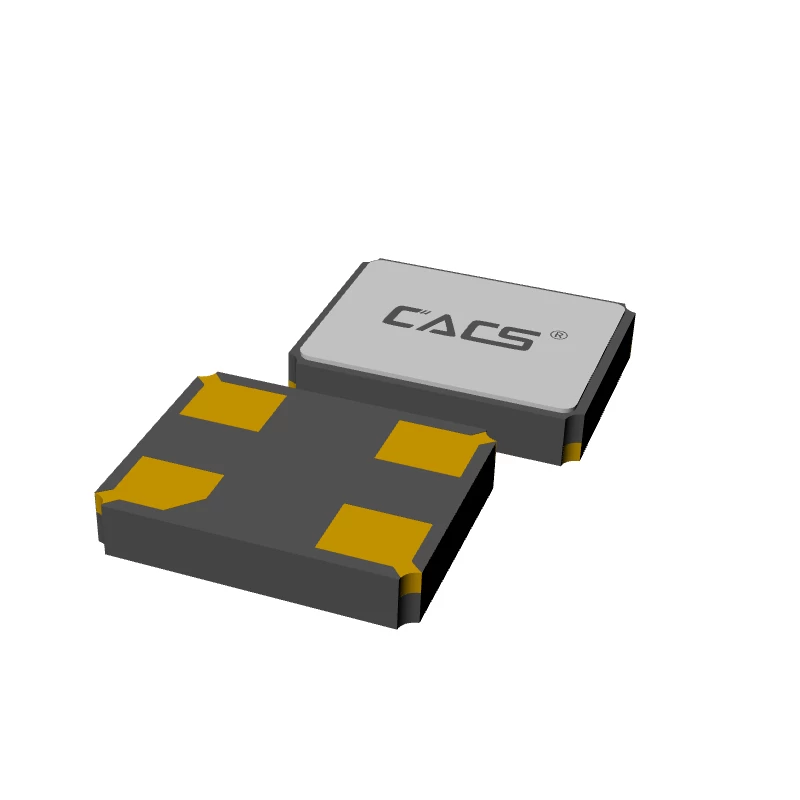

SMD Quartz Crystal P2SB

Features

Miniature and lightweight SMD crystal resonator

P2SB: 2520 size 0.45mm high

Excellent heat resistance, high precision and high reliability

Offers a wide frequency range

P2SB: 16MHz ~ 54MHz

AEC-Q200 Compliant


Applications

Telecommunications products, short-range wireless module and other small devices such as DVC, DSC, PDA, PC.

Automotive applications such as multimedia device (AEC-Q200 Compliant).

Facebook Twitter Pinterest LinkedIn 分享

Typical 2.5×2.0×0.55mm ultra thin SMD crystal

1. RoHS compliant Lead free soldering
2. Typical Frequency: 16MHz, 24MHz,26MHz,40MHz

3. Tight tolerance +/-10ppm available

4. Main application in Bluetooth Module, smart phone, wireless LAN, Home and office automation, and audio & video

5.Ceramic seam weld package with excellent reliability performance, available to surface mount technology and IR reflow process



Electrical Parameters

Item Electrical Specification
Min. Type Max. Units
Nominal Frequency 32.000 MHz
Mode of Vibration AT Fund
Frequency Tolerance  -10 - 10 ppm
Operating Temperature Range -40 - 85 ℃
Frequency Stability  -15 - 15 ppm
Storage Temperature -55 - 125 ℃
Load capacitance - 9 - pF
Equivalent Series Resistance - - 80 Ω
Drive Level -
100 μW
Insulation Resistance 500 - - MΩ
Shunt Capacitance - - 5 pF
Aging Per Year -3 - 3 ppm
Package type P2SB

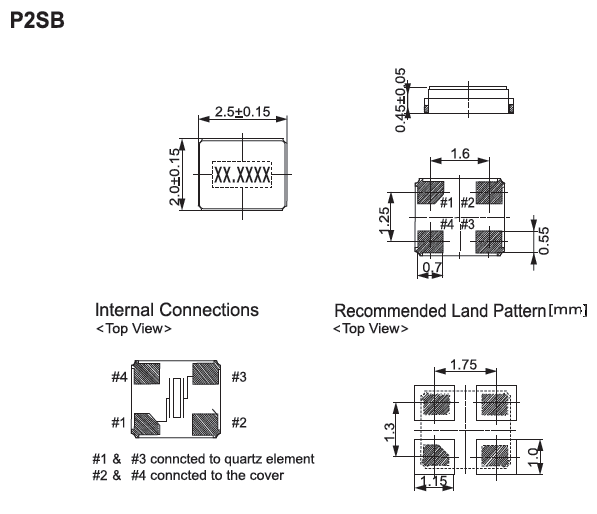

Dimensions

SMD Quartz Crystal MHz

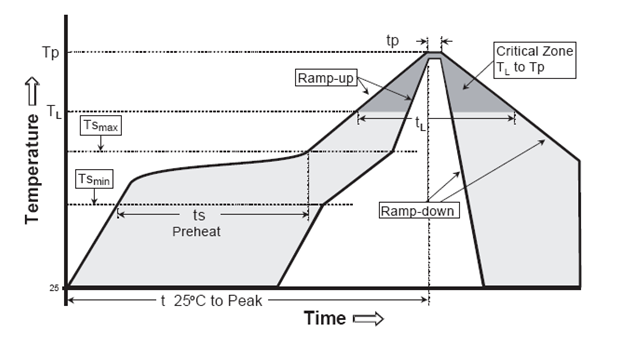

Reflow

Profiles Feature Pb-Free Assembly
Average Ramp-up Rate (Ts max to Tp) 3℃/Second max.
Preheat
■  Temperature Min (Ts min)
■  Temperature Max (Ts max)
■  Time (ts min to ts max)
125℃
200℃
60~180 seconds
Time maintained above
■  Temperature (TL)
■  Time (tL)
217℃
60~150 seconds
Peak/Classification Temperature (Tp) 260℃
Time within 5℃ of actual Peak
Temperature (tp)
20~40 seconds
Ramp-down rate 6℃/second max.
Time 25℃ to Peak Temperature 8 minutes max.
Suggest reflow times 3 Times max

SMD Quartz Crystal P2SB
