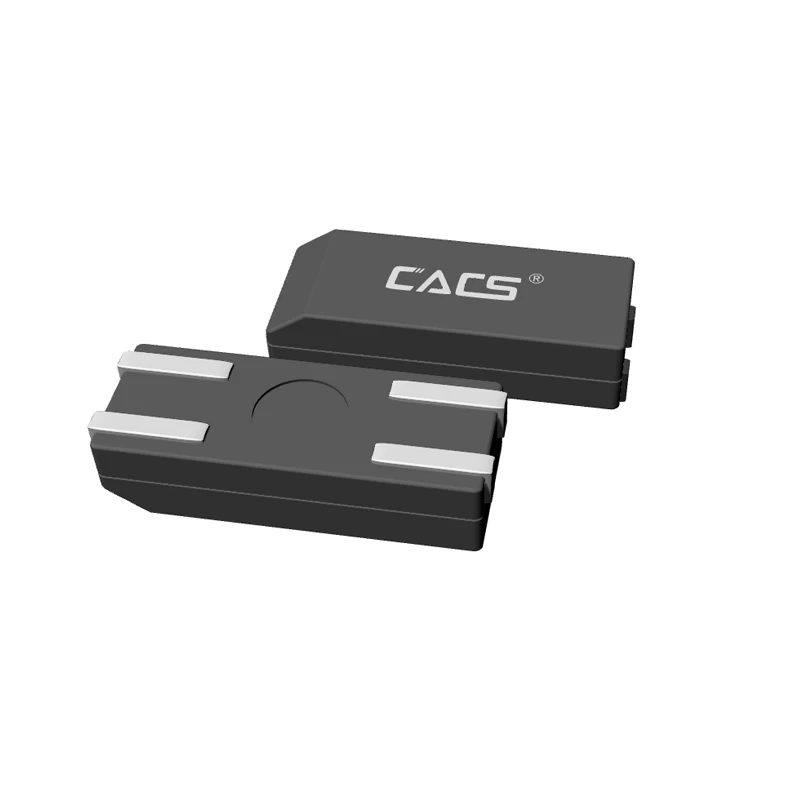

SMD Tuning Fork Crystal PMX406

Features

  • Ultra Miniature SMD Tuning Fork Crystal Resonator
  • Plastic molded SMD tuning fork crystal of heat-resistance
  • Metal Lid Connected To GND Terminal To Reduce EMI
  • Suitable For Mobile Communications And Consumer Devices.
Applications
  • Mobile Communications And Consumer Devices, Etc.

  • Smart Card And Wearable Devices



406 size 32.768kHz Watch Crystal
Highly competitive price for Watch Quartz Crystals with 10.4 x 4.06 x 3.6mm. PMX406 also with excellent reliability performance. And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.



Electrical Specifications

Parameter Value
Frequency Range 32.768KHz
Frequency Tolerance ±20ppm
Temperature Coefficient -0.034±0.006 ppm/()2
Turnover temperature 25±5℃
Operating Temperature Range -40 to 85
Storage Temperature Range -55 to 125
Quality factory 60000Typ
Series resistance 50 KΩ
Shunt Capacitance 1.9PF Typ
Load Capacitance 12.5pF
Insulator Resistance 500 MΩ
Drive Level W
Capacitance ratio 450Typ
Aging ±3ppm

Dimension

SMD Tuning Fork Crystal 32.768KHz



Reflow


Watch Quartz Crystals PMX406
