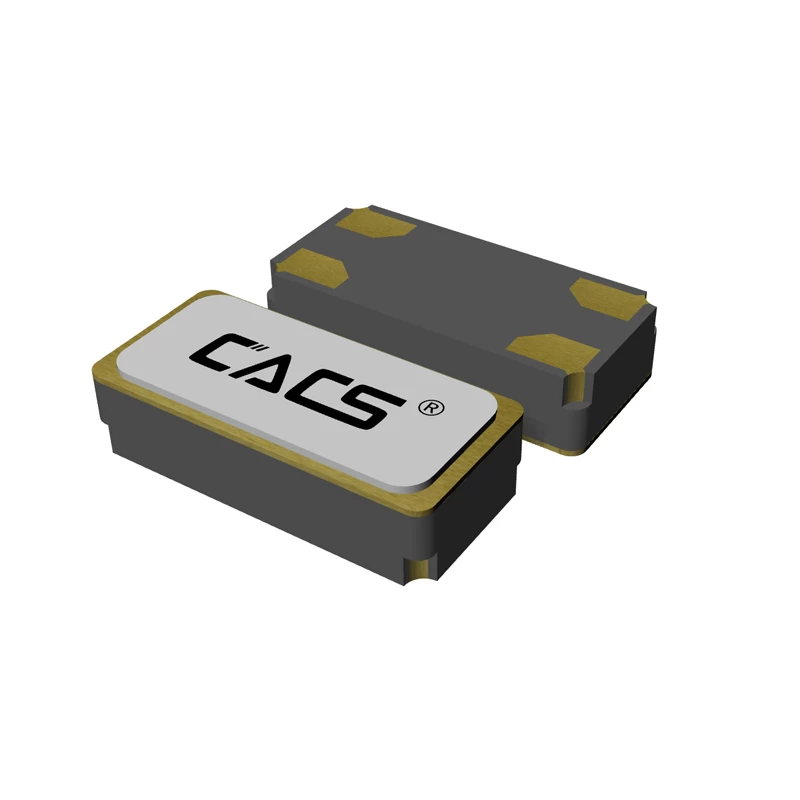

SMD Tuning Fork Crystal PSX1610A

Features

  • Ultra miniature SMD tuning fork crystal resonator
  • A ceramic package with metal lid providing high precision and reliability.
  • Metal lid connected to GND terminal to reduce EMI
  • Suitable for mobile communications and consumer devices.
Applications
  • Mobile communications and consumer devices, etc.

  • Smart card and Wearable devices



1610 size 32.768kHz Watch Crystal              Highly competitive price for smallest watch crystal with 1.6 x 1.0 x 0.5mm. PSX1610 also with excellent reliability performance and ultra miniature package. And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.


Electrical Specifications

Parameter Value
Frequency Range 32.768KHz
Frequency Tolerance ±20ppm
Temperature Coefficient -0.034±0.006ppm/(℃)2
Turnover temperature 25±5℃
Operating Temperature Range -40℃to 85℃
Storage Temperature Range -55℃to 125℃
Quality factory 60000Typ
Series resistance 90KΩ
Shunt Capacitance 1.3pF Typ
Load Capacitance 12.5pF
Insulator Resistance 500 MΩ
Drive Level 0.5μW
Capacitance ratio 450Typ
Aging ±3ppm

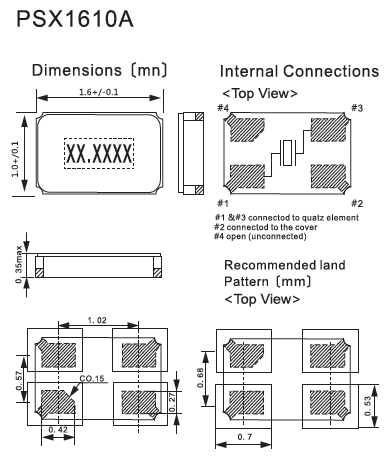

Dimension

SMD Tuning Fork Crystal 32.768KHz


Reflow


Watch Quartz Crystals PSX1610
