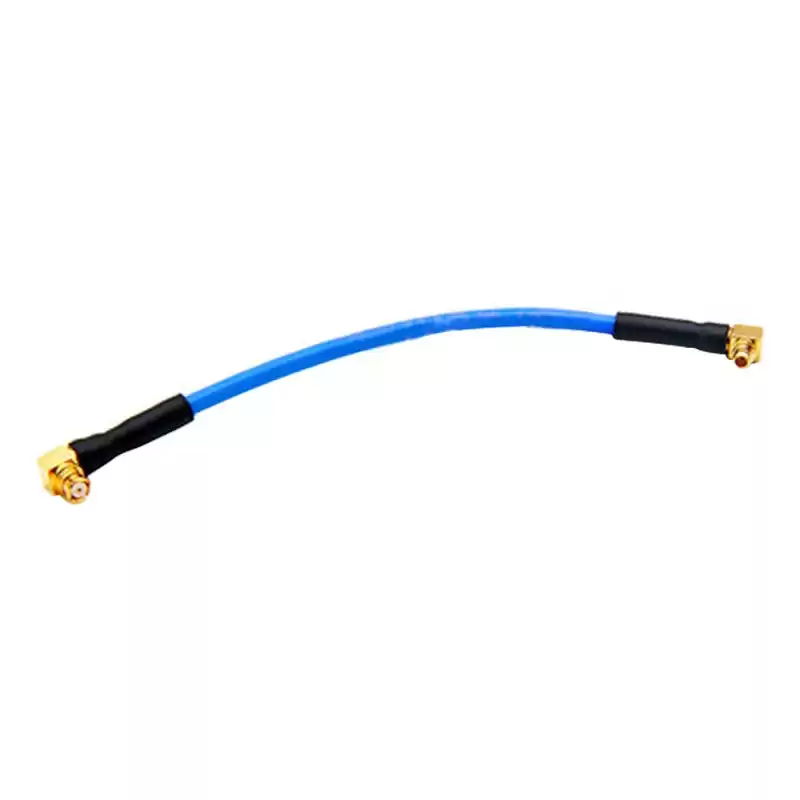

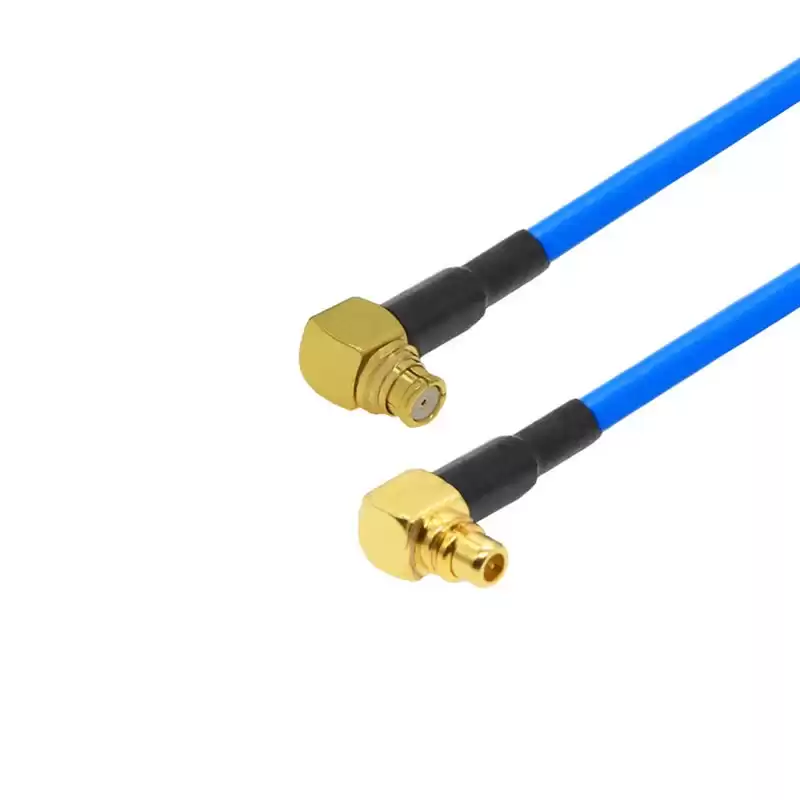

SMP Female Right Angle to MMCX Plug Male Right Angle Connector Cable Assembly with RG405 Cable

SMP Cable assembly Features:

  • Can be combined with SMP, SMA, MMCX, N, SSMC, 2.92mm or TNC connector;
  • Cable use flexible, formable or semirigid cable;
  • Frequency Up to 40GHz;
  • Body Can be right angle or straight connectors.



SMP Female Right Angle to MMCX Plug Male Right Angle Connector Cable Assembly with RG405 Cable



The SMP cable assembly can use flexible, formable or semirigid coaxial cable such as RG316、RG402、RG405、0.047"、0.086"; the body of SMP to MMCX cable assembly  is right angle or straight connectors. This SMP female to MMCX plug cable assembly uses a 50ohm right angle SMP for connector 1 and a 50ohm right angle MMCX for connector 2, Cable is a 50ohm flexible RG405.



Specifications

ELECTRICAL DATA
Connector 1 Series SMP
Connector 1 Style RA Female
Cable Type RG405
Connector 2 Series MMCX
Connector 2 Style RA Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Laboratory Use
  • General Purpose
  • CB radio handheld
  • Antenna tuner
