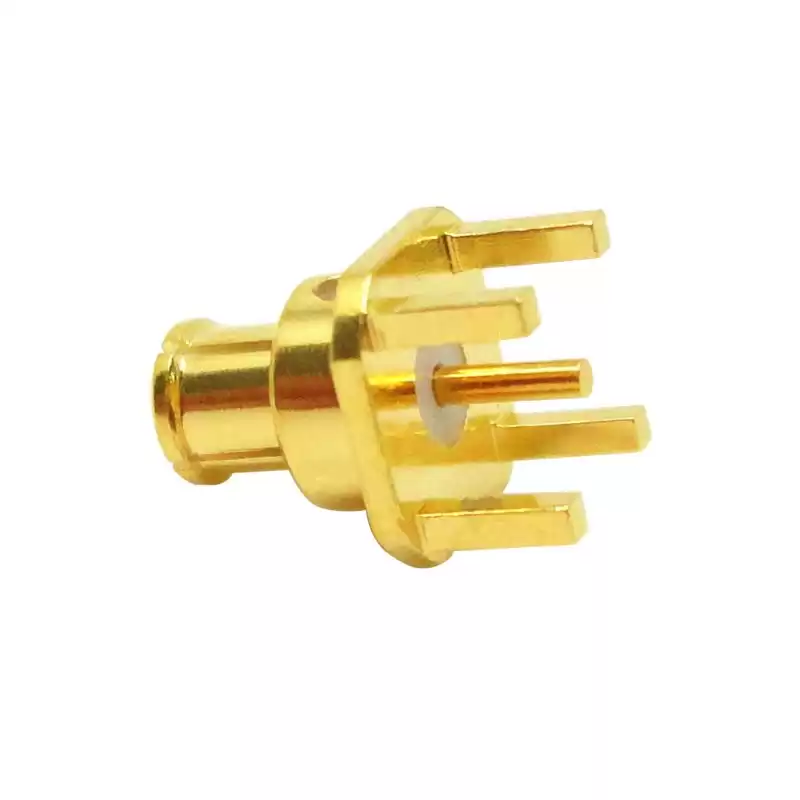

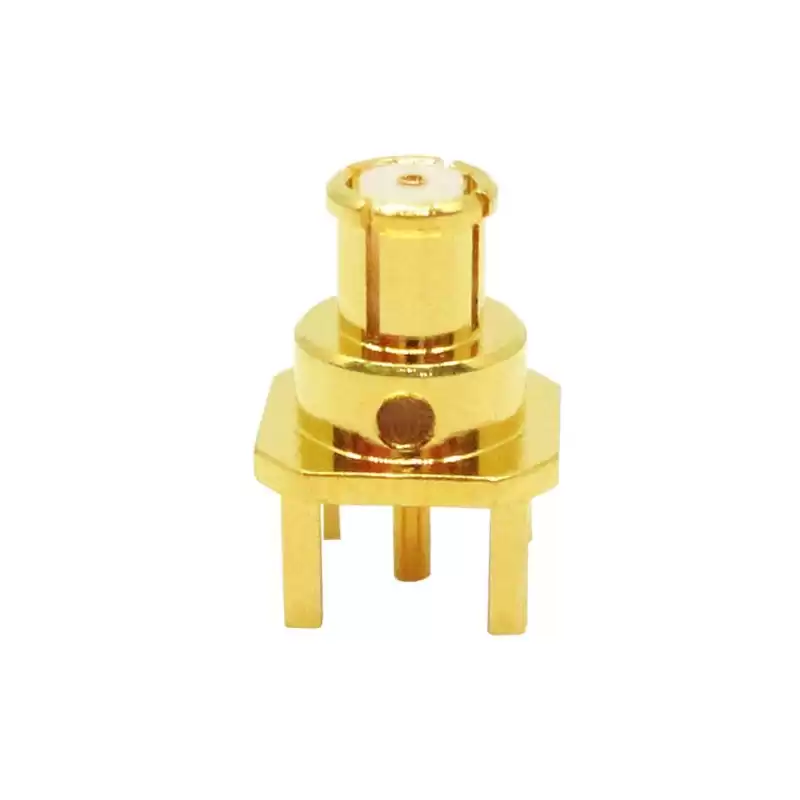

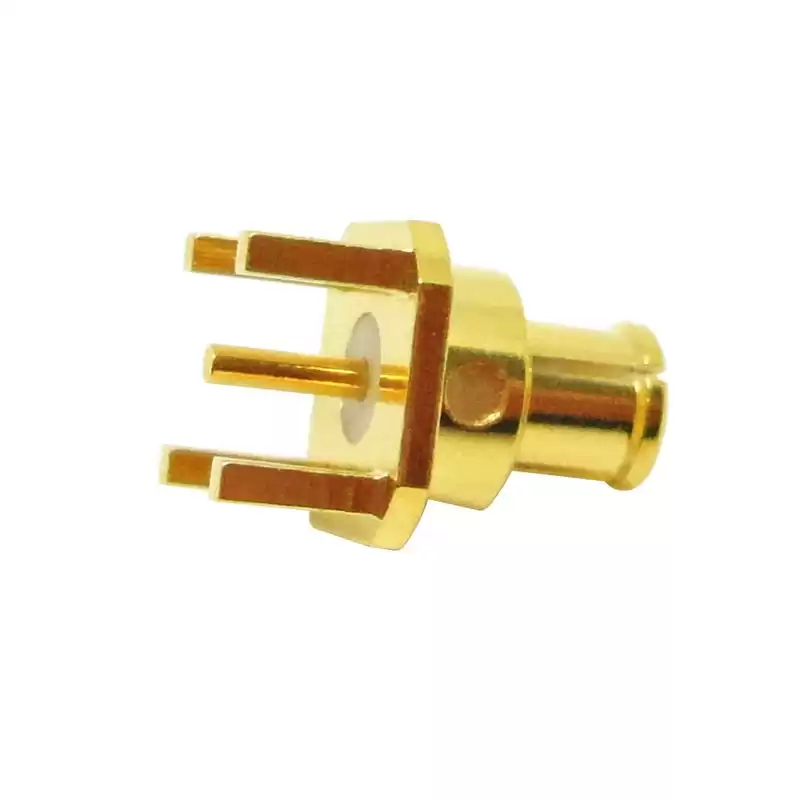

SMP Female Straight Square Body Connector Solder Attachment Thru Hole for PCB

SMP Connector Features:

  • Can terminate to coax, PCB (printed circuit board), shroud or terminal;
  • Can be male or female gender with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead, 2 hole panel or mount-less;
  • Attachment methods include solder, crimp/solder, or solder/solder;
  • Body is brass or stainless steel.



SMP Female Straight Square Body Connector Solder Attachment Thru Hole for PCB



The SMP connector is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.Available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. The receptacles are designed for surface, through hole, or end launch mounting; this SMP female PCB connector has an interface type of thru hole and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with gold plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 18GHz
Voltage Rating 335 Volts RMS Max Continuous
Dielectric Withstanding Voltage 500 VRMS Min
VSWR  (Return Loss)
DC - 18 GHz 1.2 (-21 dB) Max
18 - 26.5 GHz 1.3 (-18 dB) Max
26.5 - 40 GHz 1.7 (-12 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 6 mΩ Max
Outer Contact Resistance 2 mΩ Max
RF Leakage -85 dB Max (DC - 4 GHz)
Insertion Loss .1 √(f(GHz)) dB Max
Power Handling 32 W @ 1 GHz @ 25ºC
Environmental
Temperature Range −65°C to +165°C
Mechanical
Mating Cycles 100 Min
Coupling Mechanism Psuh-On
Interface Specification MIL-STD-348
Engagement Force ≤ 15.0 lbs (40 N)
Disengagement Force ≤0.5 lbs (2N)
Mechanical Misalignment
Axial 0.25 mm
Radial 0.51 mm
Min Board to Board Distance 9.1 mm



Applications

  • Broadband
  • Military
  • Instrumentation
  • Medical
  • Medical
  • Quantum Computing
