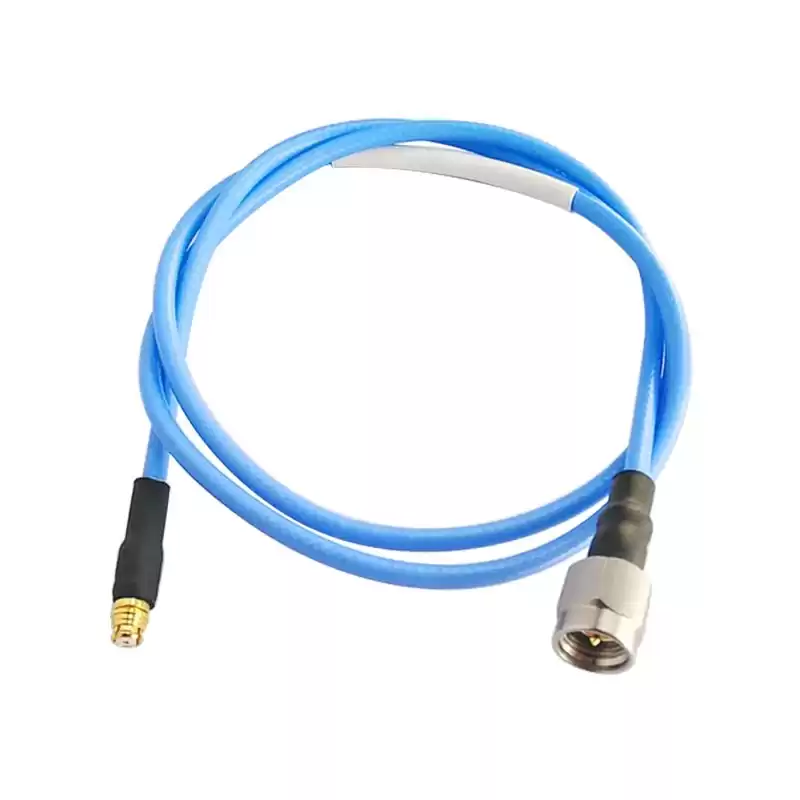

SMP Female to SMA Male Connector Cable Assembly with High Performance Flexible RG405 Cable

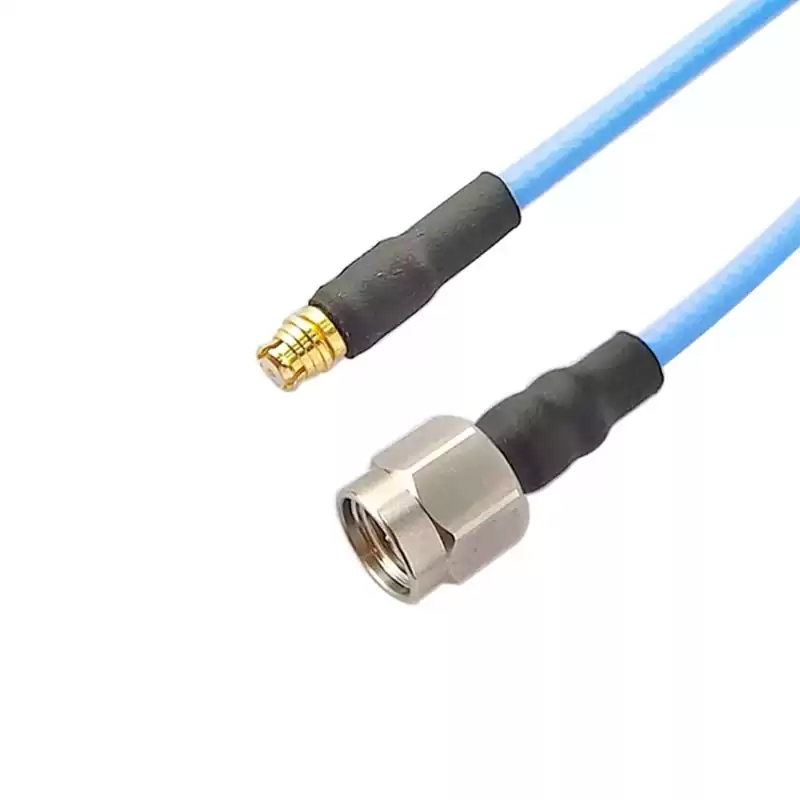

The SMP cable assembly can use flexible, formable or semirigid coaxial cable such as RG316、RG402、RG405、0.047"、0.086"; the body of SMP to SMA cable assembly is right angle or straight connectors. This SMP female to SMA male cable assembly uses a 50ohm straight SMP for connector 1 and a 50ohm straight SMA for connector 2, Cable is a 50ohm flexible RG405.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMP |
| Connector 1 Style |
Str Female |
| Cable Type |
RG405 |
| Connector 2 Series |
SMA |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
12GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Laboratory Use
- General Purpose
- CB radio handheld
- Antenna tuner
