Solar Air Conditioner--DC solar energy type

INTRODUCTION

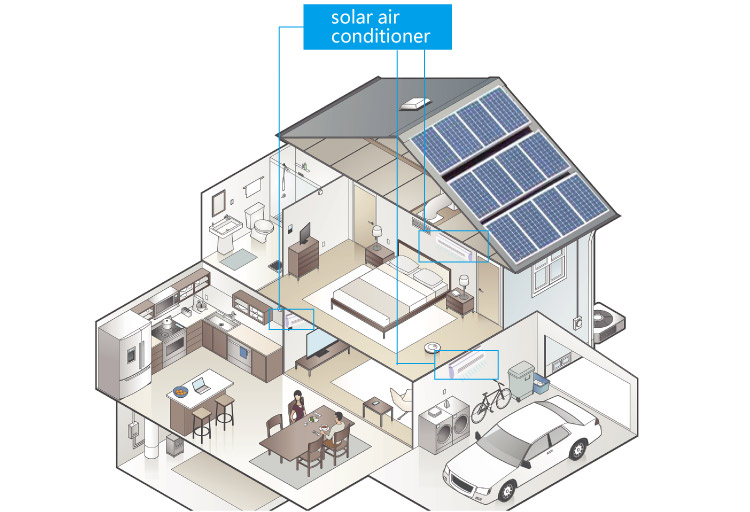

solar air conditioners operate directly using solar energy and utility energy , no need battery.When the sun is shining, it is powered by the solar source completely; when the sun is weak, it is powered by the solar and utility together,the whole system with hybrid design,can work online sharing with solar and utility energy.

Application:

Areas without electricity, low power,unstable power grids,and high electricity prices where air conditioner is in demand.




Our 12000btu Solar Air Conditioner is the perfect solution for people who live around the tropics and areas which suffered from heat from the sunlight. Also, in the high-dimensional region, the sunshine duration in summer would be much longer than the normal region, further, in this particular time of the greenhouse effect, global temperature has continually increased in the past decades. Summer with sunshine heating and high temperature has been a nightmare to people who live in the high-dimensional region.



Core Technology:

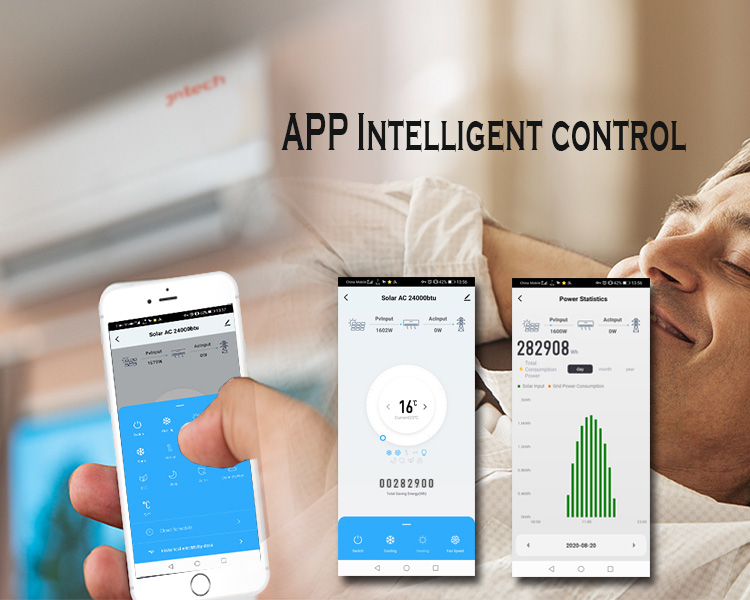

1.APP smart control,easy to get the meter and data
2.T3 Tropical 58 degree working
3.MC4 connector for solar easy installation
4.Compressor All-in-one packaging design
5.Brushless DC motor drive technology

DC solar energy type

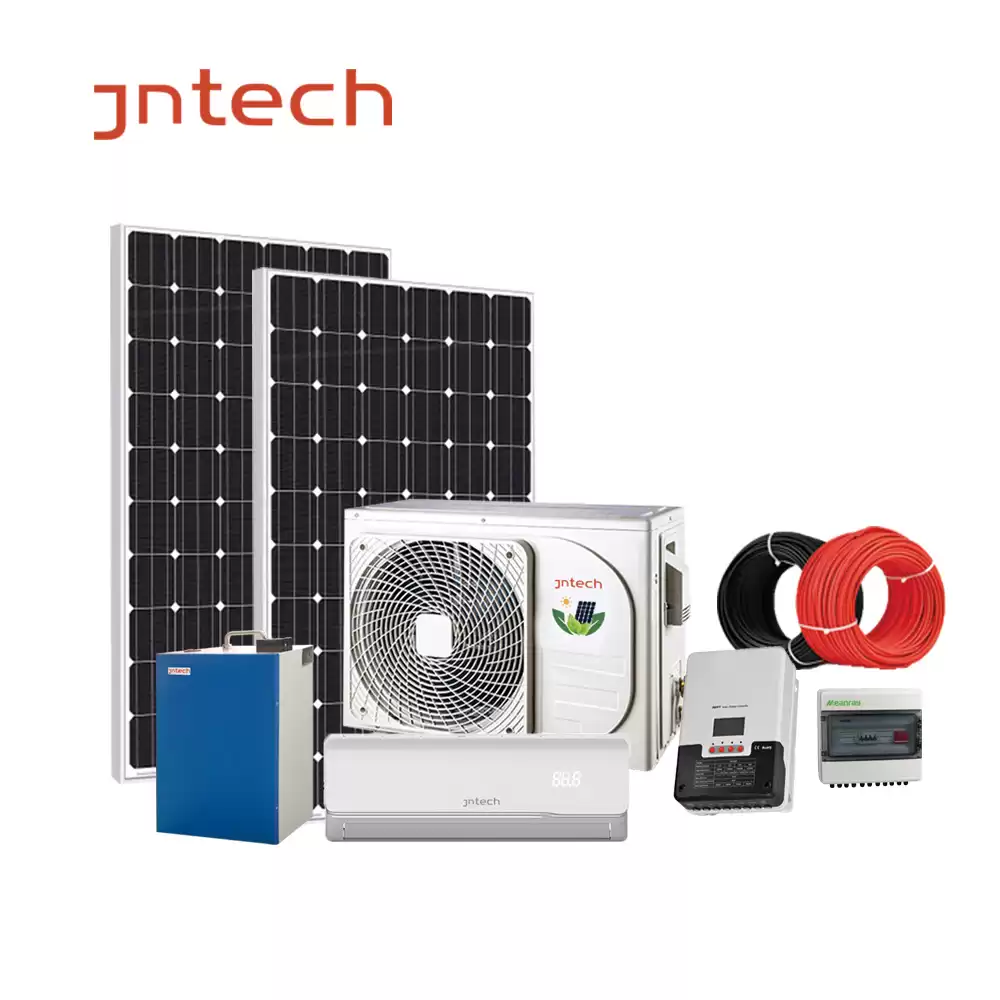

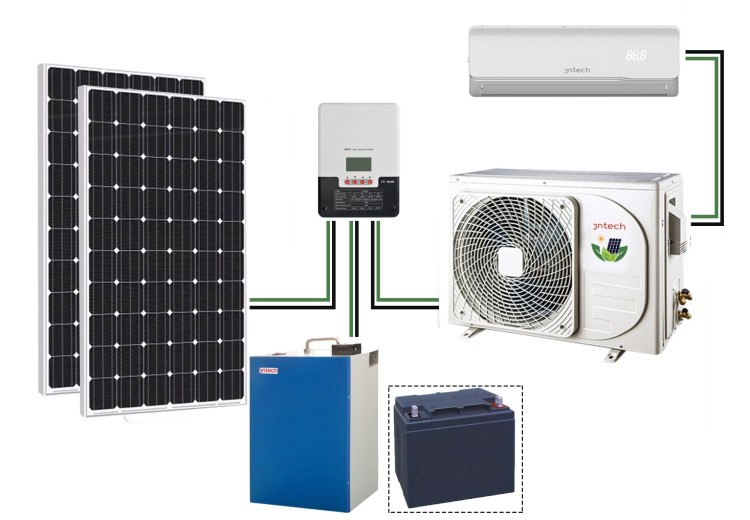

DC Solar Air Conditioner system suggested configuration



Model



Power input (w)

average



Work Time (h)

Daytime+nighttime



Solar Panel



Battery

Lead acid/lithium



Charger



Application area(m²)

JNSAC-DS-9000BTU



500

8+6/8

340W*4

12V 100ah*4/

48V 100ah*1



48V 60A



8~15

JNSAC-DS-12000BTU



800

8+6/6

340W*6

12V 150ah*4/

48V 100ah*1



48V 60A



15~20

JNSAC-DS-18000BTU

1300

8+8/7

340W*12

12V 200ah*8/

48V 100ah*2

48V 60A

20~30

JNSAC-DS-24000BTU

1700

8+8/8

340W*18

12V 250ah*8/

48V 100ah*3

48V 60A*2

32~42

Model





JNSAC9000-V1

JNSAC12000-V1

JNSAC18000-V1

JNSAC24000-V1

Climate Type

Tropical</= 58



T1/T3

T1/T3

T1/T3

T1/T3

Power supply

Battery

DC

DC48V(46~58V)

DC48V(46~58V)

DC48V(46~58V)

DC48V(46~58V)





Rated Cooling



Capacity(T1)

W

2600(1000-3400)

3510(1000-3700)

5070(1200-5250)

6450(2500-7000)





BTU

9000(3400-11600)

12000(3400-12600)

17300(4100-18000)

22000(8500-23900)



Power input(T1)

W

680(180-1060)

980(200-1200)

1450(220-1780)

1840(450-2230)



Rated Heating

Capacity

W

2900(800-3050)

3900(1000-4100)

5250(1200-5500)

7000(2000-7350)



Power input

W

830(160-950)

1130(180-1280)

1400(220-1830)

2050(390-2350)

T1 EER (W/W)/ (BTU/W)

/

3.90/13.20

3.60/12.25

3.50/11.8

3.50/11.85

COP (W/W)/ (BTU/W)

/

3.50/11.90

3.45/11.75

3.75/12.80

3.40/11.70

Dehumidification capacity

L/h

1.0

1.3

1.7

2.5

Indoor noise level (Turbo)

dB(A)

40

42.5

46

50







Indoor unit

Dimension(W×H×D)

mm

840×205×295

840×205×295

1080×330×237

1080×330×237



Packing (W×H×D)

mm

920×290×360

920×290×360

1140×300×382

1140×300×382



Net/Gross weight

Kg

9.0/12.5

9.0/12.5

15.0/18.5

15.0/18.5

Outdoor coil

a.Number of rows

/

1

2

2

2

Outdoor noise level

dB(A)

51

52

55

58







Outdoor unit

Dimension(W×H×D)

mm

802×564×323

802×564×323

802×564×323

900×700×337



Packing (W×H×D)

mm

910×622×405

910×622×405

910×622×405

1006×755×418



Net/Gross weight

Kg

28.0/32.0

32.0/36.0

36.0/40.0

51/56

Refrigerant type

/

R410a

R410a

R410a

R410a

Max Design pressure (Discharge/Suction)

MPa

4.3/1.5

4.3/1.5

4.3/1.5

4.3/1.1

Refrigerant pipinglength

m

3

3

4

4

Application area

8~15

15~20

20~30

32~42
