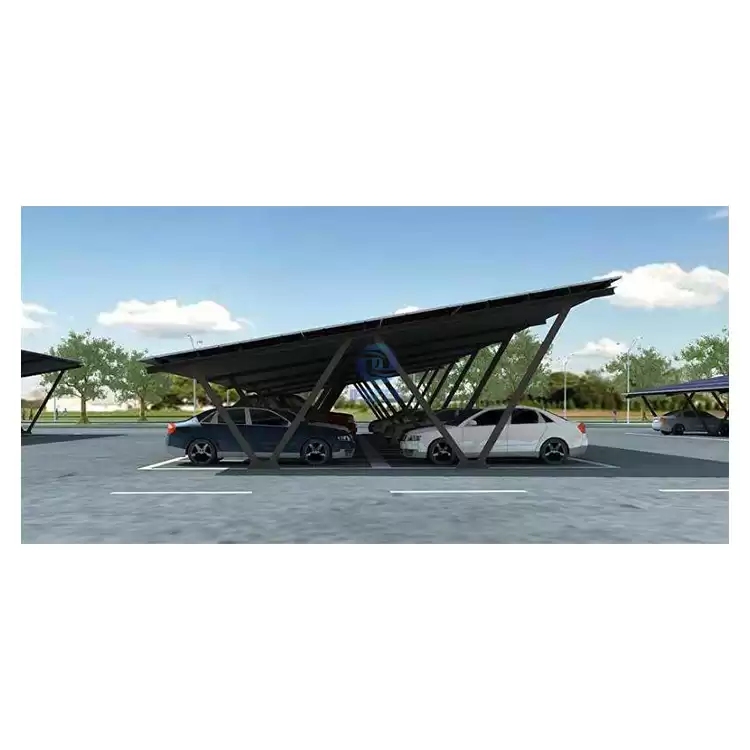

Solar Aluminum Structure Carport For Home Use

Solar garage uses the existing parking lot to generate electricity without sacrificing valuable real estate. Jesfer can provide the best photovoltaic car mount system design and 10-year quality service for photovoltaic carport bracket projects.



Solar Aluminum Structure Carport For Home Use

The solar carport project has been popularized in the field of renewable energy, and many solar integrators have taken solar parking products as part of public utilities or commercial scale projects.

Solar parking allows you to make full use of large parking to generate electricity, while providing shading or covered parking for daily users.With professional parking and driving area coverage, jesfer can simplify your parking project by configuring our aluminum bracket shed system.

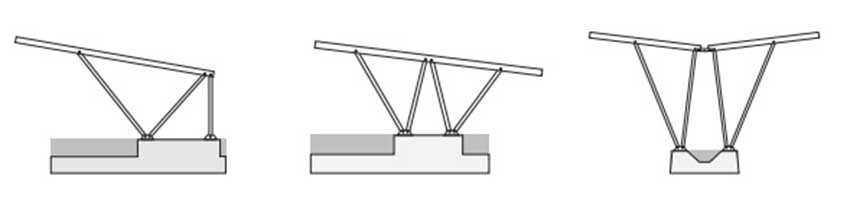

System Structure



Technical Parameters

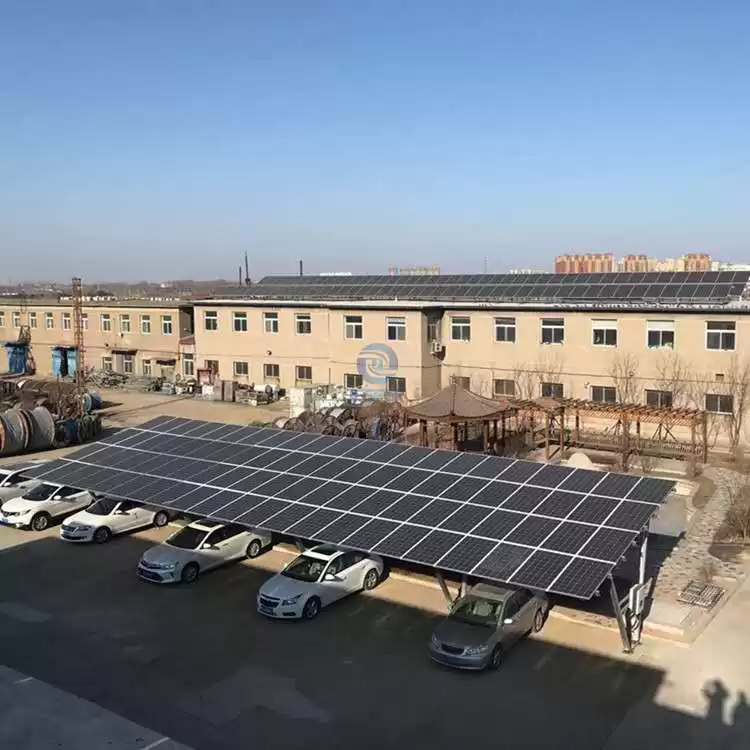

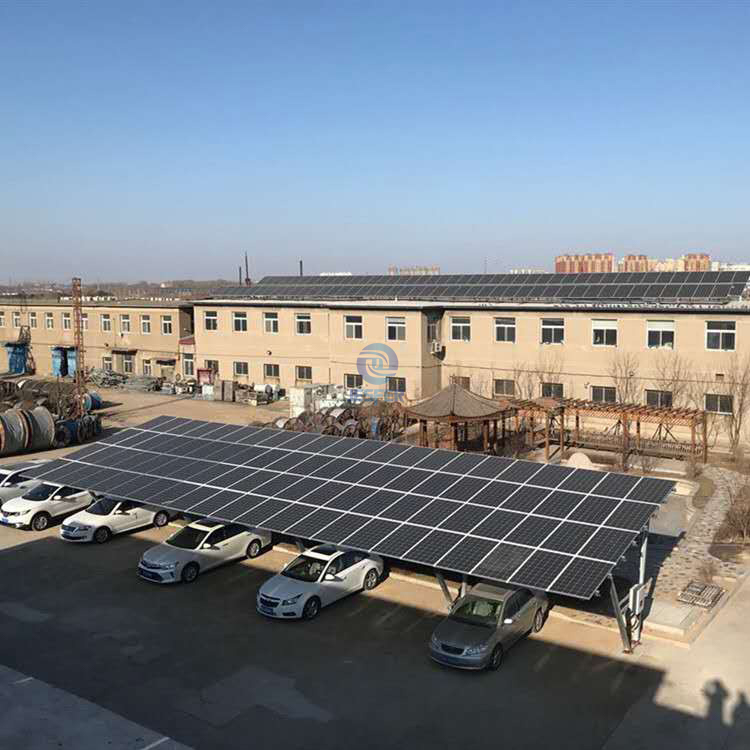

 Installation Site
 Open Area Panel Layout
 Landscape or Portrait
 Foundation
 Concrete Foundation
 Material
 Anodized AL6005-T5
 Tilt Angle
 5-15degrees
 Fastener
 SUS304 &Zinc-Nickel Alloy Electroplated Steel
 Snow Load
 1.2KN/㎡
 Color
 Customized or Silver
 Wind Load  60m/s  Design Standard
 AN/NZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed or Frameless
 Warranty
 10 Years
 Ground Clearance 2000mm+  Small Components  Anodized AL-6005-T5


Components Details

solar mount factory

Conical Symmetric Cross Beam 135

Specification:L*58*135

Length :3300mm,5000mm


solar structure factory

Splice for Conical Symmetric Cross Beam

Specification:L260MM

Components:Hexa Self-Tapping Screw  ,With EPDM Washer ST6.3*19

photovoltaic mountAnchor Plate for Carport

Specification:62*49*L250

Material:AL6005-T5(Anodized)

Anchor Plate for Carport Anchor Plate for Carport

Specification:62*49*L450

Material:AL6005-T5(Anodized)

Wide End ClampKit Wide End ClampKit

Components:Wide End Clamp, Cross Module,Spring Washer M8,

Hexagon Socket Bolt

Inter Clamp Kit Inter Clamp Kit

Components:Inter Clamp,Cross Module

Spring Washer M8,Hexagon Socket Bolt

solar panel bracketsC Clamp Kit

Components:C Clamp, Cross Module,Spring Washer M8

Hexagon Socket Bolt

solar panel structure

Corrugated T Anchor Plate Kit

Components:Corrugated Gasket,Corrugated T Plate

Hexagon Bolt Kit

Material:AL6005-T5(Anodized )

solar panel componentsBeam 160

Specification:L*100*100

Components:AL6005-T5(Anodized)

solar system componentsWaterproof for Cross Beam

Specification:L*100*100


Free Design Service

We provide free customized design service for photovoltaic parking mounting

1.The dimension of the solar panel: _________(Length*Width*Thickness)

2.How many solar panels do you plan to install for the project?______pcs.

3.What is the tilt angle for solar panel?: _______degree.

4.Could you pls give us the layout of solar panel array? if not, pls tell us the size (Length and Width) of your installation site?

5.How tall is the lowest height from the solar panel to the ground? _______mm

6.What installation orientation for solar panel?_______(Horizontal or Vertical).

7.What's wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.

8.Which foundation you need for your coming ground mounting system? ______( ground screw/concrete/pile/pole )

If you can, plese tell me Latitude and longitude of your installation site.


Our Service

We always provide our clients with excellent service, quality and competitive pricing, with solar car bracket system of superior design and functionality.
