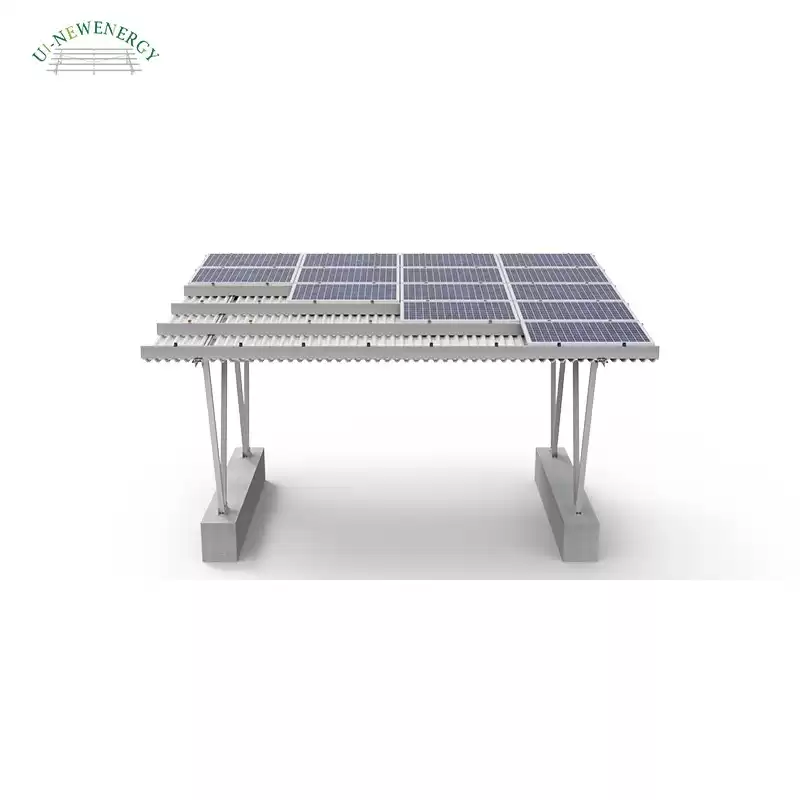

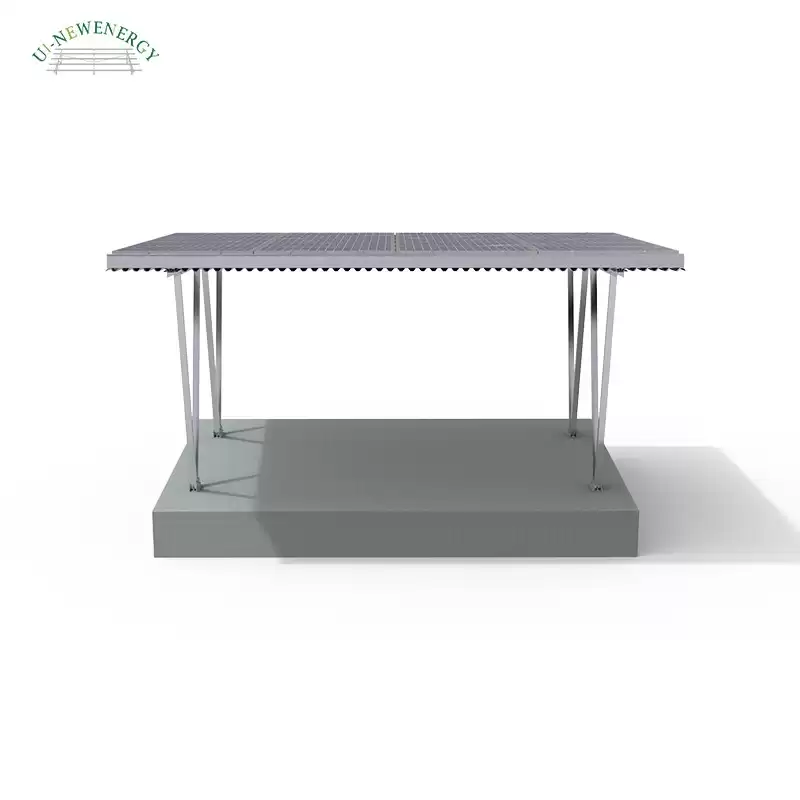

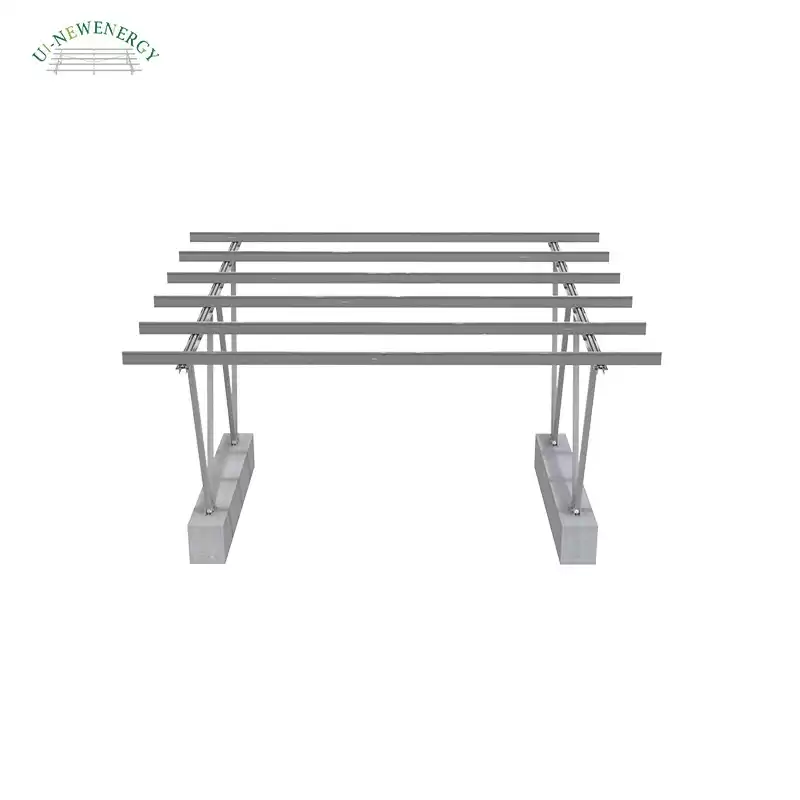

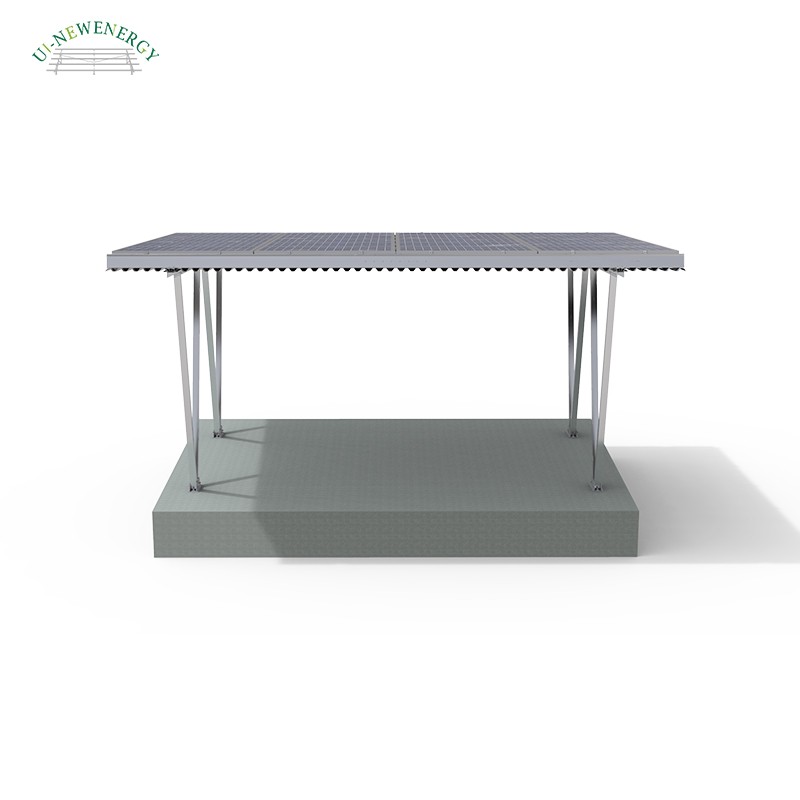

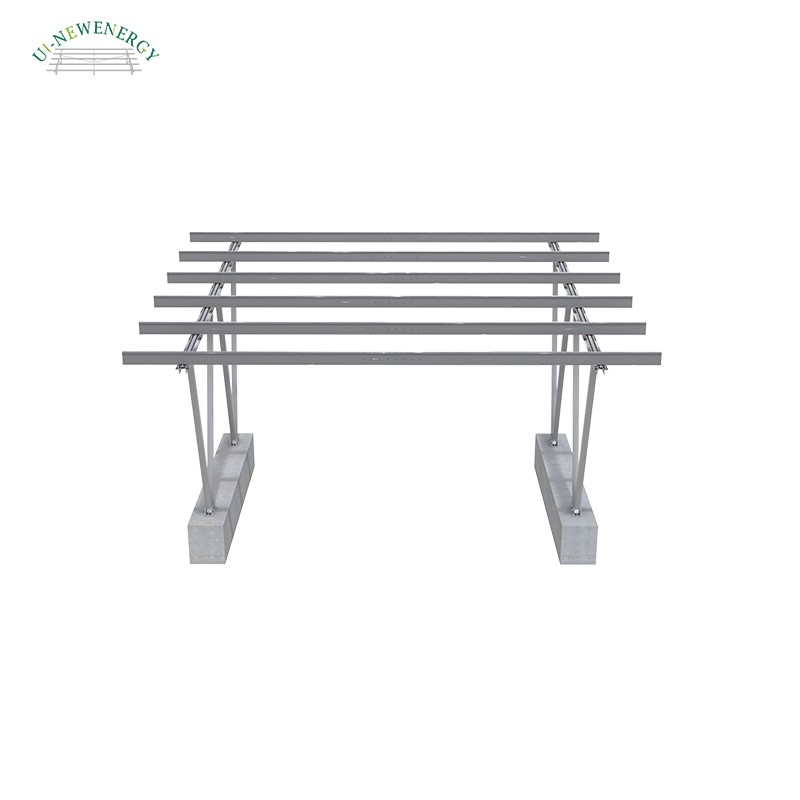

Solar Carport Brackets SG3-W
Carports generally have a curved R-shaped roof, but solar carports with integrated solar power generation are flat and stylish because they were originally designed on the assumption that solar panels will be installed. In addition, one of the features of the carport with integrated solar power generation is that it is designed so that solar panels can be installed without creating wasted space on the roof.
Solar Carport Brackets Features:

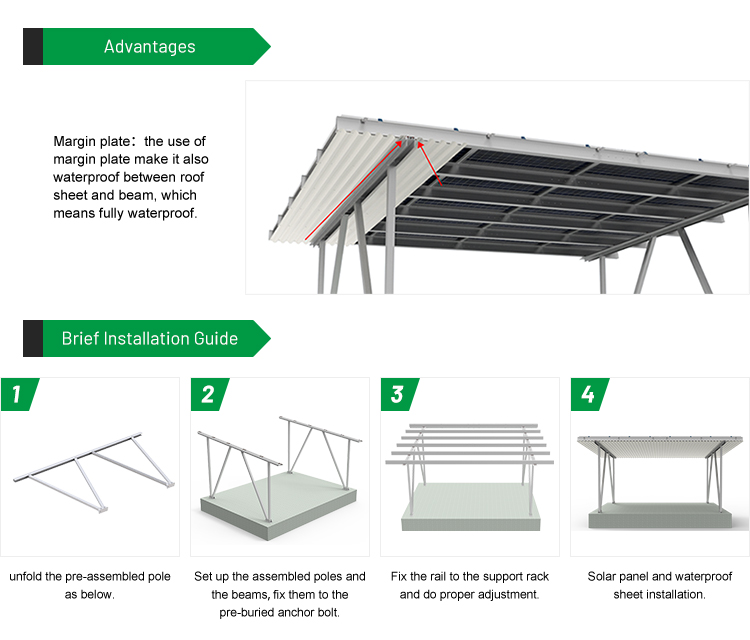

1.Waterproof :

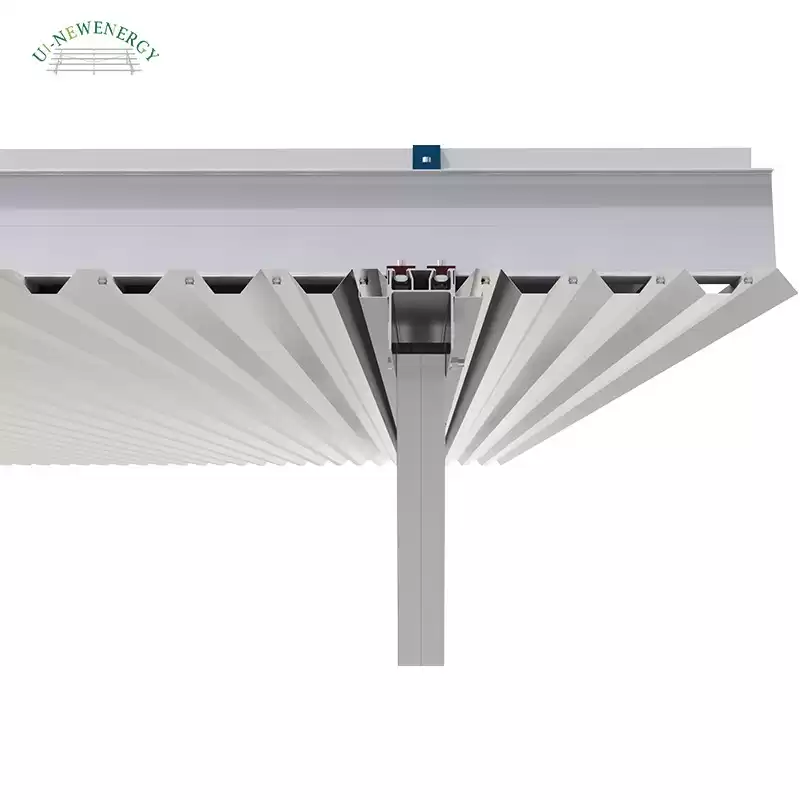

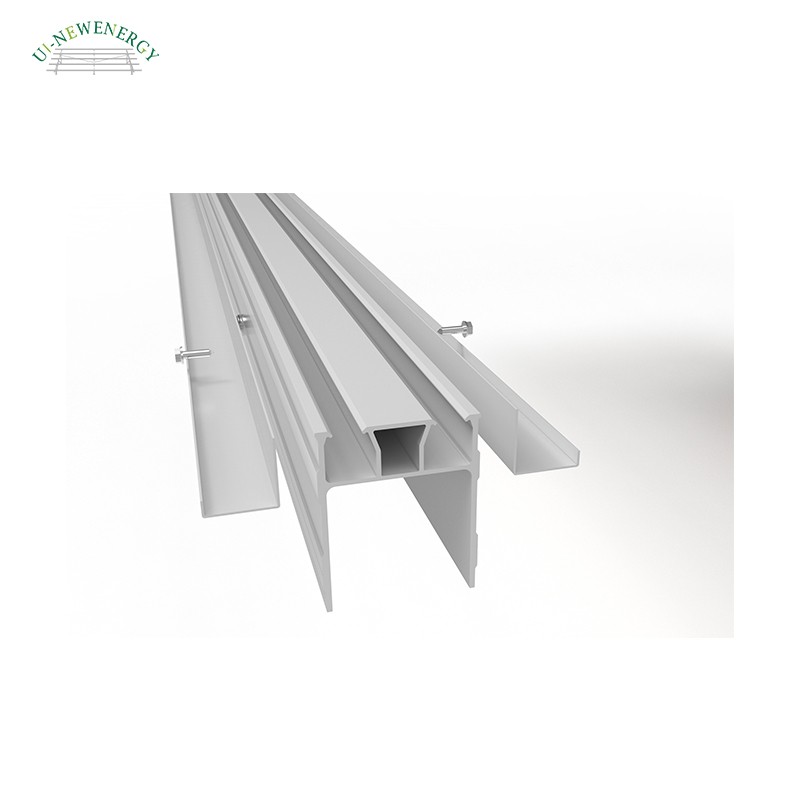

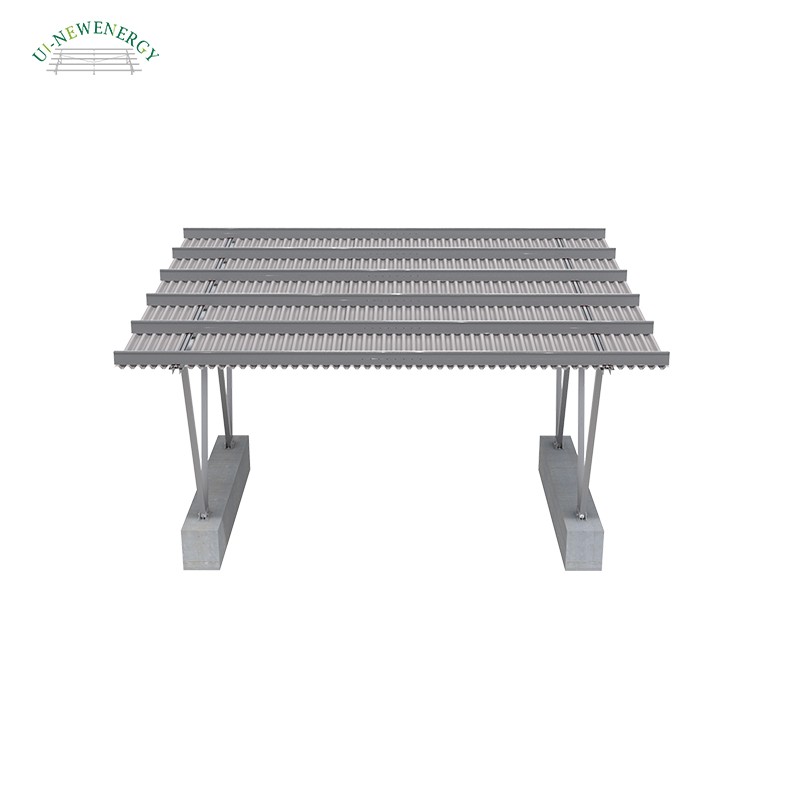

Add waterproof sheet and water channel to play the function of waterproof.
2.Easy Installation:
Parts have been high pre-assembly on factory to save your installation time.
3.Safety and Reliability:
Check and test the structure strictly to against the extreme weather condition.
4.Flexibility and Adjustable:
Smart design reduce the difficulties of the installation on the most conditions.
|
Product Parameter
|
|
Product Name
|

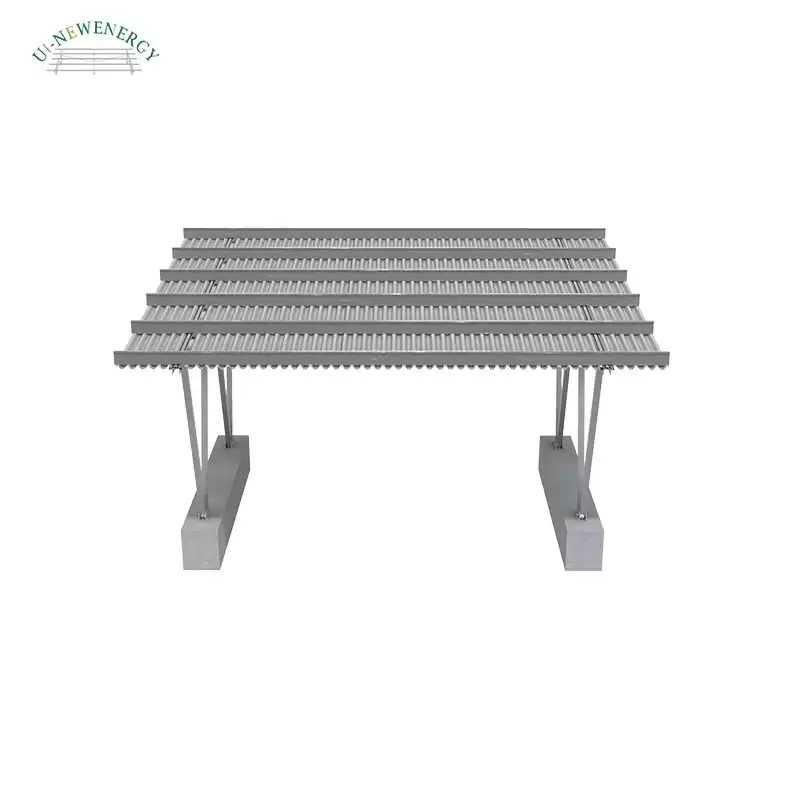

Waterproof Solar Carport Mounting
|
Type
|
"N" shape, "W" shape, "A" shape, Four pole type, Waterproof type, also can custom made
|
|
Installation Site
|
Open Field
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304 Bolt Sets
|
|
Surface
|
Anodized
|
|
Color
|
Silver or Customized
|
|
Module Angle
|
0-20 Degrees
|
|
Wind Speed
|
60m/s
|
|
Snow Load
|
1.4kN/m2
|
|
Standard
|
AS/NZS 1170; JIS C8955:2017
|
|
Warranty
|
10 Years
|
|
Service Life
|
25 Years
|
|
Advantages
|
Easy Installation; Safety And Reliability; 10-Year Warranty
|
F A Q
Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.
Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.
Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q4: How can I get some samples？
A4:We are honored to offer samples according to your inquiry.
Q5:What necessary info. for us to design and quote？
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
