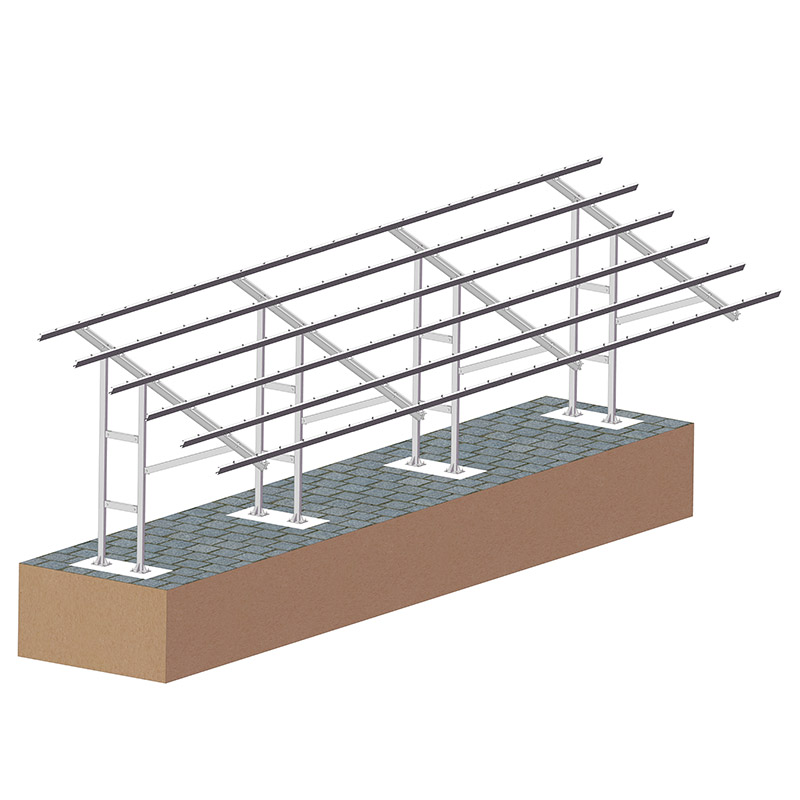

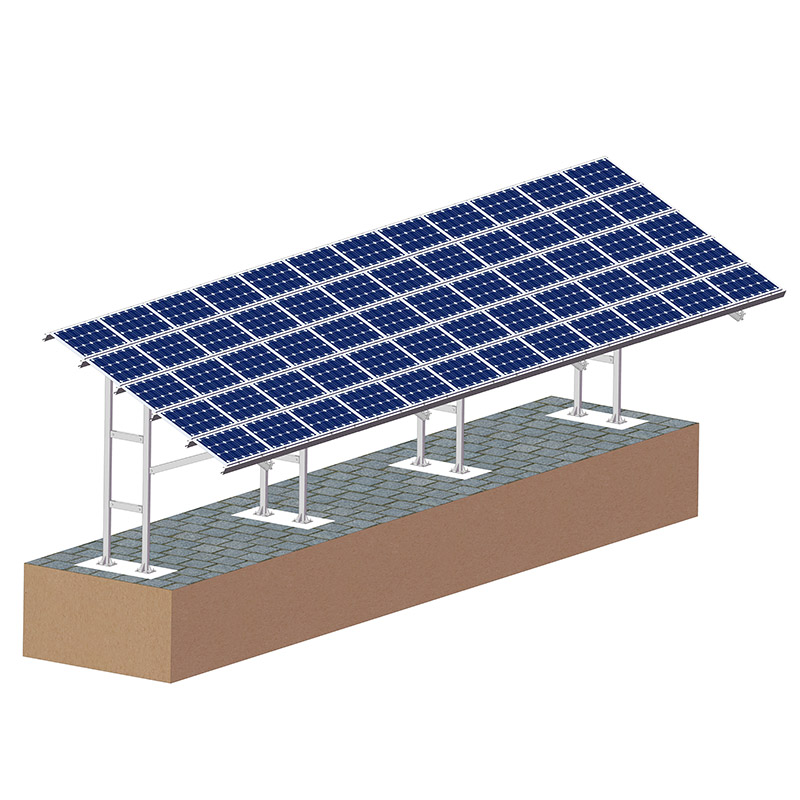

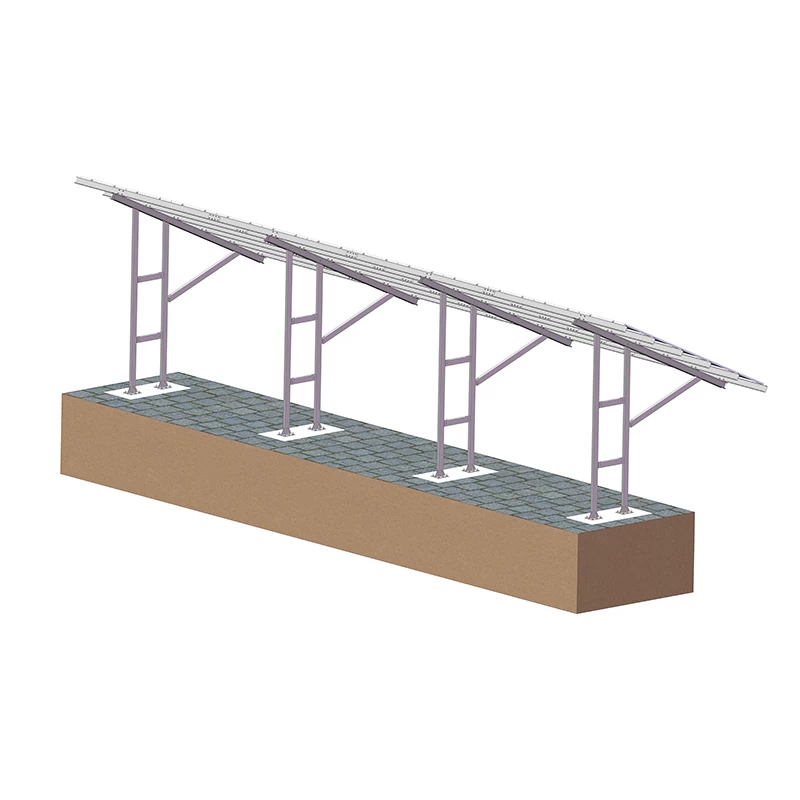

Solar Carport Mounting Structure
HQ MOUNT designs simplified and economic Solar Carport Mounting Structure. Our customers can have different options for both single row and double rows of parking. Hot-dipped galvanized or power coating is available. You can choose different colors for power coating. Our engineer with IWE (International Welding Engineer) can satisfied with any of your needs.
|
Material
|
AL 6005-T5/SUS304/Q235B
|
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 10μm Average
Hot-galvanized Coating Thickness≥ 80μm
Power Coating Thickness ≥ 250μm
|
|
Panel Type
|
Framed & Frameless
|
|
Wind Load
|
≤60m/s
|
|
Snow Load
|
1.4KN/m2
|
|
Panel Orientation
|
Landscape/Portrait
|
|
Tilt Angle
|
0°~20°
|
|
Standards
|
JIS C 8955 : 2017, AS/NZS 1170
|
|
Warranty
|
12 years quality warranty, 25 years life span warranty
|
Characteristics:
1. The solar carport mounting structure adopts the structure of single row to facilitate the free access of the vehicle; It does not hinder the switch of the door; And the structure is simple and beautiful.
2. The main supporting parts such as column and beam are made of Q235B, with good strength and low price, and the cost recovery of photovoltaic structure is fast.
3. The rails are made of aluminum alloy AL6005-T5 material with good strength. When it comes into contact with the solar panel, it will not cause corrosion.
4. It can charge electric vehicles to realize environmental protection through recycling of energy.
