Overview

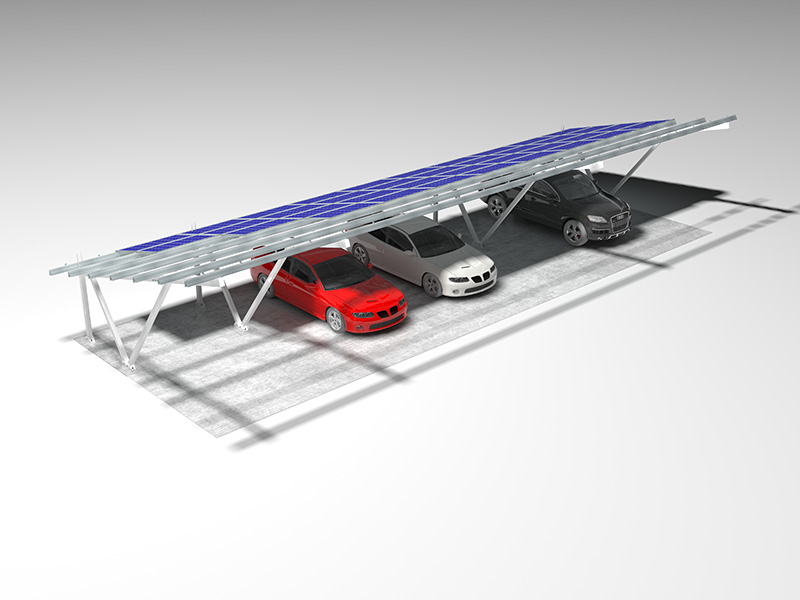

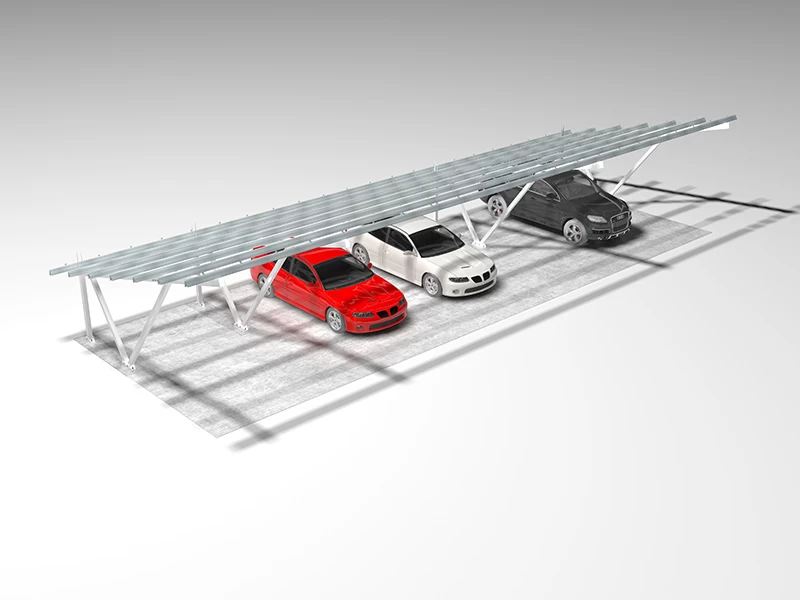

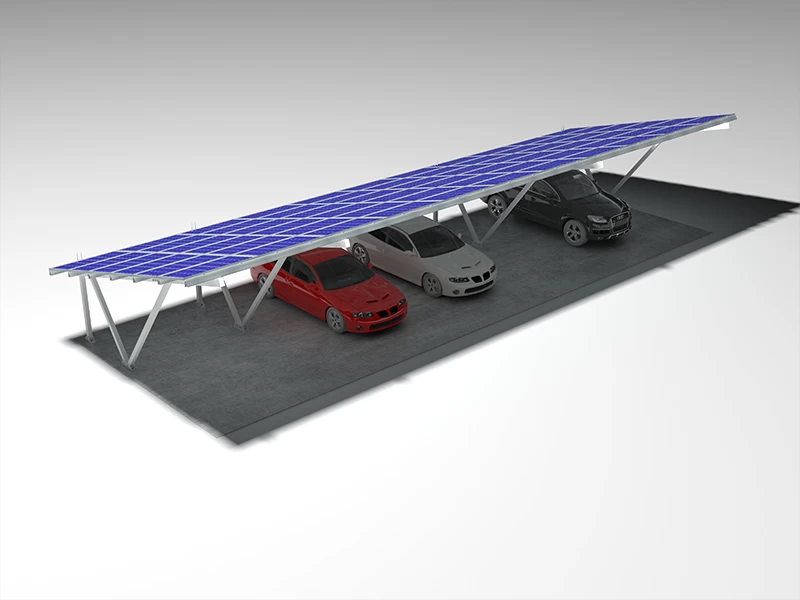

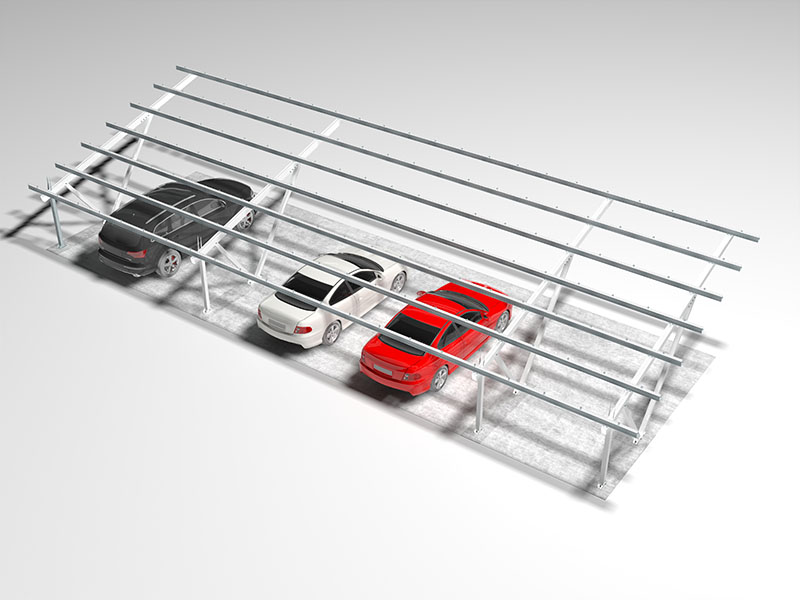

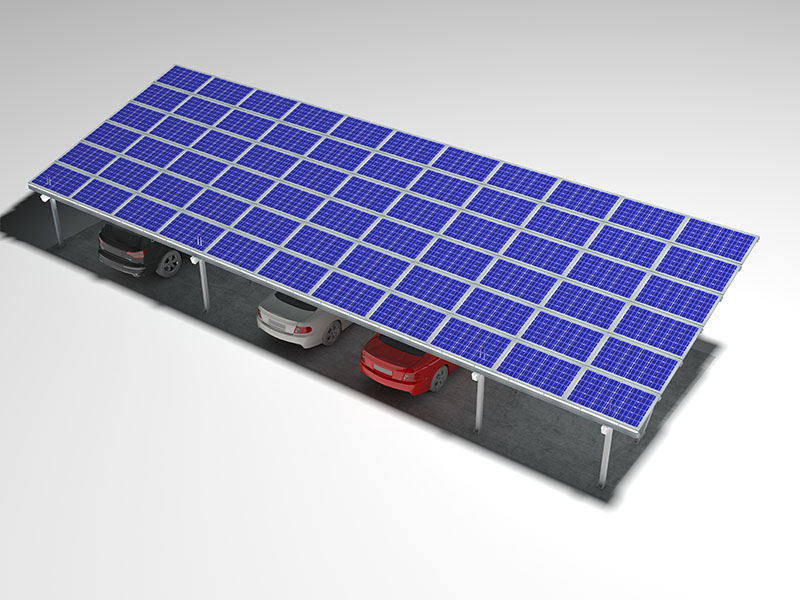

MRac Solar Carport System II is a pre-assembled ground solar mounting
system which is ideal for large commercial and utility-scale solar PV projects.
The system has been developed for various photovoltaic modules and will be
customized to fit into the parking lot or designed according to specific
requirements. The Carport System can protect the cars to avoid damage from
sunshine, wind, rain water, and snow. Mibet’s engineers continue to optimize
the design of system, the quality of product and service, and also provide the
best solution for your Solar Carport System.
Features
1.Customized Solution
Design case by case, making a good utilization of ground
resource and pursuit for easy and quick installation.
2.High Waterproof
The special waterproof conforms to the structure of system,
which make the performance Stronger
3.Save Installation Time and Labor Cost on Site
With installation manuals and system solution, the construction
on site will be simple.
Less construction time directly reduces project costs.
4.Compatible to Varied Solar Modules
With Mrac module clamps, the system compatible with most
kinds of framed and frame and frameless modules.
|
Technical Parameter
|
|
Installation Site
|
Open Area
|
|
Foundation
|
Concrete foundation
|
|
Tilt Angle
|
5-15°
|
|
Wind Load
|
80m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
1800mm+
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 & Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
