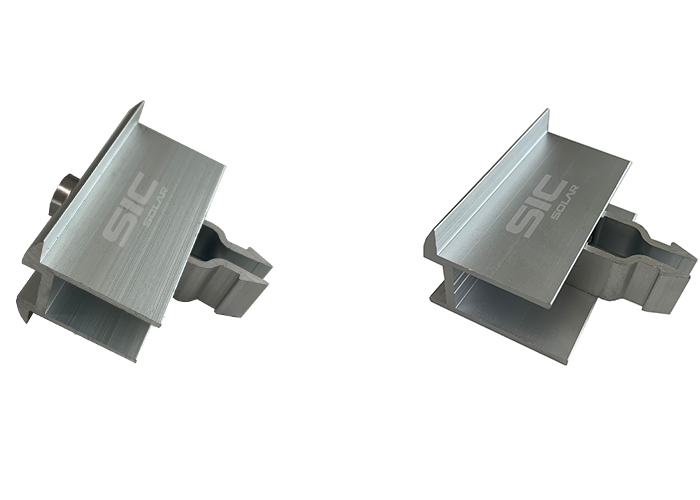

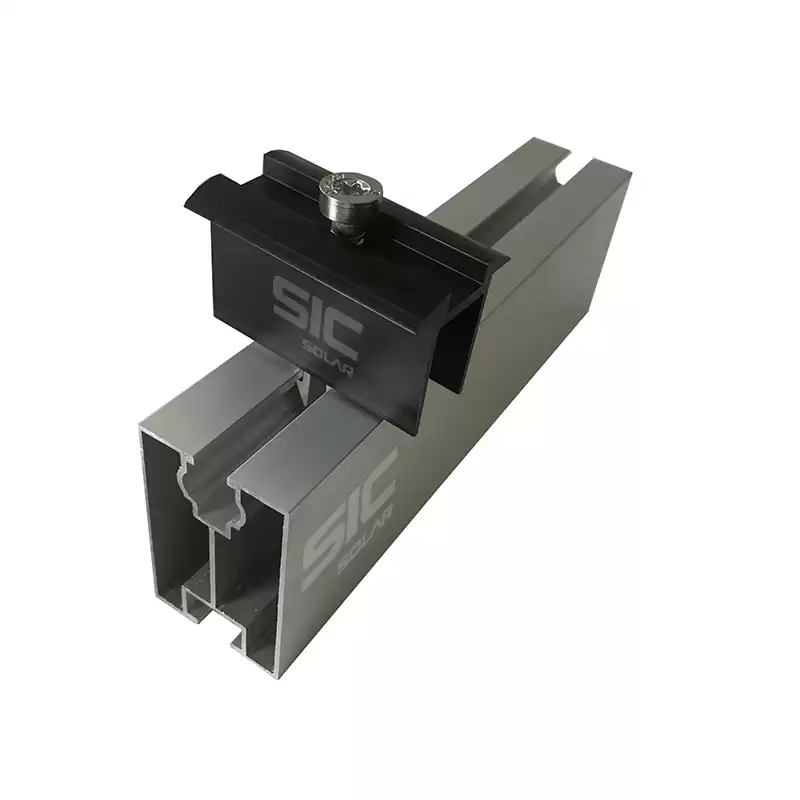

Pre-assembled solar panel clamps

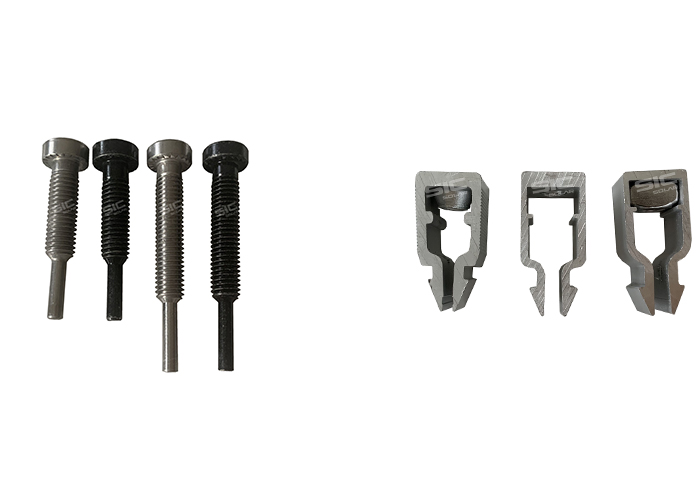

Solar power clamps with quick mount design could push into the rails directly. Special Clip design could offer 14mm adjustable height. With long and short bolt, the clamp could meet solar panel thickness from 29mm to 53mm. Both aluminum clamp and bolt could offer silver and black color.
Category: Solar components
|
Installation Site
|
Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|
Advantages as follow:
☆ Pre-assembled clamps with special clip design could push into the rail quickly.
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆ Flexible panel thickness - 24mm adjustable height with the short and long bolt.
Related certificate
Aluminum quality certificate -- AL6005-T5 composition list
Our CE Certificate for solar tile hook roof mount system
Our SGS Certificate for screw material -- SUS304
