Solar Energy Cell Panel Fast Rack Set Bracket

Solar Panel Bracket




Solar Energy Cell Panel Fast Rack Set Bracket

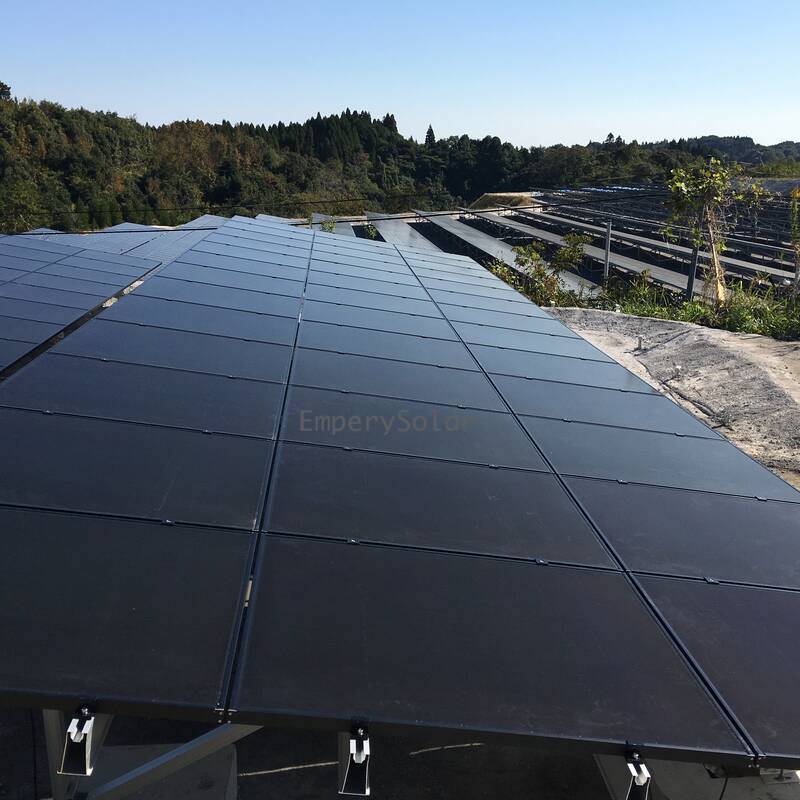

Empery W-type Aluminum ground mounting system

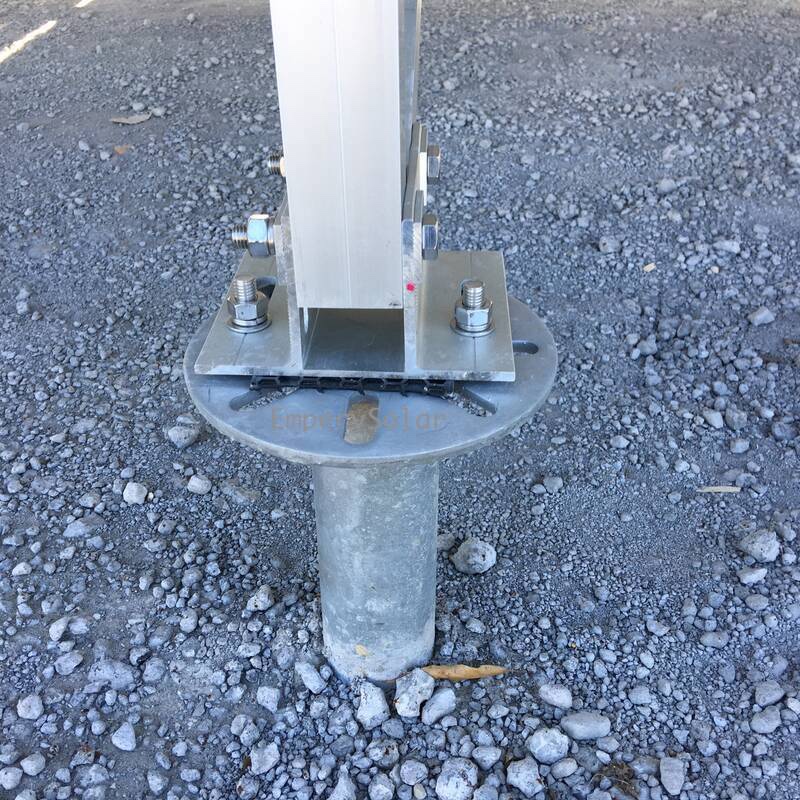

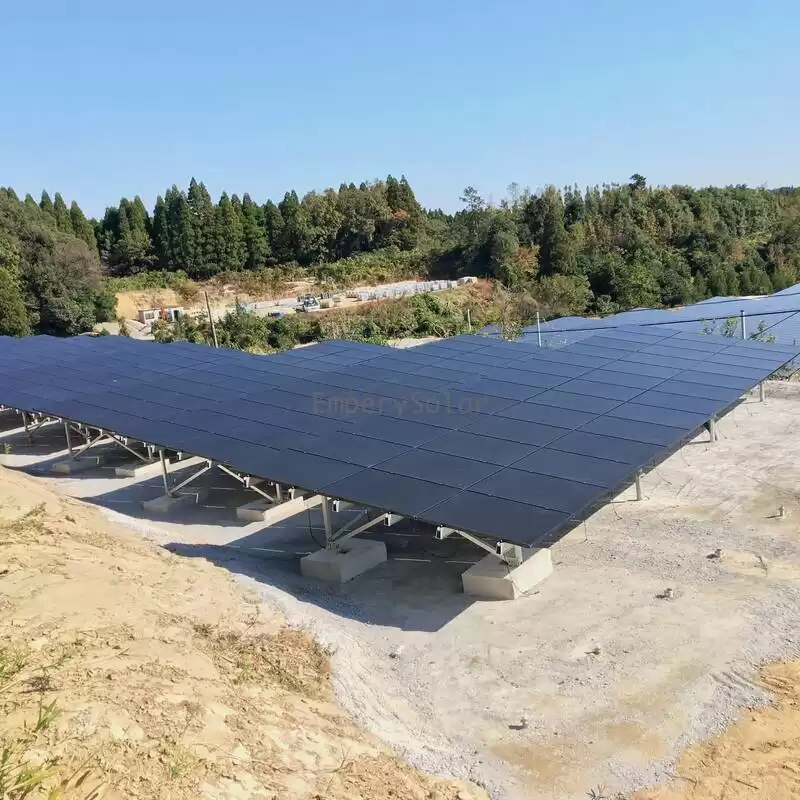

Empery AL-Ground System is made of 100% aluminum for mounting on concrete strip foundations or ground screw. It is light and strong, graceful and smart.
In our AL-Ground System, the Beam is pre-assembled, the size of the leg and the B-Rail is plan and machined on factory to eliminate the weld and cut on installation site to save your install time and cost.

Product information

Material

AL6005-T5&Galvanized steel
Specification N76*1200/N76*1600/N76*2000 or customized
Application home &  industrial & commercial
Type solar ground mounting
Samples available
Delivery date 7-15 days after payment received
Packing  Steel Pallet
Warranty 15 years and more than 20 years duration



Technical Information

Installation Site: Open field
Wind Load: Up to 60m/s
Snow Load: 1.4KN/m
Applicable Module: Framed or Frameless
Module Orientation: Portrait
Main Material: 100% Anodized Aluminum AL6005
Fastener Material: Stainless Steel

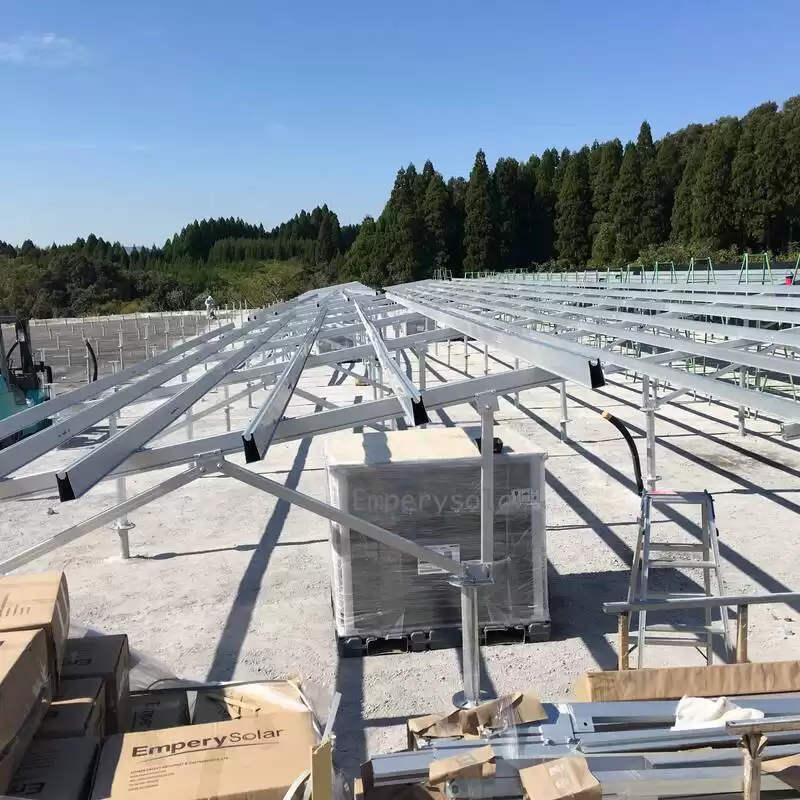

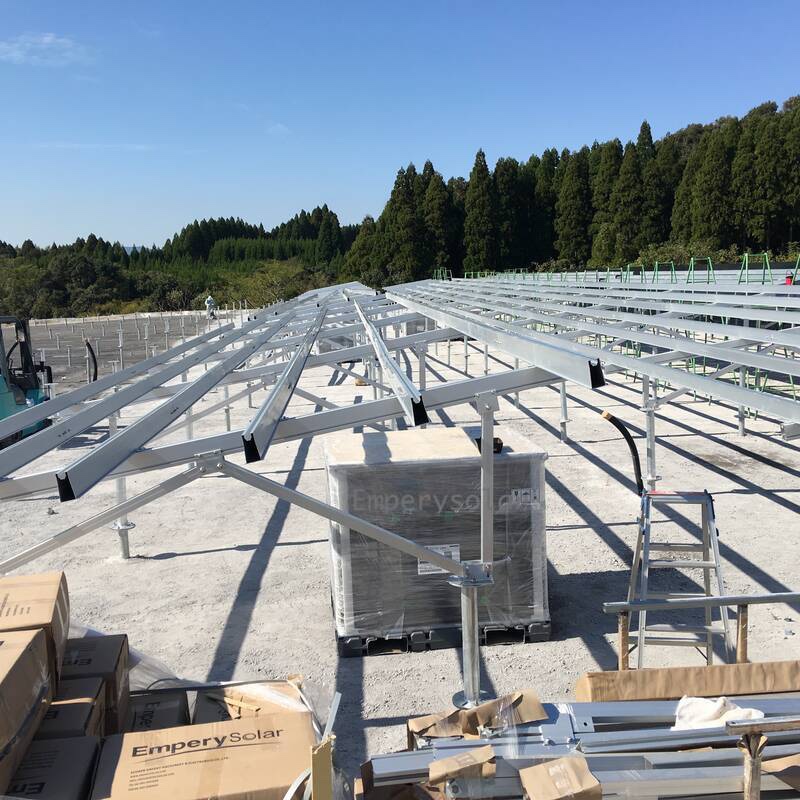

Aluminium Ground Mounting System


Aluminium Ground Mounting System

Benefits

● Easy Installation
Parts have been high pre-assembly on factory to save your installation time.
● Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
● Flexibility and Adjustable
Smart design reduce the difficulty of the installation on the most condition.
● 15-Year Warranty
Empery Solar provides a 15-years warranty for the material and structure.

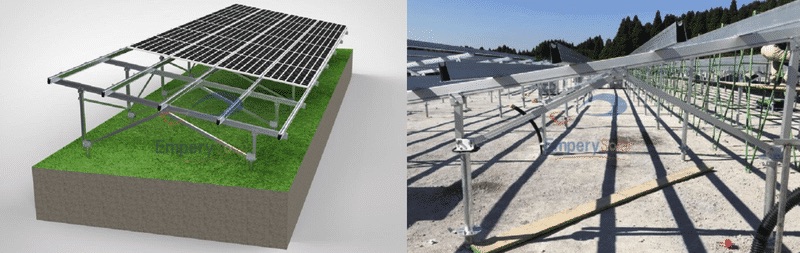

 Emperysolar Ground Mounting System

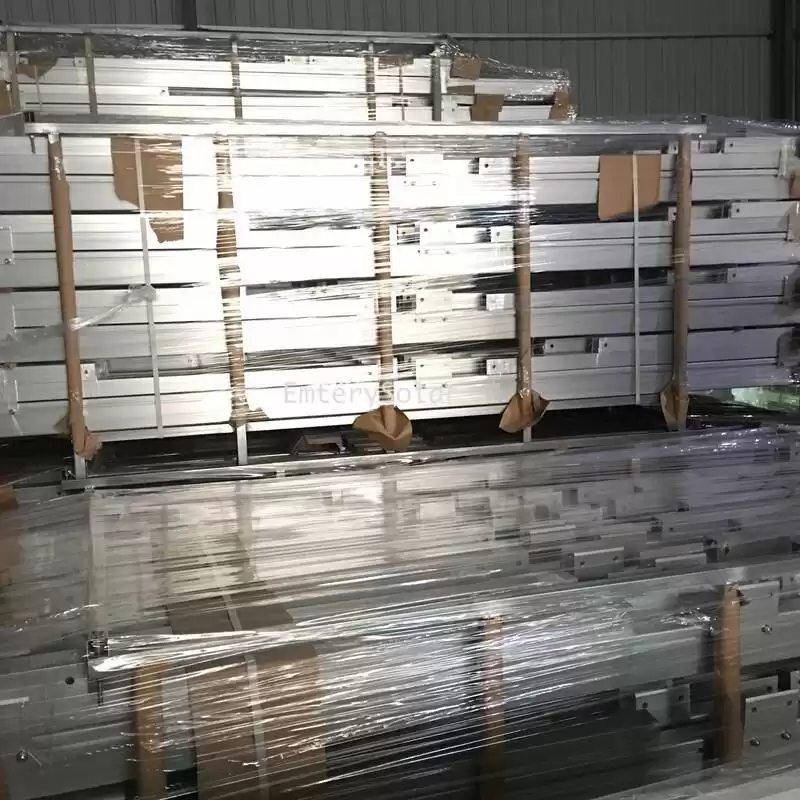

 Packing & Shipping

 Ground Mounting System


Product Tags solar cell panel bracket          solar panel rack set          solar energy panel rack          solar panel bracket
