Solar Fiberglass Walkway

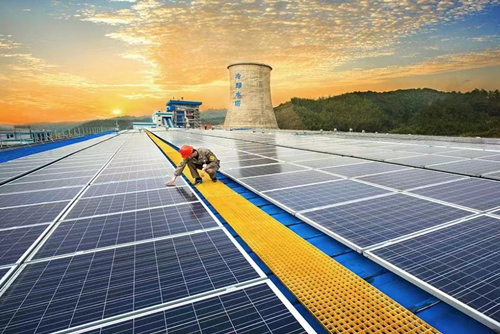

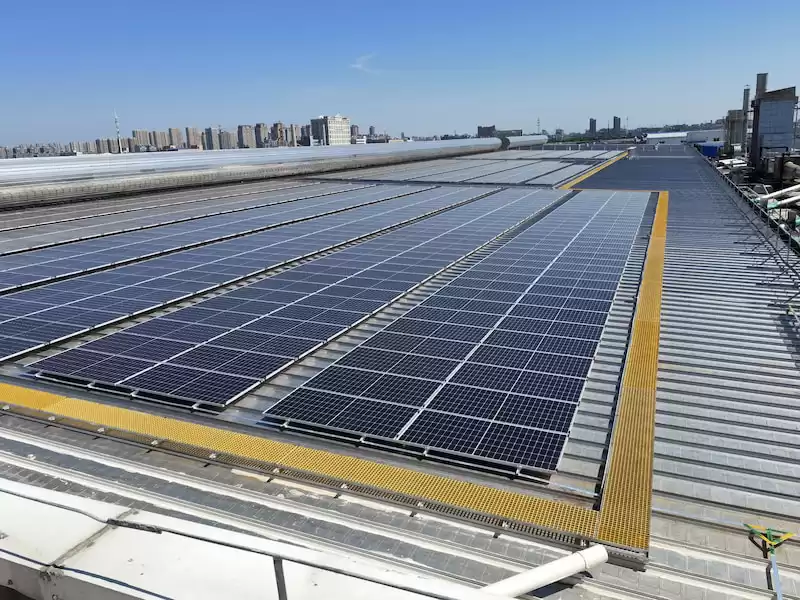

Solar FRP Walkway are available in a variety of resins, standard and custom colors, depths, panel sizes and mesh configurations. Surface options include a meniscus or integrally applied grit top, both of which offer superior, slip resistant footing. Solar FRP Walkway is used in place of traditional materials for a FRP solution that fits a wide range of applications and environments.





Facebook Twitter Pinterest LinkedIn 分享

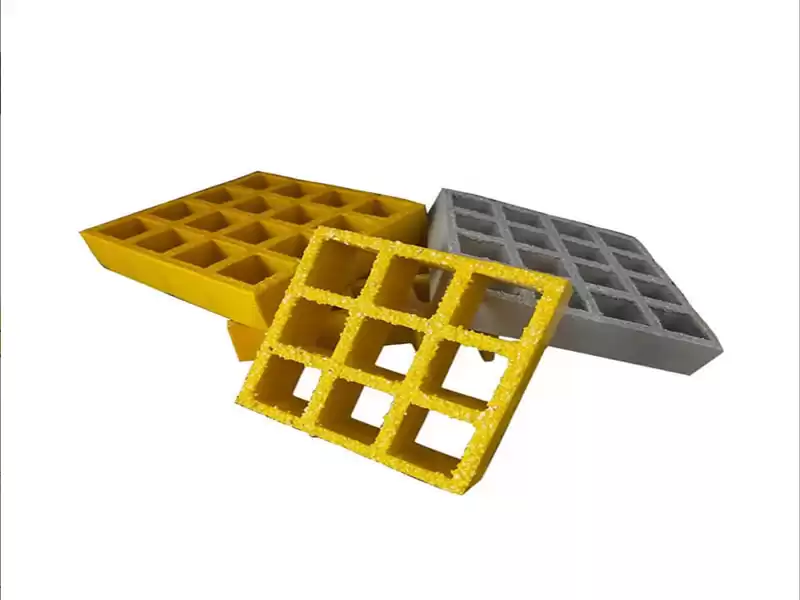

Description: Solar Fiberglass Walkway



Raw Materials: ISO-Phthalic / Orthophthalic/Vinyl/Phenolic resin+fiberglass roving + Other auxiliary materials.

Color: Yellow, Blue, Grey and other customized color



Features: Strong load-bearing capacity,acid and alkali corrosion resistance,flame retardant



Application: Chemical factory, Aquaculture, Municipal greening, Electroplating factory, Car washing, Drilling platform, etc.









Size Table of FRP/GRP Molded Walkway
Mesh Shape Thickness Mesh Size Panel Dimension Open Area Weight
(mm) (mm) (mm) (%) (kg/m²）
Normal Square Mesh 25 38*38 1220*3660,1220*4040 68 12.3
25 19*19 1220*3660,1220*4040 42 16.81
25 40*40 1000*4000 67 12
25 100*25 1220*3660 67 13
30 38*38 1220*3660,1220*4920,1000*4000 68 14.6
30 20*20 1220*3660,1000*4000 42 18.03
38 38*38 1220*3660,1220*4920,1000*4040 68 19.5
38 25*100 1220*3660,1220*4920,1000*4000 68 22.43
38 25*152 1220*3660,1220*4920,1000*4000 56 22.43
38 38*152 1220*3660 67 15.96
38 19*19 1220*3660,1220*4920,1000*4000 42 23.51
38 25*125 565*3050 56 23.02
38 38*100 1220*3660 62 15.2
38 25*100 1220*3660 46 21.01
40 20*20 1007*3007,1007*4007 42 23.7
40 40*40 1007*3007,1207*3007 67 19.2
50 50*50 1220*3660,1220*4920,1000*4000 71 23.51
60 38*38 1220*3660,1220*4920,1000*4000 58 50.43





Next Product
Prev Product
Product Tags solar rooftop walkway          Solar Panel Rooftop Walkway          Solar Racking System Walkway Installation          Solar Panel Walkway          Anti-skid Solar Panel Walkway          FRP walkway solar
