Solar ground mount structures

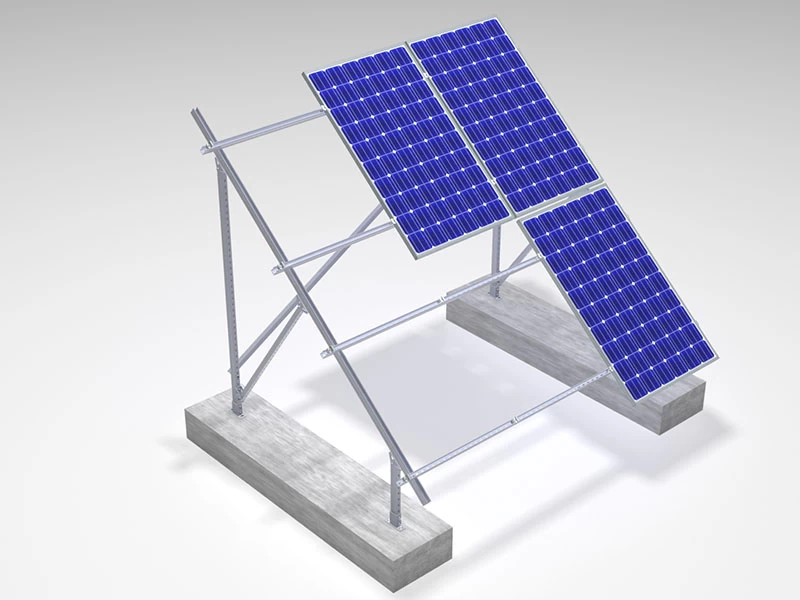

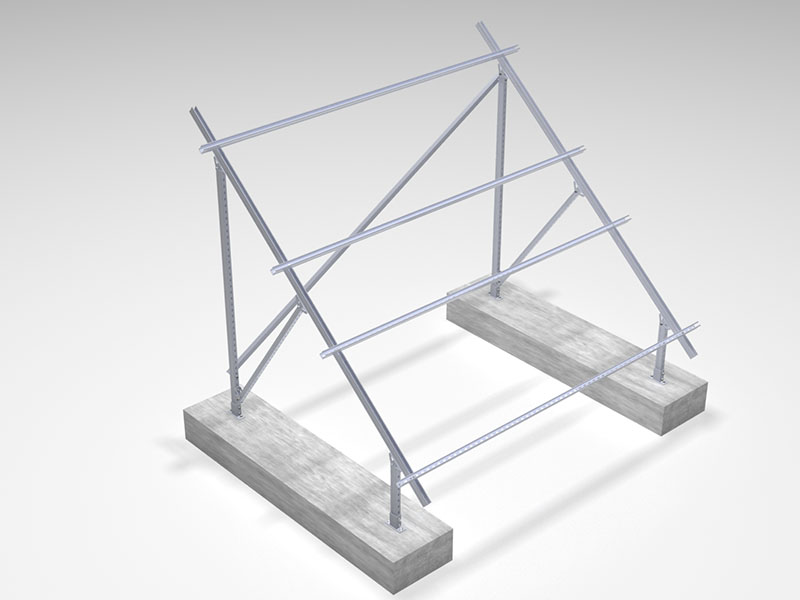

MRac Ground Terrace GT1 is suitable for large-scale and utility-scale solar PV power plant.



Overview

MRac Ground Terrace GT1 is suitable for large-scale and utility-scale solar PV power plant. Main components are made of hot-dip galvanized steel, with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented and certified system design ensure projects safety and quick installation.




Ground Mount Features

System Compatibility

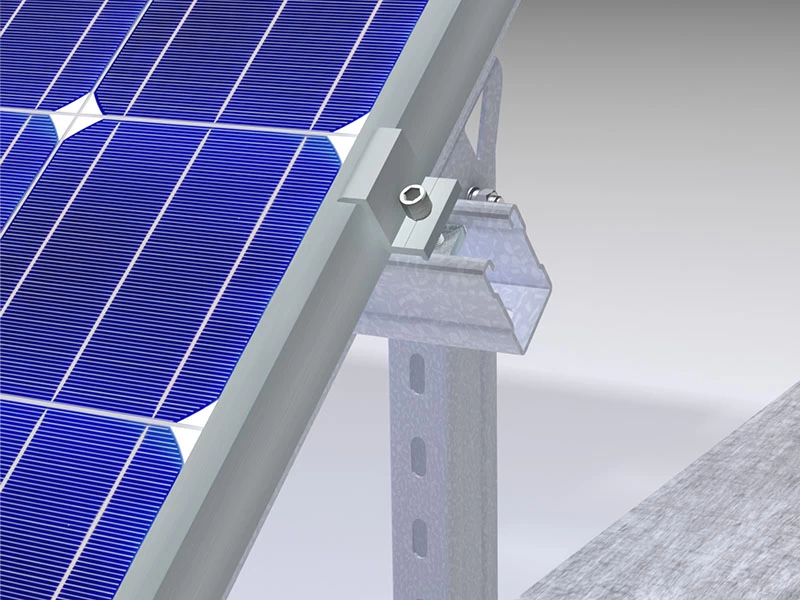

Suitable for different kinds of lands with high use ratio With MRac module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.

Pre-assembled Components Save Onsite Installation Time

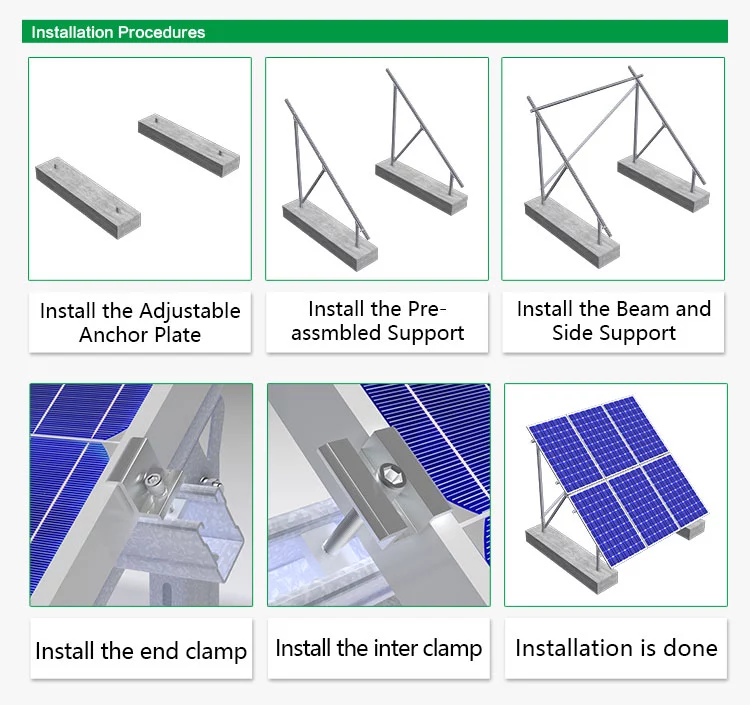

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

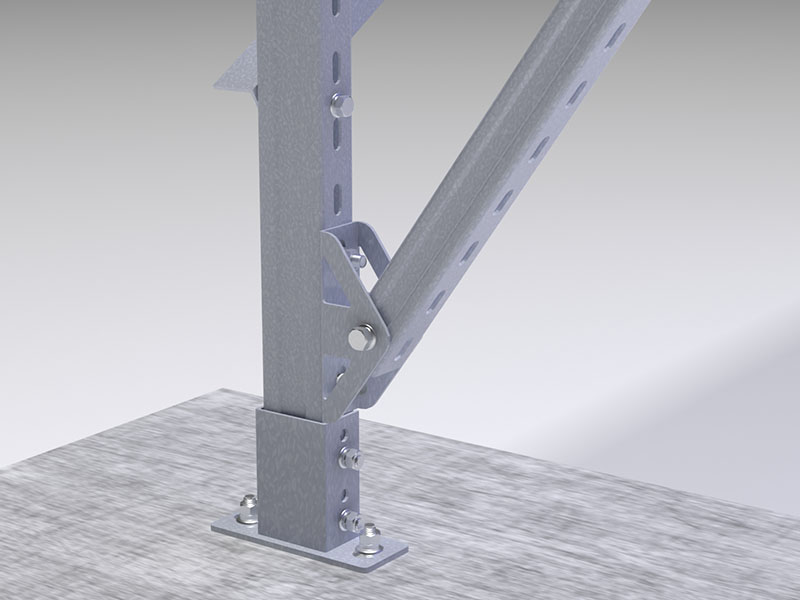

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules


Technical Parameter

Solar PV Mounting System Name

MRac Ground Terrace GT1 Solar PV Mounting System

Design Standard

AS/NZS 1170,DIN 1055,JIS C8955:2017,



International Building Code IBC 2009,

Foundation

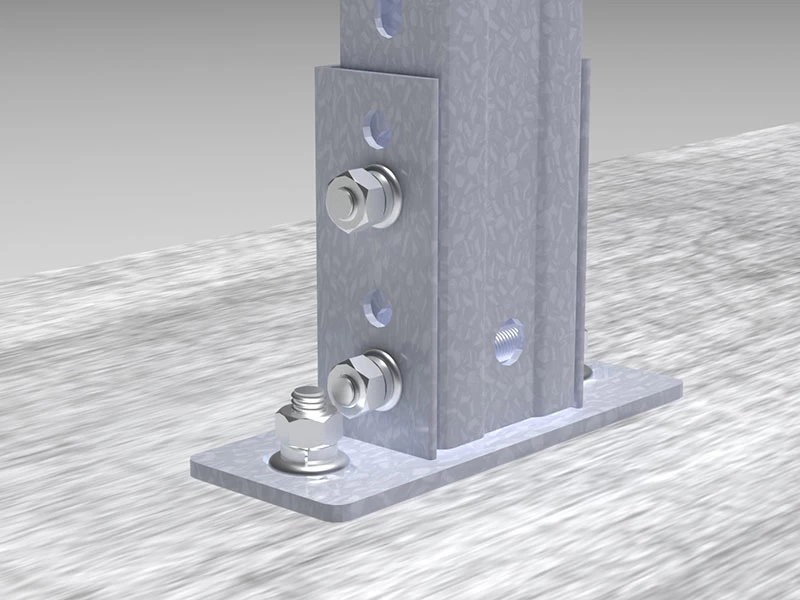

Concrete Base or Ground Screw



California Building Code CBC 2010;

Tilt Angl

0-60°

Material

Steel Q235B(Hot-Dip Galvanized)

Wind Load

60m/s

Fastener

SUS304 & Hot-Dip Galvanized & Zinc-Nickel Alloy Electroplated Steel

Snow Load

1.6KN/M2

Small Components

AL6005-T5(Anodized)

Applicable Solar Module

Framed or Frameless

Color

Silver or Customized Solar PV Mounting System

Panel Layout

Portrait or Landscape

Warranty

10-Year Warranty +



Flat Roof Small Concrete Ballast MRac Ground Solar PV Mounting System
