Solar Ground Mounting Aluminum Structure


  • FoundationGround screw、Concrete block
  • Panel OrientationPortrait、Landscape
  • Panel FramingFramed、Frameless
  • Moudle Angle0-60 Degrees
  • Snow Load1.4kN/m2
  • Wind Load60m/s

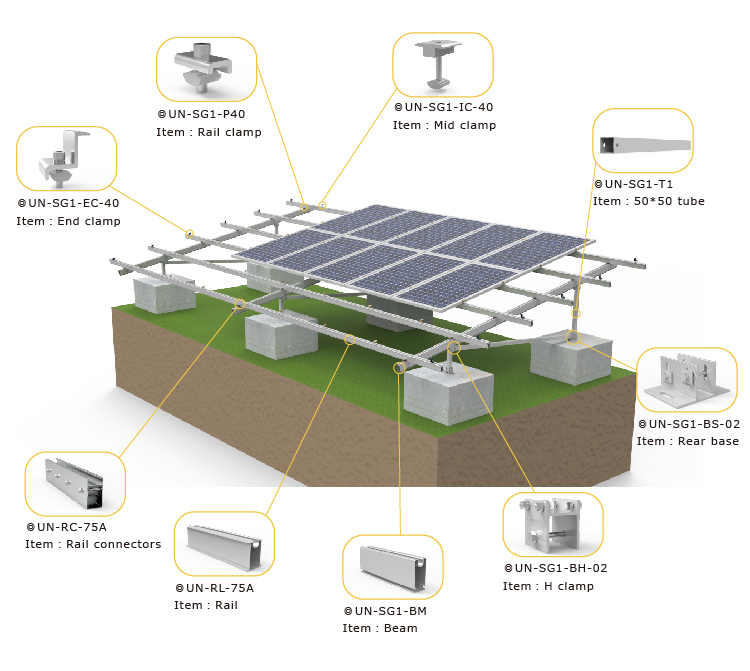

Solar Ground Mounting Aluminum Structure SG1


SG1 Solar ground mounting aluminum structure is featured with light weight, strong structure, and recyclable materials, pre-assembled beam save your time and cost .


Ground Photovoltaic System Bracket Features:

A.Quick installation with large-scale ground photovoltaic system power station construction progress.

B.Flexible form of adjustment to meet the complex requirements of the construction site.

C.Refine the number of accessories to facilitate the identification of workers on site .

D.Rust-resistance and Anti-corrosion.


solar ground mount structures

Product Parameter
Product Name Solar Ground Mounting System
Installation Site Open Field/ Ground / Earth / Concrete Ground
Material Aluminum 6005-T5
Surface Anodized
Color Silver or Customized
Module Angle 10-35 Degrees According to Your Requirement or Latitude
Wind Speed 60m/s
Snow Load 1.4kN/m2
Standard AS/NZS 1170; JIS C8955:2017
Warranty 10 Years
Service Life 25 Years
Advantages Easy Installation; Safety And Reliability; 10 -Year Warranty

ground mount solar racking



  F A Q

Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.

Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.


Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.


Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.


Q4: How can I get some samples?

A4:We are honored to offer samples according to your inquiry.


Q5:What necessary info. for us to design and quote?
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
