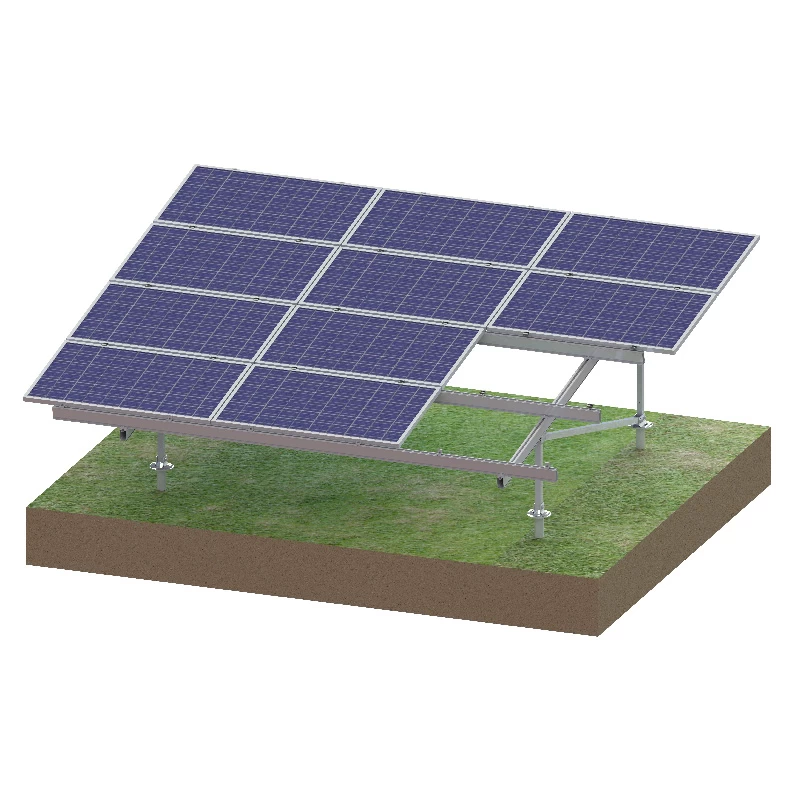

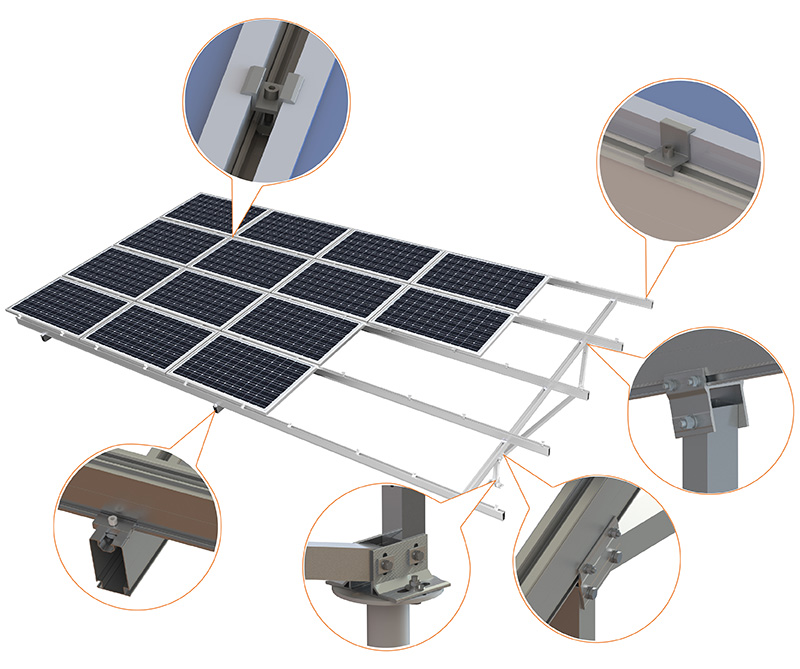

Solar Ground Mounting Brackets System Structure
Solar ground mount adopts 6005-T5 anodized aluminum and SUS304 stainless steel ,which offer high strength and corrosion resistance.
It is featured with light weight ,strong and powerful bracket and recyclable a material ,the pre-assemble support rack save your time and cost.The ground structure is in high quality with light weight and strong bracket and recyclable material. And the pre-assemble support rack save your time and cost.
|
Installation
side
|
Open
field/Ground
|
|
Module
Angle
|
0~60 degree
|
|
Max wind
speed
|
Up to 80m/s
|
|
Snow load
|
Up to
1.4KN/m2
|
|
Material
|
AL6005-T5
&SUS304
|
|
Module
orientation
|
landscape ,portrait
|
|
Foundation
|
Concrete
base ,Grounds screw
|
|
Standard
|
AS/NZS S1170 , JISC8955:2017
|

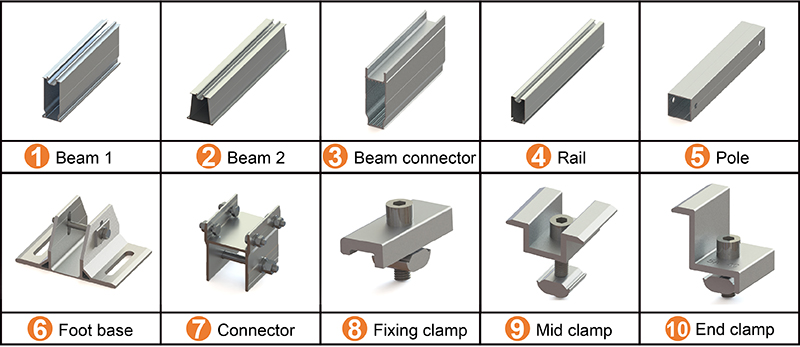

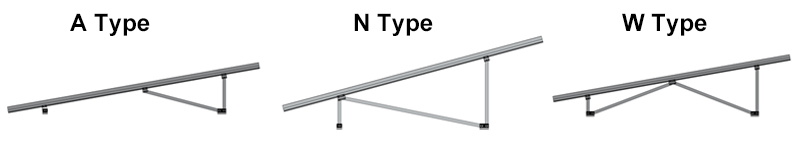

Mounting Structure Type
1. High Pre-assembled ,save cost and time

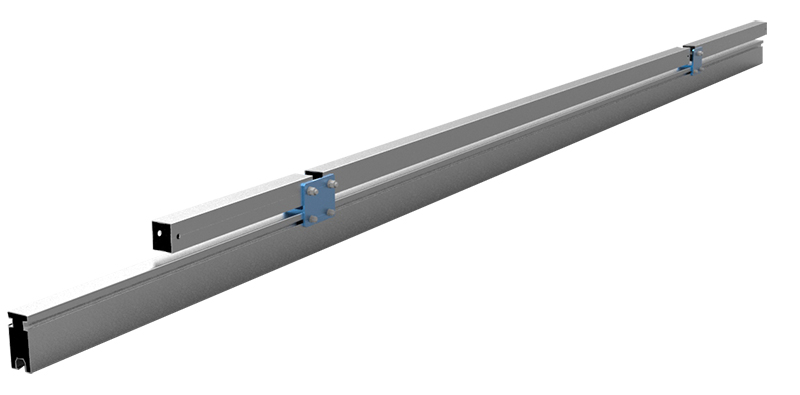

Front & rear legs,beam and reinforced pipes are pre-assembles before shipment.

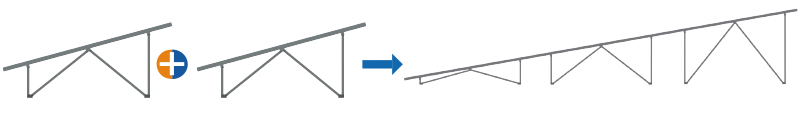

2. More panel layout arrange, Land utilization has increased

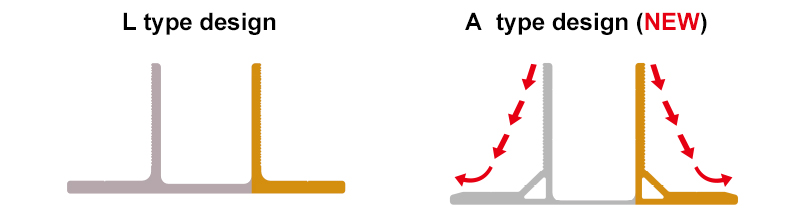

3. Foot base design
A type foot base have more stronger then L type foot base.

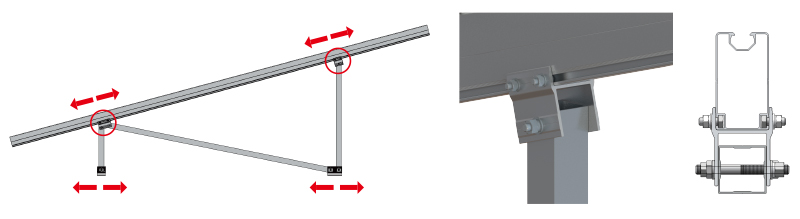

4. Control error
The connector for the beam and pole , there is little space to adjust.

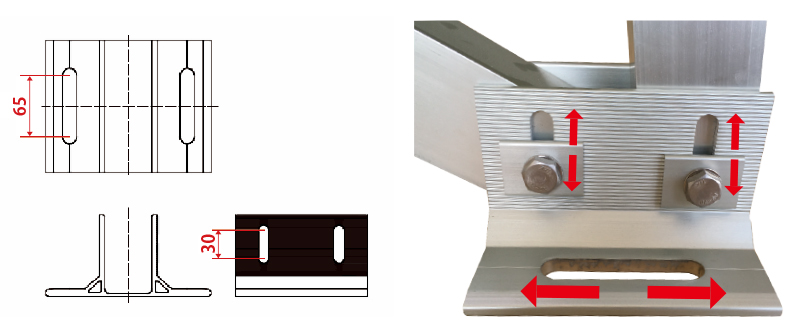

The design of the long hole of the foot base is conducive to the adjustment of construction error.
