Solar Ground Mounting System Of Concrete Foundation
Product Description

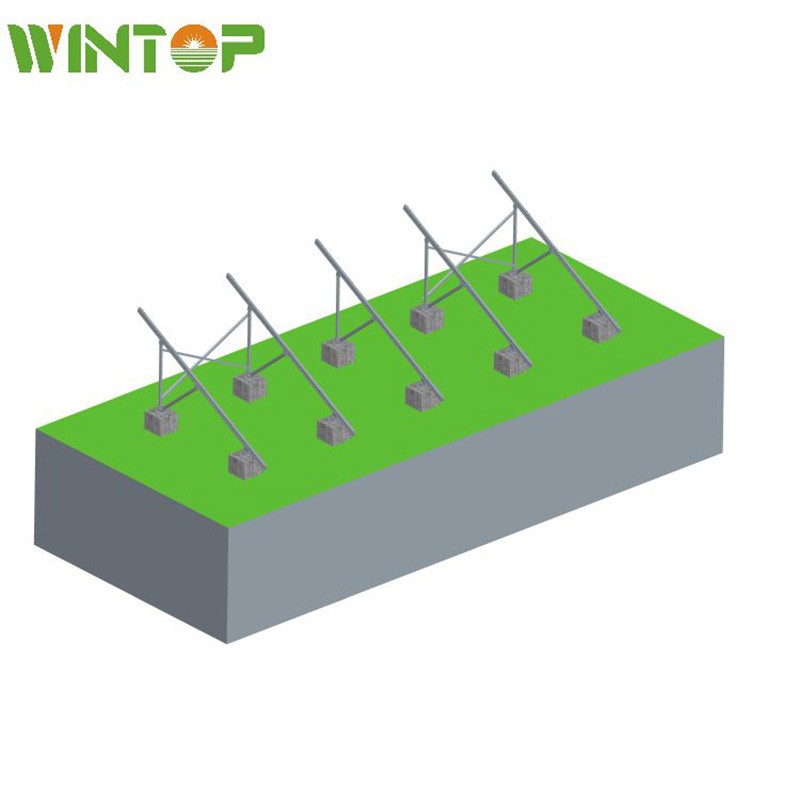

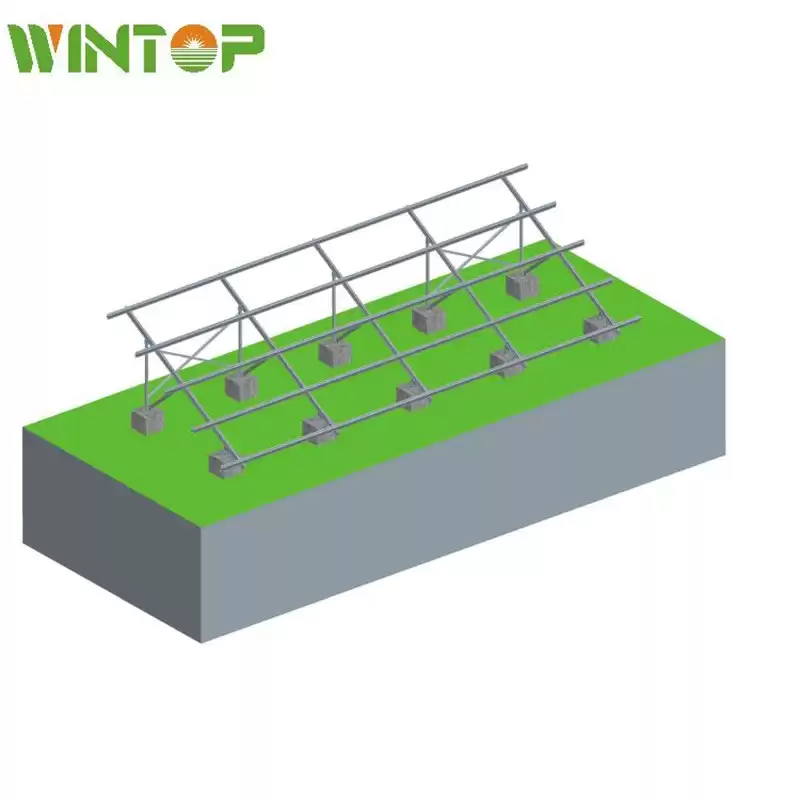

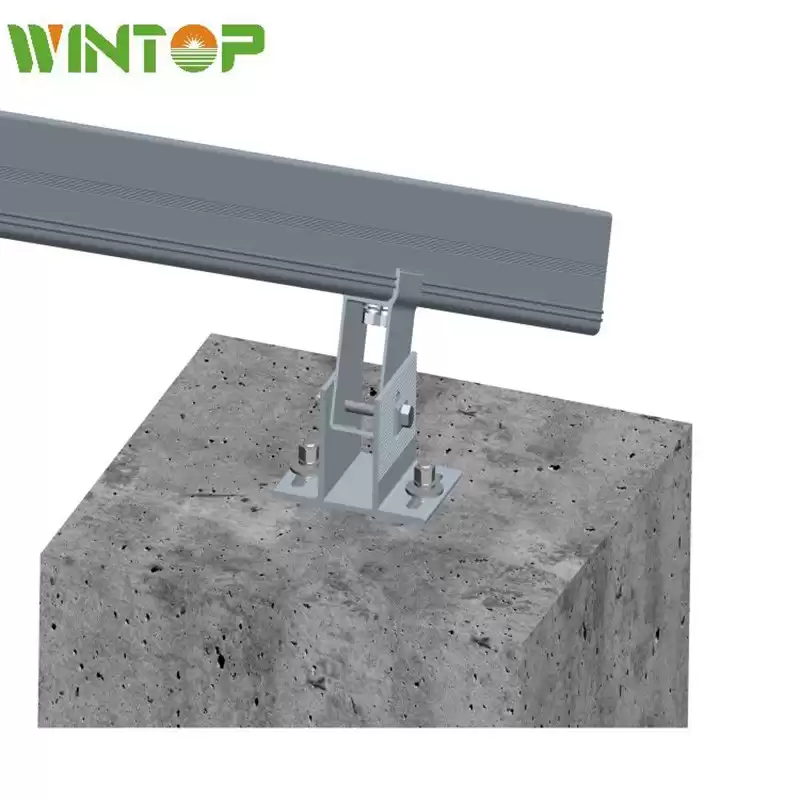

Concrete solar ground mounting system adopts prefabricated or cast-in-place concrete foundation, with mature manufacturing technology, high bearing capacity and easy installation.This concrete photovoltaic bracket is made of lightweight aluminum steel plate, which is more convenient to transport and install.
Technical Parameters
|
Installation location
|
Ground
|
|
Installation angle
|
Up to request
|
|
Wind load
|
60m/s （216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Light weight, easy transportation & installation and safe construction;
-
The surface is treated by oxidation, high corrosion resistance & good stability;
-
Suitable for various designs and solutions;
-
The maxiumum pre-assembly, save contruction time and labor cost;
-
Wide installation, suitable for various soils such as sandy soil and loamy soil;
Components
Project

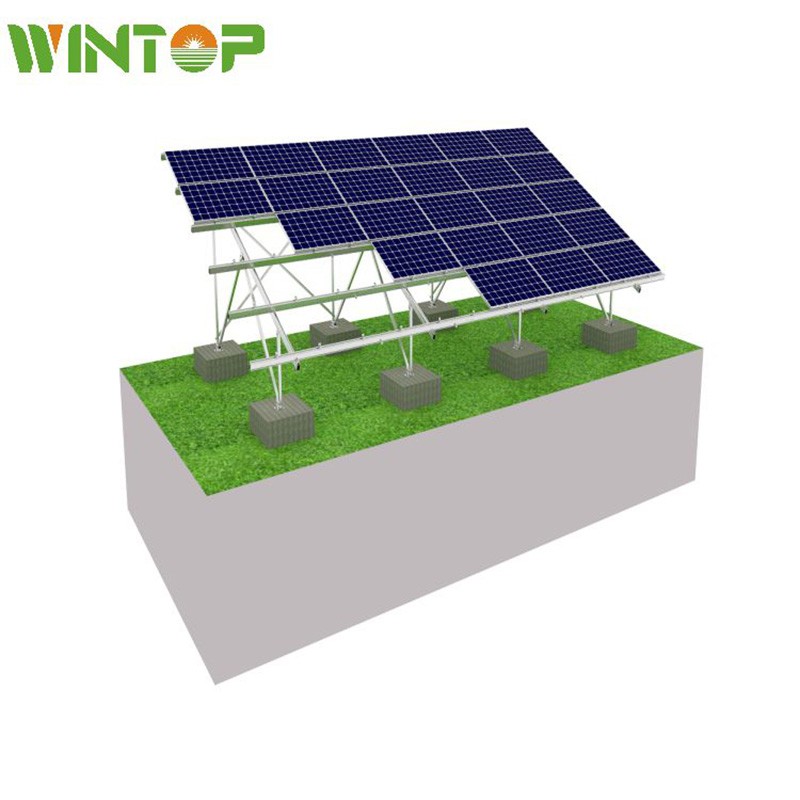

Ground-mounted solar systems use rigid metal frames or free-standing solar arrays mounted on the ground. Then
you need a high quality Solar Panel Ground Mounts, ground mounted solar
panels are much more productive and can achieve higher power output
with a solar tracking system.
Certificate
Carport mounting QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
Our Solar Ground Mount Kit can be installed by yourself or by a
licensed contractor, choose our licensing service to develop a detailed
engineering plan and permit documentation for you.
FAQ
(1) Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2016.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
