Solar hanger bolts for metal roof sheet

SIC Hanger bolt is frequently used with L feet(L bracket) or stainless steel plate to combine with mounting rail.


  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • FunctionFix mounting to the roof
  • Installation SiteSlope roof

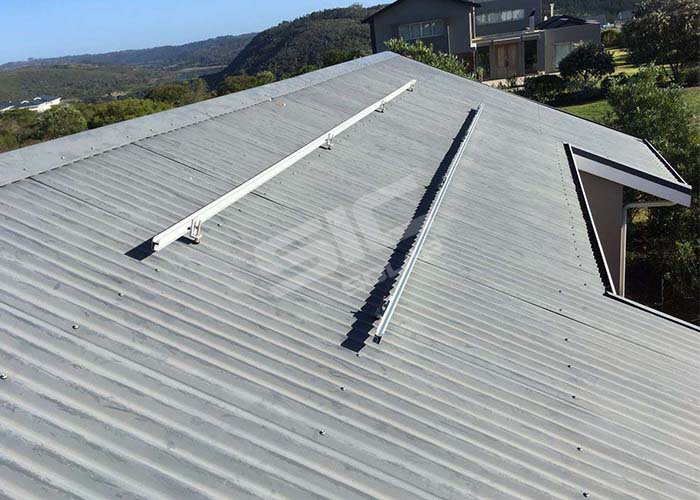

Rafter bolt mounting system



Rafter bolt is one kind of fixings with mounting structure used to screw into steel purlins or wooden rafter on corrugated and trapezoidal roofs. Hanger bolt is frequently used with L foot or stainless steel plate to combine with mounting rail. The Hanger Bolt for solar panel installation is coming with three flange nuts and one resistant EPDM washer, which has waterproof founction.


Rafter bolt solar racking system



Category: Pitched roof mounting

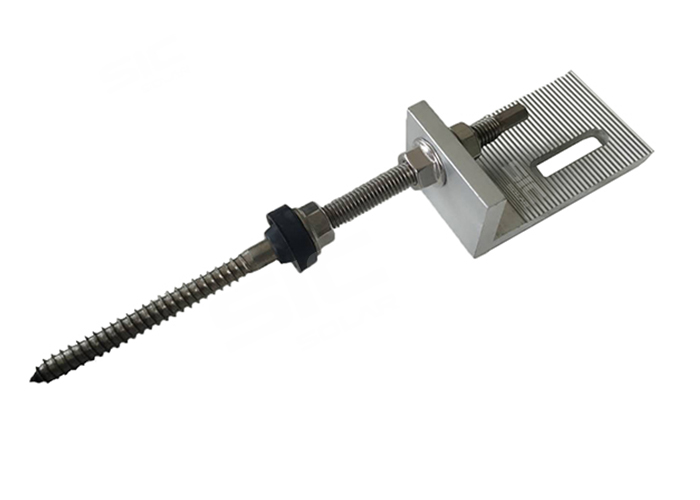

Name L Feet with stainless steel Hanger Bolt

Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

SUS304 and AL 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time

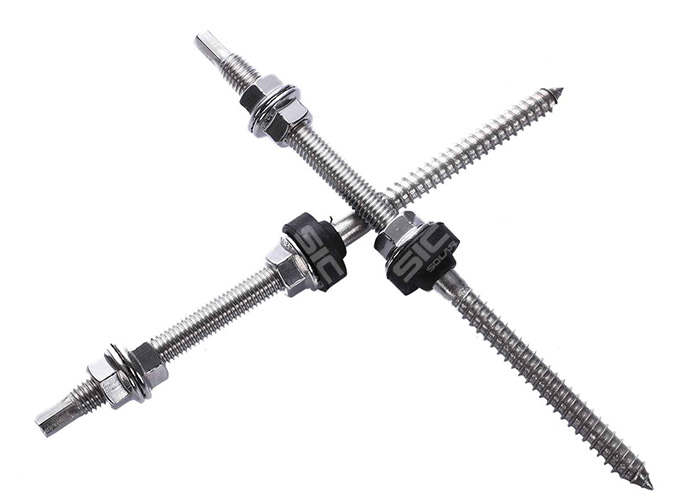

Hanger bolts

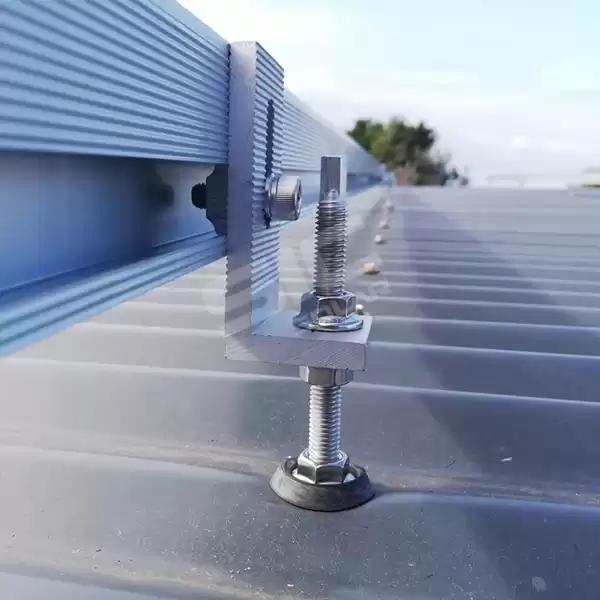

Solar L foot hanger bolt for solar PV panel mount




Advantages as follow:

☆ Easy Installation--Hanger bolt will be fixed on steel or wooden purlin directly.

☆ Waterproofing--The rubber can perfectly prevent water.

☆ Pre-assembled components  – highly save the labor cost at your installation site.


Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



Package for solar hanger bolt bracket
