Feature:
High efficiency pure sine wave inverter(PF=1);
Wide PV input range(120Vdc--500Vdc)100A MPPT SCC;
Surges to 2X continuous power for 5 seconds for motor loads.
Intelligent functionality enables utility and solar input prioritication
Wide utility input range(90Vac--280Vac)for unreliable grid even
In the most challenging environments.
Field serviceable with replacement boards and spare parts.
Monitor,troubleshoot,or communication with USB/RS232.
System configures quickly into compact,wall-mounted system.
Working without batteries in sun day
Introduction:

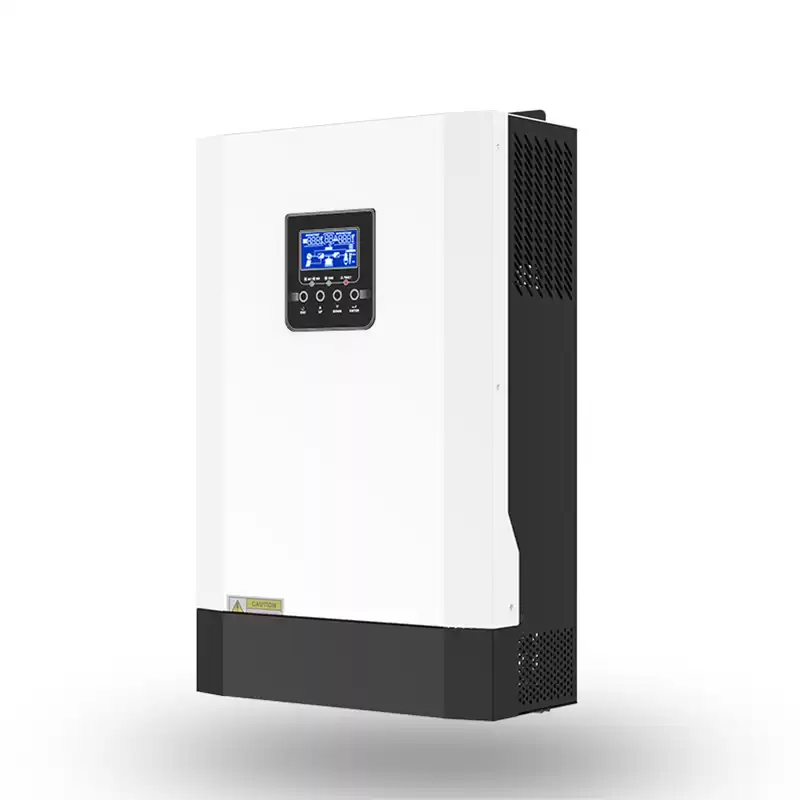

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
|
Model
|
HF-NB-5.5K
|
INVERTER OUTPUT &INPUT
|
Rated Power
|
5500VA/5500W-48V
|
Output Waveform
|
Pure sine wave
|
Input Voltage
|
230VAC
|
Selectable Voltage Range
|
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
|
Output Frequency Range
|
50Hz/60Hz(Auto sensing)
|
AC Output Voltage Requlation(Batt. Mode)
|
230VAC±5%
|
Surge Power
|
11000VA
|
Efficiency (Peak) PV to INV.
|
97%
|
Transfer Time
|
10 ms (For Personal Computers) 20 ms(For Home Appliances)94%
|
SOLAR CHARGER
|
Maximum PV Array Power
|
5500W
|
MPPT Range@Operating Voltage
|
120~450VDCVDC
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
Maximum Charging Current
|
80A
|
