Solar Inverter 3 Phase

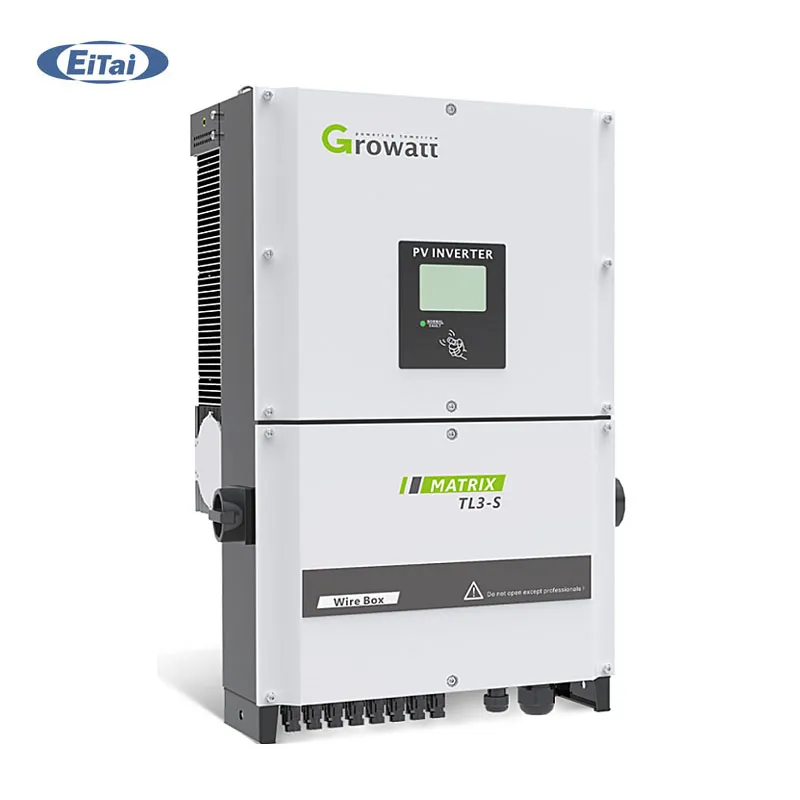

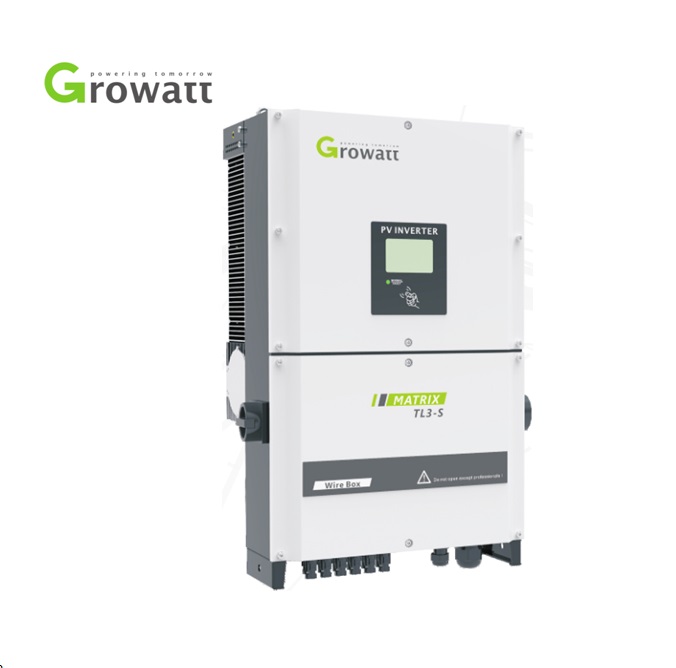

GROWATT Grid Converter 30KW 33KW 40KW PV System Inverter Three Phase Solar Inverter Wildly Used In Commercial.
Datasheet :
|
Datasheet
|
20000TL3-S
|
25000TL3-S
|
30000TL3-S
|
40000TL3-NS
|
|
|
|
Max.
recommended
PV power
(for module STC)
|
25000W
|
31250W
|
37500W
|
50000W
|
|
Max. DC voltage
|
1000V
|
1000V
|
1000V
|
1000V
|
|
Start voltage
|
250V
|
250V
|
250V
|
250V
|
|
PV voltage range
|
200V - 1000V
|
200V - 1000V
|
200V - 1000V
|
200V - 1000V
|
|
MPP work voltage
range( nominal
voltage)
|
580V
|
580V
|
580V
|
580V
|
|
Full load dc voltage range
|
400V - 800V
|
400V - 800V
|
450V - 800V
|
540V - 800V
|
|
Max. input current
|
37.5A/37.5A
|
37.5A/37.5A
|
34A/34A
|
38A / 38A
|
|
Number of
independent MPP
trackers / strings
per MPP tracker
|
12.5A
|
12.5A
|
12A
|
12A
|
|
|
|
Rated AC output
power
|
20kW
|
25kW
|
30 KW
|
40 KW
|
|
Max. AC power
|
22.2kVA
|
27.7kVA
|
33.3 KVA
|
44.4 KVA
|
|
Max. output
current
|
32.2A
|
40.3A
|
48.3A
|
64.5A
|
|
AC nominal voltage
|
230V/400V
|
230V/400V
|
230V/400V
|
230V/400V
|
|
AC grid frequency;
range
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Adjustable power
factor
|
0.8 leading - 0.8 lagging
|
0.8 leading - 0.8 lagging
|
0.8 leading - 0.8 lagging
|
0.8 leading - 0.8 lagging
|
|
THDI
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC connection
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
3W+N+PE
|
|
|
|
Max. efficiency
|
98.70%
|
98.70%
|
98.90%
|
99%
|
|
Euro weighted efficiency
|
98.40%
|
98.40%
|
98.40%
|
98.50%
|
|
MPPT efficiency
|
99.50%
|
99.50%
|
99.50%
|
99.50%
|

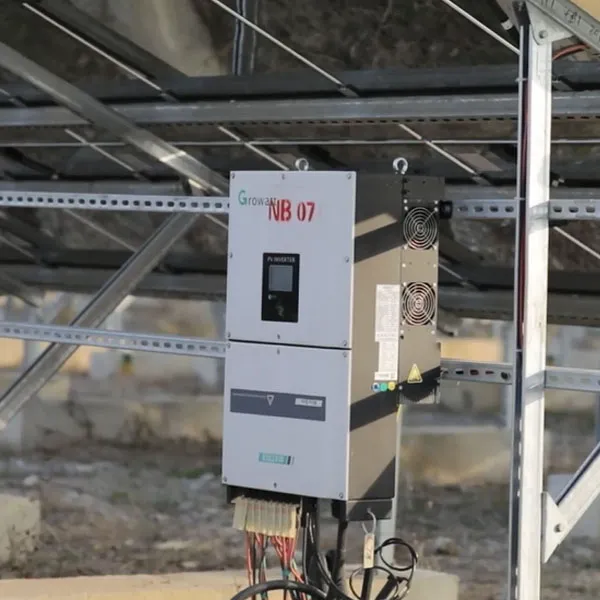

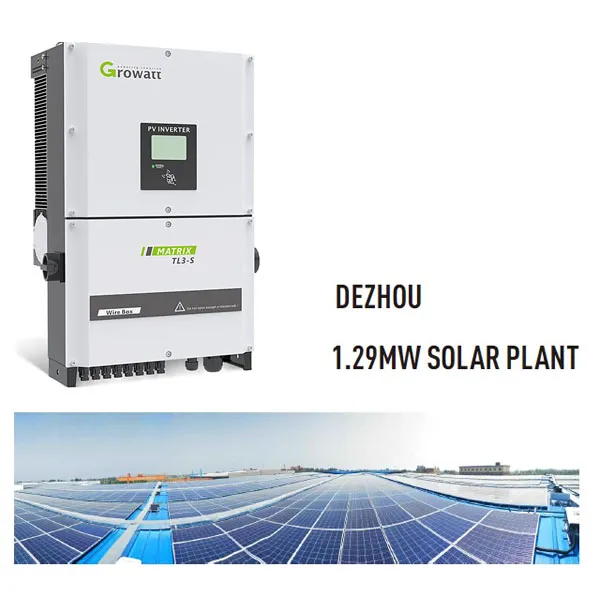

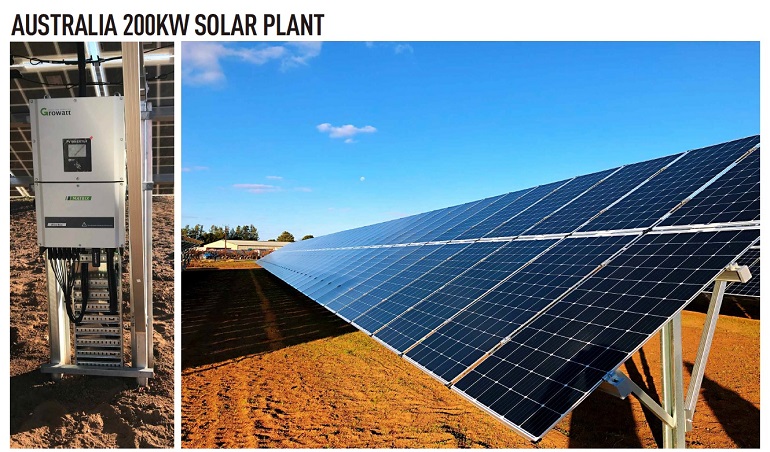

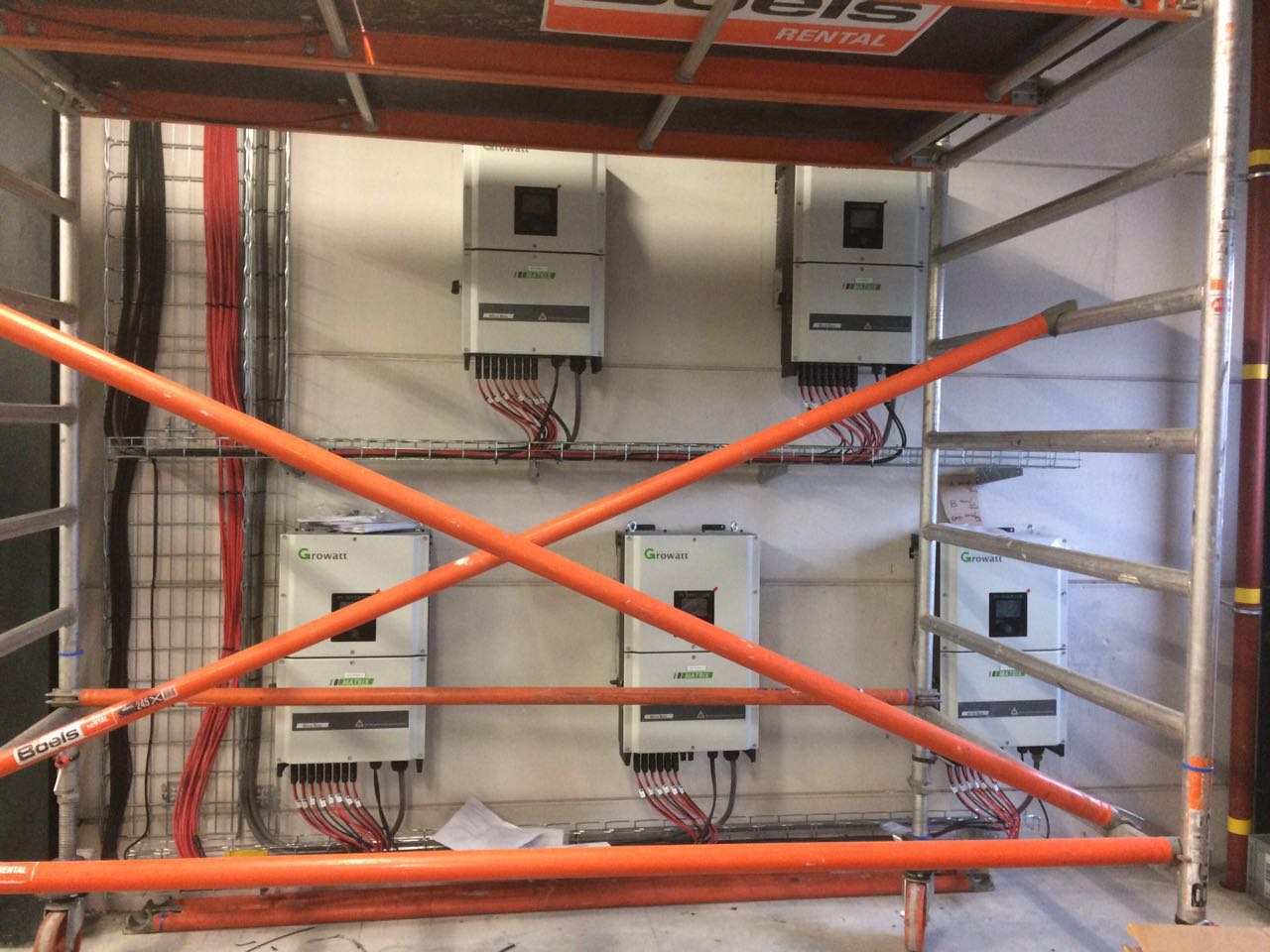

Application :

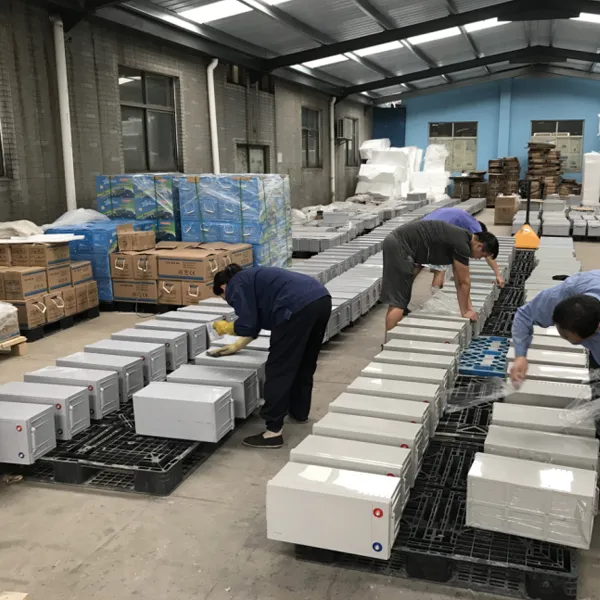

Package& Delivery:
Safety Carton Box packing with wooden pallet.
8pcs per pallet as standard or as per order.
Delivery by Express to door/ Air to airport/ Sea to port/ Railroad to door or railsation.

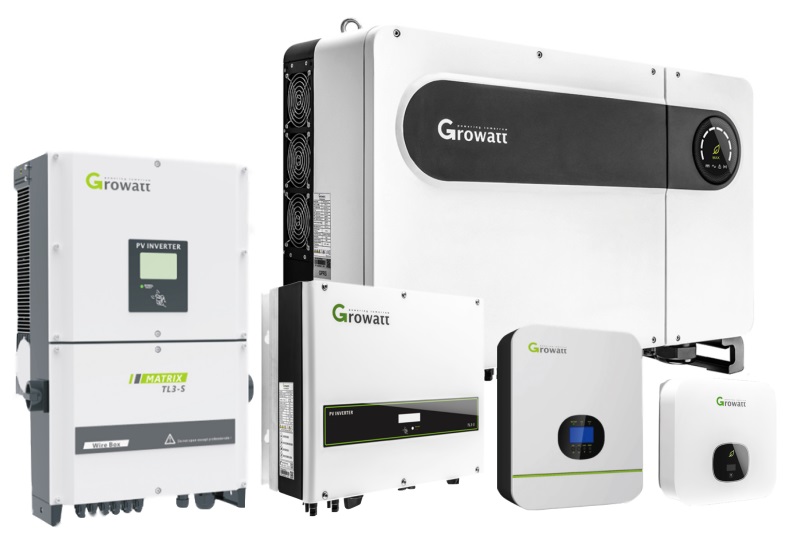

Recommend :
All Series GROWATT Solar Inverter are avaible, welcome to chat!
