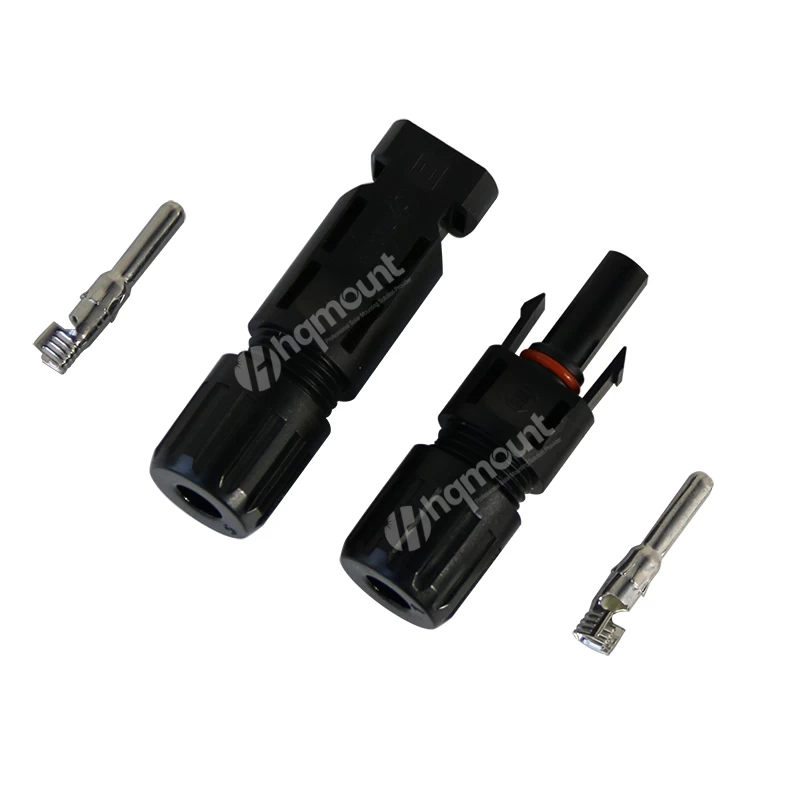

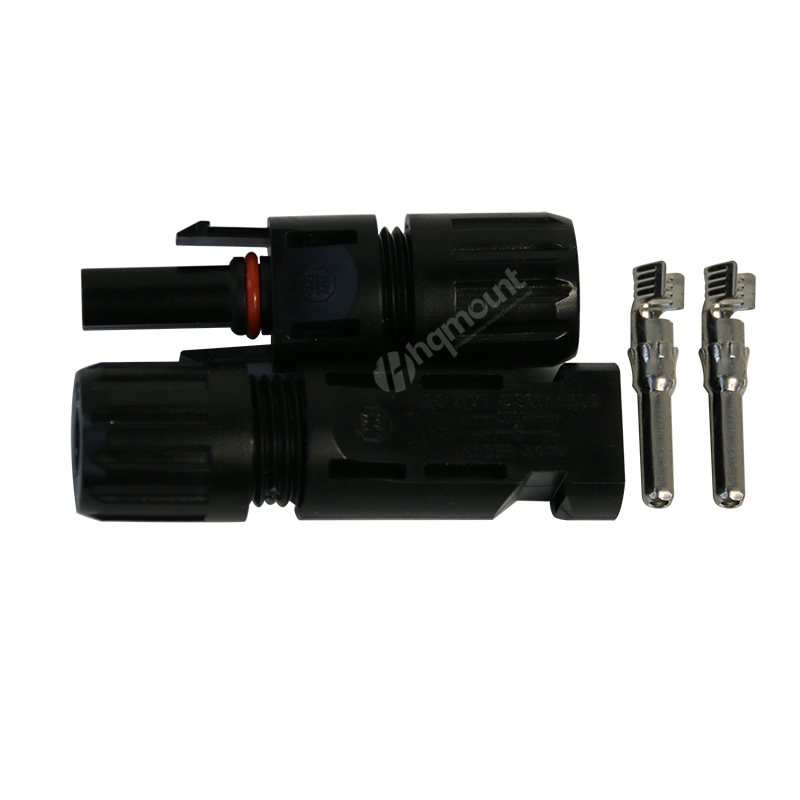

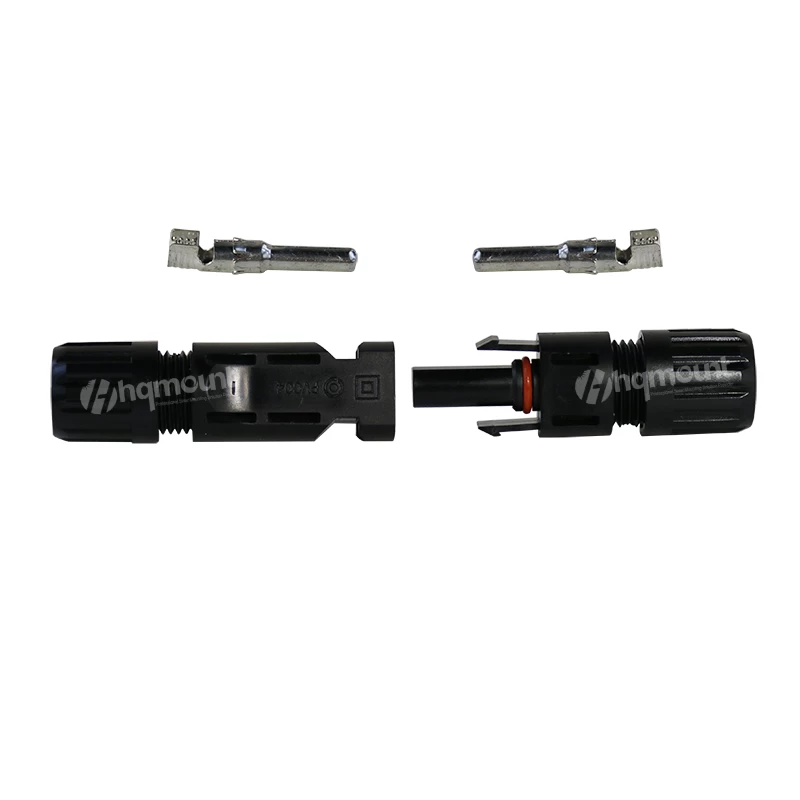

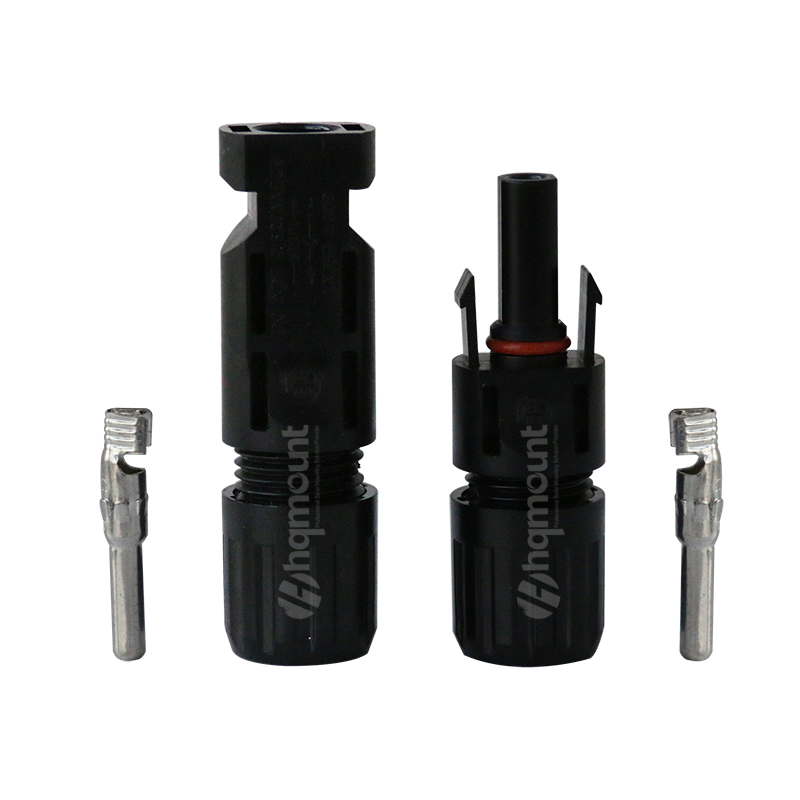

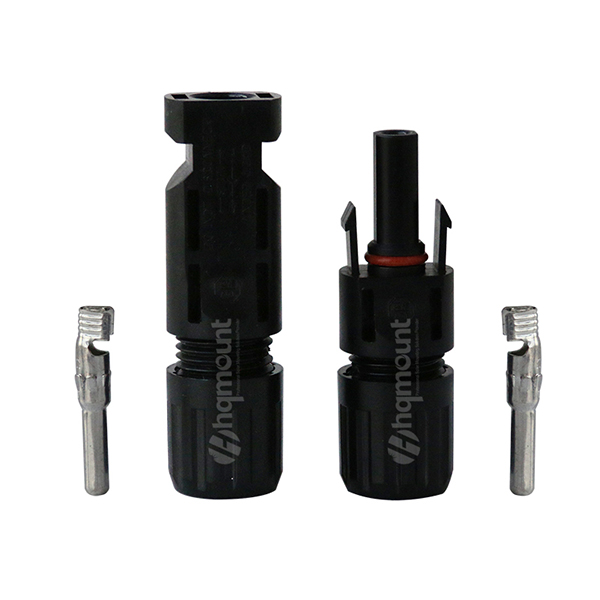

Solar MC4 DC Connector
This solar MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project.Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).
Detail Information and Advantages of MC4 Connector
1. Compatible MC4 with highest quality material
2. Simple on-site processing
3. Mating safety provided by keyed housings
4. Multiple plugging and unplugging cycles
5. Accommodate PV cables with different insulation diameters
6. High current carrying capacity
7. Waterproof and resist dust
Technicale Data:
|
Insulation Material:
|
PPO
|
Contact material:
|
Copper,Tin plated
|
|
Rated current:
|
30A(2.5mm2), 50A(4mm2,6mm2)
|
Insertion force:
|
Max. 50N
|
|
Rated Voltage:
|
1000V/1500V DC
|
Withdrawal force:
|
Min. 50N
|
|
Test voltage:
|
8kV(50Hz,1min)
|
Ambient temperature range:
|
-40℃~+85℃
|
|
Contact resistance:
|
<5mΩ
|
Flame class:
|
UL94-V0
|
|
Waterproof protection:
|
IP68
|
Connecting system:
|
Crimping connection
|
|
Overvoltage degree:
|
CATIII/2
|
Suitable cable cross section:
|
2.5/4/6mm2,14/12/10AWG
|
