Solar Metal Roof PV Hanger Bolt Solution

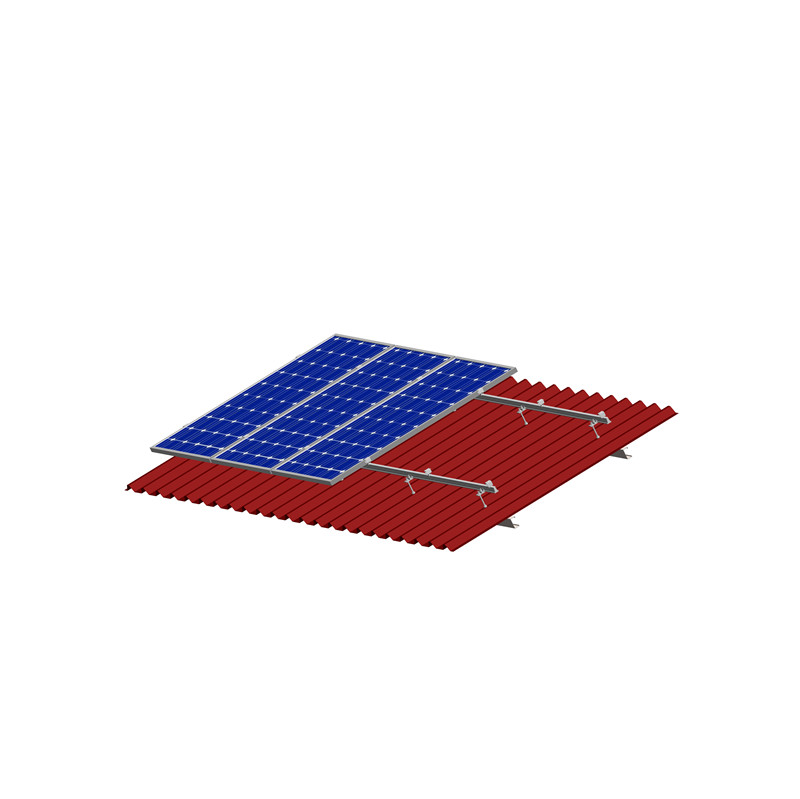

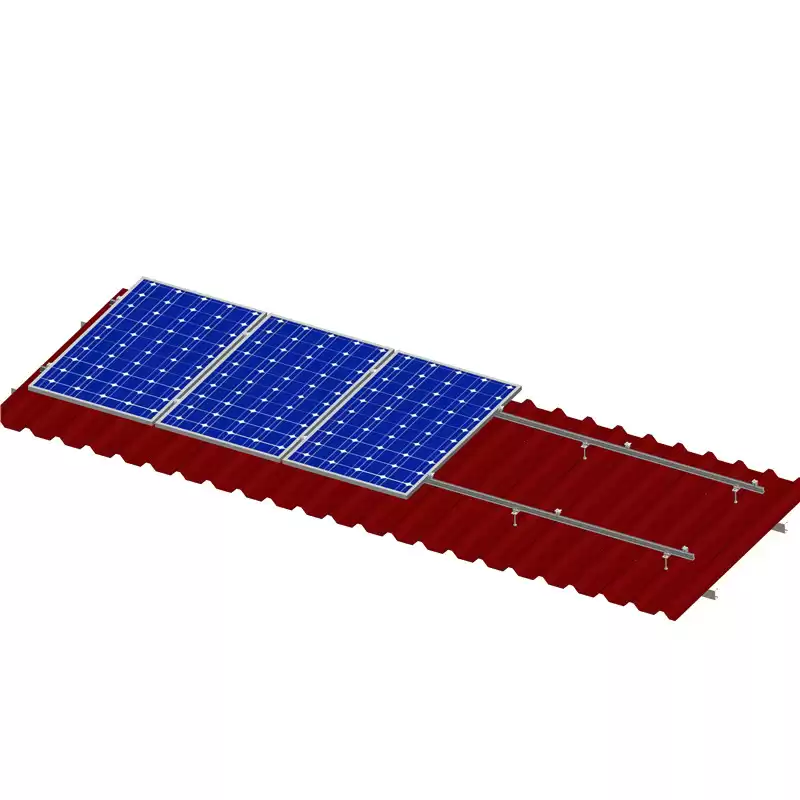

Hanger Bolt Solution is largely used in trapezoidal roof type solar pv plant. This solution has a larger interval between solar panel and roof, which is benefit for heat disspation and promoting up the power generation.




When will Solar Metal Roof PV Hanger Bolt Solution be used?

SOEASY Solar Metal Roof PV Hanger Bolt Solution are the upgrade one when comparing to SOEASY Solar

Metal Roof L Feet Solution. It has increased the distance from the solar panel to roof, which can facilitate

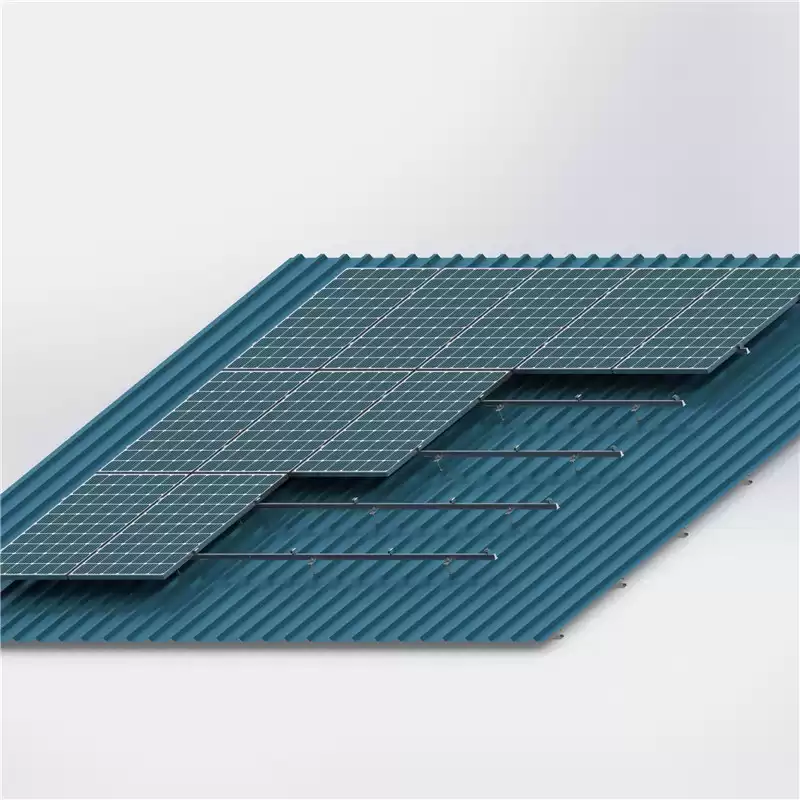

the heat dissipation to increase the power generation. It is not only suitable for Trim Deck Roof solar

installation, but also suitable for Corrugated Roof. Therefore, It has been widely used in commercial

roof projects.

Advantages:

1. Height adjustable between solar panel & roof.

2. Made of SUS304 & AL6005-T5.

3. Easy Installation

4. 10 years warranty & 25 years life span.


SOEASY hanger bolt solar mount



Material
AL 6005-T5/SUS304
Surface Treatment
Average Anodizing Coating Thickness≥ 10μm Average
Panel Type
Framed & Frameless
Wind Load
≤60m/s
Snow Load
1.4KN/m2
Panel Orientation
Landscape/Portrait
Tilt Angle
 0°~60°
Seismic Load
Lateral Seismic Factor: Kp=1;  Seismic Coefficient: Z=1; Use Coefficient: I=1
Standards
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
 Warranty
10 Years Quality Warranty, 25 Years Life Span Warranty



SOEASY pv features


SOEASY solar pv packages

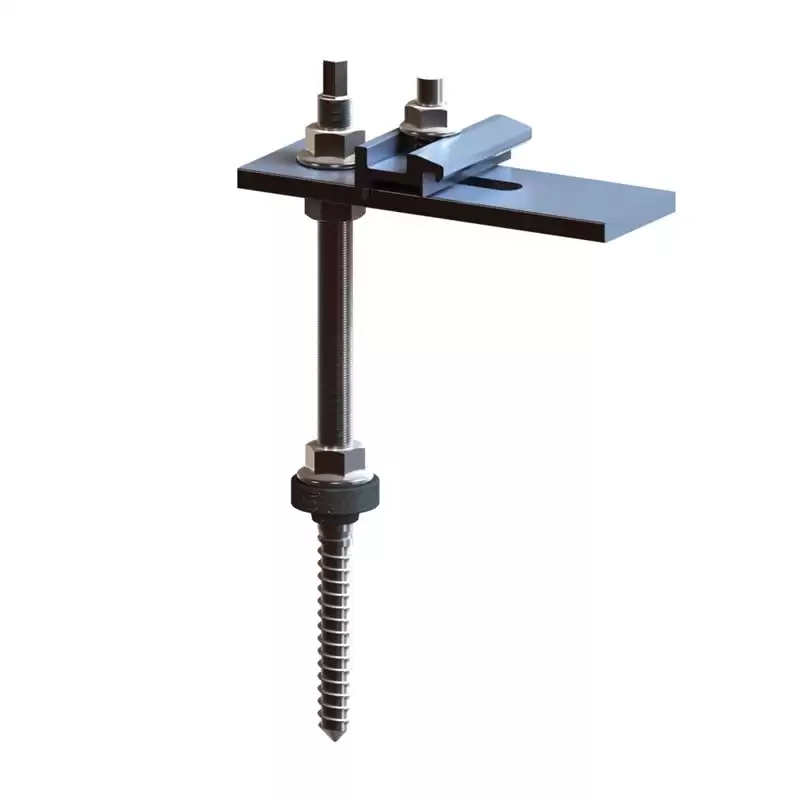

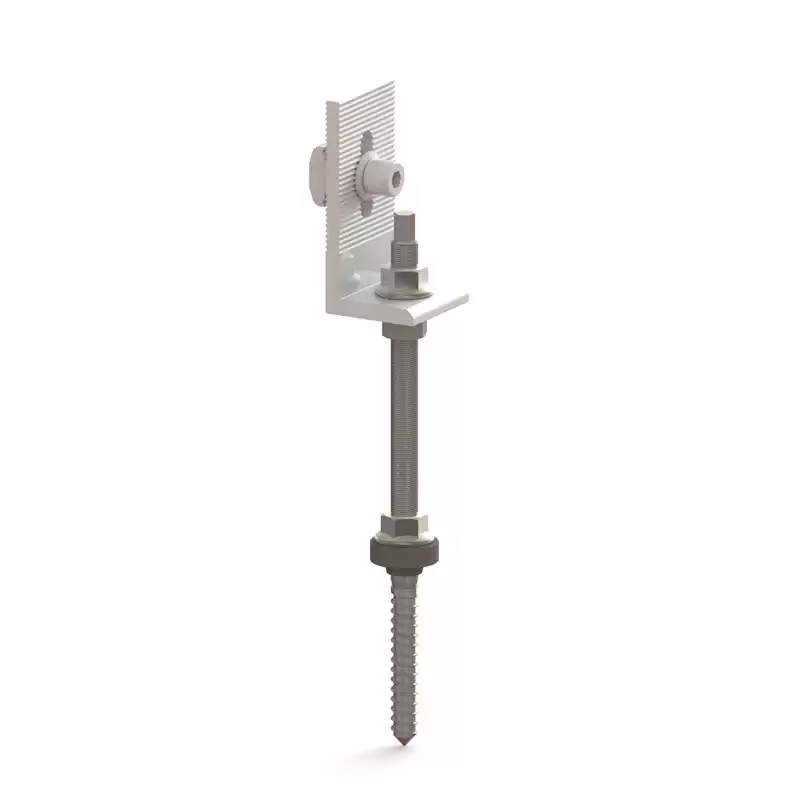

The pv hanger bolt can be well used with L-feet for solar mounting and racking systems that are designed for trapezoidal / zinc / corrugated / sandwich metal roof profiles .The pv hanger bolt has the advantages of quick installation and good load-carrying capacity.
