Solar Mounting Bracket Clamp Solar Panel Mid Clamps

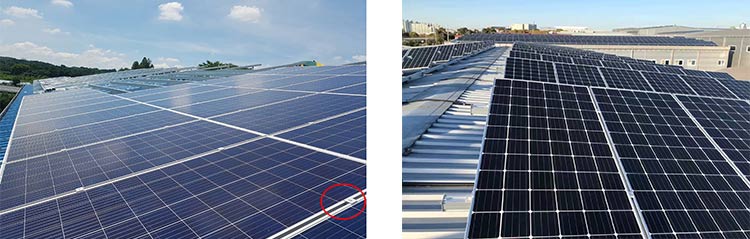

Kseng PV module middle clamp is suitable for carports, rooftop, ground mounting structures .

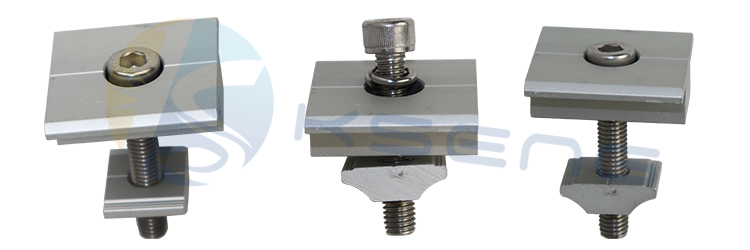

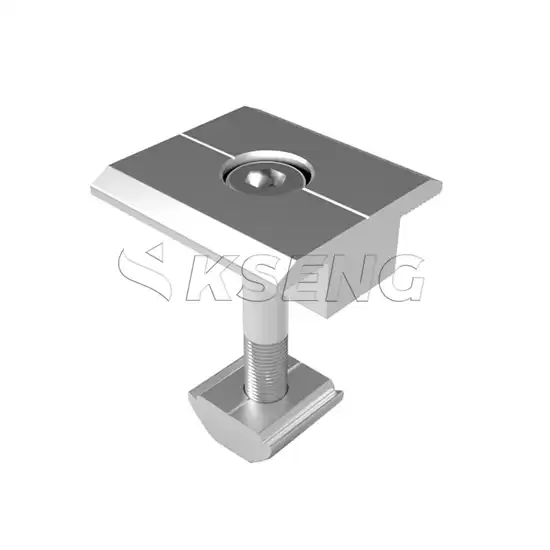

The fasten parts for inter clamp is made of hex SUS304 stainless bolts with sliding nuts .

By using different length Hex bolts, the solar module inter clamps can fit different frame solar panel deepth well : 30mm, 35mm, 40mm,45mm, 50mm … Please select correct size depending on solar panel thickness .

Benefit of solar mid clamps:

1.Used for mounting two solar panels to our solar mounting rail.

2.Solar Panel mid clamp 40mm comes with bolt to suit solar mounting railing system, in order to mount multiple panels in conjunction with end clamps to mount single panels.Please check profile of panel as these will only fit solar panels  with the sample profile of 40mm, for other sizes please contact us.

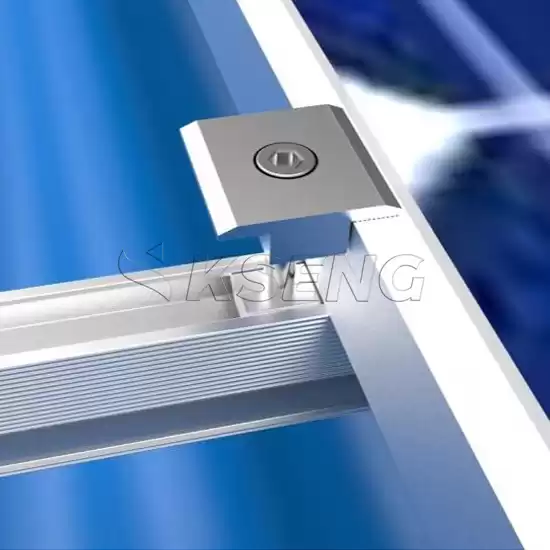

3.Mid clamps or brackets are designed to bolt to aluminium rail and be able to slide along for adjustment.

4.High grade aluminium。

5.Hex Stainless bolt

6.Strong and comply with AUS/NZ standards

7.easy to fit, time efficient

8.Double locking design

9.Used both for roof and ground solar projects

10.Adjustable

11.Building Code: AS/NZ 1170
