Solar Mounting Hanger Bolt

Hanger Bolt is used to fixe into steel purlins or wooden rafter onTrapezoidal Roof and Corrugated Roof.

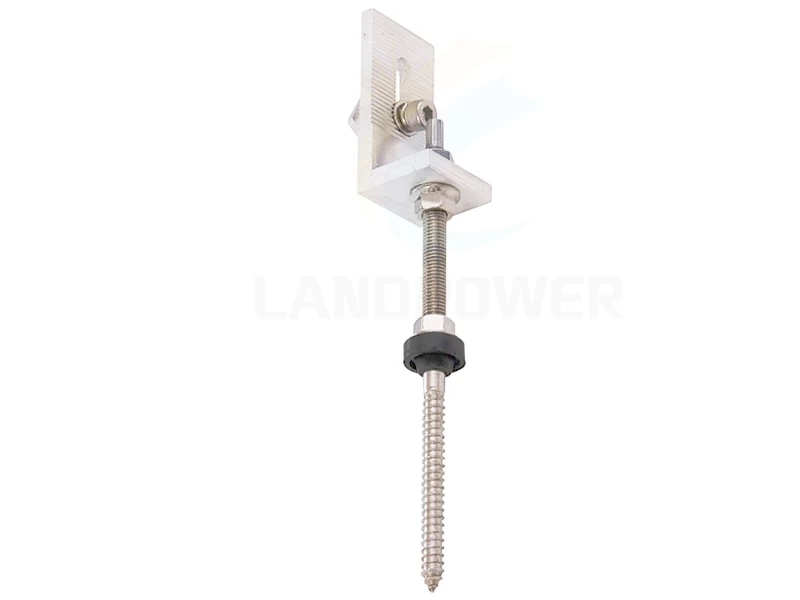

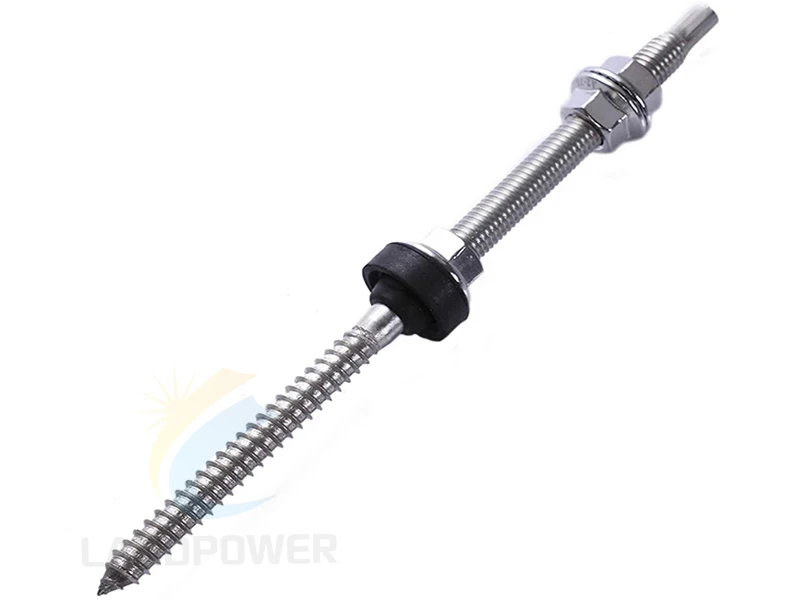

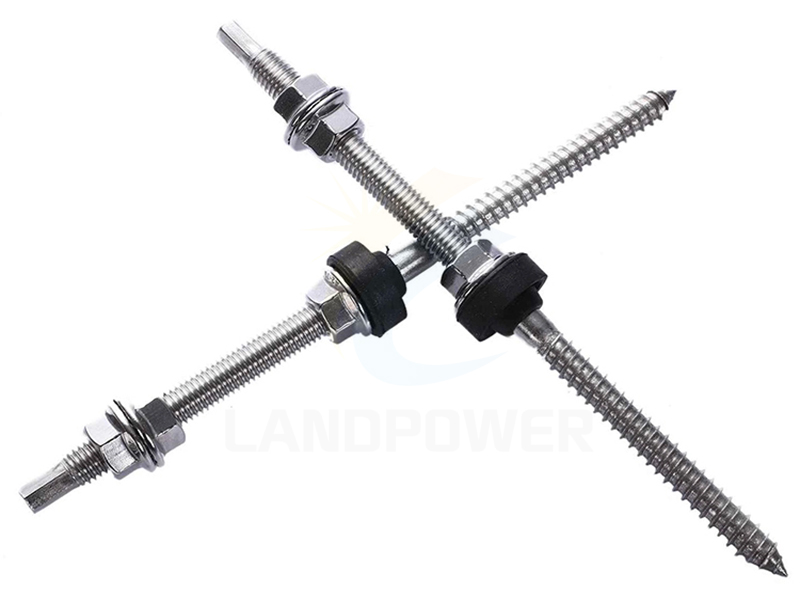

Hanger Bolt is one kind of fixings with mounting structure used to screw into steel purlins or wooden rafter on corrugated and trapezoidal roofs. Hanger bolt is frequently used with L feet(L bracket) or stainless steel plate to combine with mounting rail. The Hanger Bolt for solar panel installation is coming with three flange nuts and one UV resistant EPDM washer, the EPDM washer will crate a weatherproof seal when pushing against the roof sheet.


Technical Information

Name: Hanger Bolt for Solar Panel

Compatibility: L feet and Stainless Steel

Suitable Roof: Trapezoidal Roof and Corrugated Roof

Material: Stainless Steel 304 (1.4301)

Dimension: M10*150mm, M10*200mm,M10*250mm,M12*150/200/250mm or customized

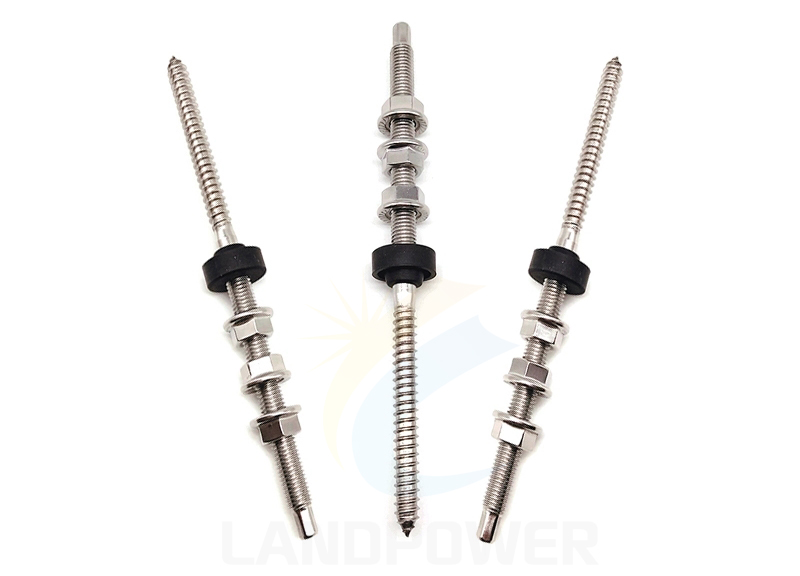

Accessory: 3 pieces of flange nuts and EPDM washer

hanger bolt

Use of Hanger Bolt

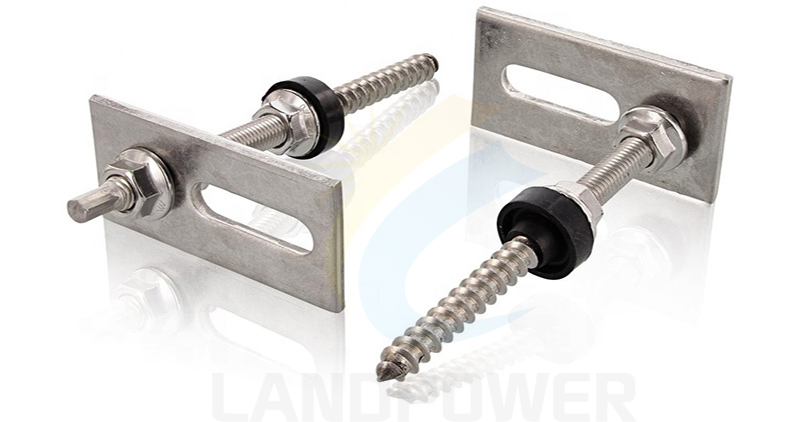

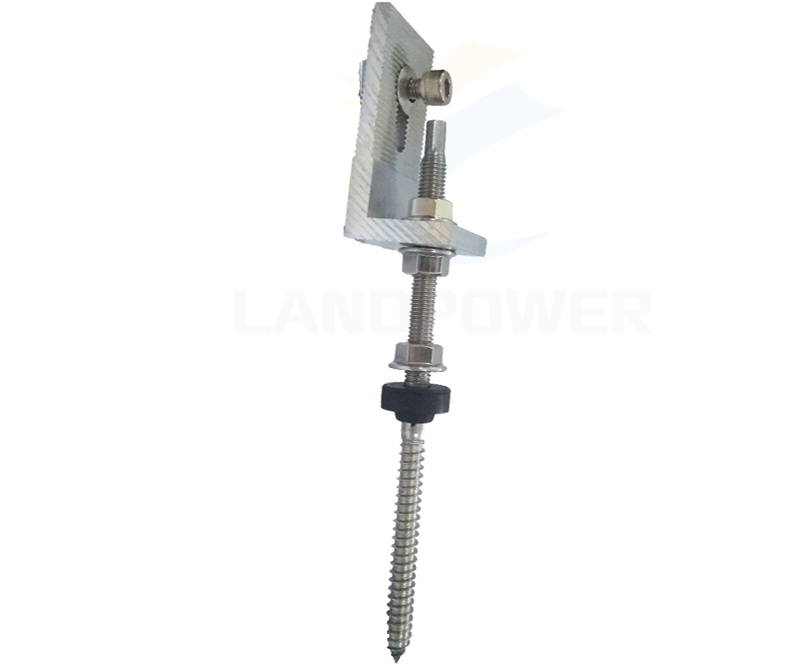

Hanger Bolt normally combine with L feet or stainless steel plate to attach to solar mounting rail.The embedment length of hanger bolt is trapezoidal profile height/sandwich thickness plus 25mm.

solar pv hanger bolt

solar roof hanger bolt


It require pre-drilling for the substructures when the purlin or rafther is steel. We recommed diameter for the drilling is in below table:


Steel Thickness(mm)

Pre-drilled diameter(mm)

1.5-5.0

6.8

5.1-6.0

7.0

6.1-8.0

7.2

8.1-10.0

7.4

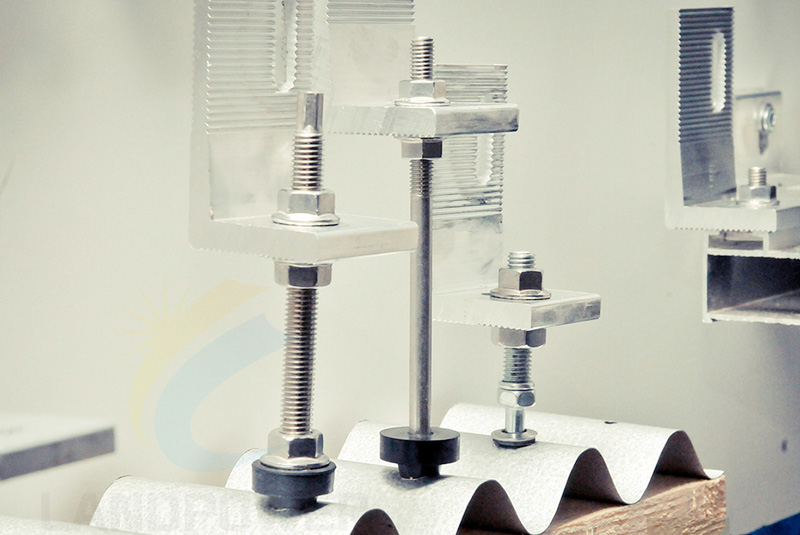

Hanger Bolt on Corrugated Roof Installation Demo.

solar pv hanger bolt

We are designing various components for trapezoidal roof and corrugated roof, if you have specific project,feel free to contact us.
