Solar Mounting Inner Clamp

The ‘U’ shaped solar inner clamp assembled with stainless steel bolt and Landpower T-module(nut), it is designed to clamp between two solar panels onto mounting rail or roof attachments.



Solar Inner Clamp(also known Mid/ Middle Clamp) is designed to clamp between two solar panels onto mounting rail or roof attachments. The ‘U’ shaped inner clamp assembled with stainless steel bolt and Landpower T-module(nut), it is easy to slide into our rail in any position, and flexible and simple with competitive cost.The inner clamp is anodized,design to compatible for 30/35/40/45/46/50mm solar panels.


Technical Infomation

Item Name:

Inner Clamp / Mid Clamp /Middle Clamp

Material:

 Aluminum 6005-T5 + SS304 bolt

Installation Site:

 Solar Mounting Rail, Roof Attachment

Colour:

 Silver or Black

Surface Settlement:

Anodized

Wind Speed:

 Up to 60m/s

Snow Load:

 Up to 1.4KN/m2

Application:

30-50mm thickness solar module

Warranty:

 12 years in material with 25 year lifespan

Standard:

 AS/NZS 1170.2, JIS C 8955:2011


Composition

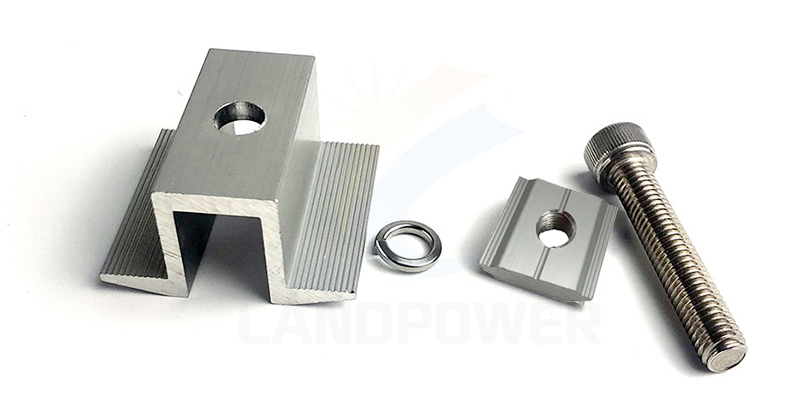

Solar Inner Clamp is come with anodized 6005 T5 aluminum clamp,A2 stainless steel bolt and anodized aluminum nut. Some time need to change the nut to meet specific design rail see below:

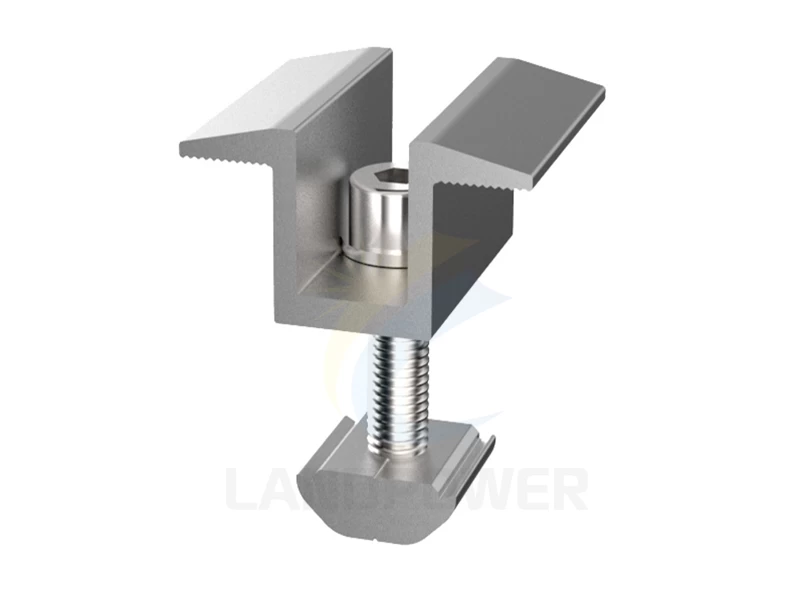

solar inner clamp

solar panel inner clamp

Surface Settlement:

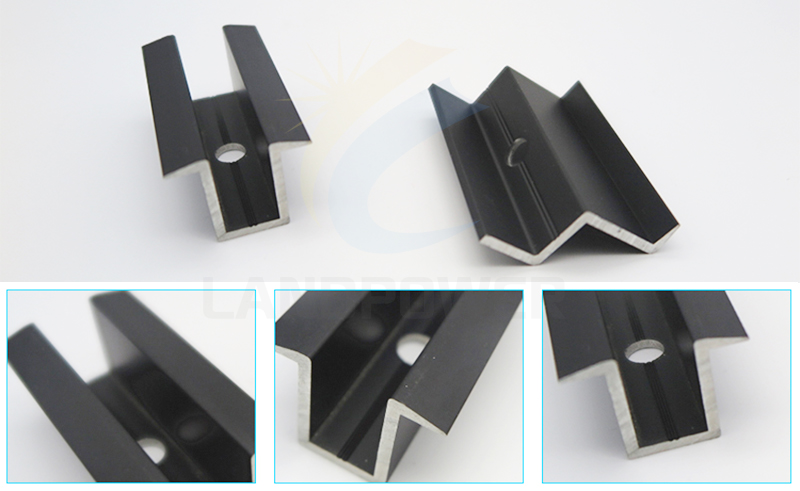

The standard inner clamp is silver anodized,as request,it can be black anodized see below, we accept customized surface finishing on inner clamp.

solar pv inner clamp

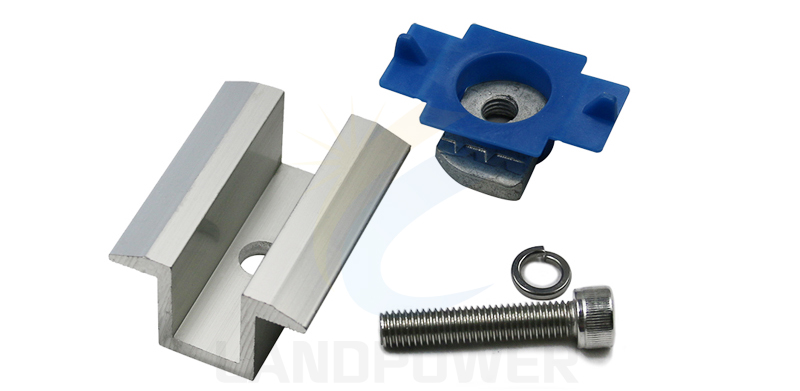

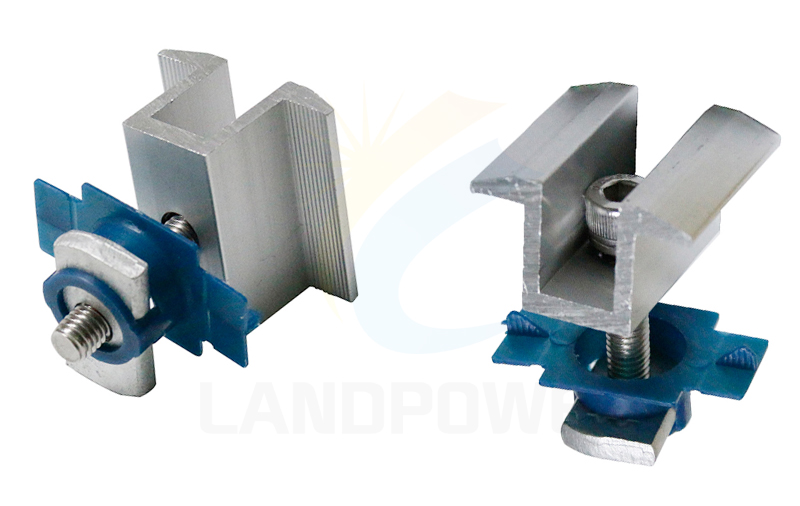

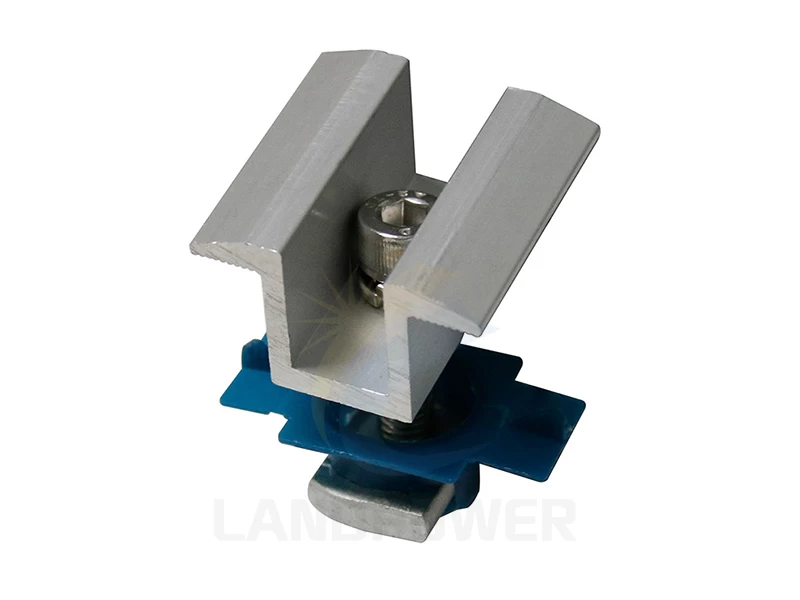

In case of rail of steel ground mounting or roof mounting is C channel, it must to change nut as below to meet C channel.

inner clamp

Application

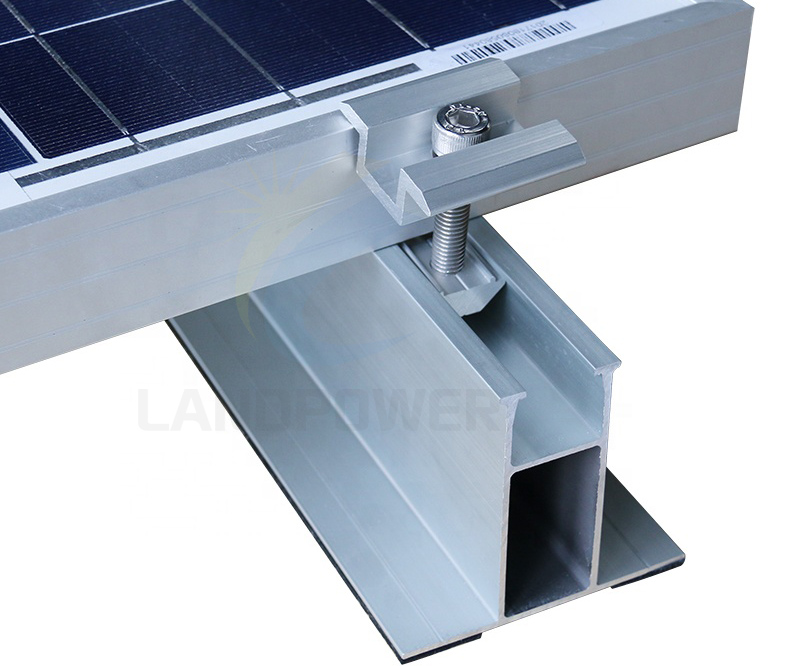

The Inner Clamp are used to clamp between panels onto rail and roof attachment.

solar pv inner clamp



We design and produce various mounting accessories and we supply OEM service,pls see free to contact us if you need specific items.
