Ballast mount solar is easy installation and perfect for flat concrete roof.Two sets of support square tubes are installed under each solar panel in the roof ballast support system, and are pressed by stones. This is suitable for flat roofs with little wind and snow.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Ballast roof
mount
Feature:
1. Height is customized according
to customer's requirement;
2. Easy installation,with less
components;
3. Never damage the roof
Advantage
High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed: up to 60m/s;
Material: Al 6005-T5;
Anti-corrosive: anodized;
Warranty: 12 years;
Duration: 25 years.

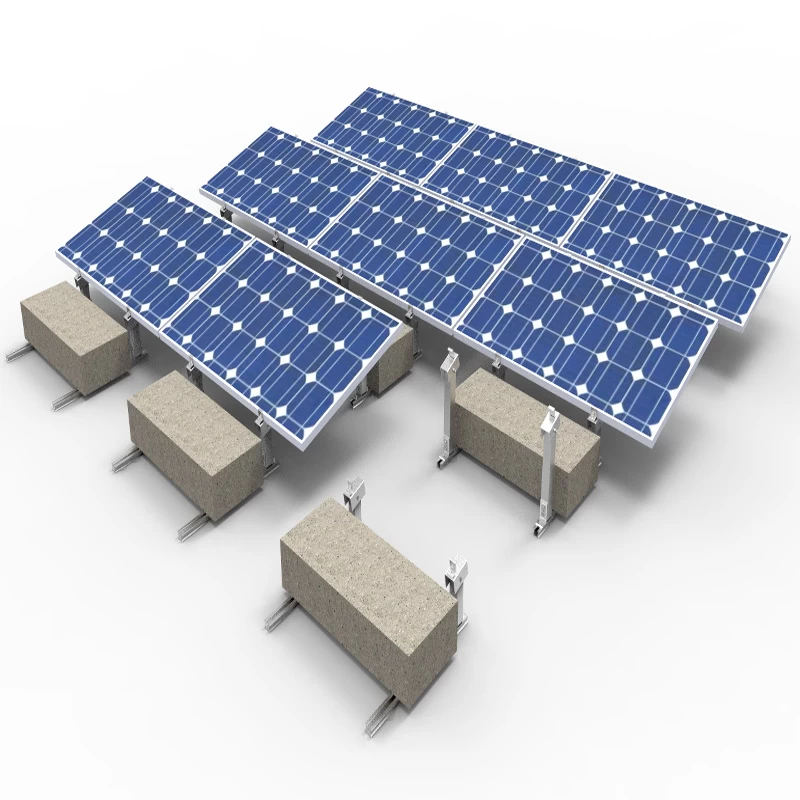

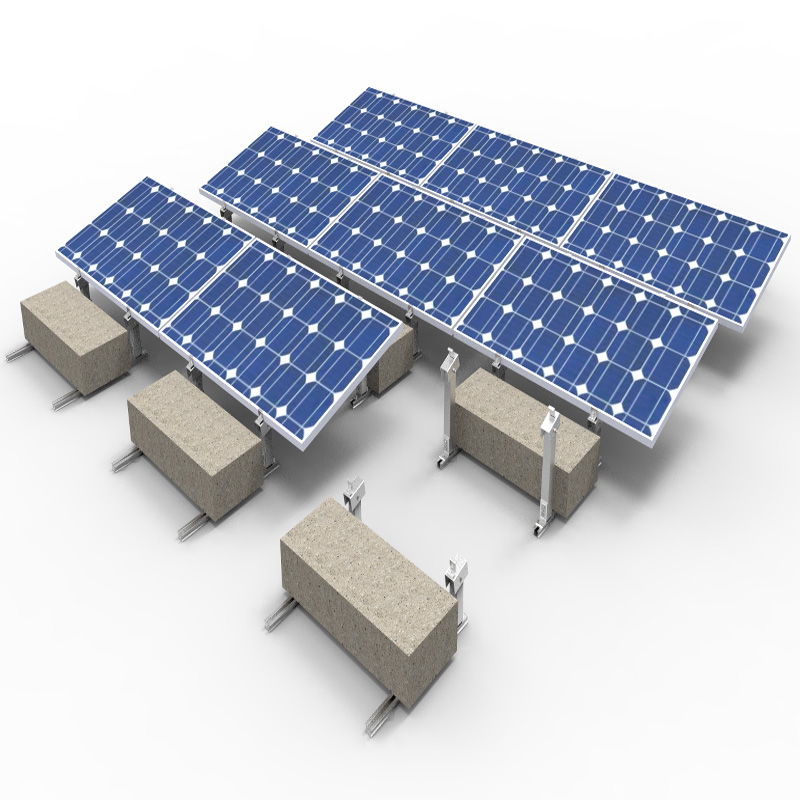

Component photos of ballast roof mount

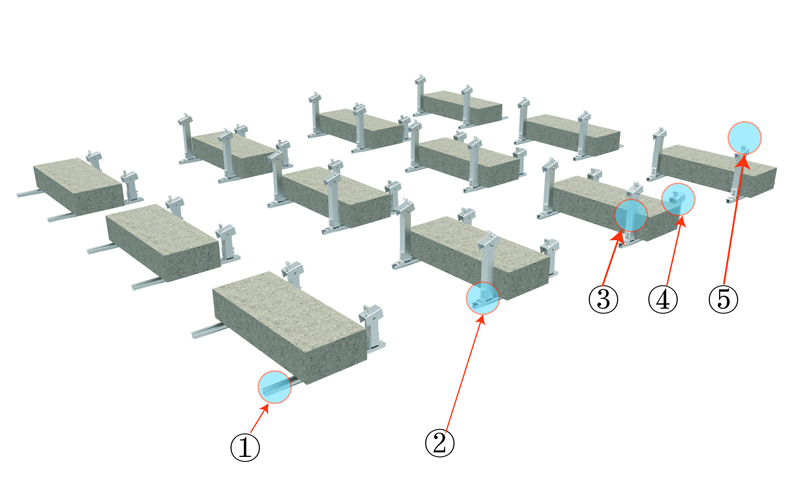

1. Ballast bottom beam 2. Ballast roof mount base 3. Solar square tube 4. Ballast roof mount rotator
5. Solar end clamp

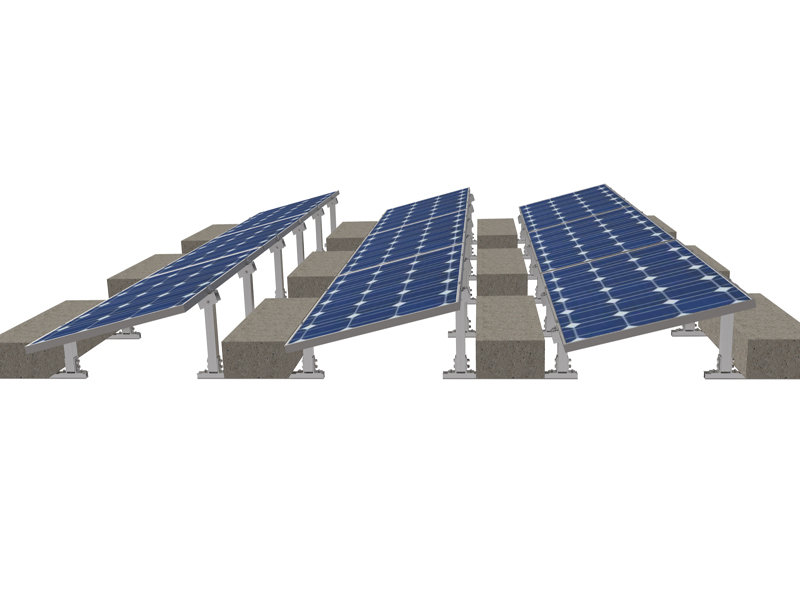

Installation photos of ballast roof mount

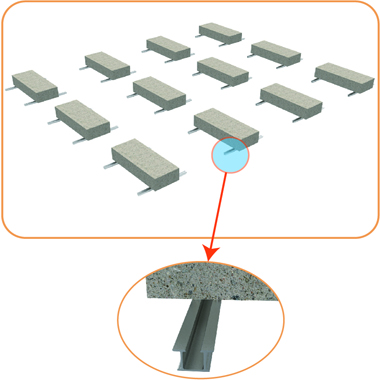

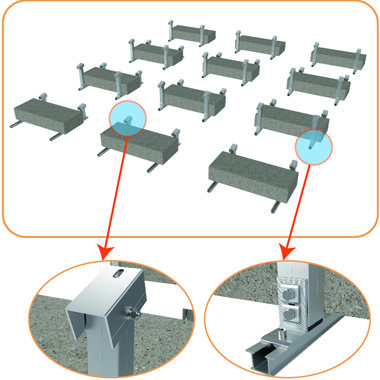

Step1：Install bottom beams and fixed by bricks Step2：Install front legs and back legs
Bottom beam Rotator Base

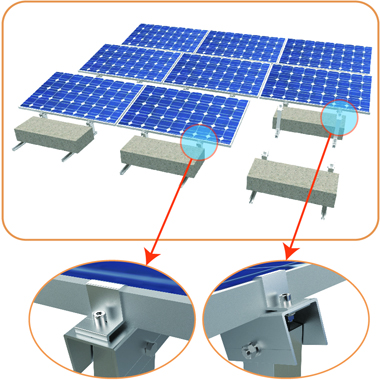

Step3：Fasten panel by end clamps Step4：Installation completion diagram
End clamp End clamp

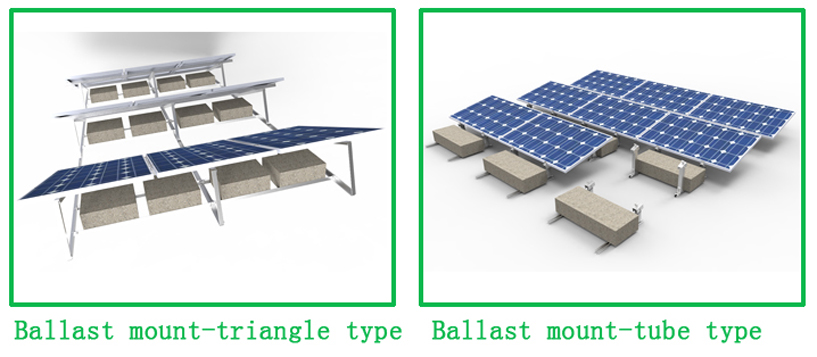

Two type-triangle type&tube type

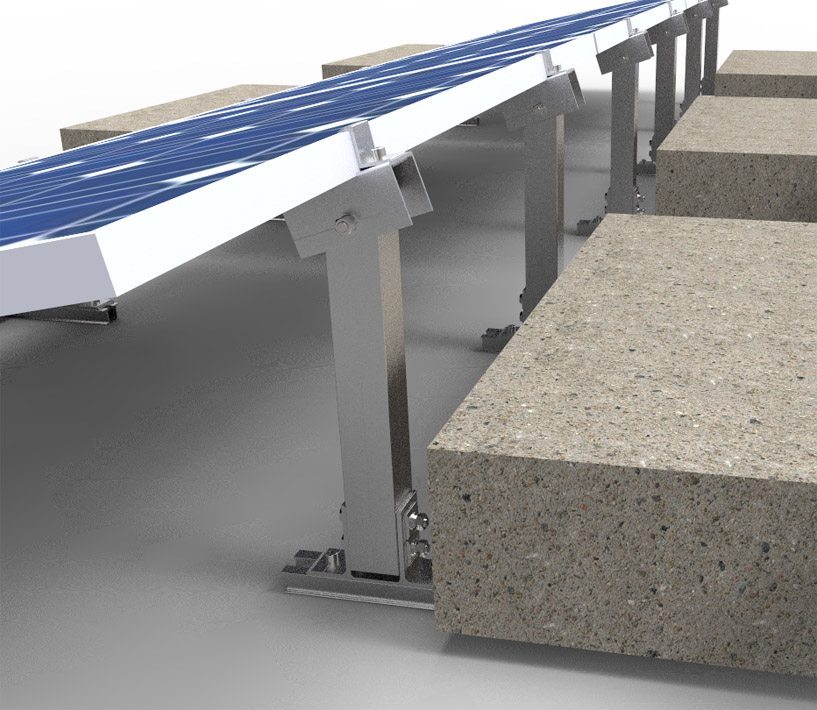

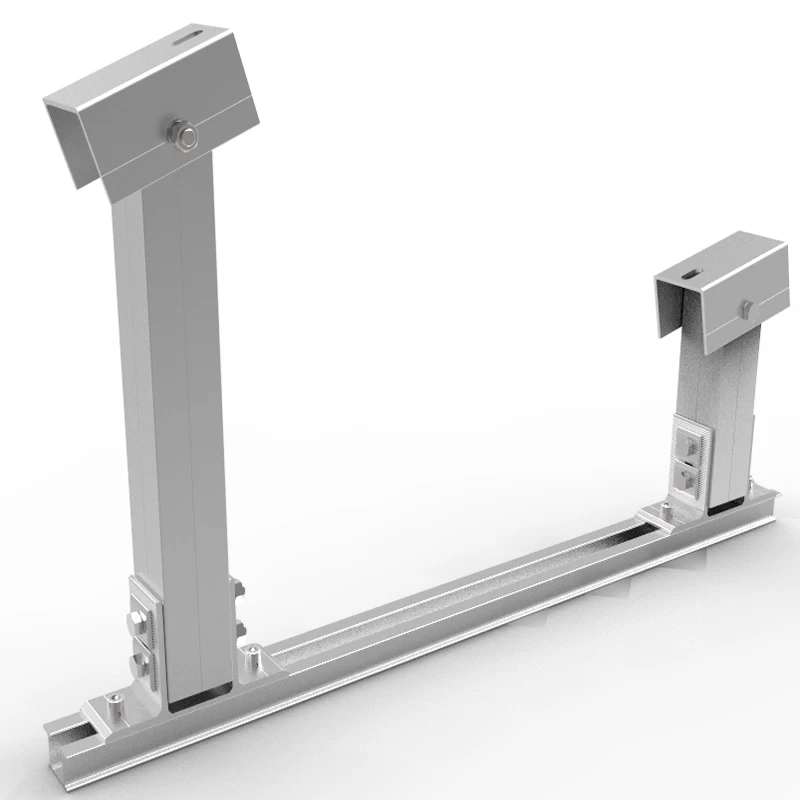

Component photo-front leg

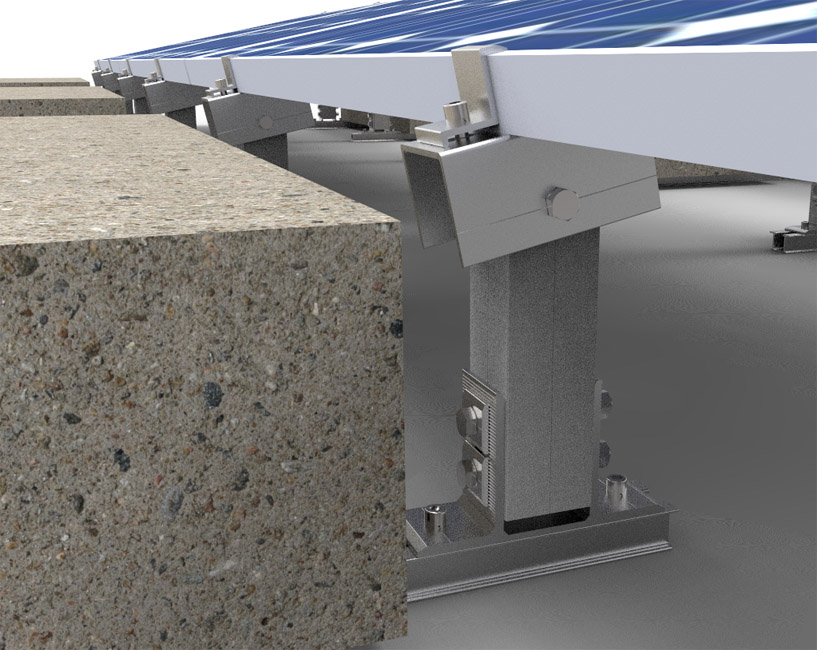

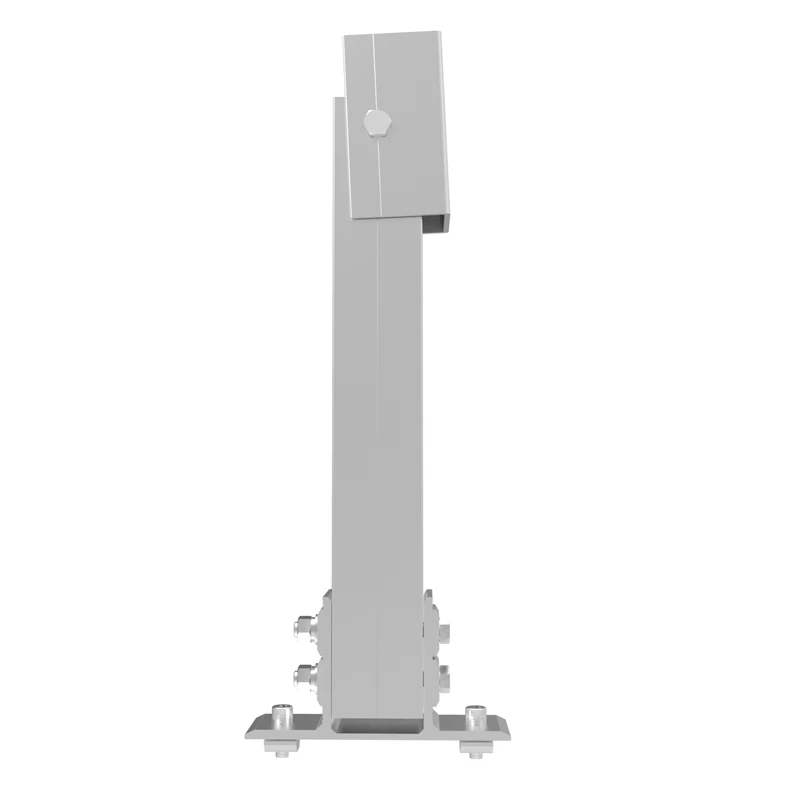

Component photo-back leg
