Solar Panel Floating Mounting Floating Solar System Solar Floating

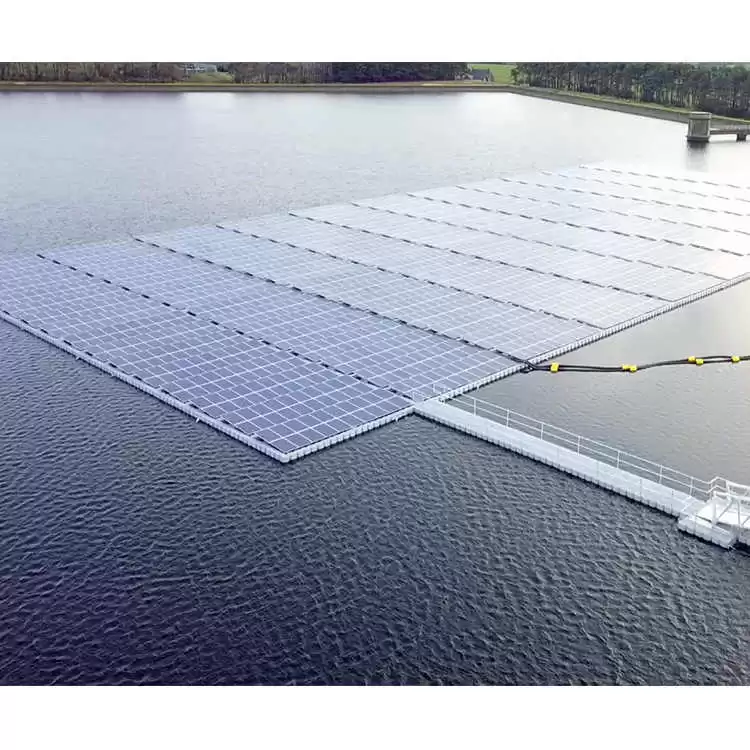

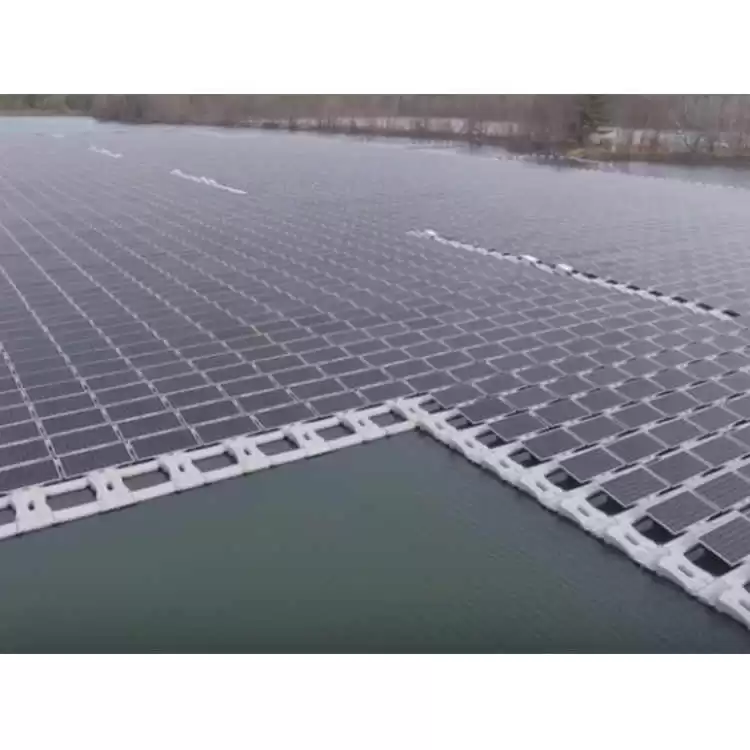

Different from traditional solar farm on ground, the floating solar system is solar photovoltaic system built on water.



Solar Panel Floating Mounting Floating Solar System Solar Floating

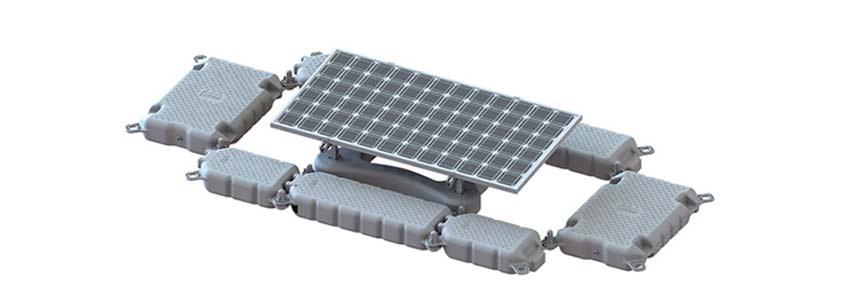

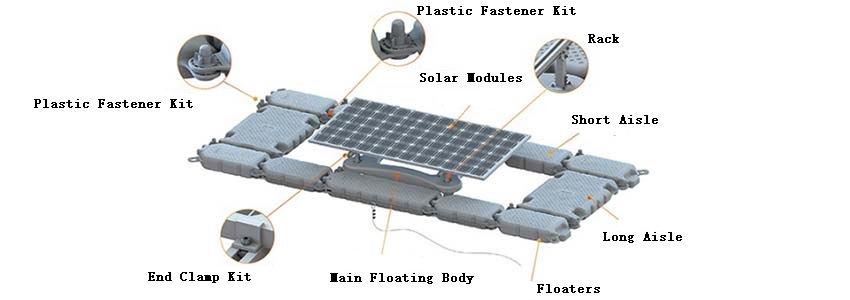

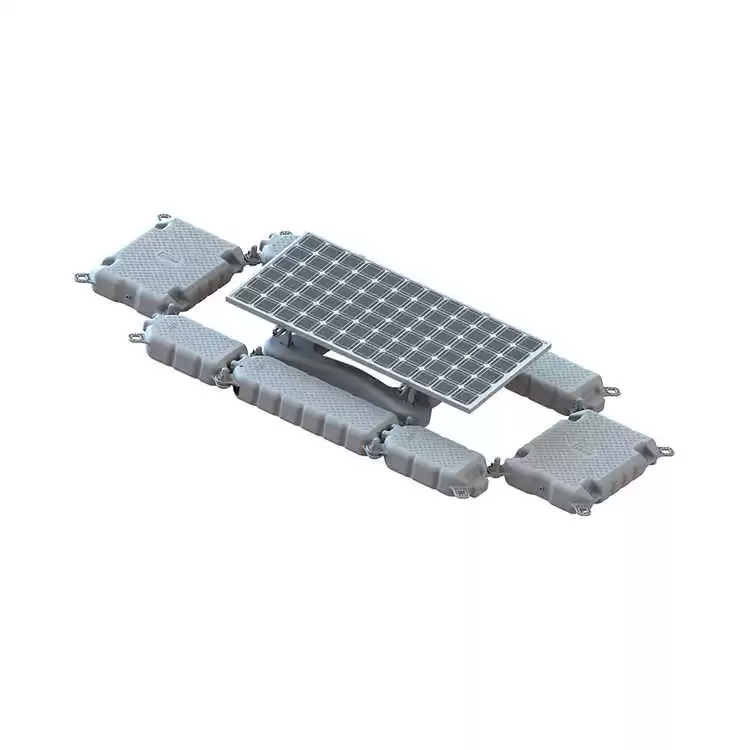

The floating system on the water is suitable for water surface installation. The material is made of high density polyethylene (HDPE), which accords with the test standard of Hunter water absorption test (CN), anti aging and ultraviolet resistance. The tensile strength is far more than that of similar products at home and abroad. The pontoon and the main floating body adopt a new design to realize the same direction double row or symmetrical double row arrangement, increase the installed capacity and power, simple and convenient installation, reduce the project cost and service life of 25 years

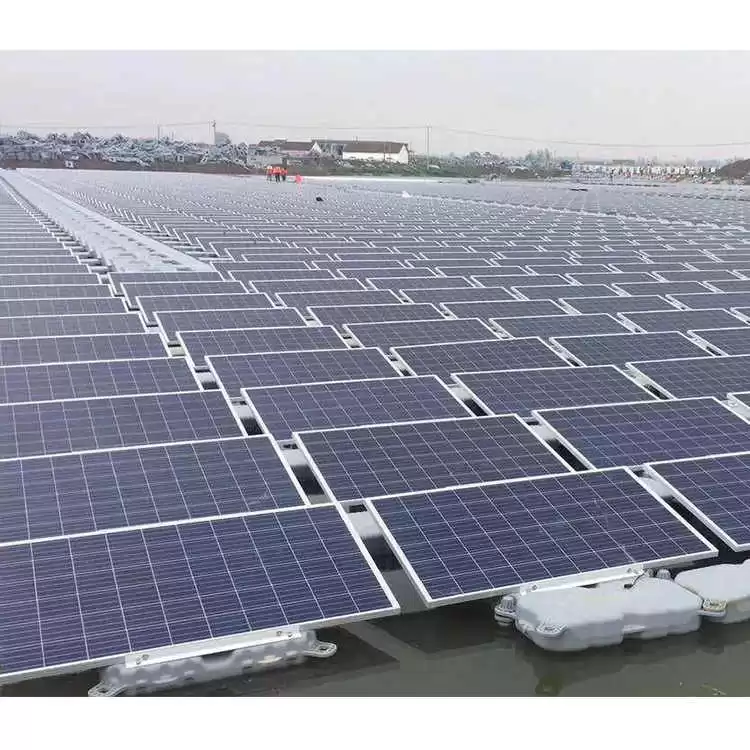

 Floating Solar Installation

Technical Information

 Name  Floating PV Mounting System

 Material:

 HDPE,AL6005-T5,SUS304

 Wind Speed

 51m/s

 Snow Load

 1KN/m²

 Tilt Angle

 10° or 15°

 Water Depth

 330-350

 Module Type

 Frame or Double Glass

 Panel Orientation

 Landscape,Double Row in the same/symmetrical Facing

 Color:

 Grey or Blue or Customized

 Bearing Weight

 Main Floater 70KG/㎡

 Installation Site

 Lake,Reservoir

 Duration

 25years



Product Show

\
