Solar Panel Frameless Glass Module Thin Film Clamp

Thin Film Solar Panel Clamps,size 80mm,120mm,150mm.Application for module 6-9mm frameless thin film solar module.



Product Description

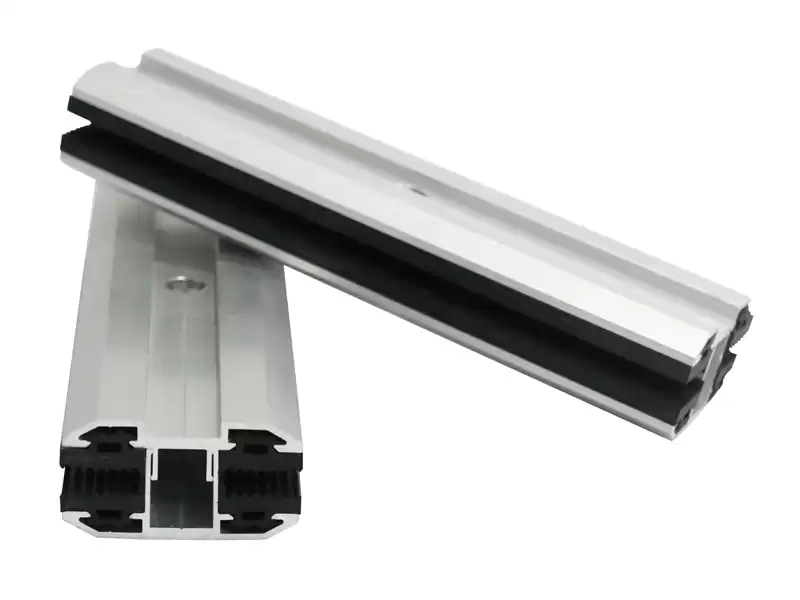

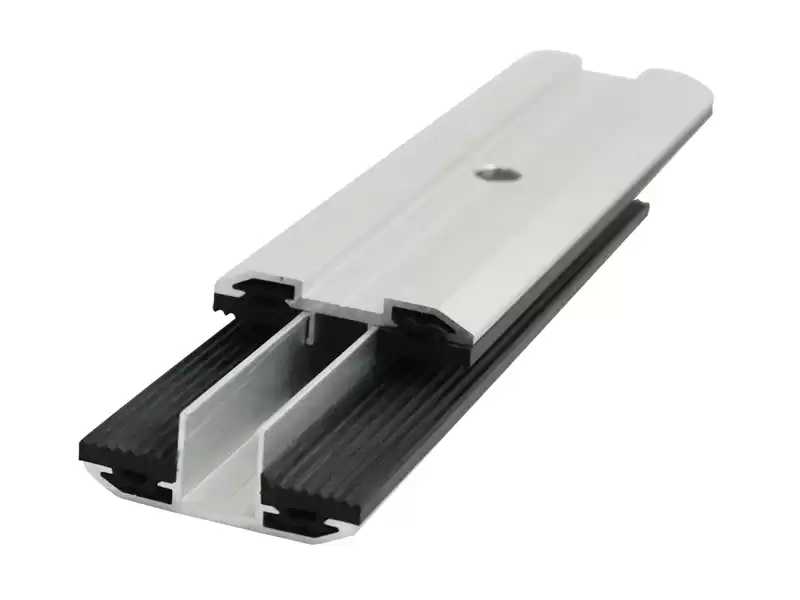

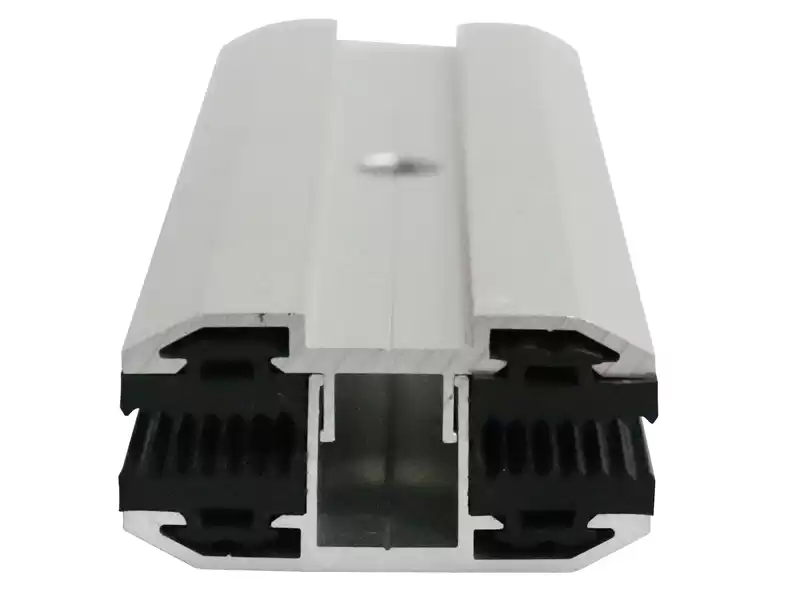

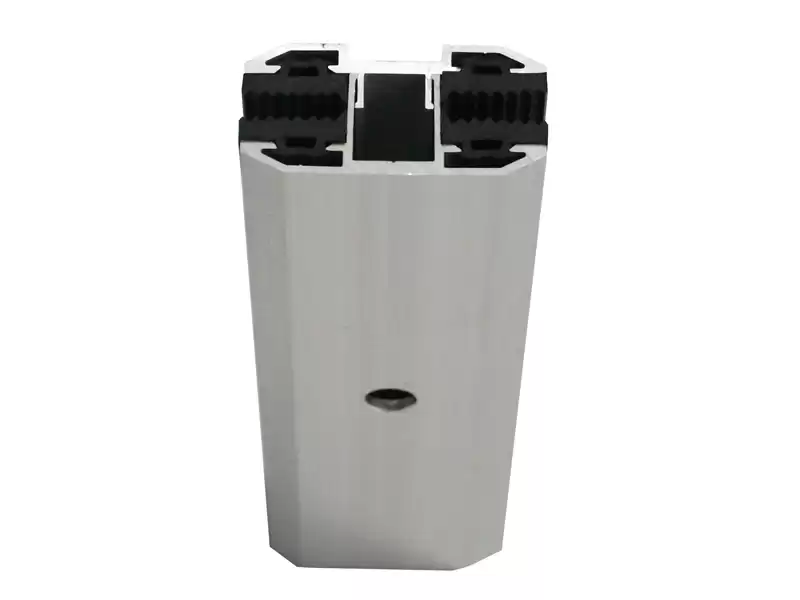

Aluminum Thin Film Frameless Solar panel
Mid Clamp and End Clamp

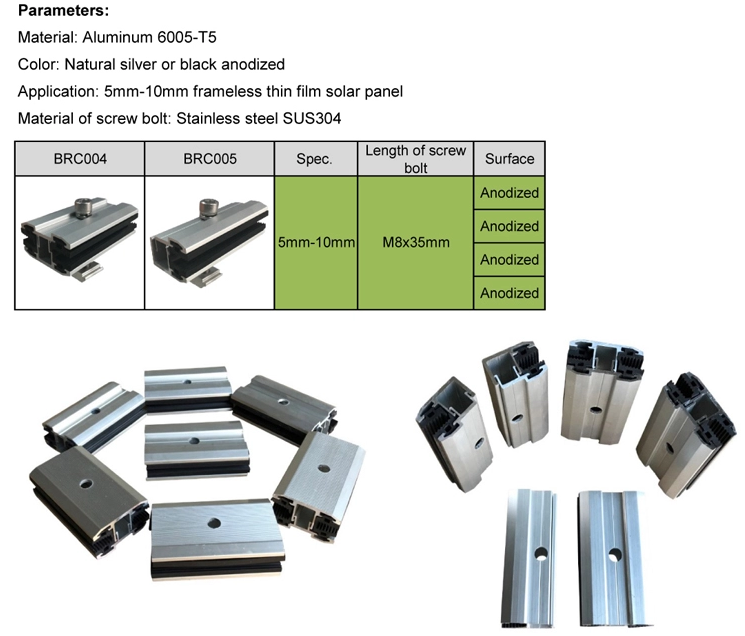

Materials
Al 6005-T5
Size
80mm, 120mm, 150mm
OEM available
Applicable Module
6-10mm frameless thin film solar module
Components

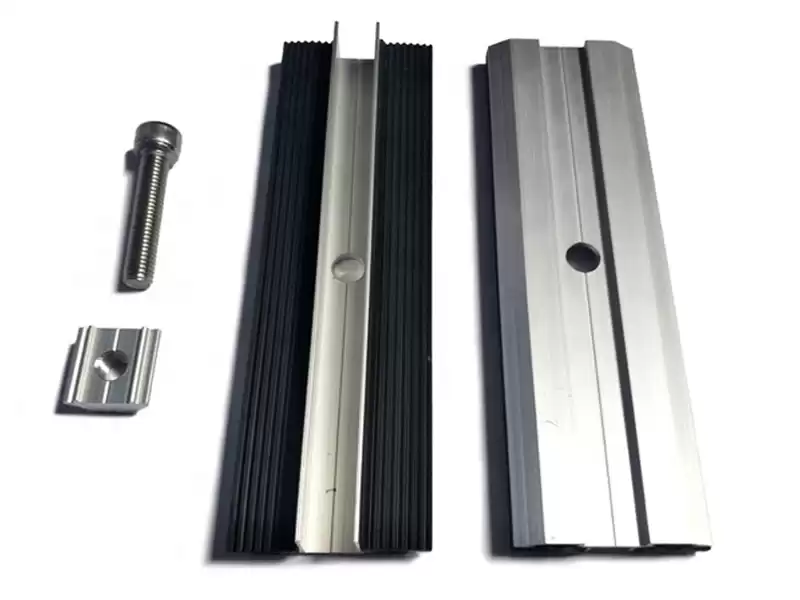

Aluminium body, A2-70 Bolt, EPDM Rubber, Stainless Steel Fastener, etc
Surface
Anodized or Black Electrophoresis
Certification
ISO, SGS, Aluminum testing report.
Warranty
12 years

Introduction

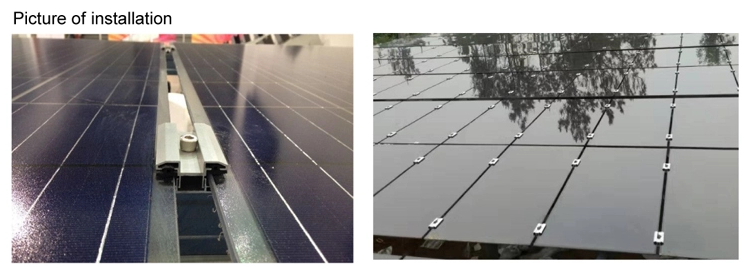

Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.

Thin film solar panel clamps




Product Tags Thin film panel mid clamp          Thin film panel end clamp          Thin film panel clamp          frameless panel ckamp          Glass thin film panel clamp          Thin film glass module clamp
