The solar grounding clip has its smart and a varety of disign which is inserted between module frame and mounting rail. It Often used in conjunction with other components, such as solar ground lug and grounding jumper

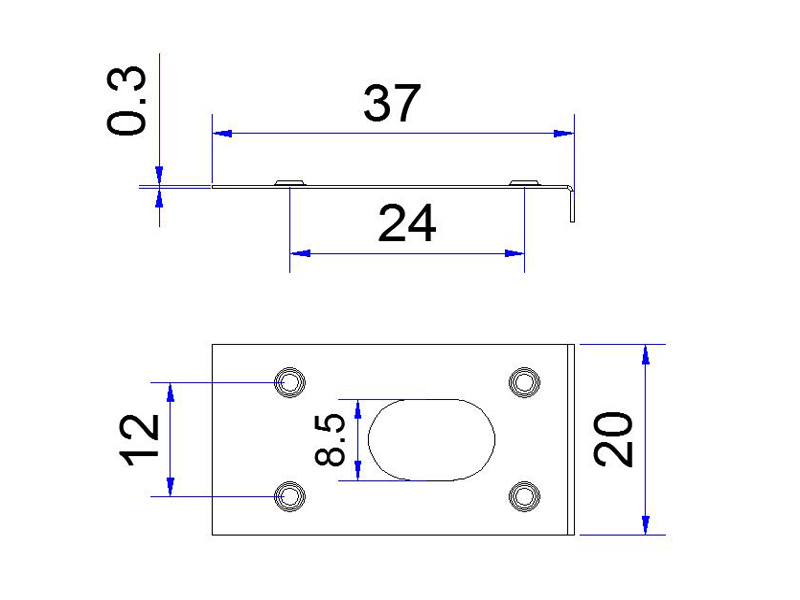

Drawing of component section
Component composition
|
Item No.
|
GT-GC-S20
|
|
Item Name
|
Solar small grounding clip
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
|
Solar small grounding clip
|
20
|
1
|
|
|
|

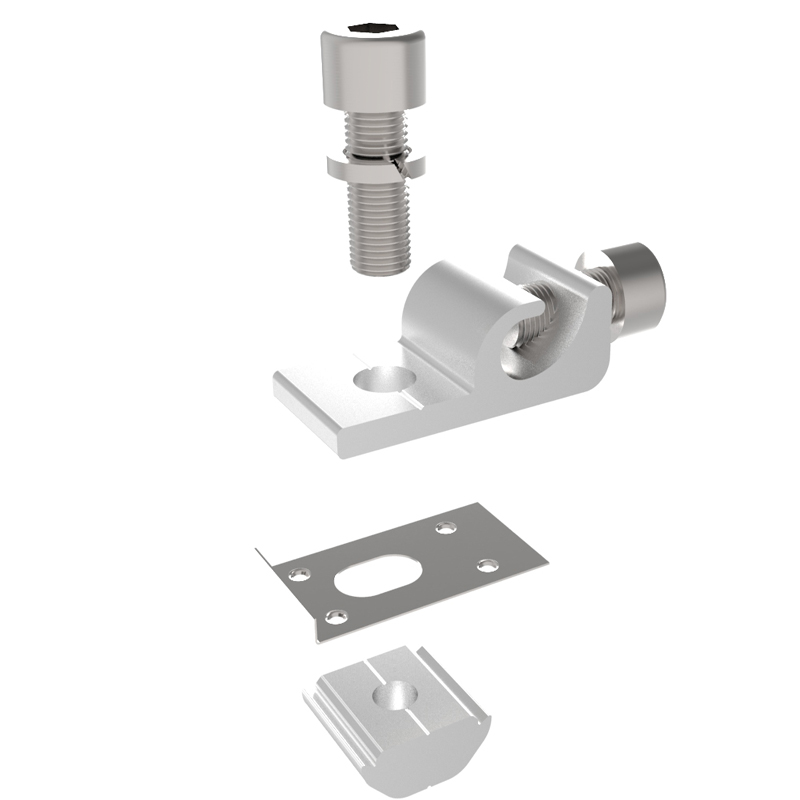

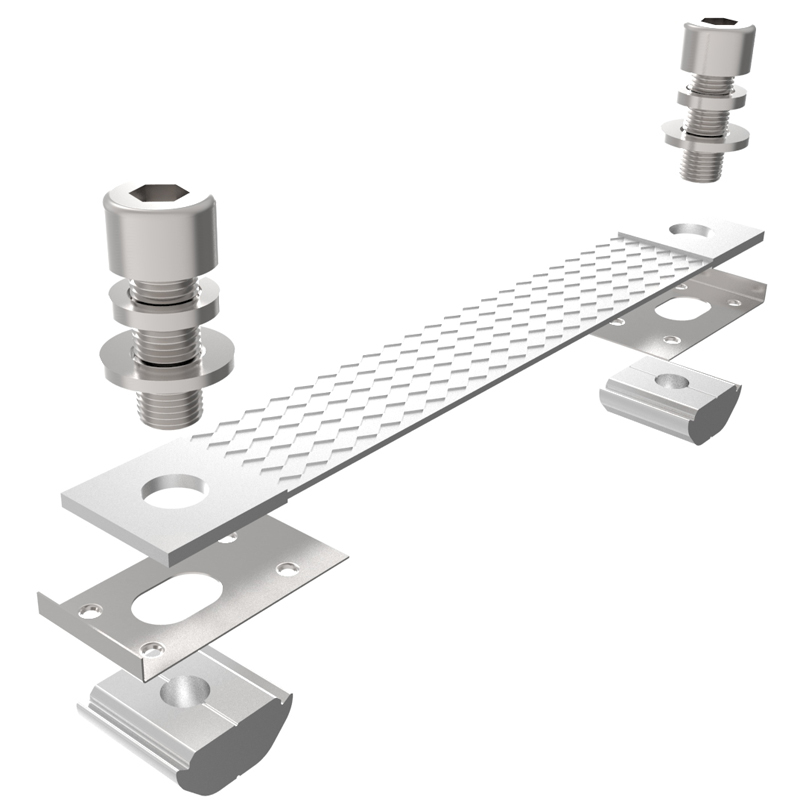

Detail drawing of component installation
