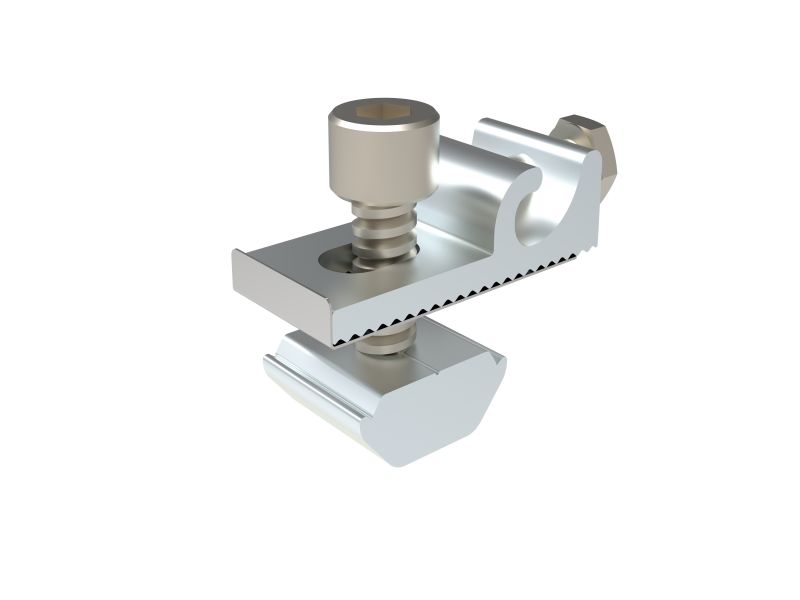

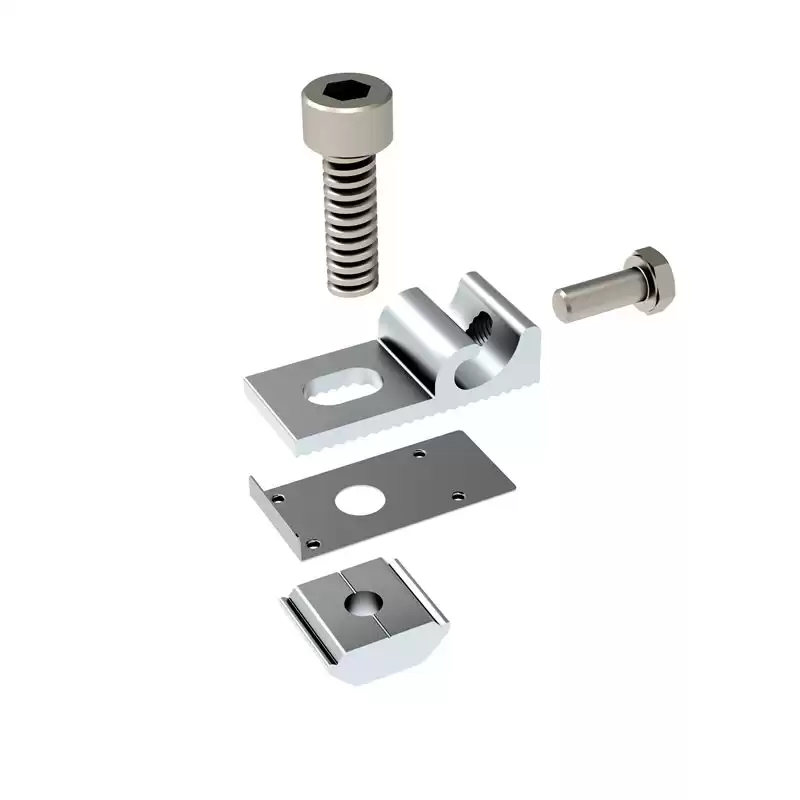

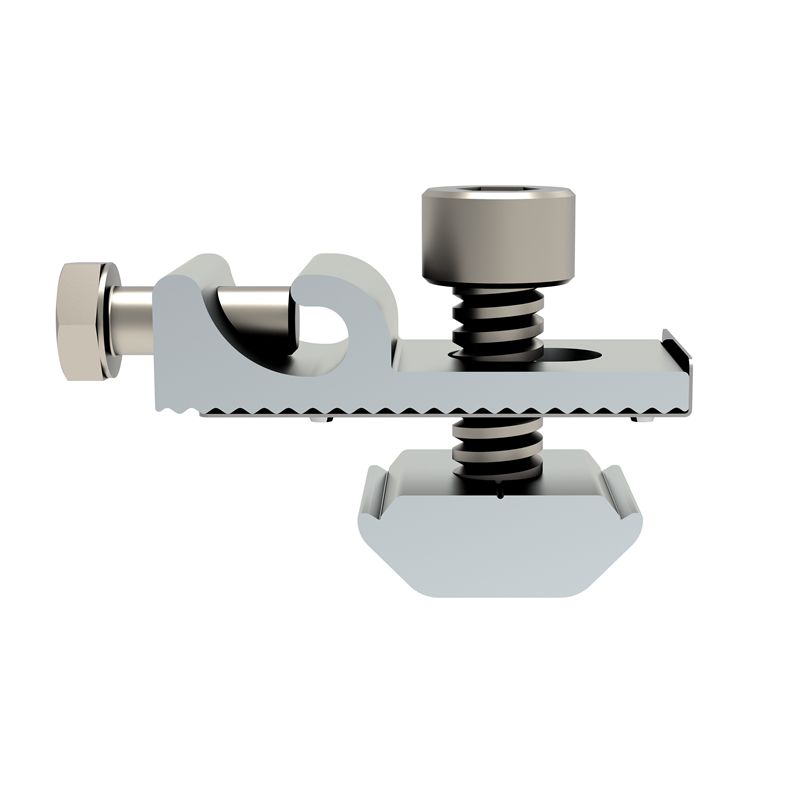

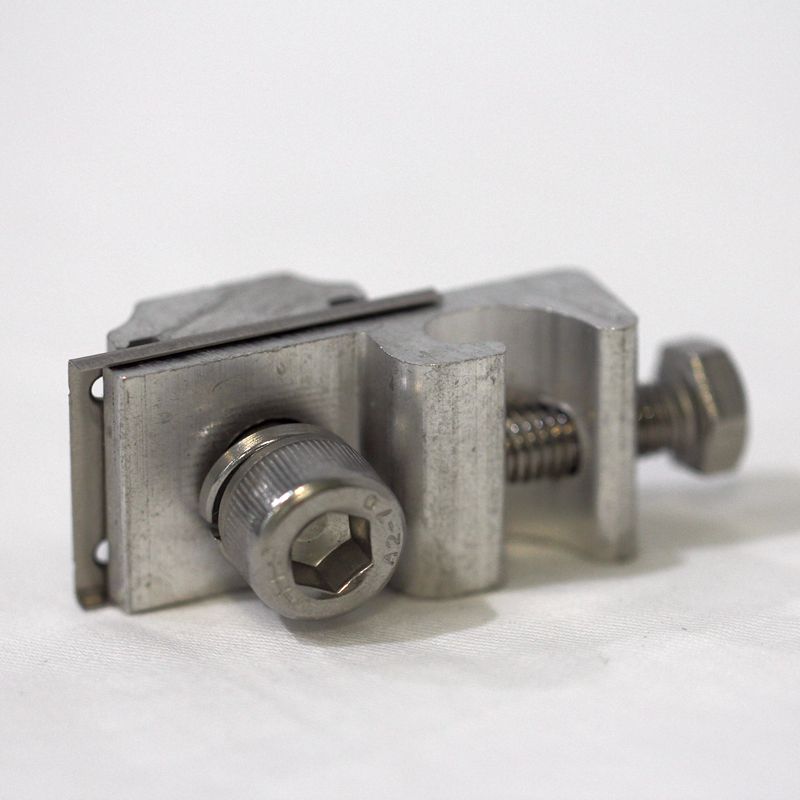

Product Name: Solar Panel Grounding Lugs Conductive Clamp

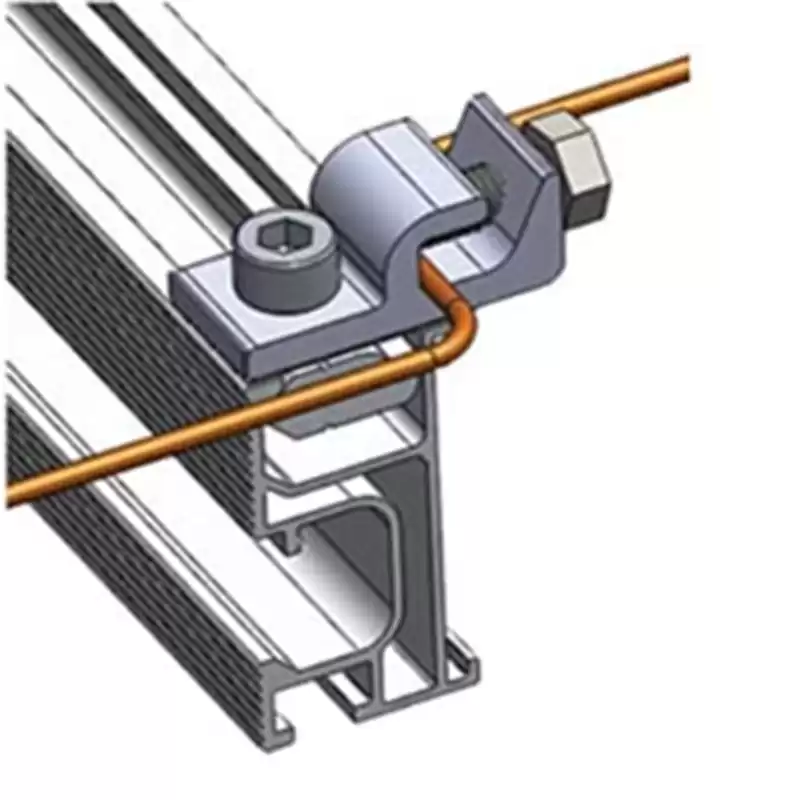

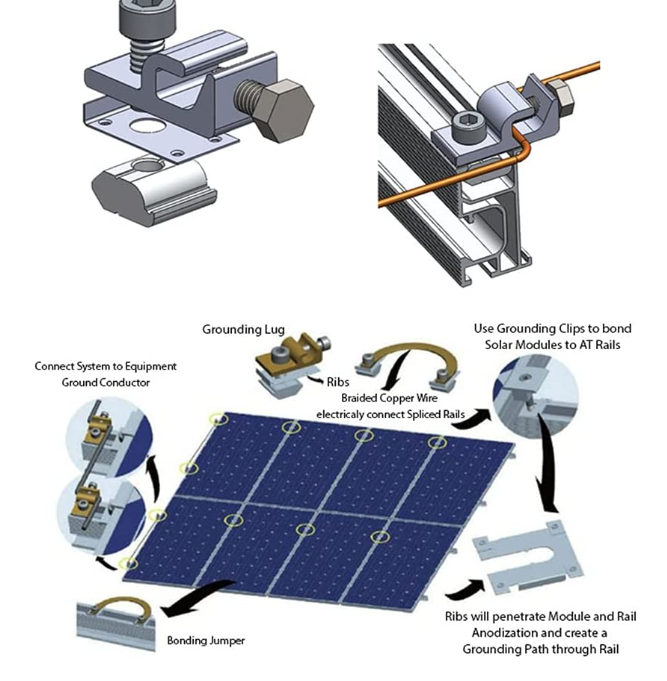

Our Solar Panel Grounding Lugs Conductive Clamp eliminates the need for older, more costly grounding methods and greatly reduce the amount of labor and materials used in installations. The innovative design removes the need to run ground wire to each individual module and eliminates the need for surface preparation on anodized aluminum components. The grounding lugs are placed between PV modules and mounting rails at clamping points when install the grounding clips' special teeth embed into anodized aluminum rail.
The system is suitable for almost all border solar panels on the market,and is matched with common photovoltaic roof bracket aluminum rails, ground bracket aluminum rails, C-section steel (U-shaped steel) rails and photovoltaic sheds rails.
1.Easy installation.
2.Great flexibility.
3.High accuracy.
4.Maximum Lifespan: 25 years or ever more
5.Guaranteed Durability: 10 years
XHF-GL-01
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000 pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
