Solar panel mount for trapezoidal metal sheet

SIC aluminum short rail can be used on trapezoidal sheet metal roof, using short rail can help customers to save more cost.


  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • Warranty10 years and 25 years service time
  • MaterialAL6005-T5
  • ColorNature
  • Installation SiteRoof

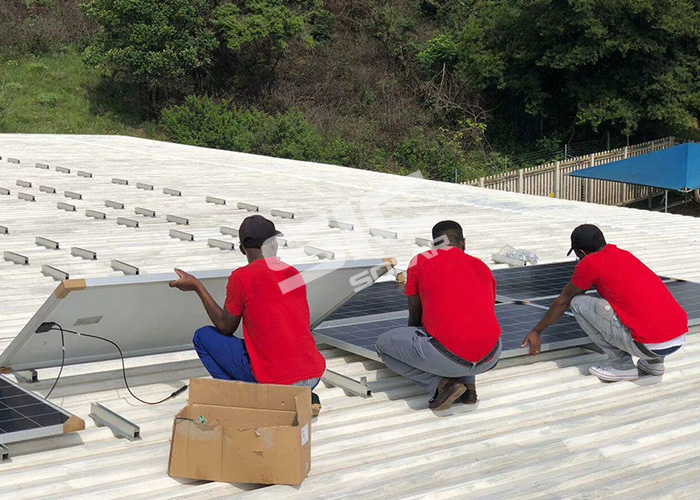

Metal roof solar racking systems



Metal roof aluminum short rail system can help our customer to save more material cost and installation time. Using Self-tapping screws fix the SIC-TC-15 clamp directly to the trapezoidal sheet.

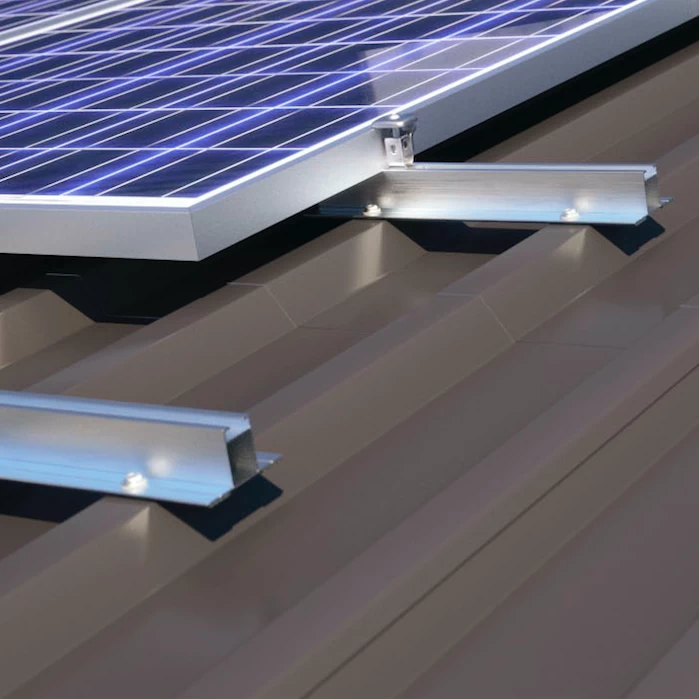

Metal roof solar panel mounting bracket



Category: Pitched roof mounting


Installation Site

Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time

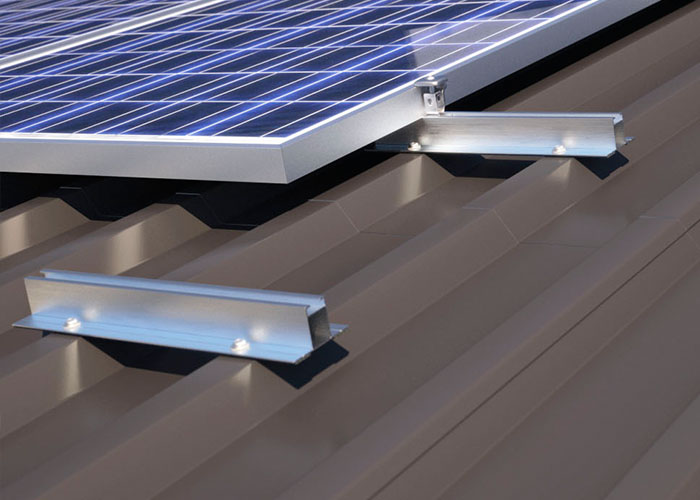

Mini rail solar racking system for metal roof


   short rail solar roof mounting kit



Advantages as follow:

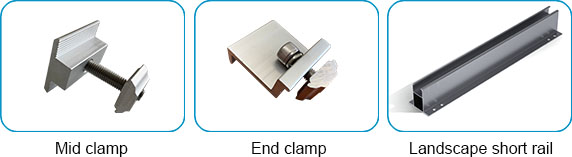

☆ Easy to use - Only 3 components, Save labor cost at the installation site.
☆ Short rail array could be customized according to your roof size.
☆ EPDM rubber can be effective waterproofing.

☆ Best aluminum profile Ensure 10 years warranty and 25 years service time.


Related Certificate

Our SGS Certificate for screw material -- SUS304 Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



package for short rail solar mounting system
