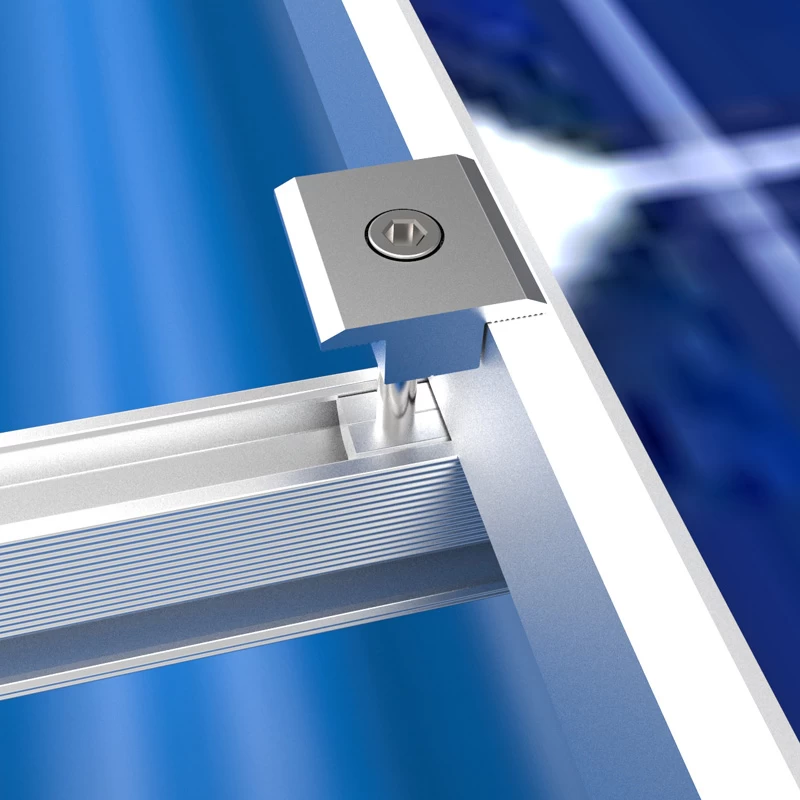

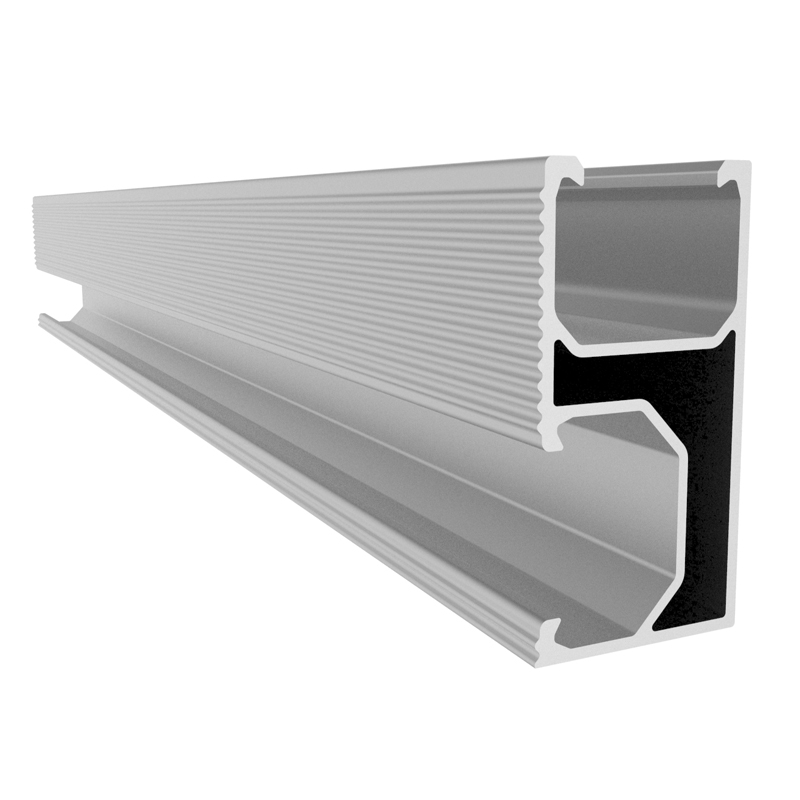

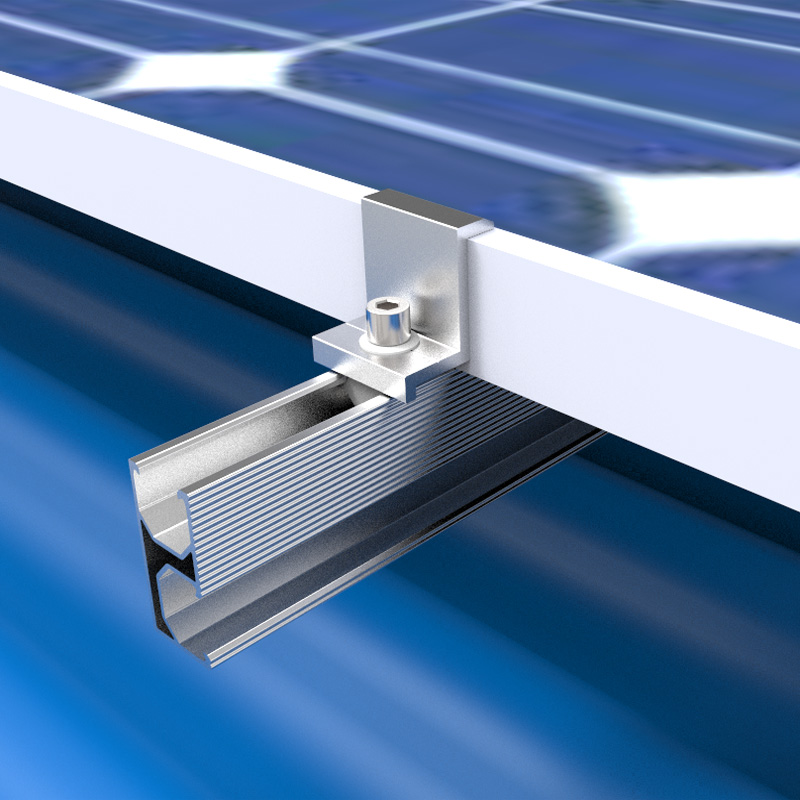

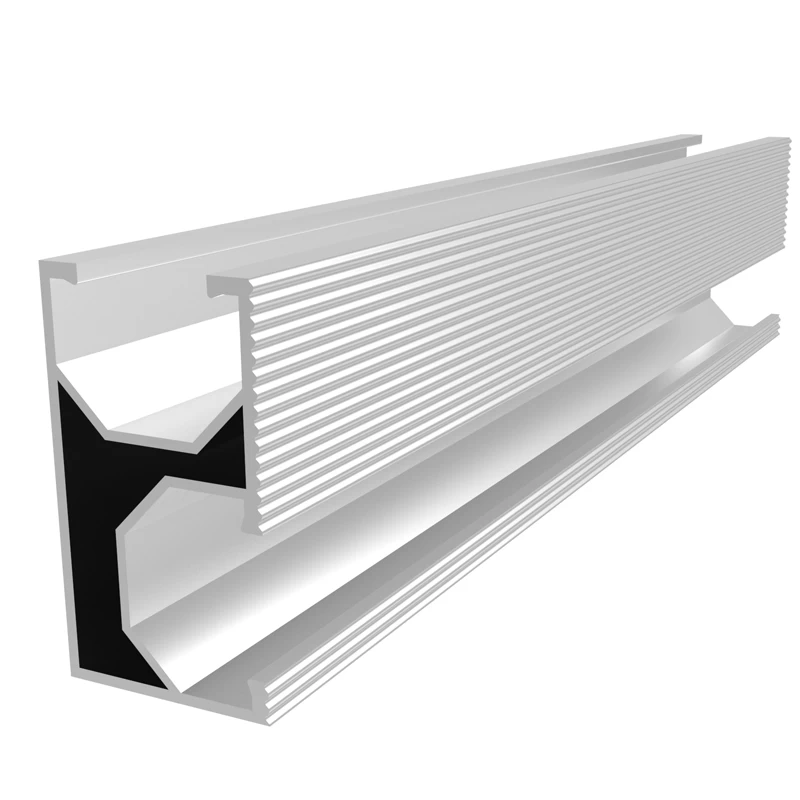

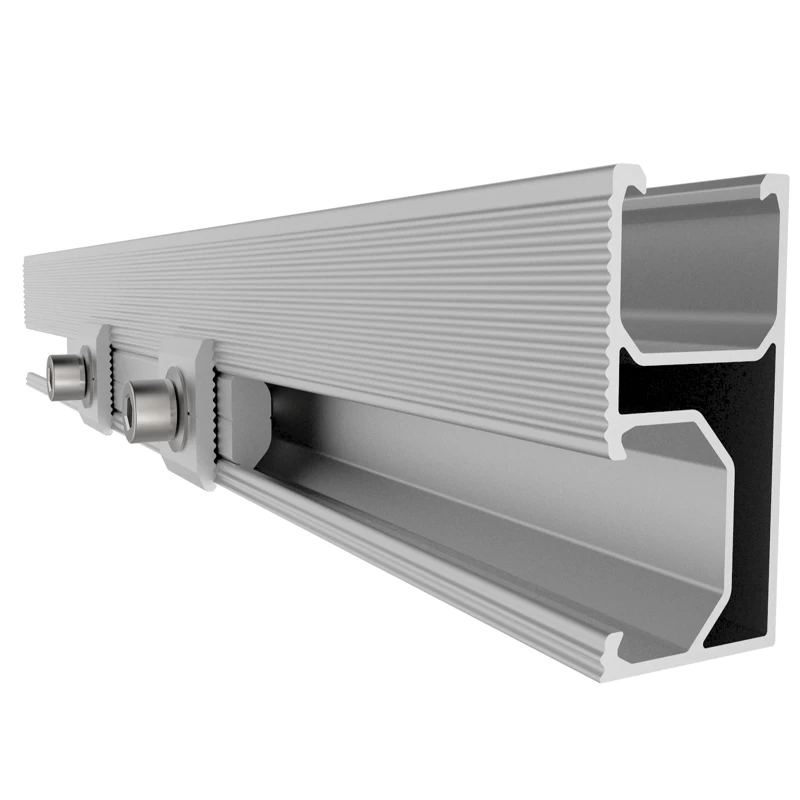

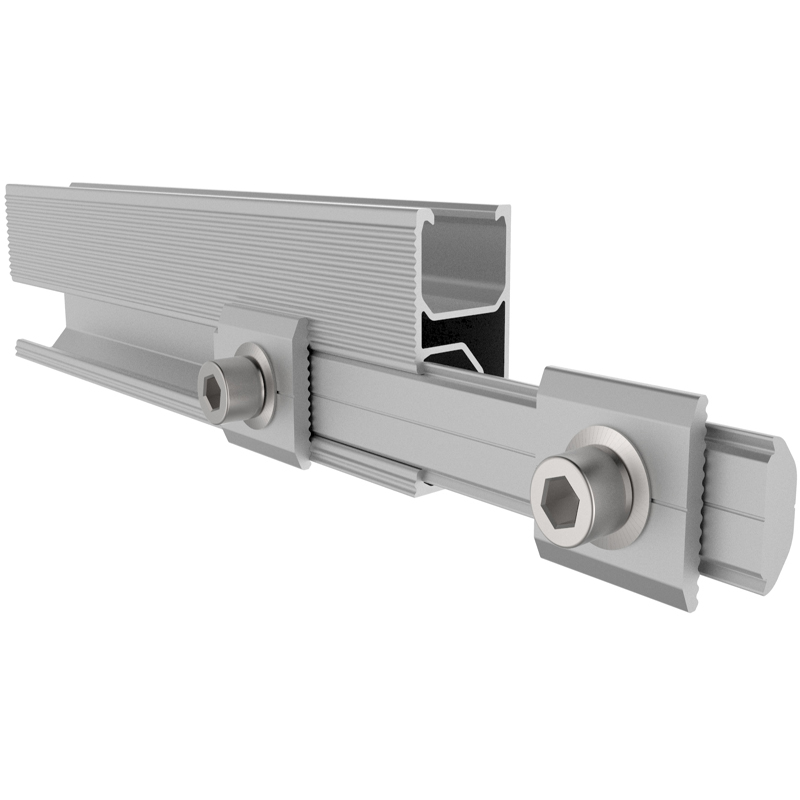

Greatest pv mounting rails is in good quality with cost-effective solar rails price.This kind of rail is very suitable for installation on the roof. It is light in weight and cheap. It can be used on various hooks and fixtures.
Technical Parameters
|
Installation Angle
|
10°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

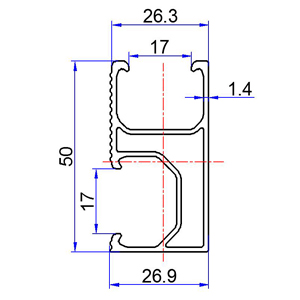

Drawing of component section
Parameter table of section
|
A
|
252.8630
|
Ip
|
87720.0586
|
|
Ix
|
62112.7031
|
Iy
|
25607.3555
|
|
ix
|
15.6728
|
iy
|
10.0633
|
|
Wx(Up)
|
2354.8228
|
Wy(Left)
|
1765.2361
|
|
Wx(Down)
|
2629.3100
|
Wy(Right)
|
2066.1885
|
|
Area moment around
the X-axis
|
1685.3946
|
Area moment around
the Y-axis
|
1156.8796
|
|
Distance from the center of
the shape to the left edge
|
14.5065
|
Distance from the center of
the shape to the right edge
|
12.3935
|
|
Distance from the center of
the shape to the top edge
|
26.3768
|
Distance from the center of
the shape to the lower edge
|
23.6232
|
|
Principal moment I1
|
62585.982
|
Direction of principal
moment 1
|
(0.994,0.112)
|
|
Principal moment I2
|
25134.076
|
Direction of principal
moment 2
|
(-0.112,0.994)
|
