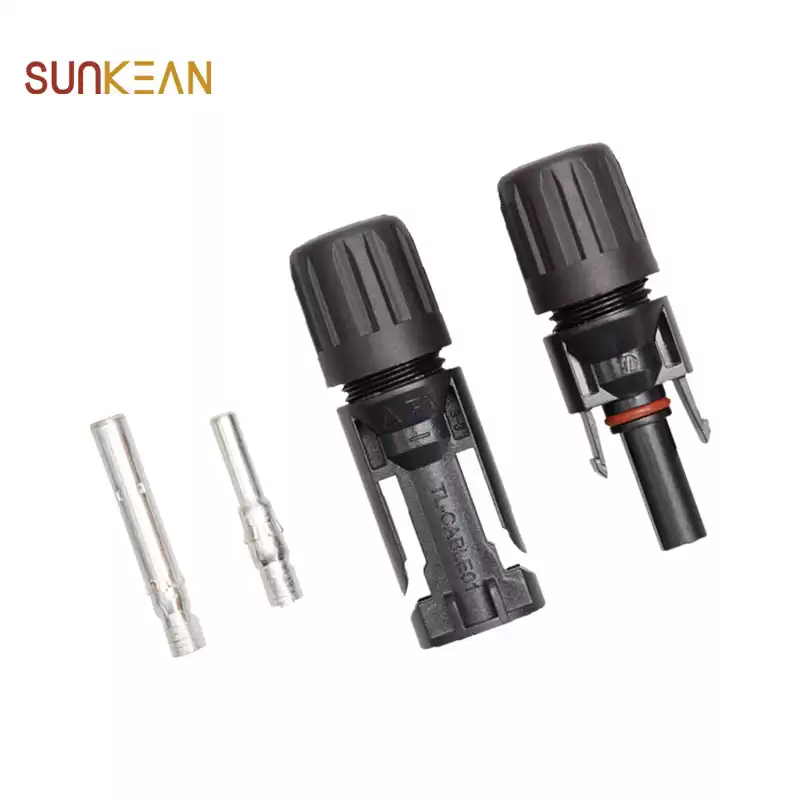

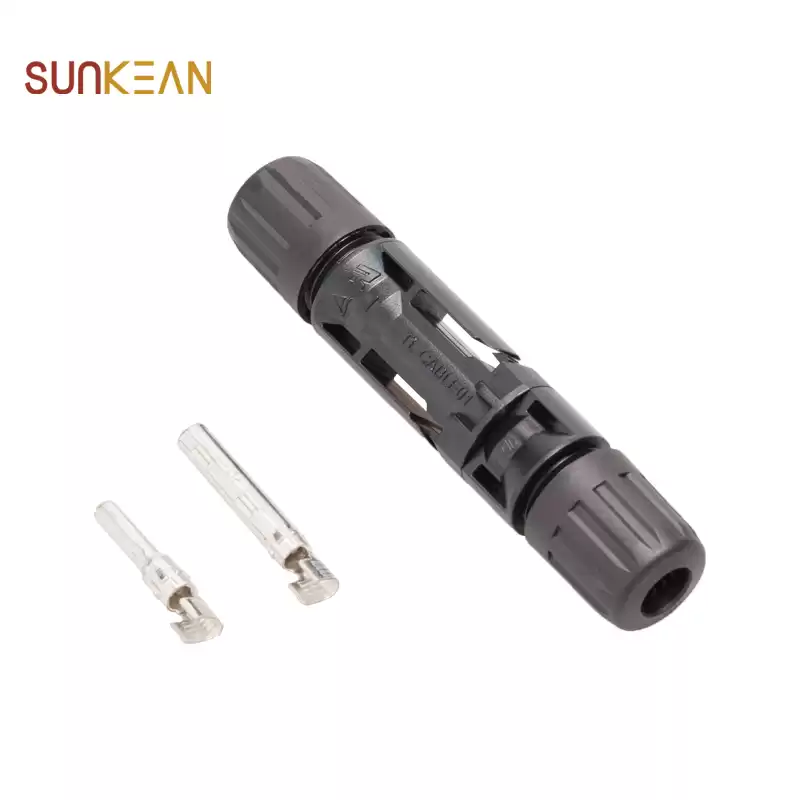

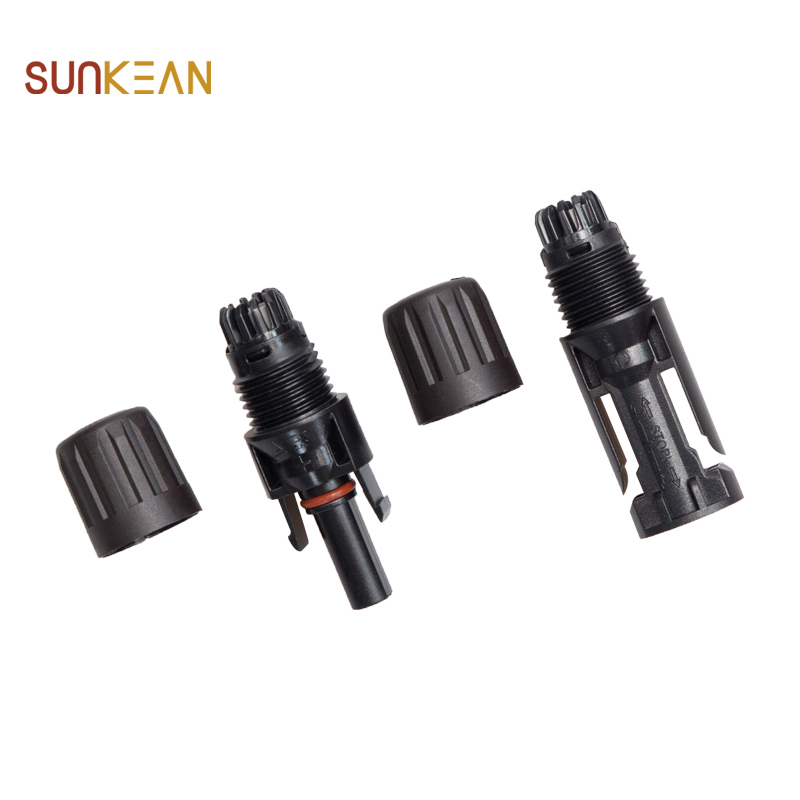

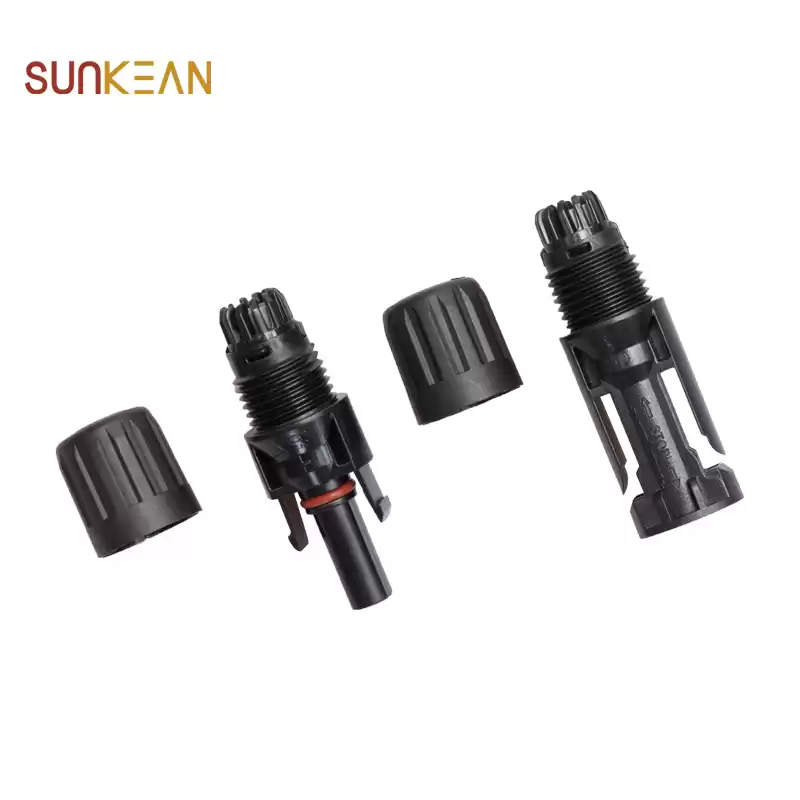

Solar Panel PV Connector DC1000V

Solar Panel connector is a connecting device for connecting solar panel circuits. It can connect various groups of circuits safely and quickly.


  • Ambient Temp -40°C-+85°C
  • Rated CurrentTÜV 30A /UL 20A
  • Rated VoltageTÜV /UL 1000V DC
  • Applicable Cable O.D.5.8±0.2,6.2±0.2,6.6±0.2 6.7±0.2,7.1±0.2

Solar Panel PV Connector DC1000V

IP68 connector cable is used for the cable connection between solar modules and the extension cable between the module string and the DC/AC inverter, photovoltaic power stations, solar parks, gables and rooftop photovoltaic systems.
Solar PV Connectors is dustproof, waterproof, anti-aging, UV resistant, light and easy to use, easy to install, safe and long-lasting.

Solar extension wire cable


Product Description:

Model No.:

SKE-01

Standard:

IEC 62852 & UL6703D

Rated Voltage

TÜV /UL 1000V DC

Rated Current:

TÜV 30A /UL 20A

Insulation Material:

PC/PA

Contact Resistance:

≤0.5mΏ

Ambient Temp:

 -40°C-+85°C

IP Level:

IP68

Safety Class

Class A

Application:

Solar cable 1*4mm²/12 AWG

Applicable Cable O.D.:

5.8±0.2,6.2±0.2,6.6±0.2

6.7±0.2,7.1±0.2


Product Features:

------Acid & UV resistance surface;

------Integrated  with heat & cold resistance;

------Service life > 25 years;

------TÜV & UL double approval;

------Applicable for harsh environment outside;

------Use male & female self-block, easy to lock & unlock.

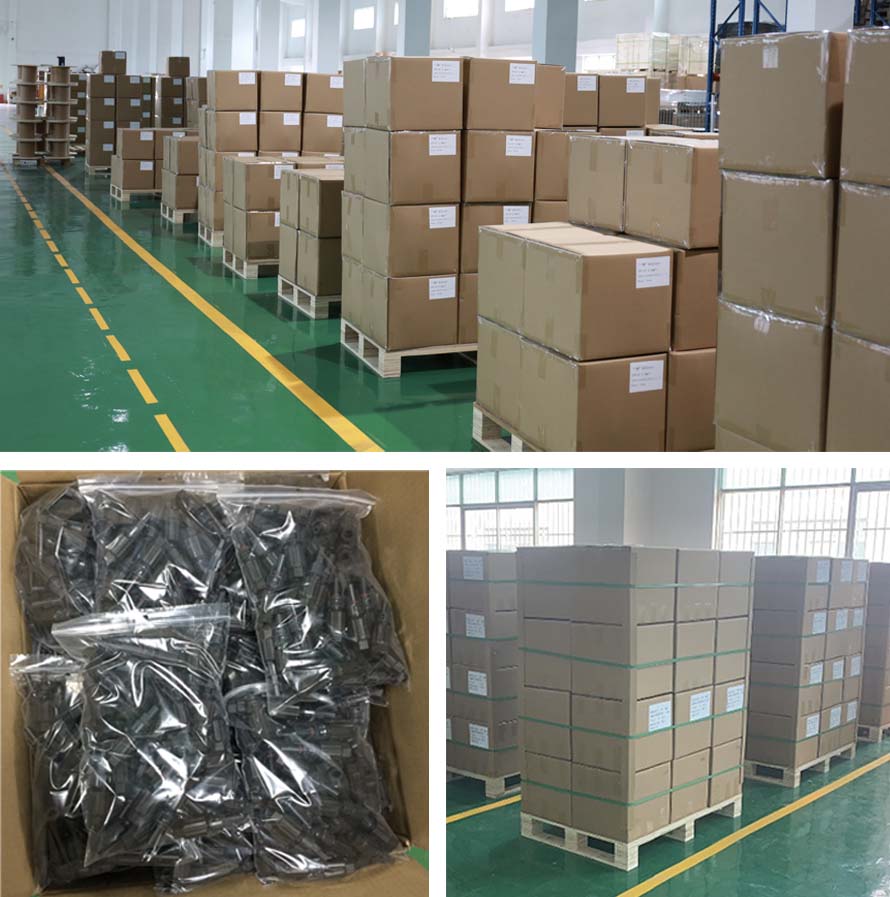

Packing & Delivery:


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, off grid energy systems , PV connectors, solar cell system, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
