We can customize the special fixture according to the shape of the color steel tile roof to ensure that the clamp can be tightly clamped on the color steel tile.This fixture is suitable for diamond-shaped color steel tiles
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Solar panel roof mounting hardware
Feature:

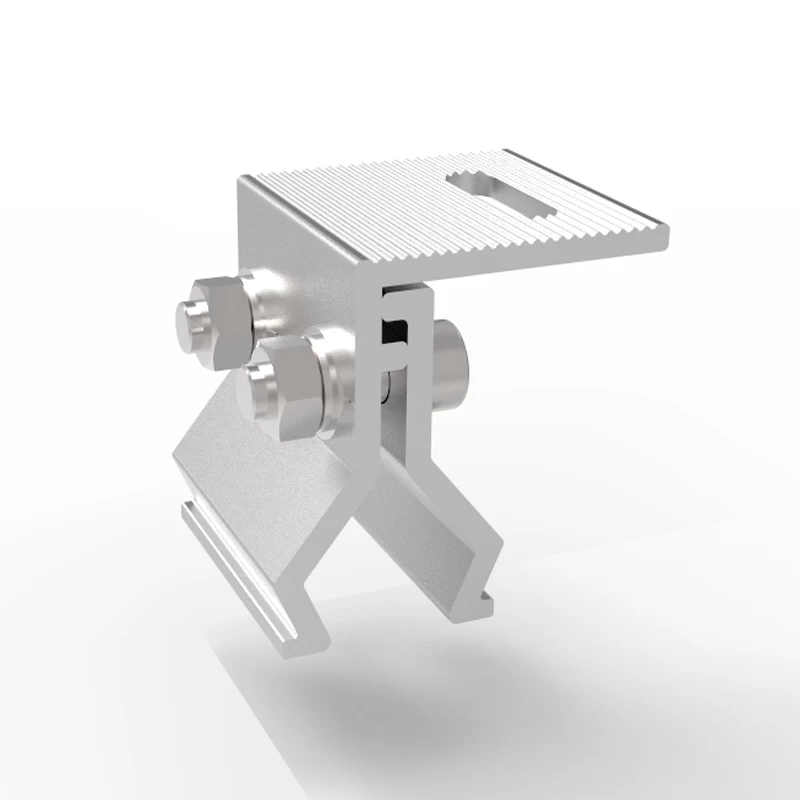

1. Diamond-shaped galvanized roof hook is
suitable for specific diamond-shaped tile;
2. The diamond-shaped galvanized roof hook
the two clamps on the color steel tile by bolts,
so it will not damage the
original color steel tile.
3. Light weight and easy installation
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

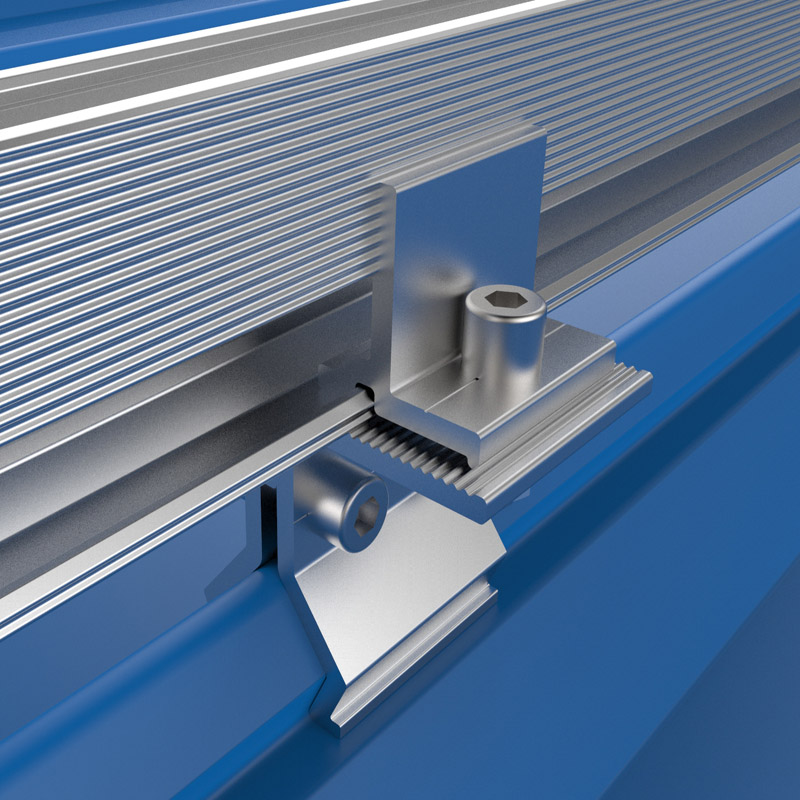

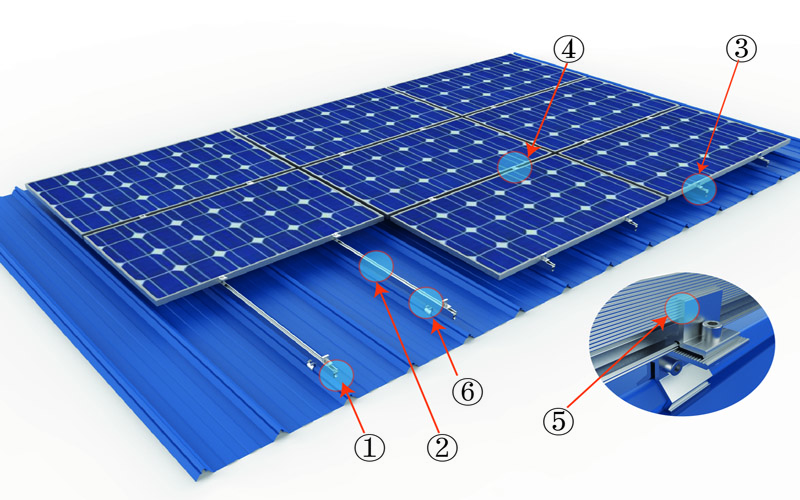

Component photos of solar panel roof mounting hardware
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. Solar rail clamp 6. Diamond-shaped
galvanized roof hook

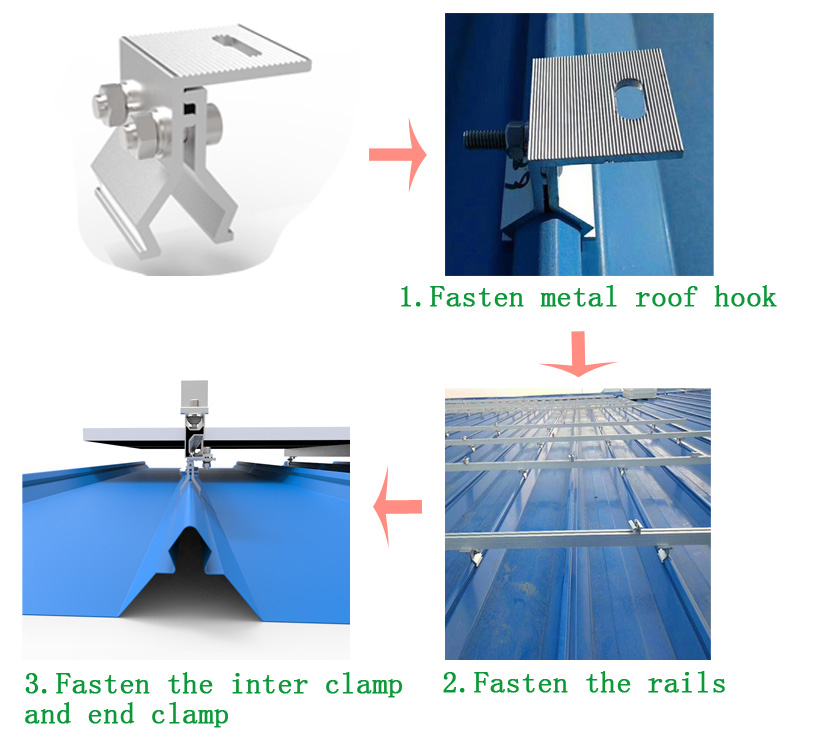

Installation photos of solar panel roof mounting hardware

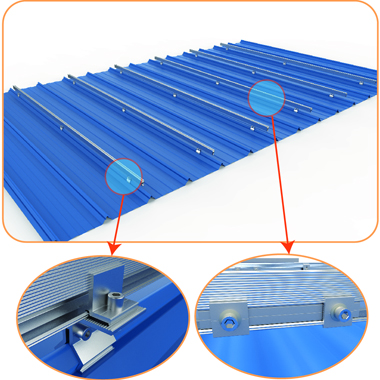

Step1：Install hook according to the drawing Step2：Install roof rails and rail splices

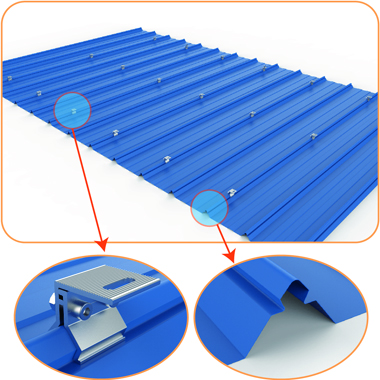

Install galvanized Shape of galvanized roof Rail clamp Rail splice
roof hook

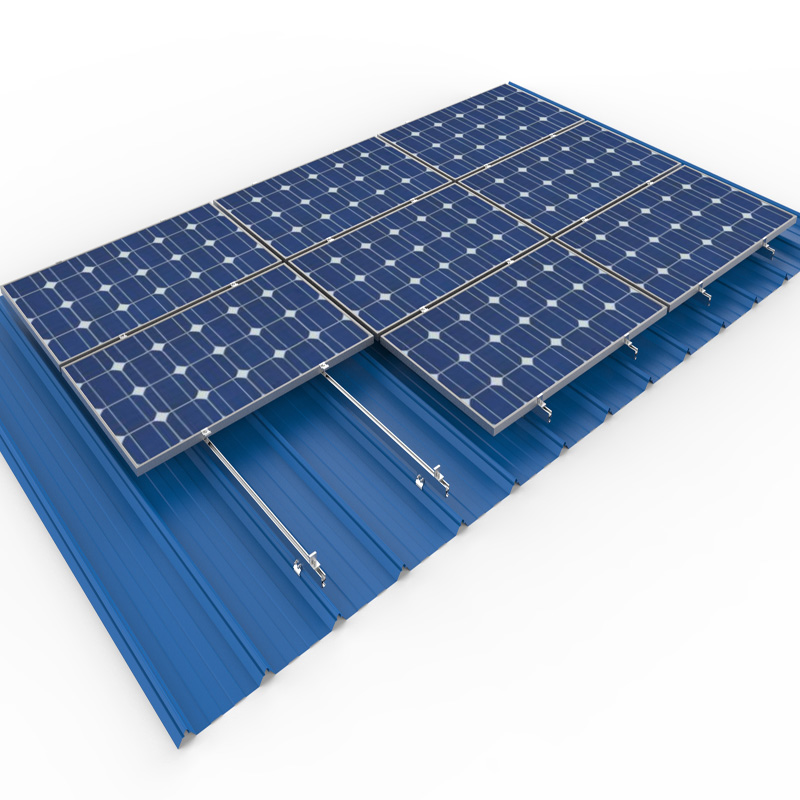

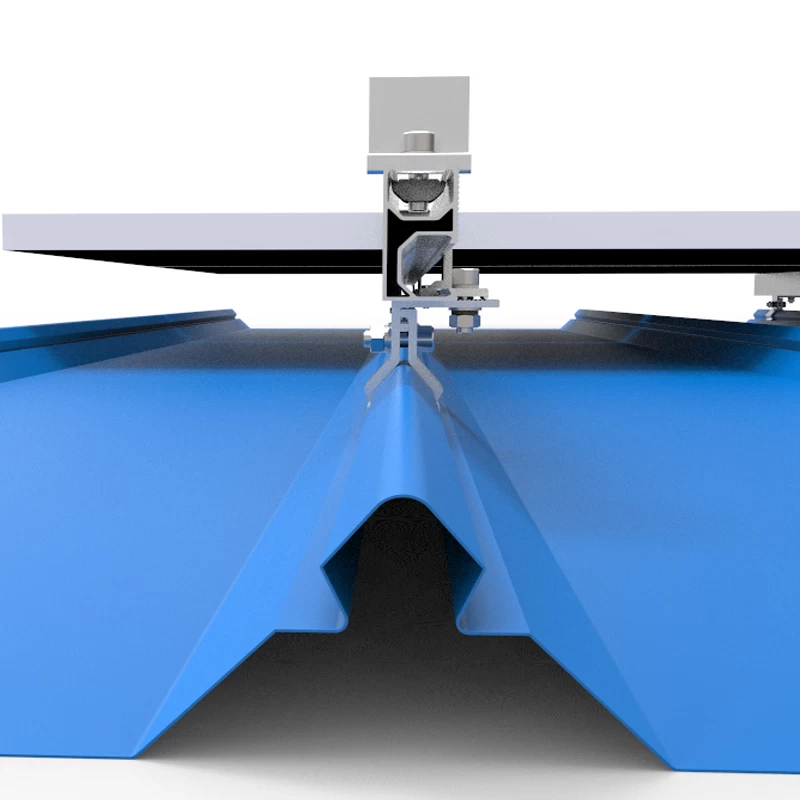

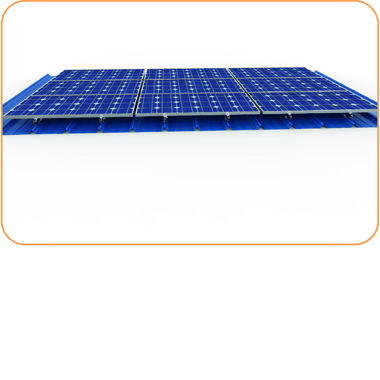

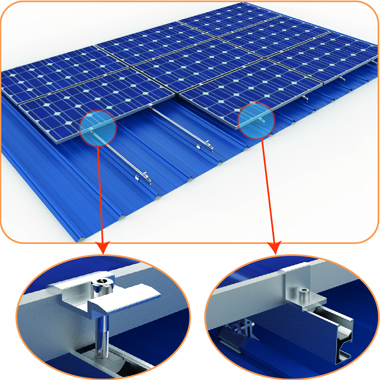

Step3：Fasten panel by inter clamp Step4： Installation completion diagram
and end clamp
Inter clamp End clamp
Component photos-multiple design
Installation steps

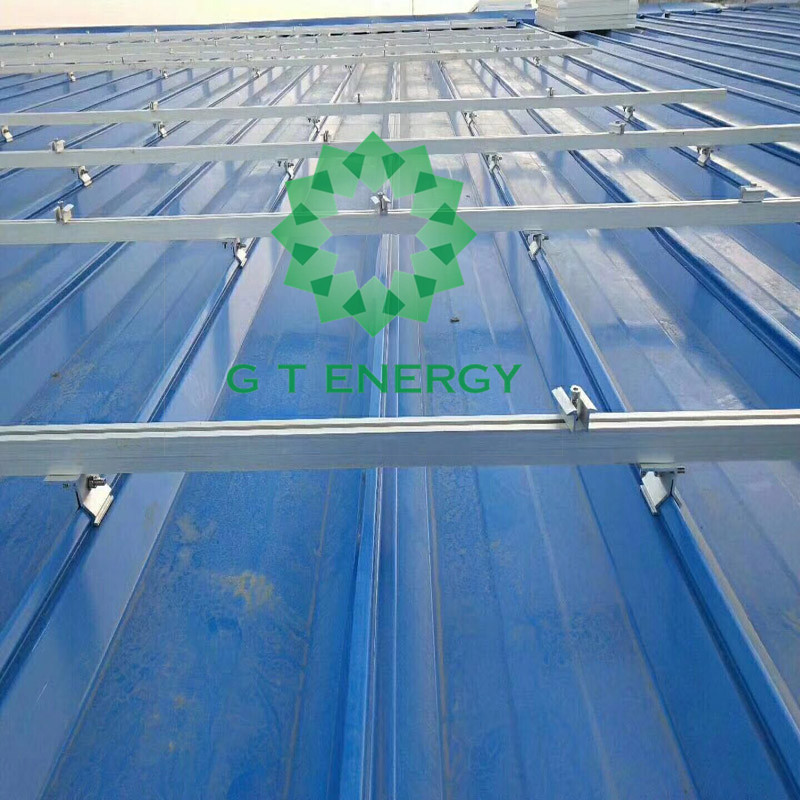

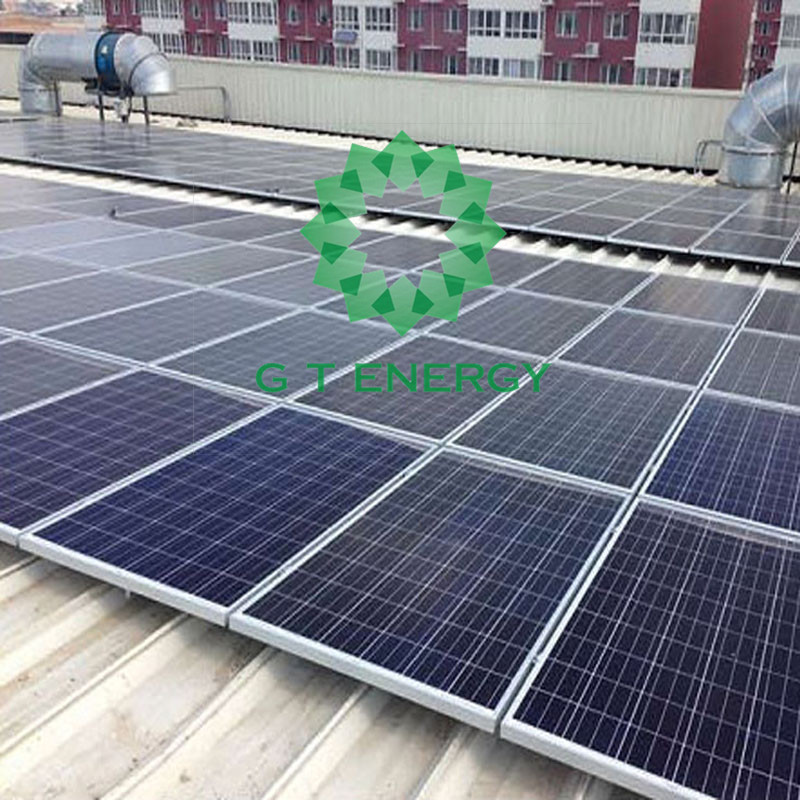

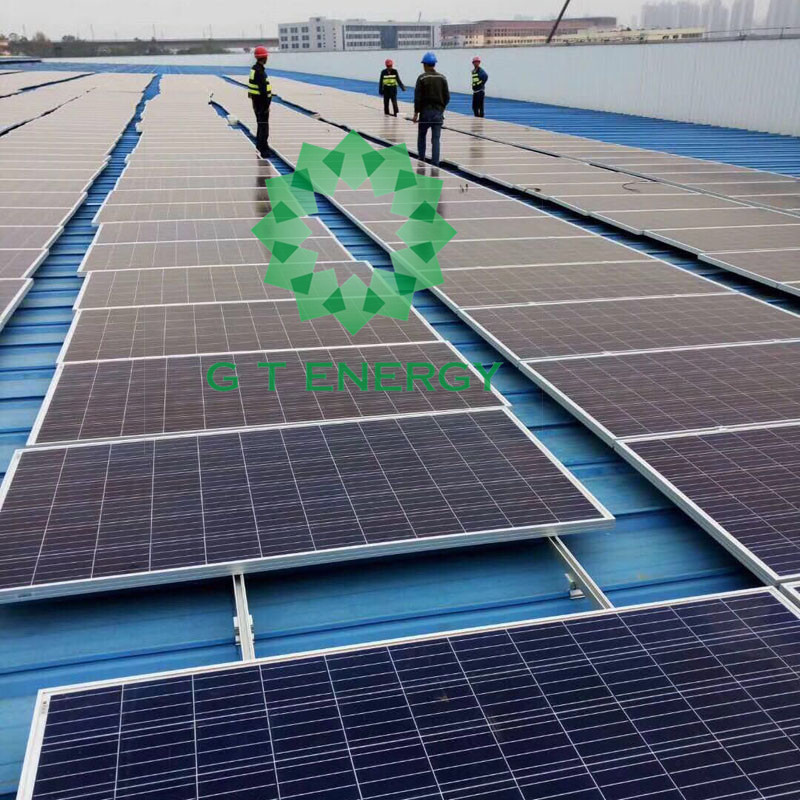

Project photos
