Solar Panel Thin film module Mid clamp

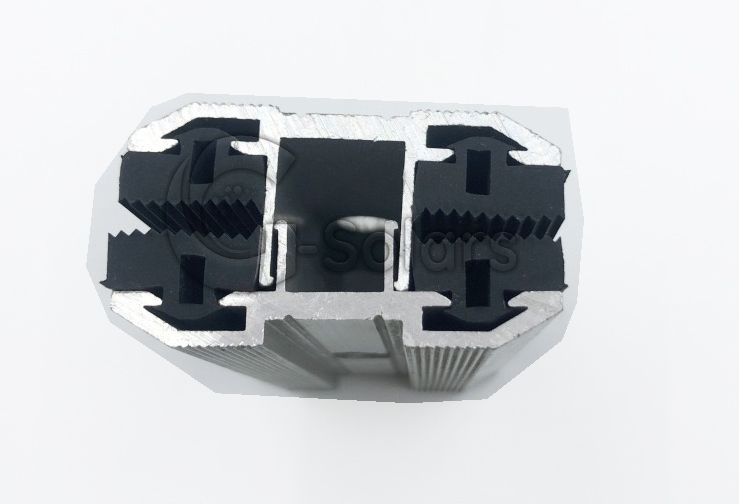

Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well.
The Frameless mid clamp benefits:
1. Thin film modules are generally more flexible and lightweight compared to traditional crystalline silicon modules.Mid clamps provide a secure attachment mechanism for these modules, ensuring they are held firmly in place and protected against movement or displacement due to wind, snow, or other external factors.
2.Mid clamps can be designed to accommodate the specific dimensions of thin film modules, ensuring a proper fit. Manufacturers often provide mid clamps designed explicitly for thin film modules, facilitating easy and convenient installation.
3. Mid clamps can be designed to accommodate various module thicknesses and sizes, making them adaptable to different thin film module models. This versatility allows for the use of a wide range of thin film modules in solar installations while maintaining a consistent clamping mechanism.
Technical Data
| Product Name |

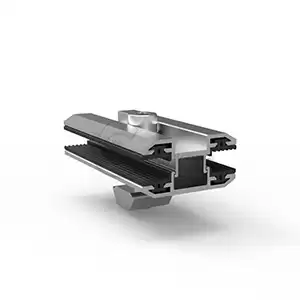

Frameless mid clamp
|
| Material |
Aluminum & Stainless Steel |
| Standard |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Wind Load |
60 m/s |
| Snow Load |
1.4 Kn/m2 |
| Applicable Module |
Framed or Frameless |
| Module Orientation |
Portrait or Landscape |
| Surface Treatment |
Anodized |
| Application |
Thin film Solar Panel |
| Dimensions |
Customized |
| Color |
Natural or Black Anodizing |

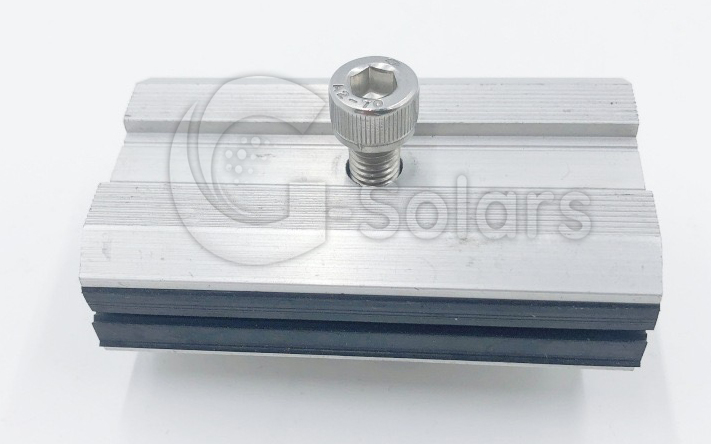

Details

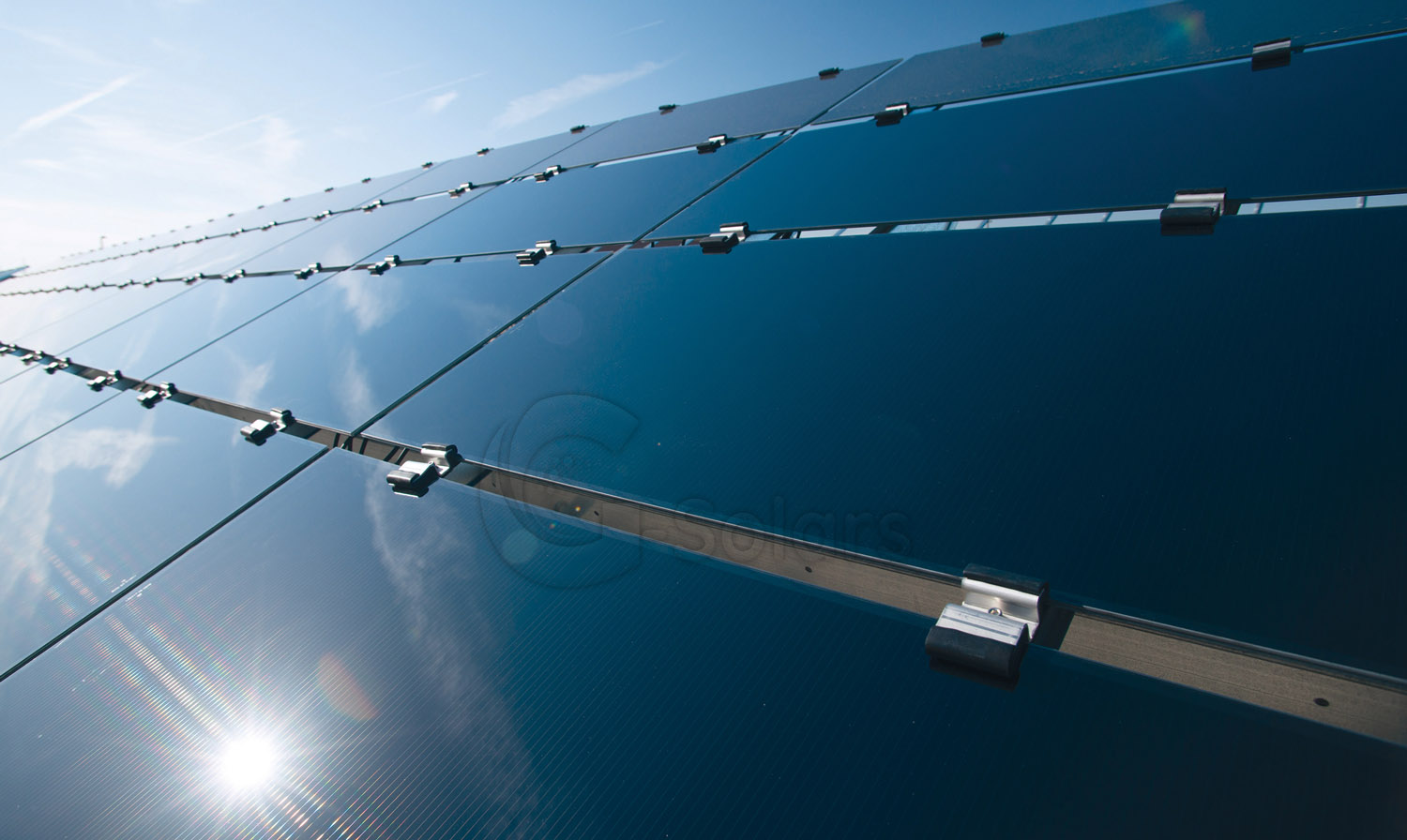

Project Cases
Reasons to choose G-Solars?
1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.
2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.
3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.
4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
