HQ-R-TIN
Brief Introduction for Solar Tin roof mounting system
Installation site: Solar Tin roof system
Material: AL6005-T5& Staninless Steel 304
Wind speed:60m/s
Snow Load:1.4KN/m2
Warranty:12 years warranty,25 years life time
Specification:Customized
Standard:JIS C8955:2011 and AS/NZS 1170

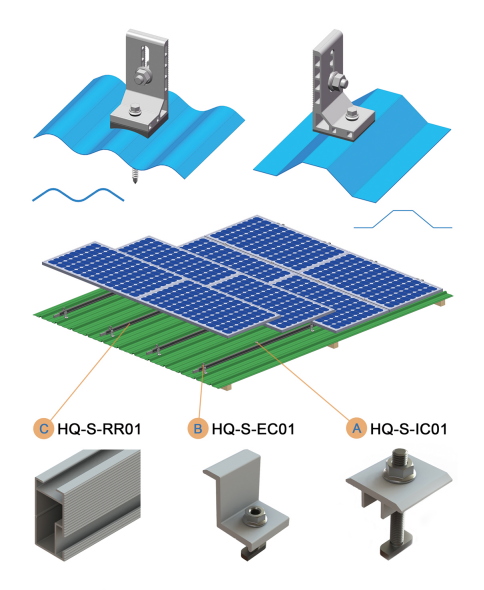

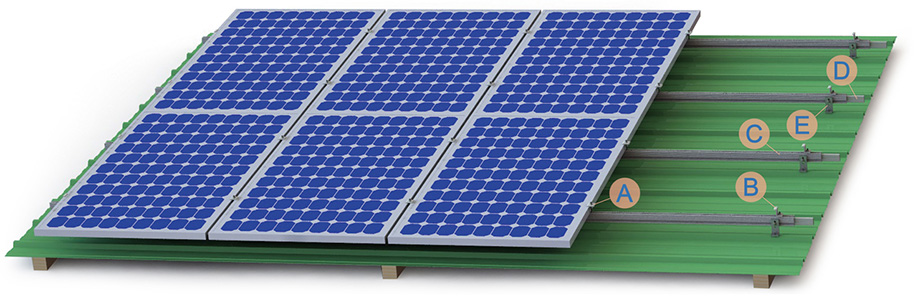

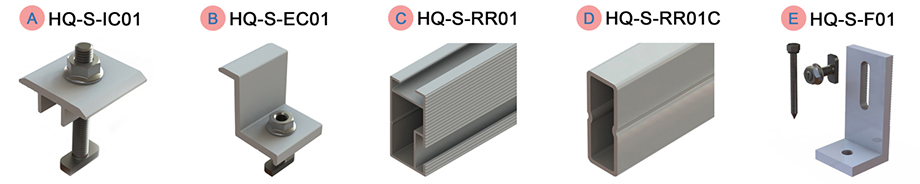

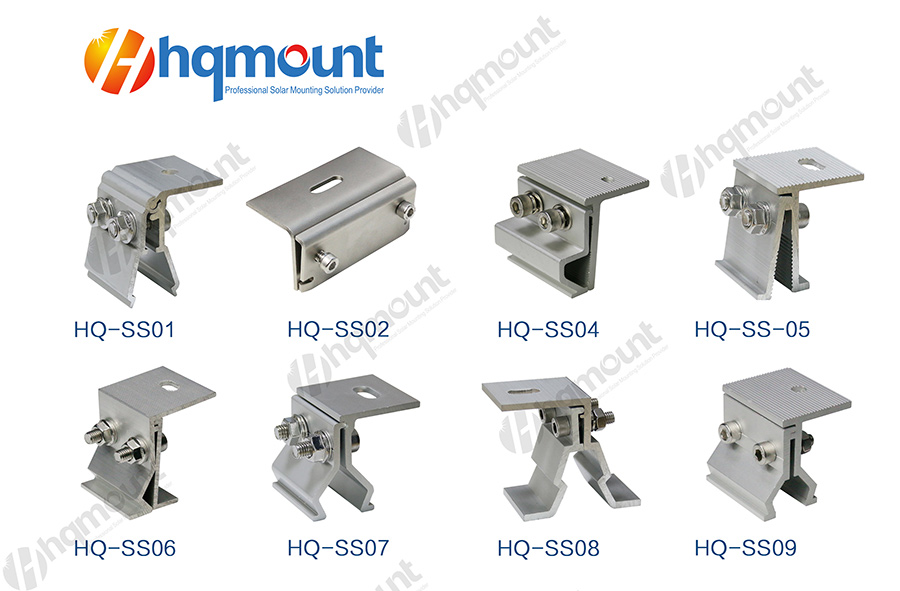

Components Parts
Which tin roof you need?
1. Trapezoidal Roof sheet

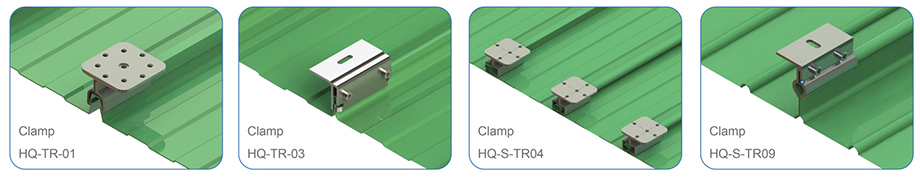

2. Clamping roof sheet
3. bend (doom) roof sheet
It is suggested to discuss with us case by case.

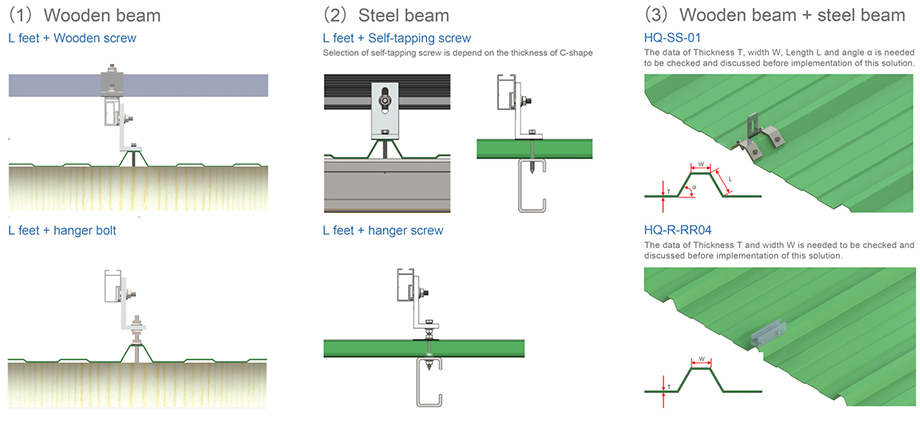

4. Solar L feet solution
Solar L Feet designs with great flexibility
both for commercial and residential tin
roof solar system. Patented and Innovative rail design, standard components
and highly pre-assembled clamp, all the above make the installation simple and
save your time and cost.
Advantages:
1.High wind resistance
2.Reduce roof pressure
3.10mm groove, no need to separate the bolt and nut, save
your installation time.
4. Triangle is the most stable structure

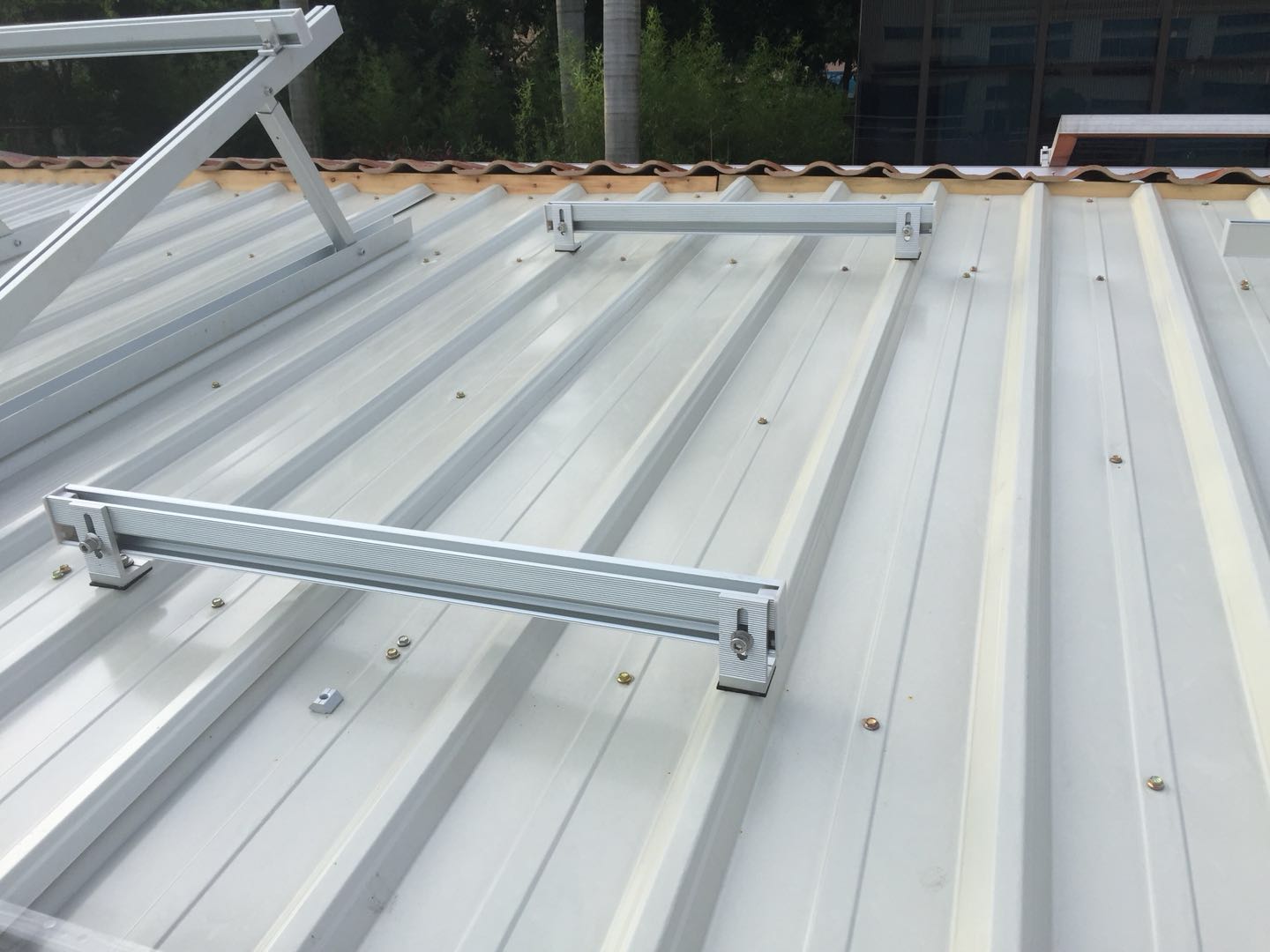

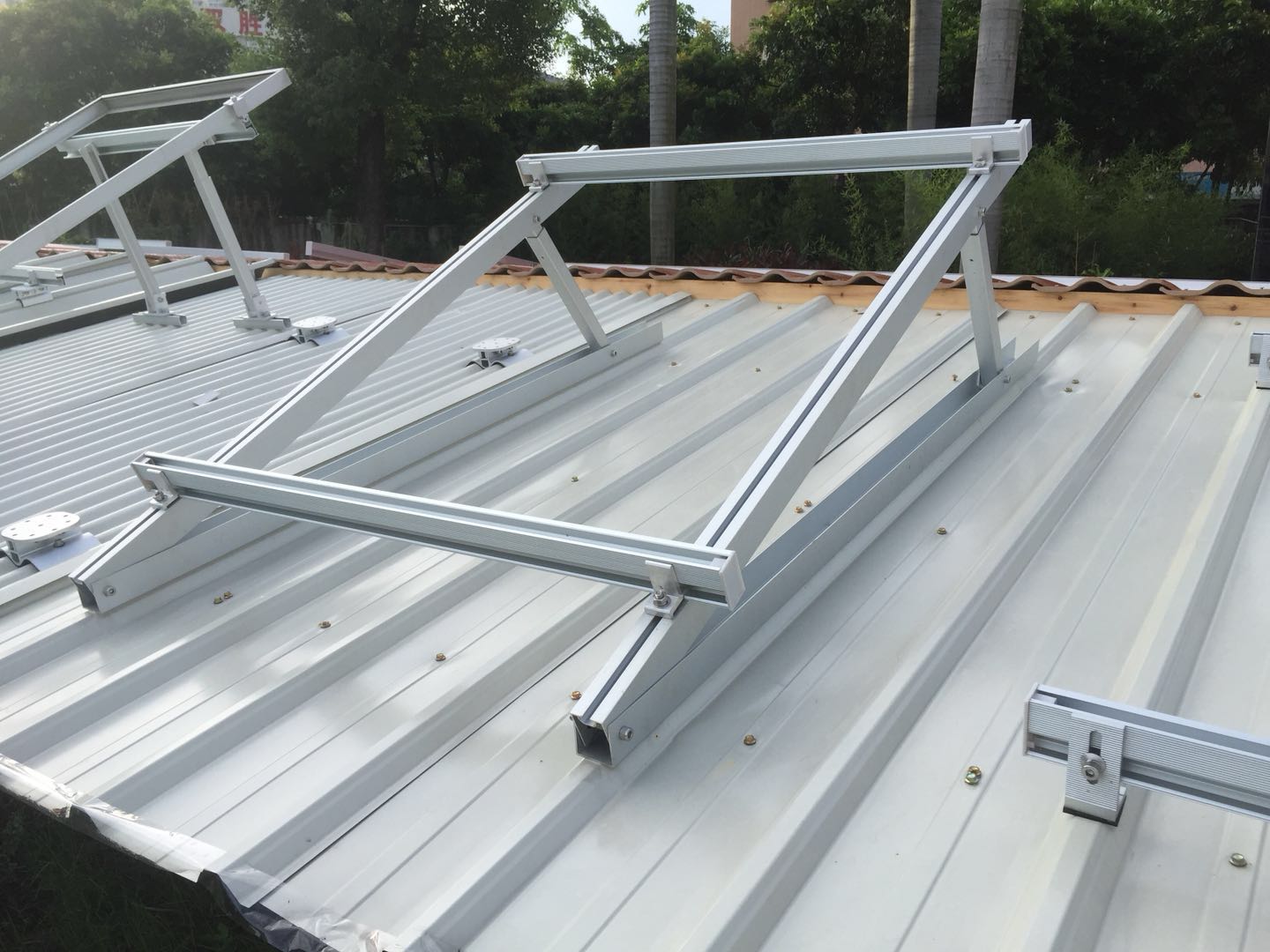

5.Project show
