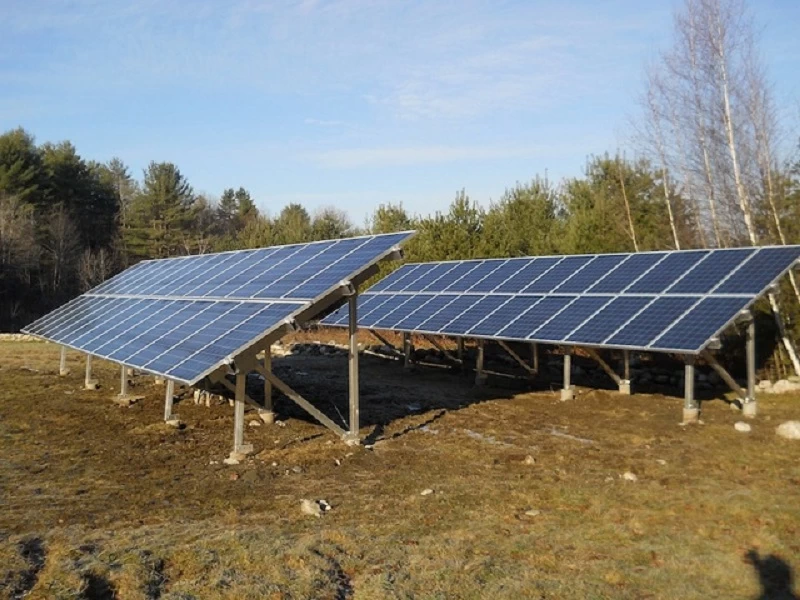

Solar Power System Ground Mount Kit

Highly pre-assembled support for Solar Power System Ground Mount Kit helps to save your labor cost and shorten the installation time.


  • HS Code76109000
  • Panel TypeFramed & Frameless
  • FoundationConcrete base & Ground Screw
  • Tilt Angle0°~60°
  • Installation SiteGround

Solar Power System Ground Mount Kit

Highly pre-assembled support for Solar Power System Ground Mount Kit helps to save your labor cost and shorten the installation time.


Ground Mount Solar




Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
  1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty







solar plant structure design


System Overview


concrete base solar bracket






Highly pre-assembled before shipment, save your onsite labor cost



Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain


15 years' warranty, 25 years' life span
