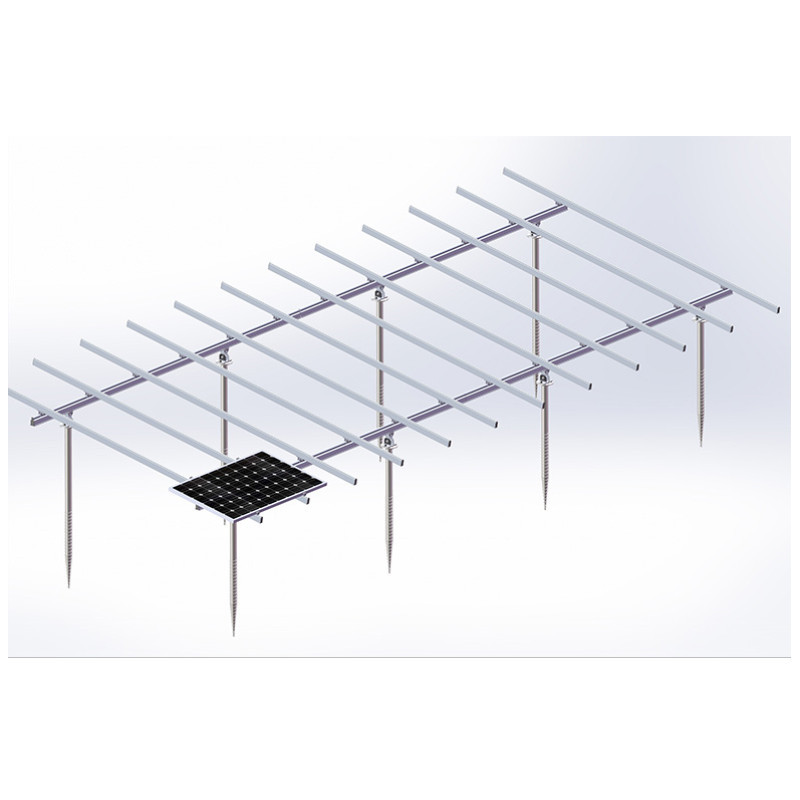

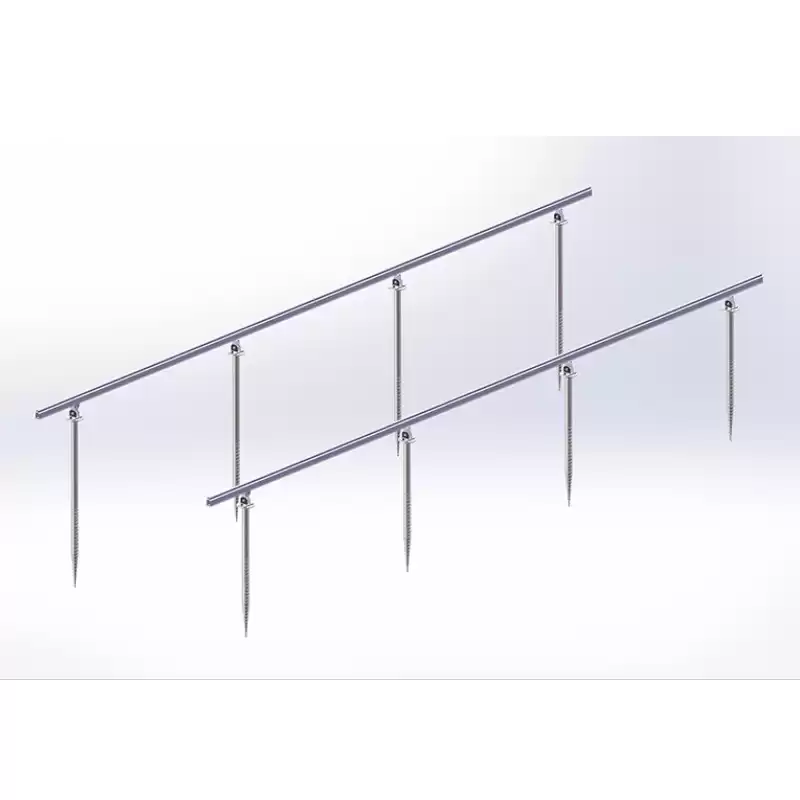

Why we promote Solar PV-Terrain Racking System G Type Solution?

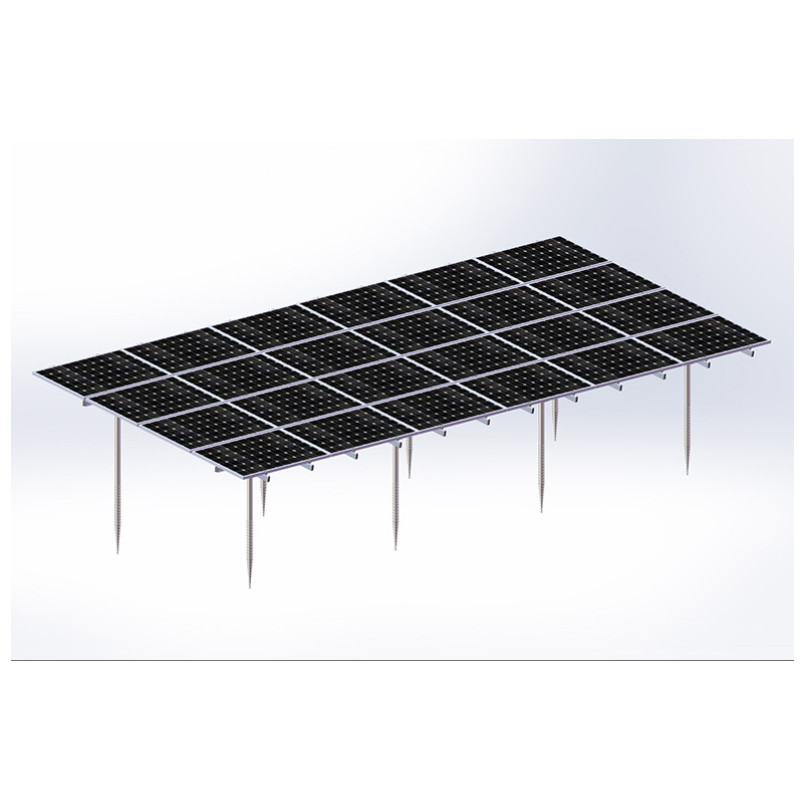

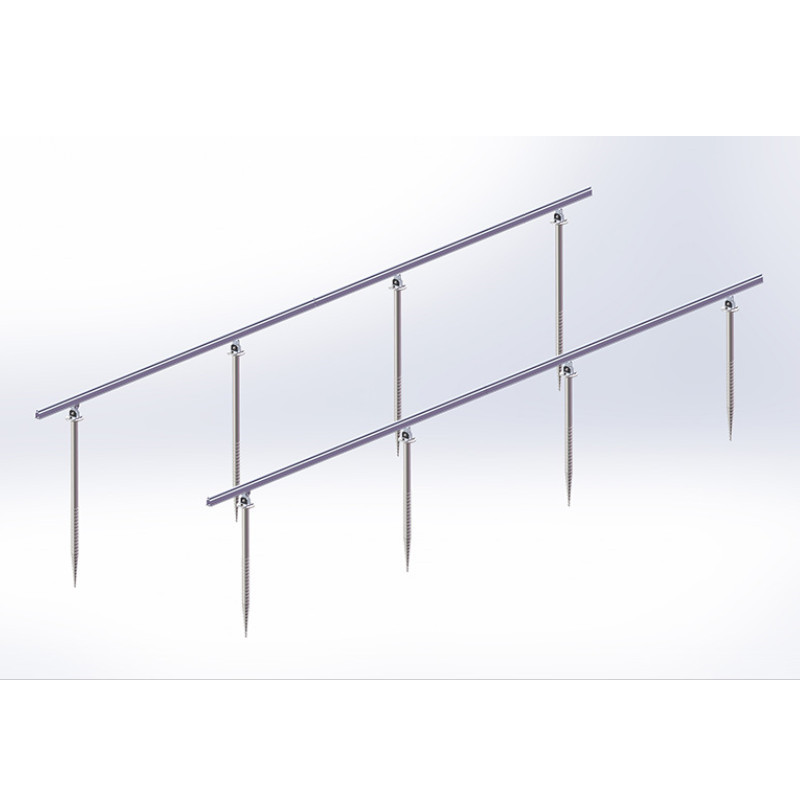

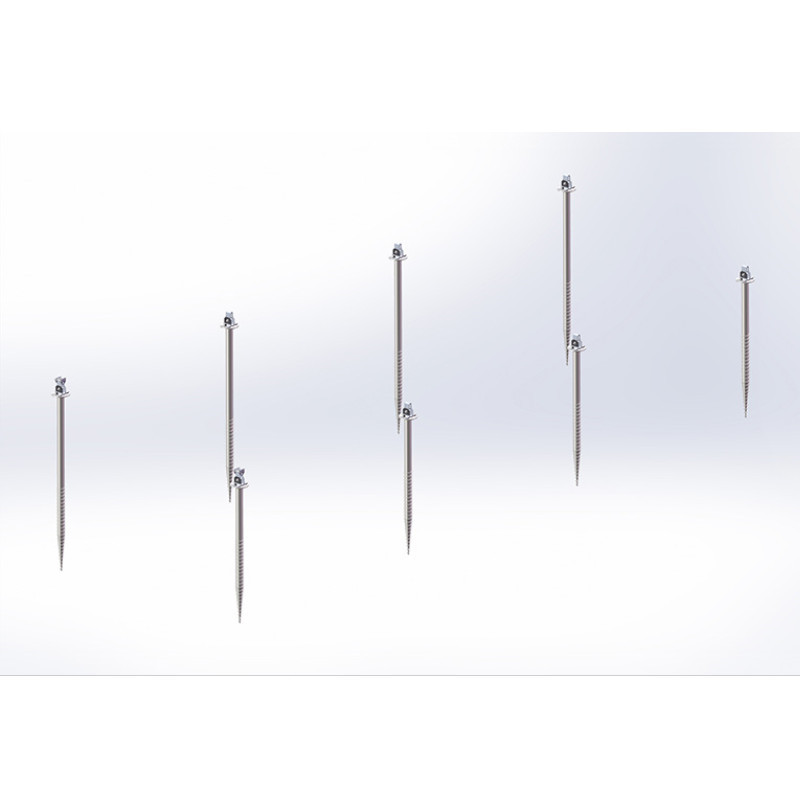

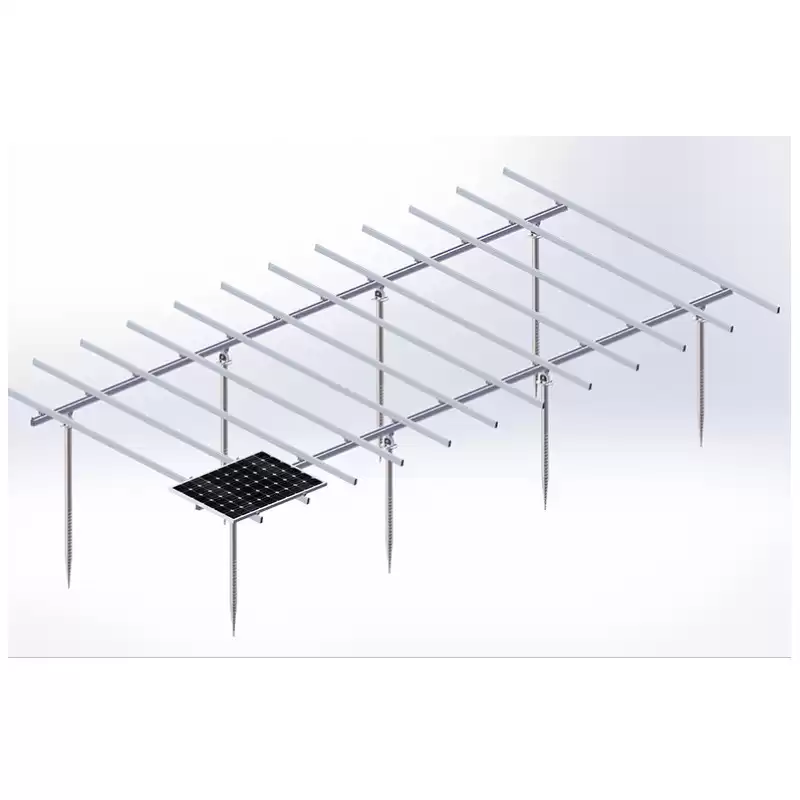

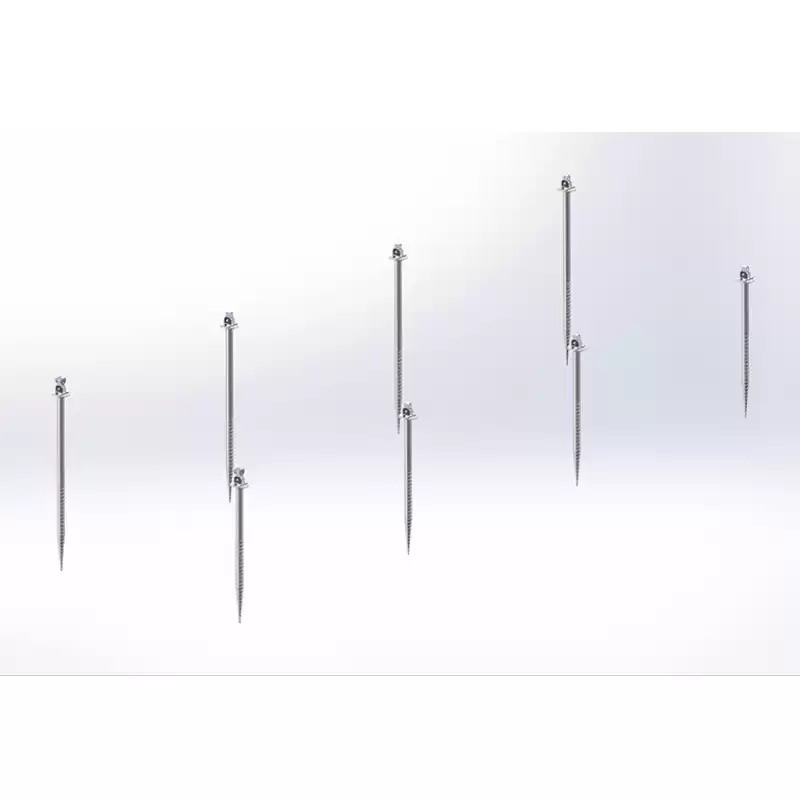

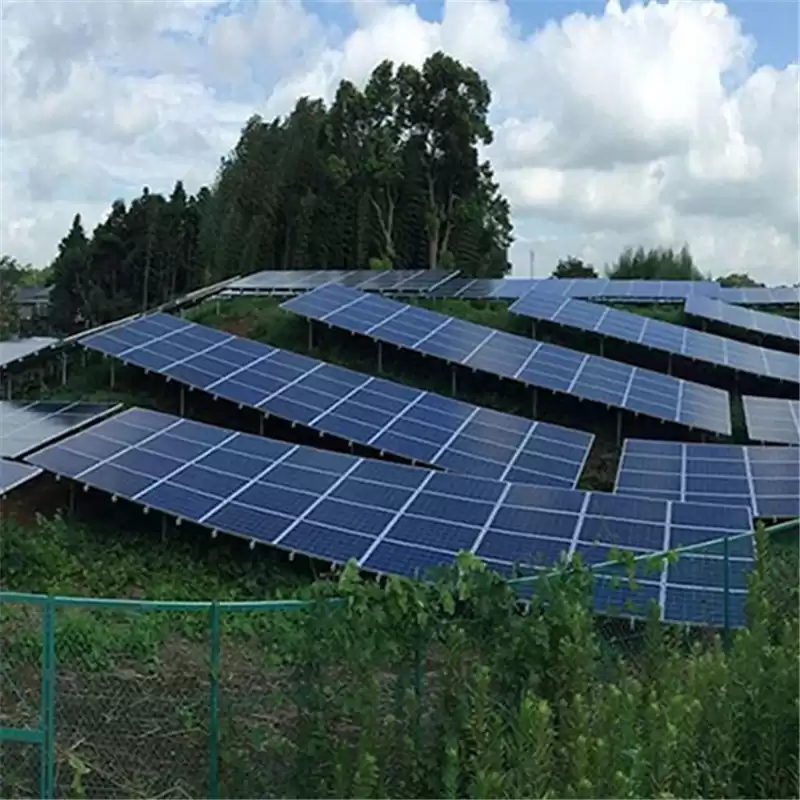

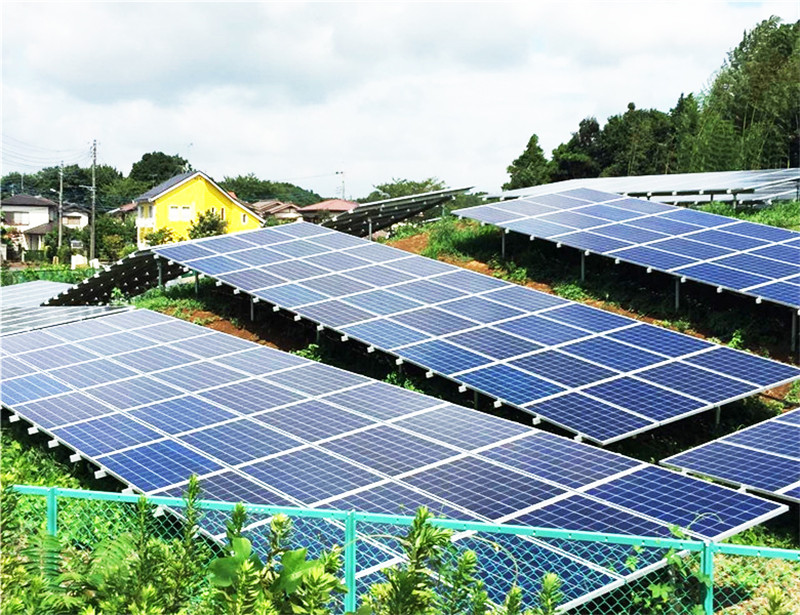

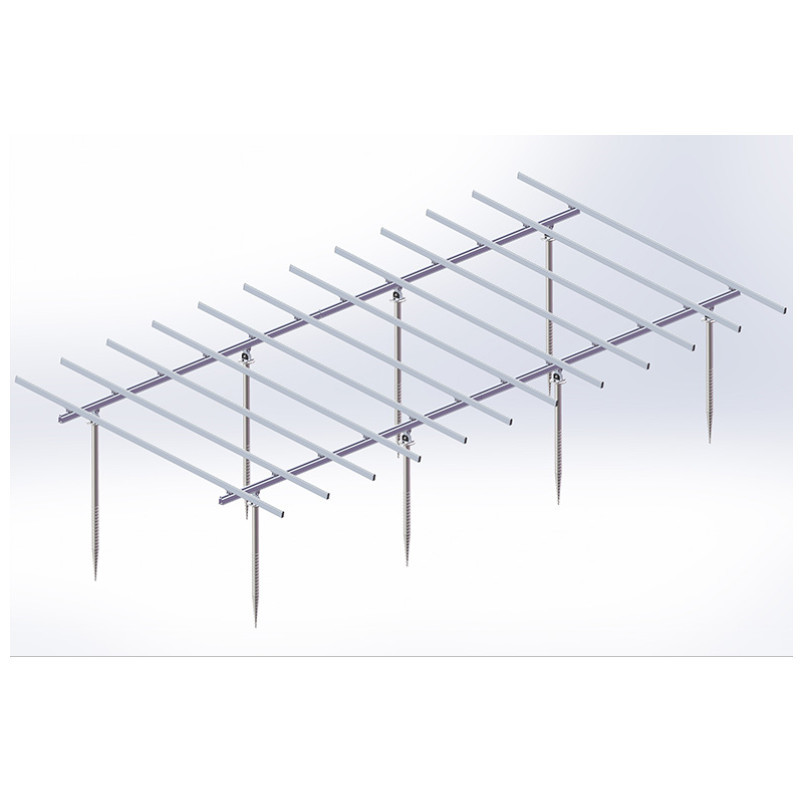

With the massive development of solar industry, the competition is more and more stiff. You should be more competitive. SOEASY Solar PV Ground Mount is specially designed for large scale ground solar PV projects, and SOLAR PV-TERRAIN RACKING SYSTEM G TYPE SOLUTION is developed for mountain area where you do not need to flat
the ground, which can save the cost for flat the ground but only using our patented special design in this solution. With
its patent design and simplified structure, it can achieve the adjustment in EAST & WEST and SOUTH & NORTH.
Benefits:
1. West & east adjustable and north & south adjustable
2. Withstand high wind storm and snow load
3. SGS certificate and JIS design standard
4. 10 years warranty and 25 years life span
Material
|
AL 6005-T5/SUS304
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 10μm Average
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral Seismic Factor: Kp=1; Seismic Coefficient: Z=1; Use Coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
|
AS/NZS 1170
|
DIN1055
|
ASCE/SEI 7-05
|
International Building Code: IBC 2009
|
Warranty
|
10 Years Quality Warranty, 25 Years Life Span Warranty
|
